The World's Smallest FPV Data Logger

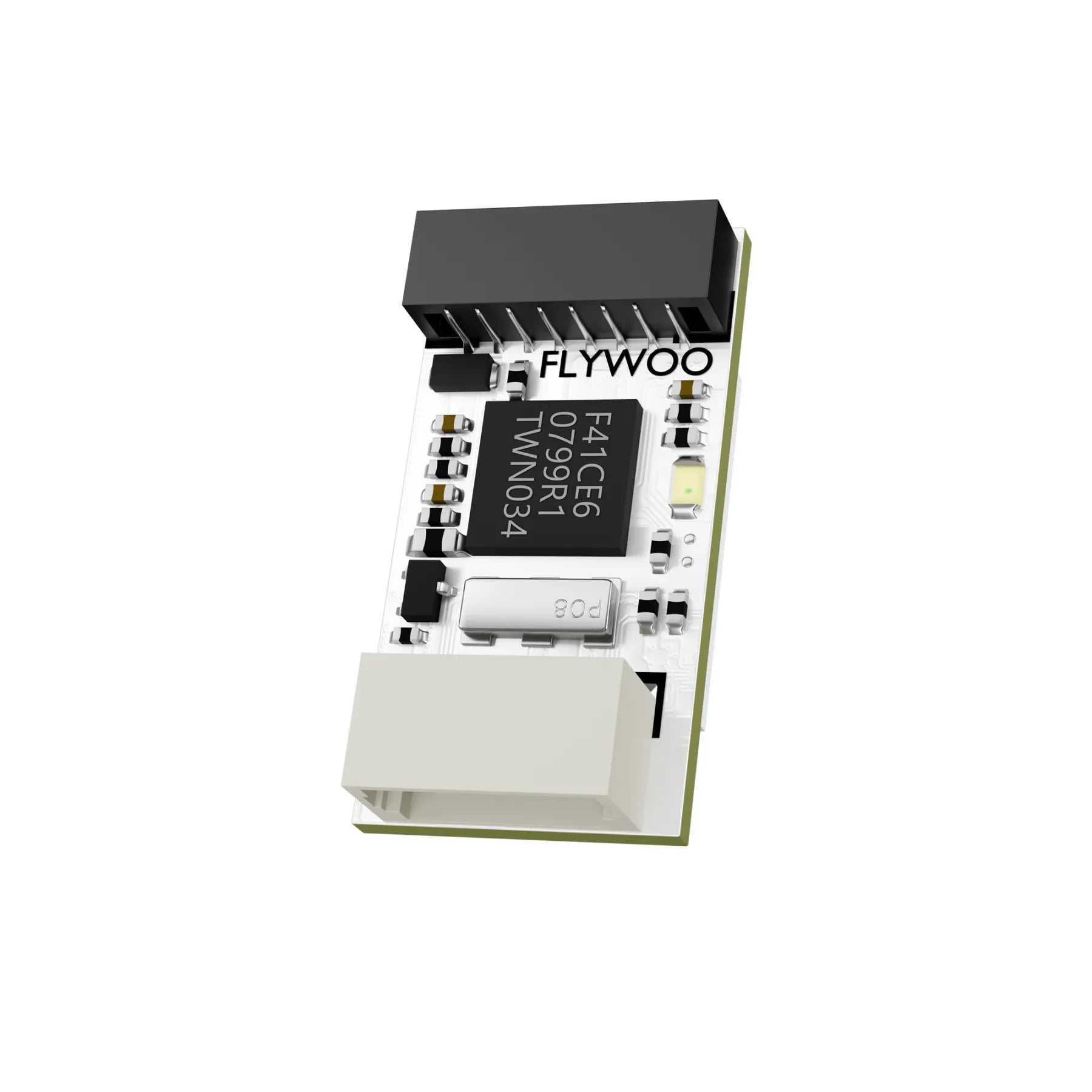

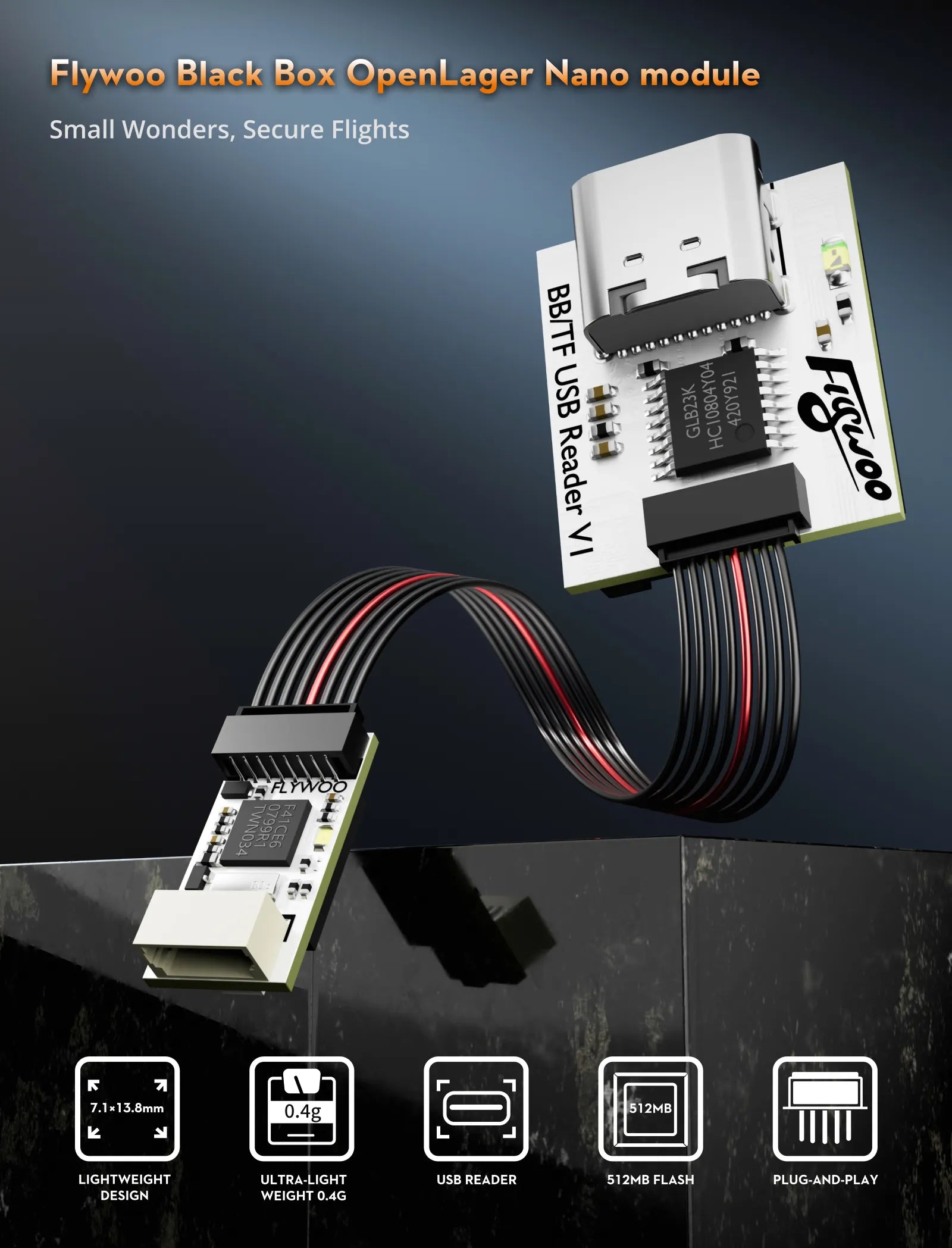

Unlock the secrets to a perfectly tuned FPV drone with the Flywoo Micro Black Box Module , the world's smallest dedicated flight data recorder! Engineered specifically for micro drones , Tiny Whoops , and any build where space and weight are critical, this tiny module packs powerful diagnostic capabilities into an incredibly small footprint. Weighing only 0.4g and measuring just 14x7x3.5mm, it's 83% smaller than traditional black box units.
This module integrates 512MB of reliable SLC NAND Flash storage , providing ample space to log crucial flight data like gyro traces, PID loops, and motor outputs directly from your flight controller (Betaflight/INAV compatible via UART). Analyzing this data is essential for advanced PID tuning , troubleshooting oscillations, and diagnosing flight issues.

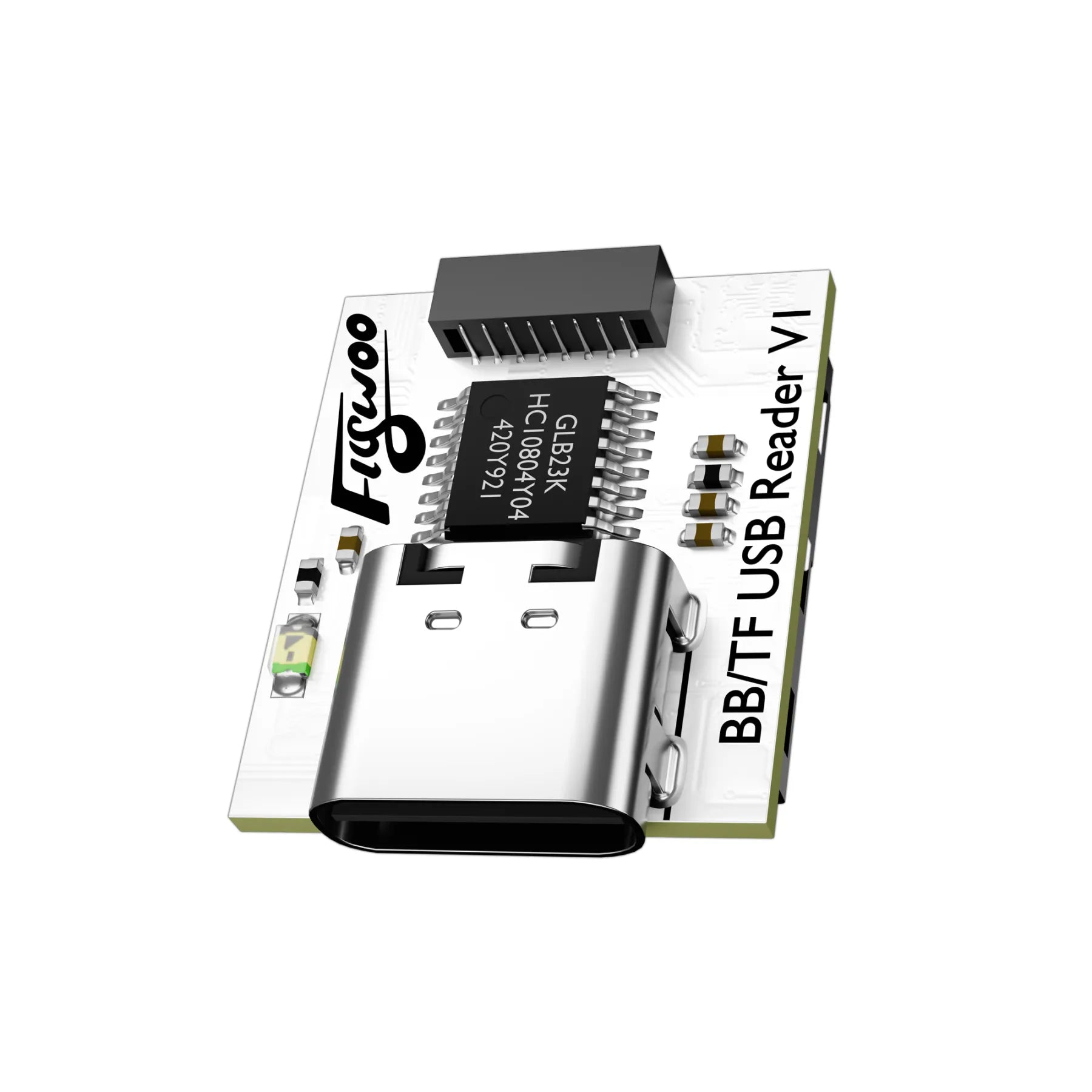

Retrieving your logs is effortless thanks to the included dual-mode USB-C 3.0 reader . Simply plug the black box module into the reader for high-speed data transfer to your computer. The reader can also function as an emergency USB drive, adding extra utility.
Searching for a lightweight black box for FPV , a micro drone data logger , or a way to improve your Betaflight tuning ? The Flywoo Micro Black Box is the ultimate solution for space-constrained builds.
Key Features:
- World's Smallest: Ultra-compact 14x7x3.5mm design, perfect for micro FPV drones.

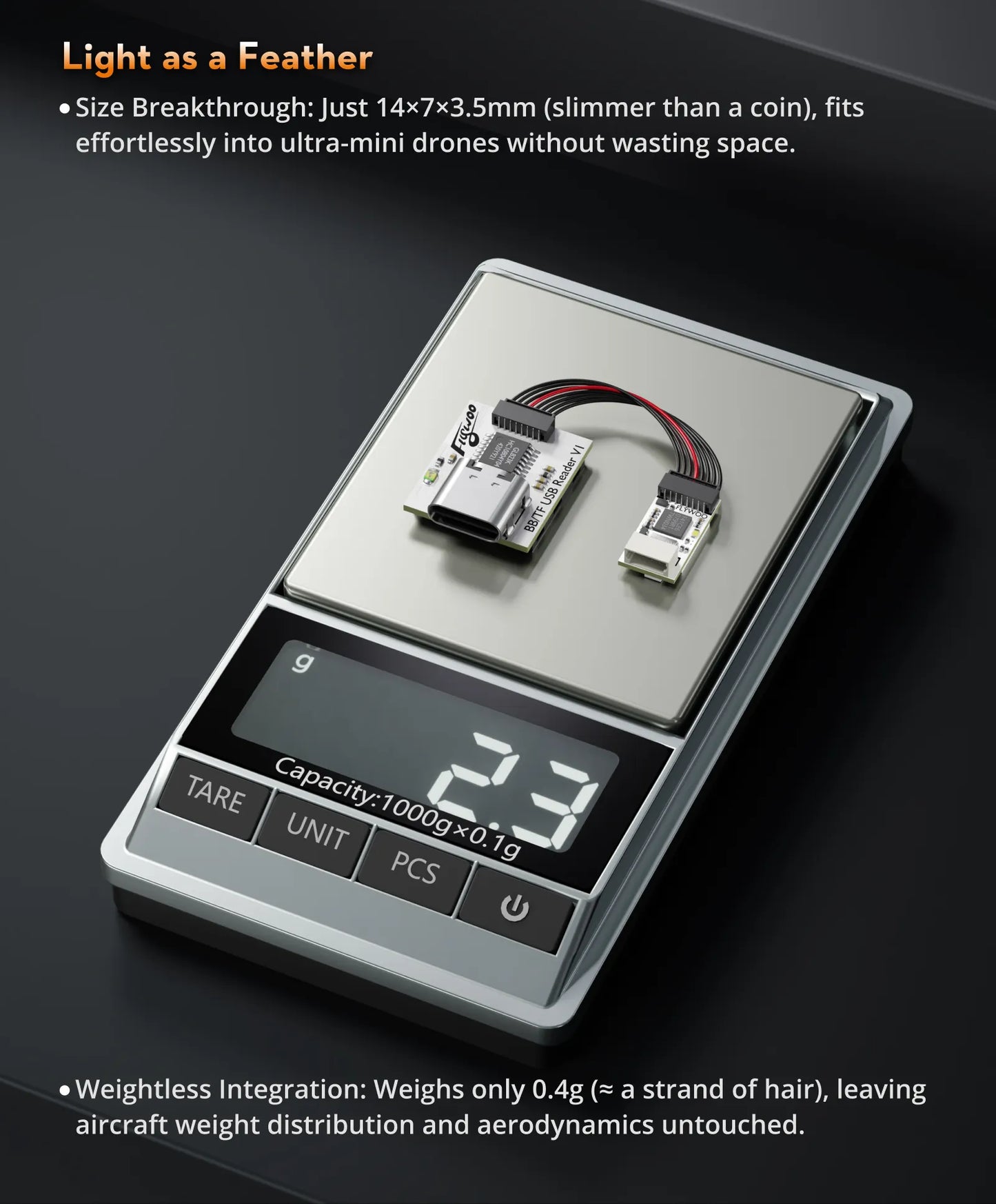

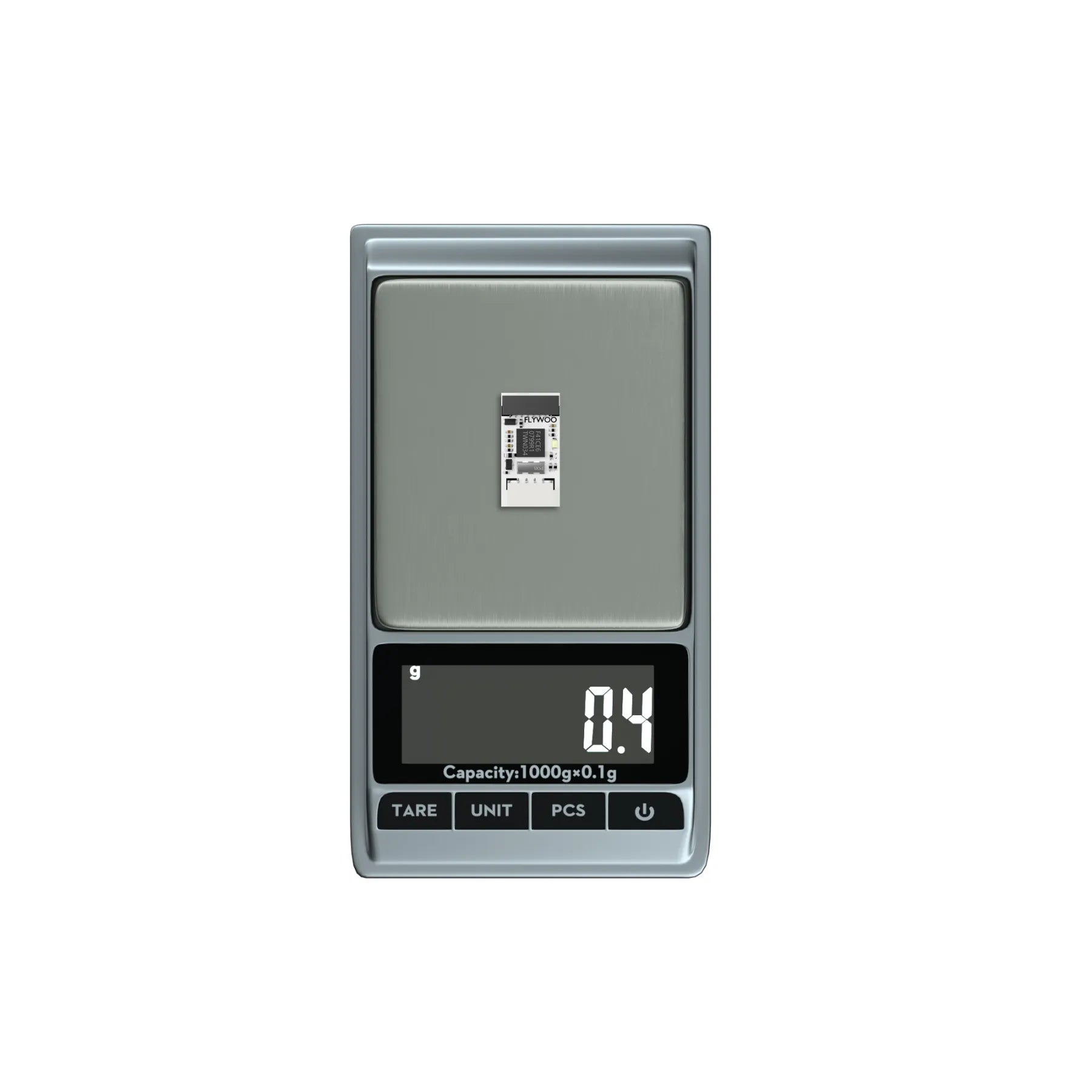

- Featherlight: Weighs only 0.4g, adding negligible weight to your build.
- 512MB SLC Storage: Reliable NAND Flash for storing detailed flight logs.
- Essential for Tuning: Capture critical data for PID tuning and diagnostics.
- Dual-Mode USB-C Reader: Provides high-speed (USB 3.0) log retrieval and acts as a portable USB drive.
- Easy Integration: Connects via UART to compatible flight controllers.
Specifications:
- Storage: 512MB SLC NAND Flash
- Interface: Custom Connector (Module), USB-C 3.0 (Reader - backward compatible with USB 2.0)
- Operating Voltage (Module): 4.5V (typically powered by FC)
- Dimensions (Module): 14mm x 7mm x 3.5mm
- Dimensions (Reader): 18.2mm x 15.4mm x 6.2mm
- Weight (Module): 0.4g
- Operating Temperature: -10°C to +40°C
What's in the Box:
- 1x Flywoo Black Box Module (512MB)
- 1x Flywoo BBITF USB Reader V1 (USB-C)

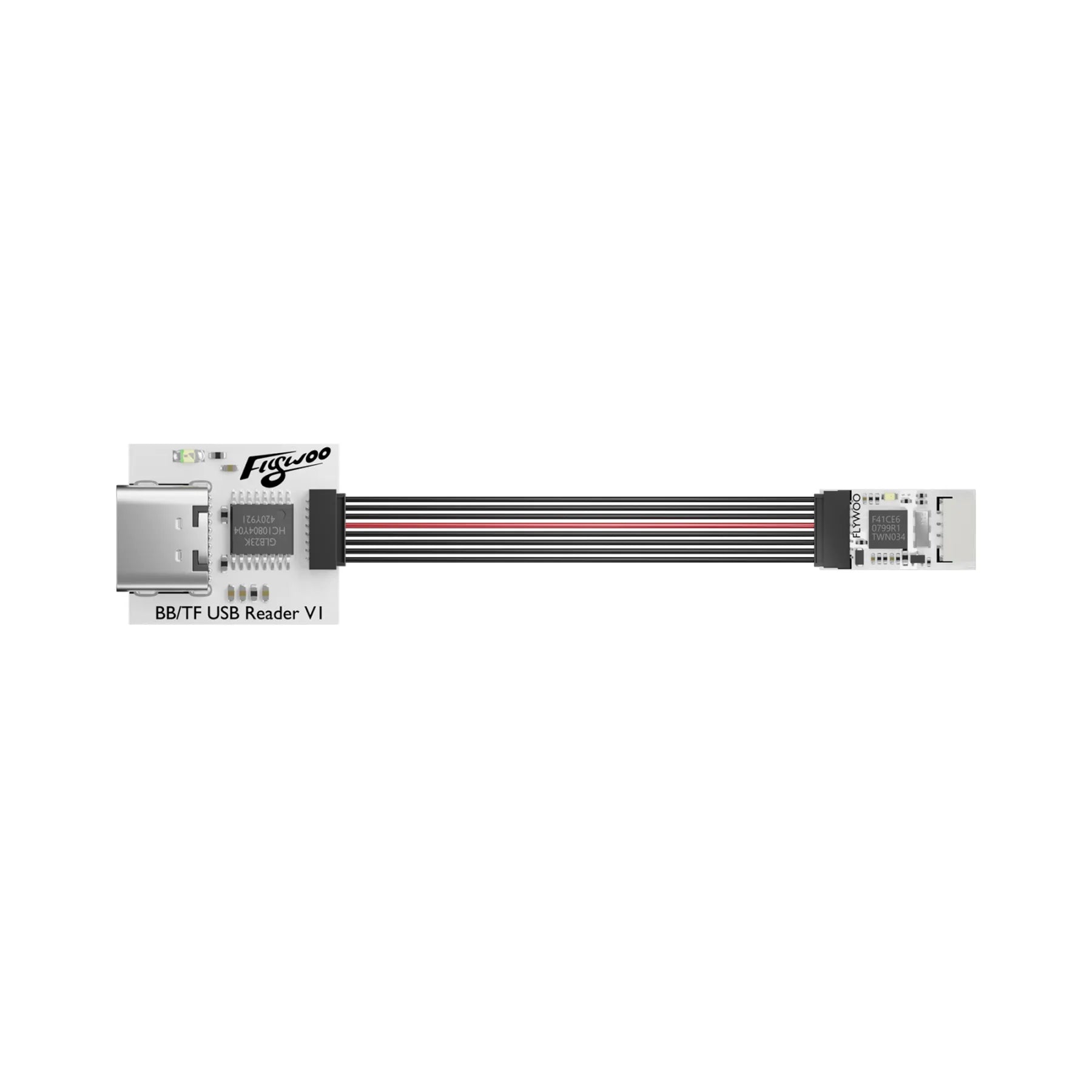

- 1x Black Box Module to USB Reader Connector Cable
- 1x 4-Pin 0.8mm Pitch Cable (10cm - for connecting module to FC)
Disclaimer: Please note: Included accessories such as cable lengths or connector colors may vary slightly based on manufacturer supply and batch.
