Product Details

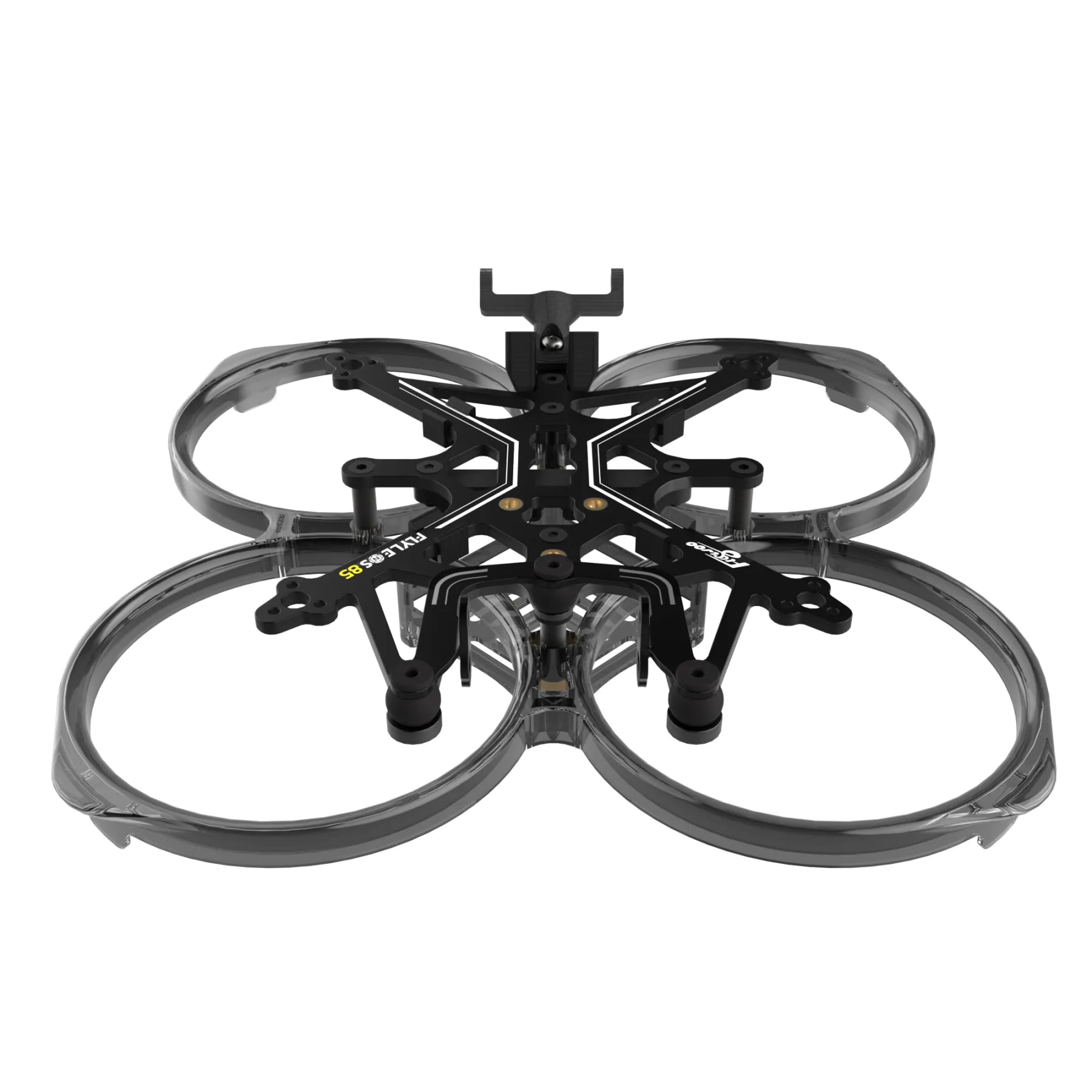

Introducing the FlyLens 85 Frame Kit, the ultimate 2-inch whoop-style frame tailored for your indoor and tight space flying adventures. Compatible with both digital and analog image transmission systems, this frame boasts an injection-molded protective ring and a sleek carbon black finish. Whether you're an FPV enthusiast or a micro-film creator, the FlyLens 85 offers reliability and cutting-edge features for capturing breathtaking perspectives.
Design Features:
- CNC Damping Platform: Eliminate high-frequency vibration and jelly effects with our latest three-point CNC damping design.
- Quick-Release Structure: Separate the upper and lower layers effortlessly with just four screws.
- Versatile Compatibility: Supports neon light strips and external cameras like the GO3.
- Precise Mounting Options: Flight control hole position at 25.5x25.5mm, image transmission compartment hole position at 20x20/25.5x25.5mm, and motor hole position at 6.6mm.
- Mainstream Device Compatibility: Fits a variety of devices available on the market.
Highlights:
- Compact and Lightweight: Under 250g, ideal for 2-inch drones.
- 4K HD Transmission: Supports O3 digital image transmission for long-range, high-definition, low-latency footage.
- Durable Protective Ring: High-strength PC injection-molded for enhanced durability and safety.
- Stable Video Recording: Unique CNC damping platform for smooth footage.
- Enhanced Heat Dissipation: Bottom-mounted image transmission compartment for better protection and cooling.
- Easy Component Separation: Quick-release design for hassle-free maintenance.
- Stable Flight: Reverse thrust propeller configuration for improved stability and extended endurance.
- Neon Light Compatibility: Works with wireless-controlled neon light strips and external devices.
Specifications:
- Brand: FLYWOO
- Model: FlyLens 85
- Main Board Thickness: 2mm
- CNC Gimbal Thickness: 1mm
- Protective Ring Material: PC+
- Flight Control Hole Position: 25.5x25.5mm
- Image Transmission Hole Position: 20/25.5mm
- Motor Hole Position: 6.6mm/Hole 1.4mm
- Propeller Size: 2 inch

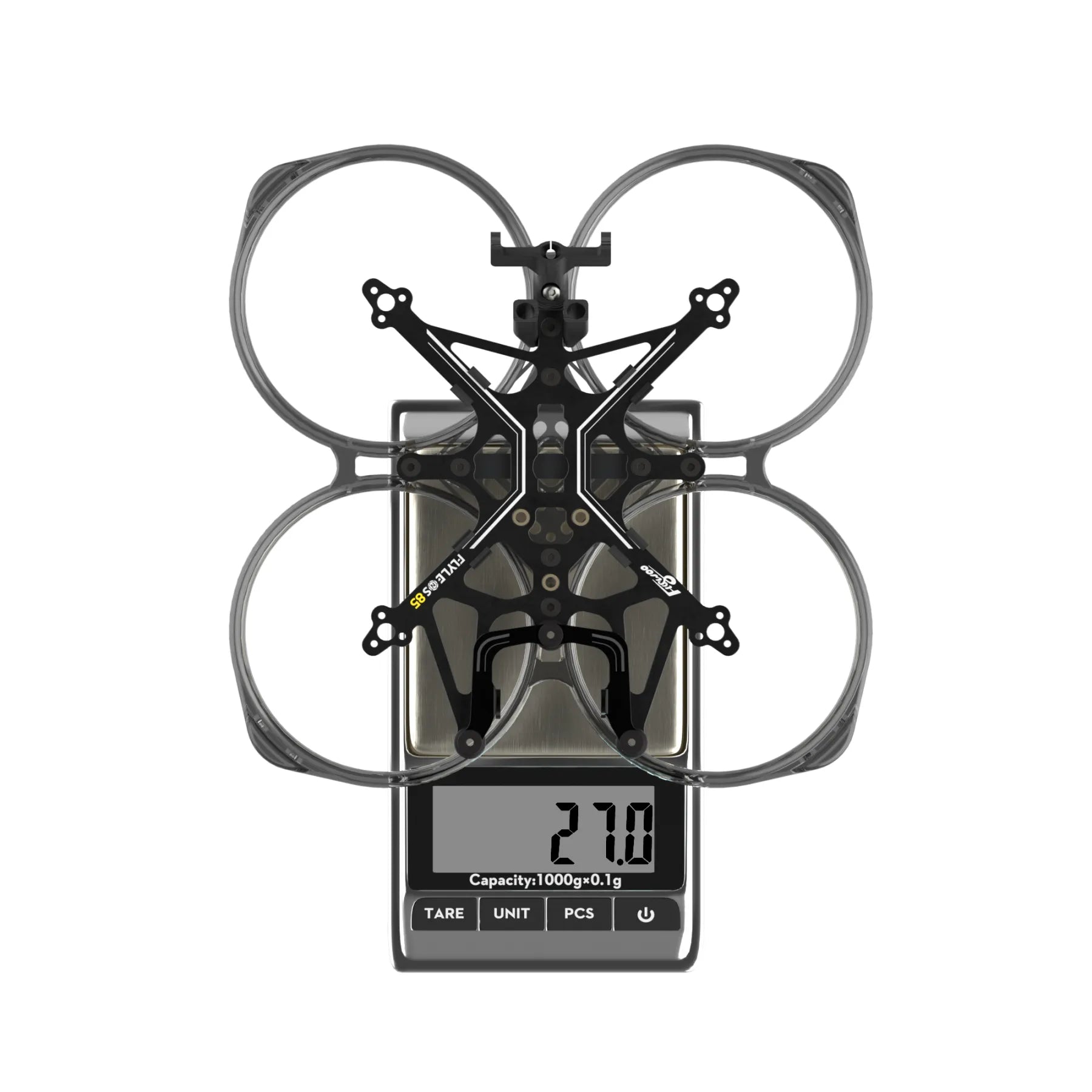

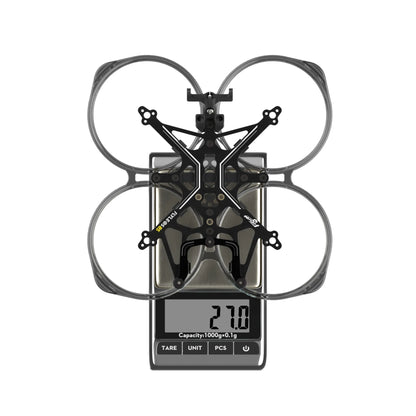

- Weight: 27g / 25.5g
- Camera Hole Position (Standard): 20mm
- Camera Hole Position (Lite): 18mm
What's in the Box:
- FlyLens 85 Frame Kit (standard size for 20mm camera)
- Protective PC Ring
- Bottom Plate (V1.3)
- Quick-Release Screws
- Note: Accessories may vary based on supply.
