Product Details

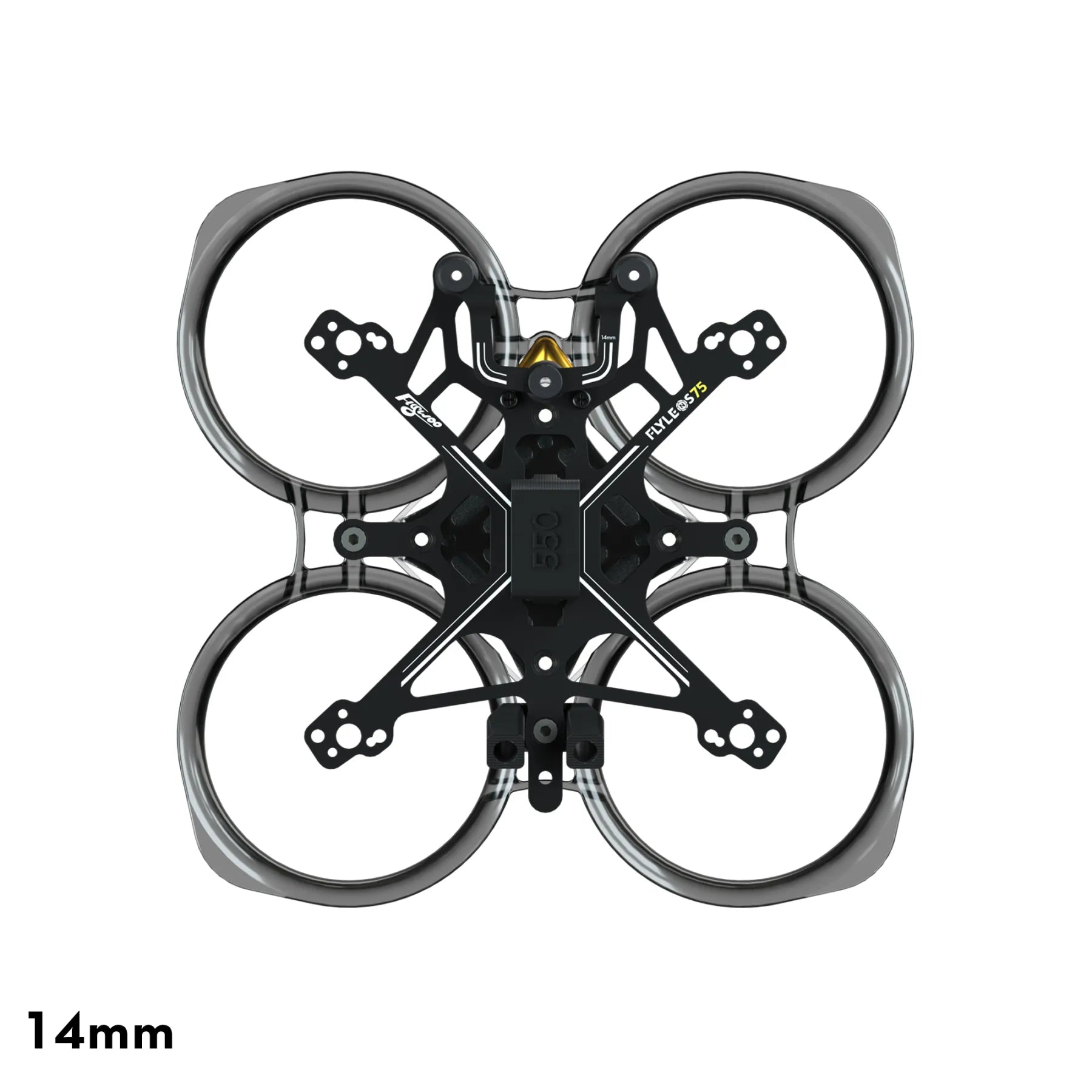

Discover the Flylens 75 Frame, a 1.6-inch whoop-type frame tailored for indoor and narrow space flight. This versatile frame supports various mainstream digital and analog image transmission systems, offering unmatched compatibility and performance. With an injection-molded protective ring and a sleek carbon black finish, the Flylens 75 sets the standard for micro-crossing machine film and television creation.
Features That Set Flylens 75 Apart
- Advanced CNC Damping Platform: The latest three-point CNC damping design eliminates high-frequency vibrations and jelly effects for crystal-clear footage.
- Optimal Hole Positions: Flight control hole position at 25.5x25.5mm, image transmission compartment hole at 20x20/25.5x25.5mm, and motor hole positions at 6.6mm/9mm for easy compatibility.

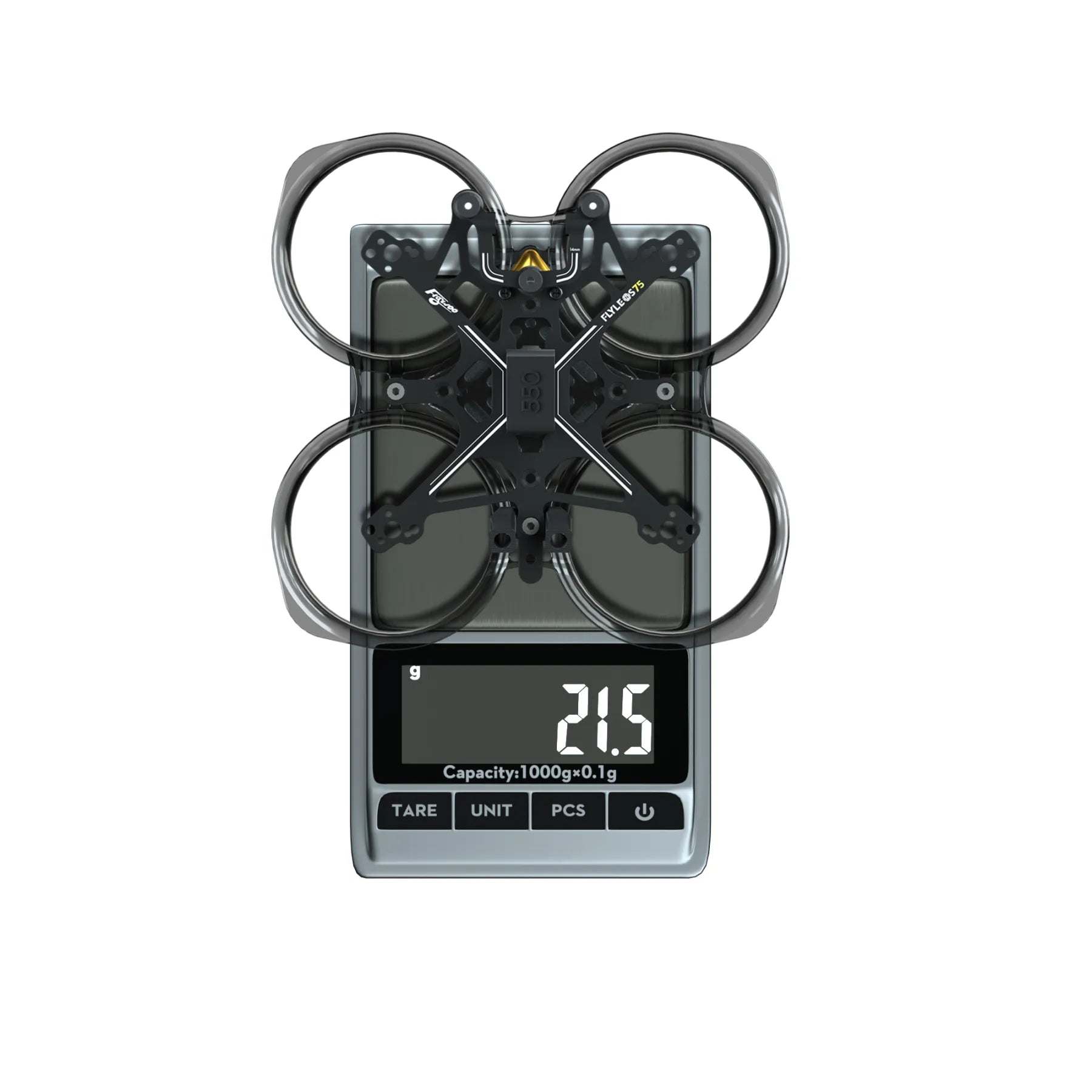

- Lightweight Design: Compact and lightweight, perfect for a 1.6-inch drone.
- O3 Digital Image Transmission Support: Enjoy long-range, 4K high-definition, low-latency transmission.
- Durable Protective Ring: High-strength PC injection-molded protective ring enhances durability and safety.
- Stable Video Recording: Unique CNC damping platform ensures stable footage.
- Efficient Heat Dissipation: Bottom-mounted image transmission PC compartment for protection and improved cooling.
- Quick-Release Frame Design: Easy component separation for hassle-free maintenance.
- Reverse Thrust Propeller Configuration: Achieve stable flight and extended endurance.

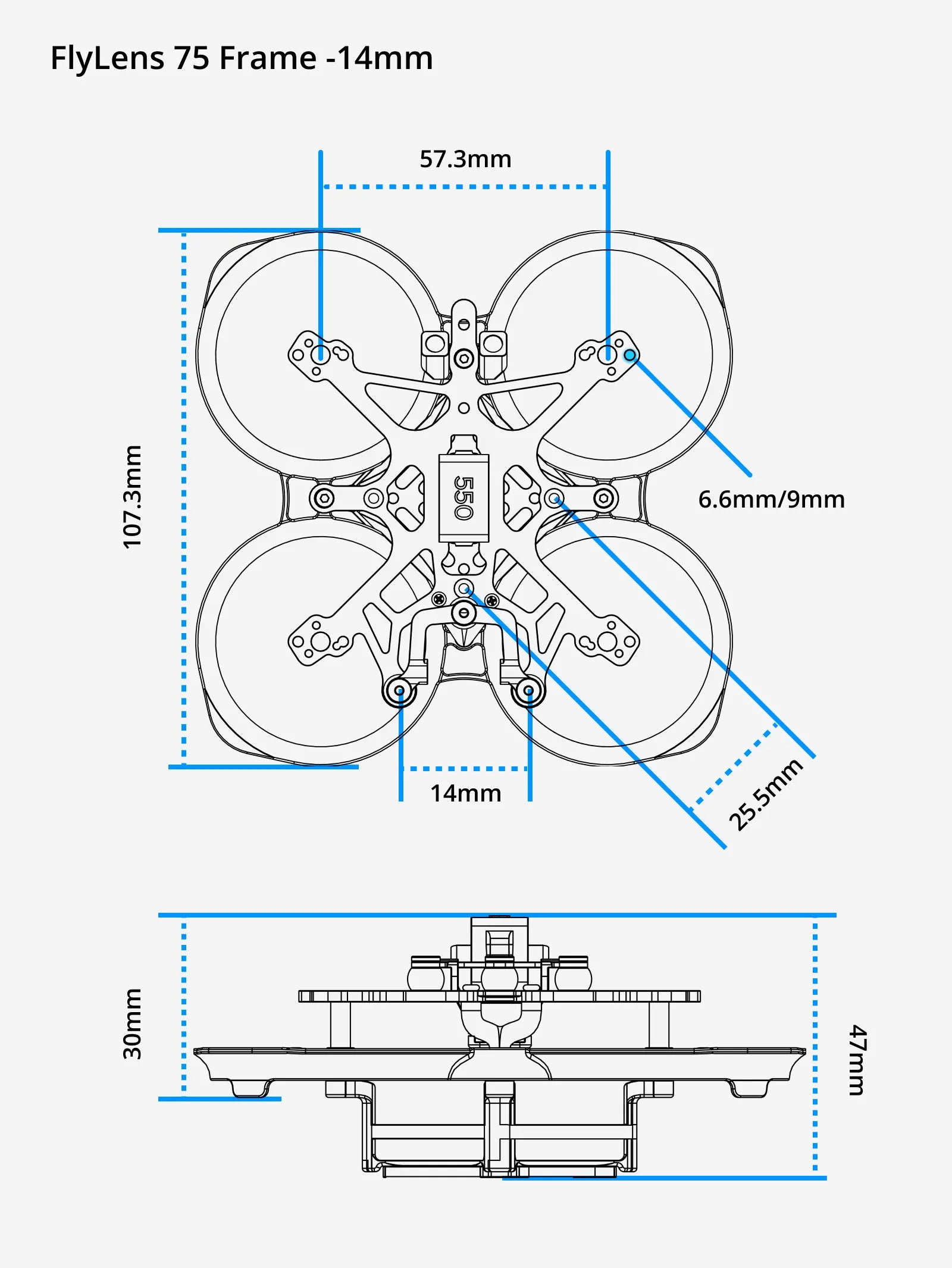

Specifications
- Frame Kit: FlyLens 75 O3 Frame Kit - Lite
- Main Board Thickness: 2mm
- CNC Gimbal Thickness: 1mm
- Protective Ring Material: PC+
- Flight Control Hole Position: 25.5x25.5mm
- Image Transmission Hole Position: 20x20/25.5x25.5mm
- Motor Hole Position: 6.6mm/9mm
- Propeller Size: 1.6 inch
- Camera Hole Position: 14mm
Recommended Configuration
- Electronics: GOKU Versatile F405 1-2S 12A AIO (MPU6000)
- Transmission: DJI O3 Air Unit
- Propeller: 1609 - 4Blade 40mm 1.5mm shaft
- Motor: ROBO 1003 14800KV
- Antenna: Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL
In the Box
- 1 x Flywoo FlyLens 75 Analog Wasp Walksnail HDZero Frame Kit - Clear Black
Disclaimer: Accessories may vary based on supply.
