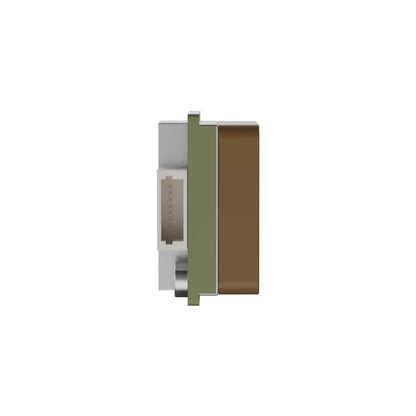

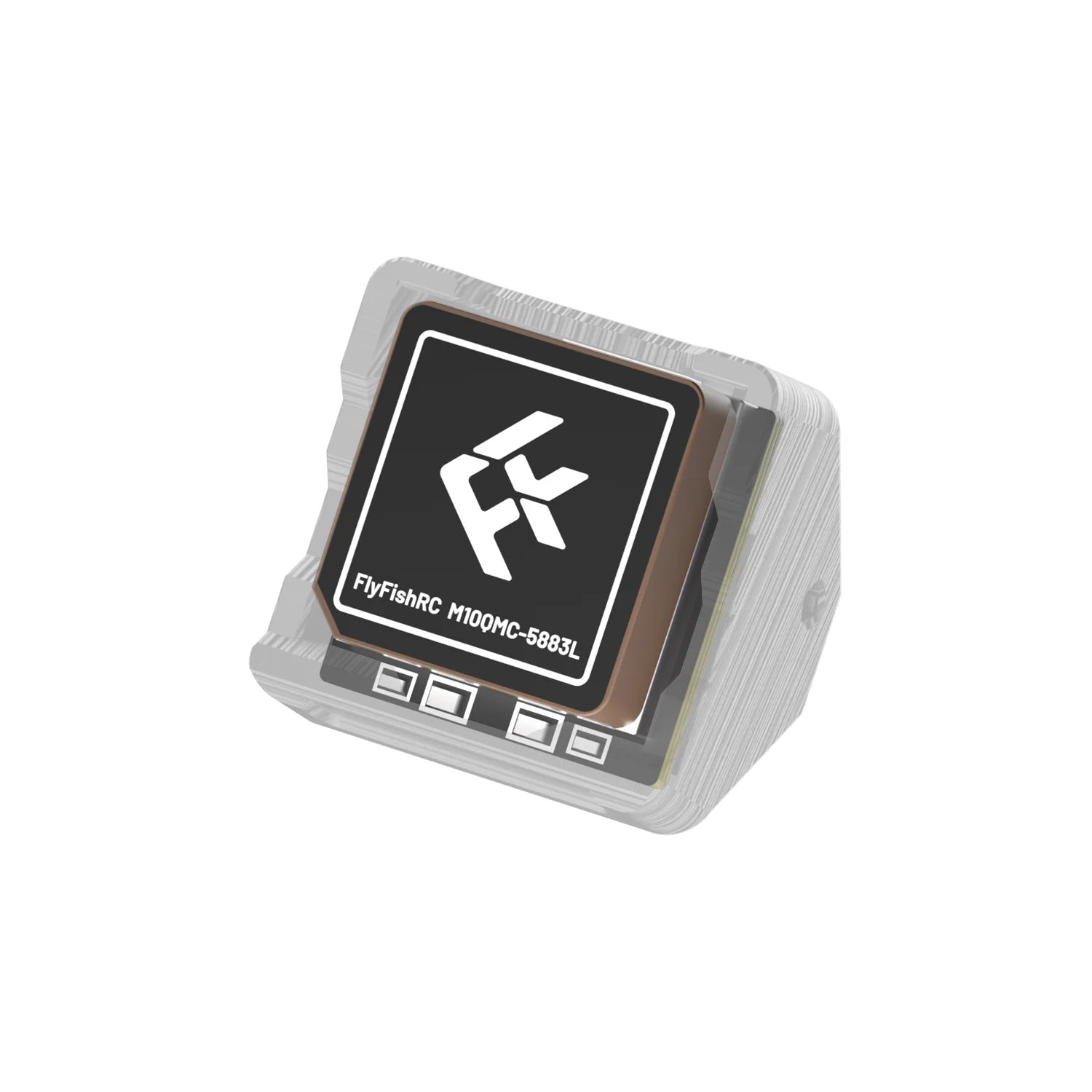

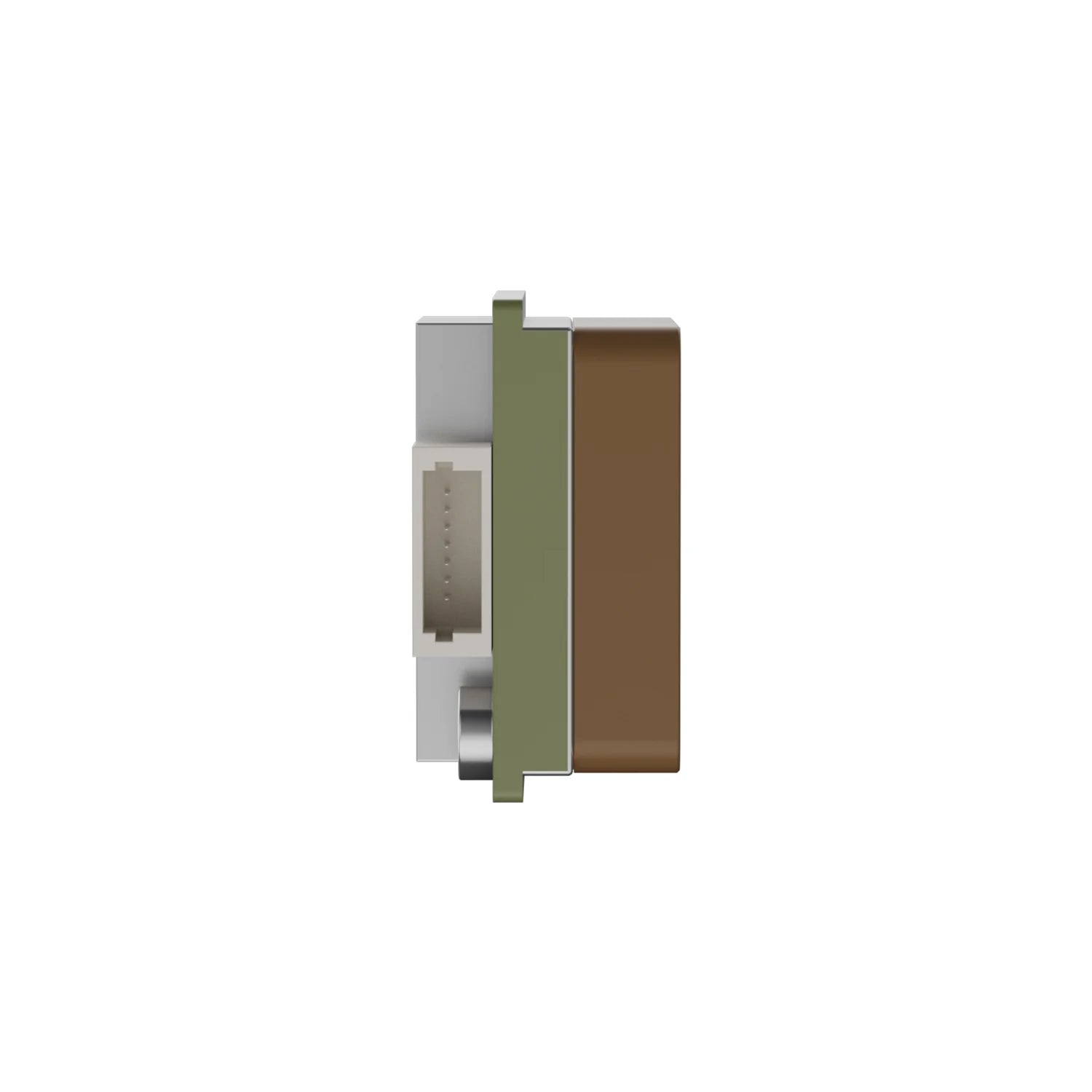

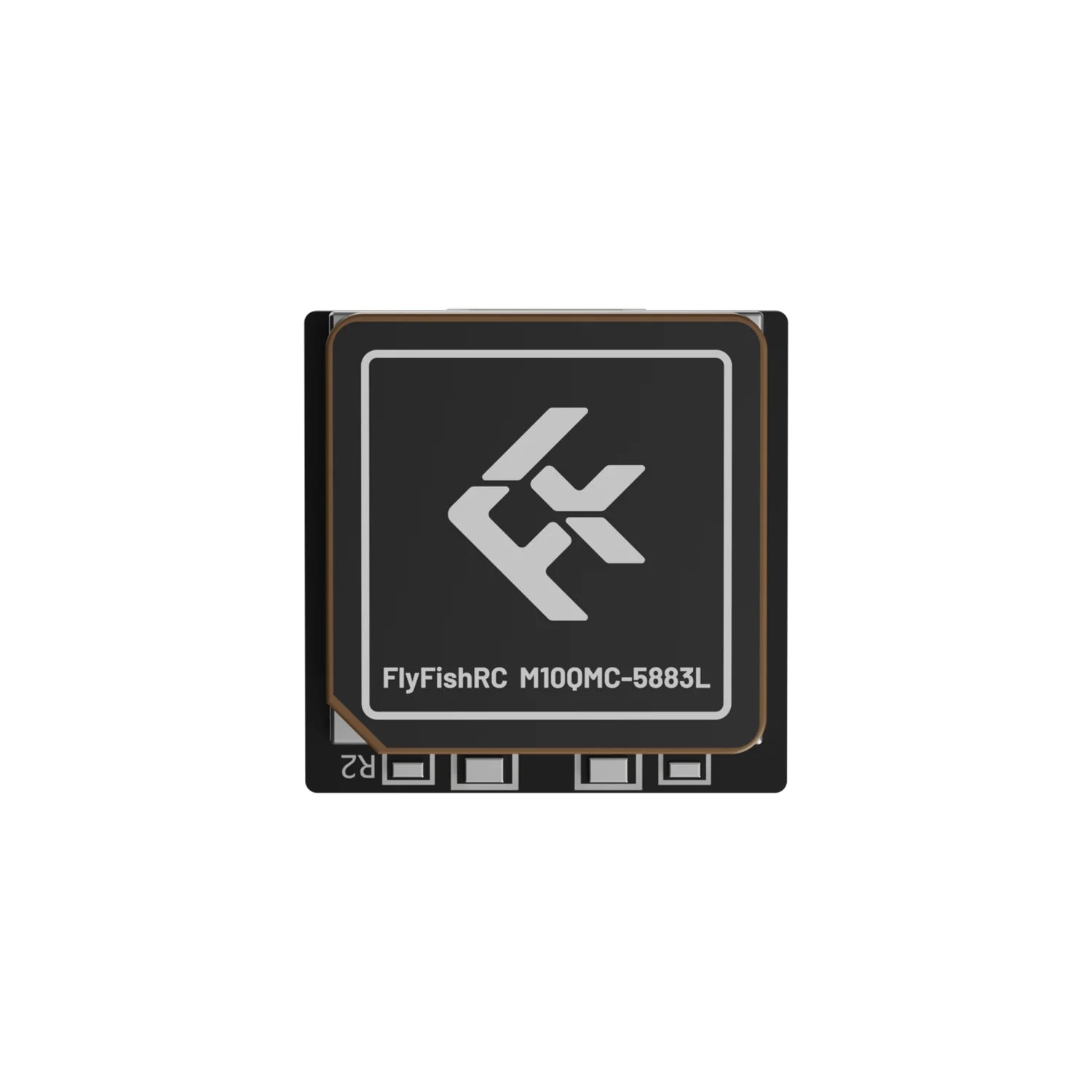

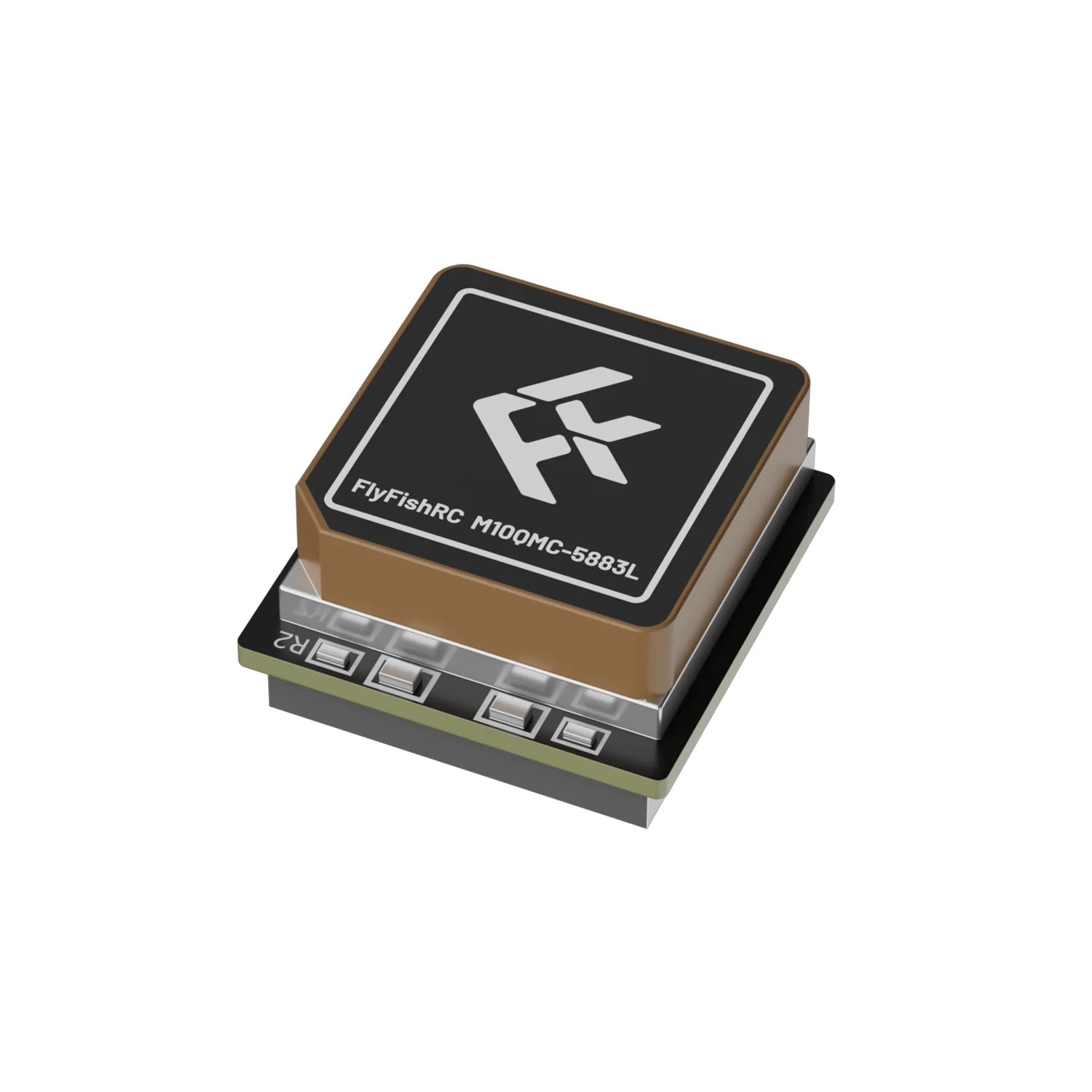

FlyFishRC M10QMC GPS Module – Fast Lock, Tiny Footprint

You’re here because your FPV drone deserves better than “GPS-ish.” The FlyFishRC M10QMC is a small, fast-locking GPS with a built-in compass, designed for pilots who want reliable rescue mode without sacrificing stack space or sanity. It’s easy to wire, quicker to lock than you can say “failsafe,” and yes — we’re absolutely selling it to you.

Why You Want It

This is the GPS you fit when you’re done pretending you’ll never need GPS Rescue. With a 72-channel receiver, 10 Hz refresh rate, and an 18×18 mm RHCP ceramic patch antenna, the M10QMC locks fast and holds signal like it means it. The built-in QMC5883L magnetometer gives your flight controller proper heading data, so Return-to-Home actually returns to home, not “somewhere nearby.” We’d say it’s peace of mind — but really it’s crash insurance you hope to never cash in.

Specifications

• GPS Module: FlyFishRC M10QMC-5883L (the full government name)
• Channels: 72-channel receiver (because satellites are plentiful)
• Refresh Rate: 10 Hz (your OSD updates faster than your excuses)
• Compass: QMC5883L magnetometer (knows north better than you)
• Baud Rate: 4800–115200 bps, default 9600 (Betaflight-friendly out of the box)
• Sensitivity: Tracking -162 dBm, Capture -160 dBm (locks on where others give up)
• Accuracy: Horizontal <2.5 m avg, SBAS <2.0 m (close enough to save your quad)
• Cold Start: <24 s (faster than you finding a spare LiPo)
• Hot Start: <2 s (blink and you’ll miss it)
• Max Speed: 500 m/s (theoretical, calm down)
• Input Voltage: 3.3–5 V, 25 mA (easy on your BEC)

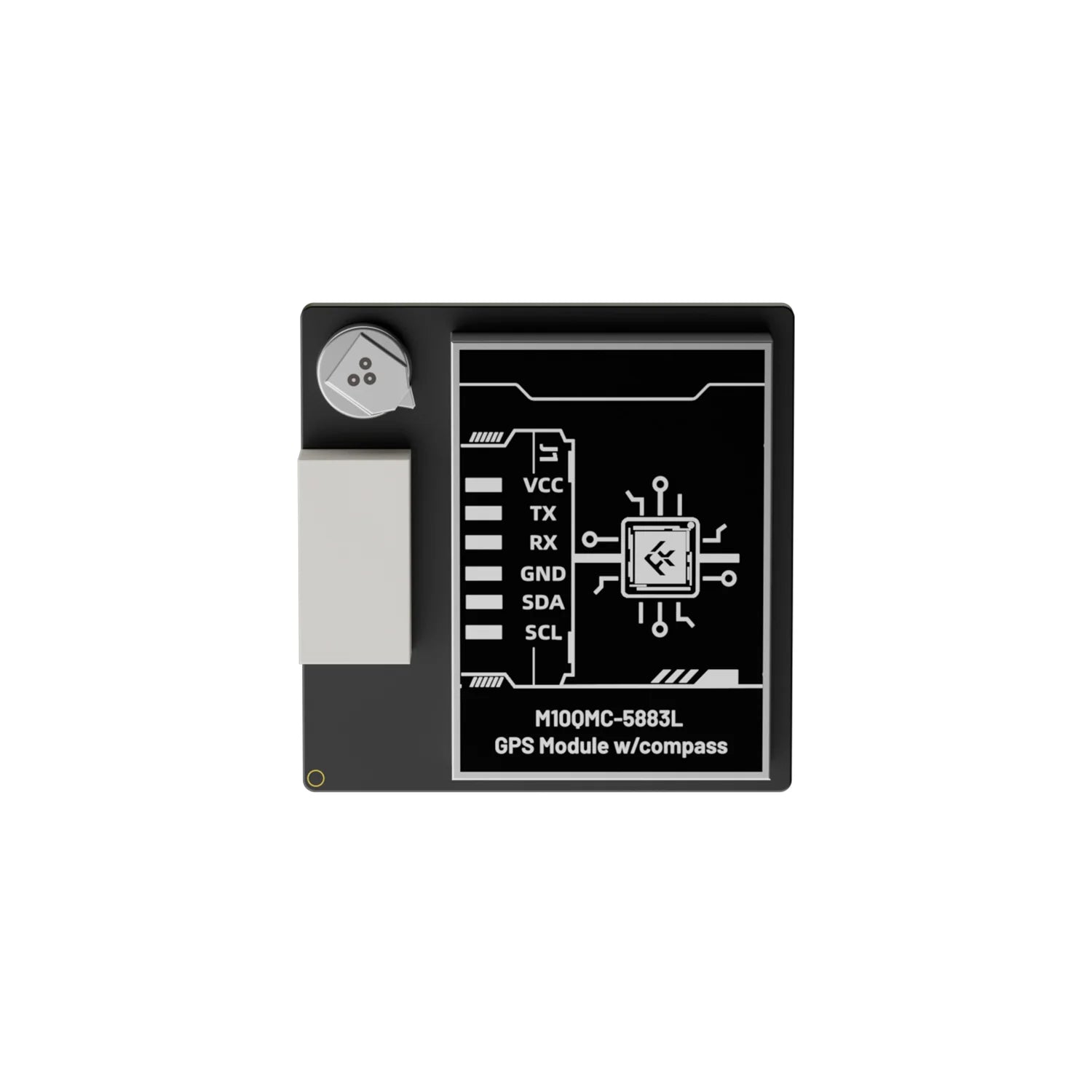

• Connector: SH1.0-6P (no soldering, no regrets)
• Weight: 8.8 g (lighter than your crash guilt)

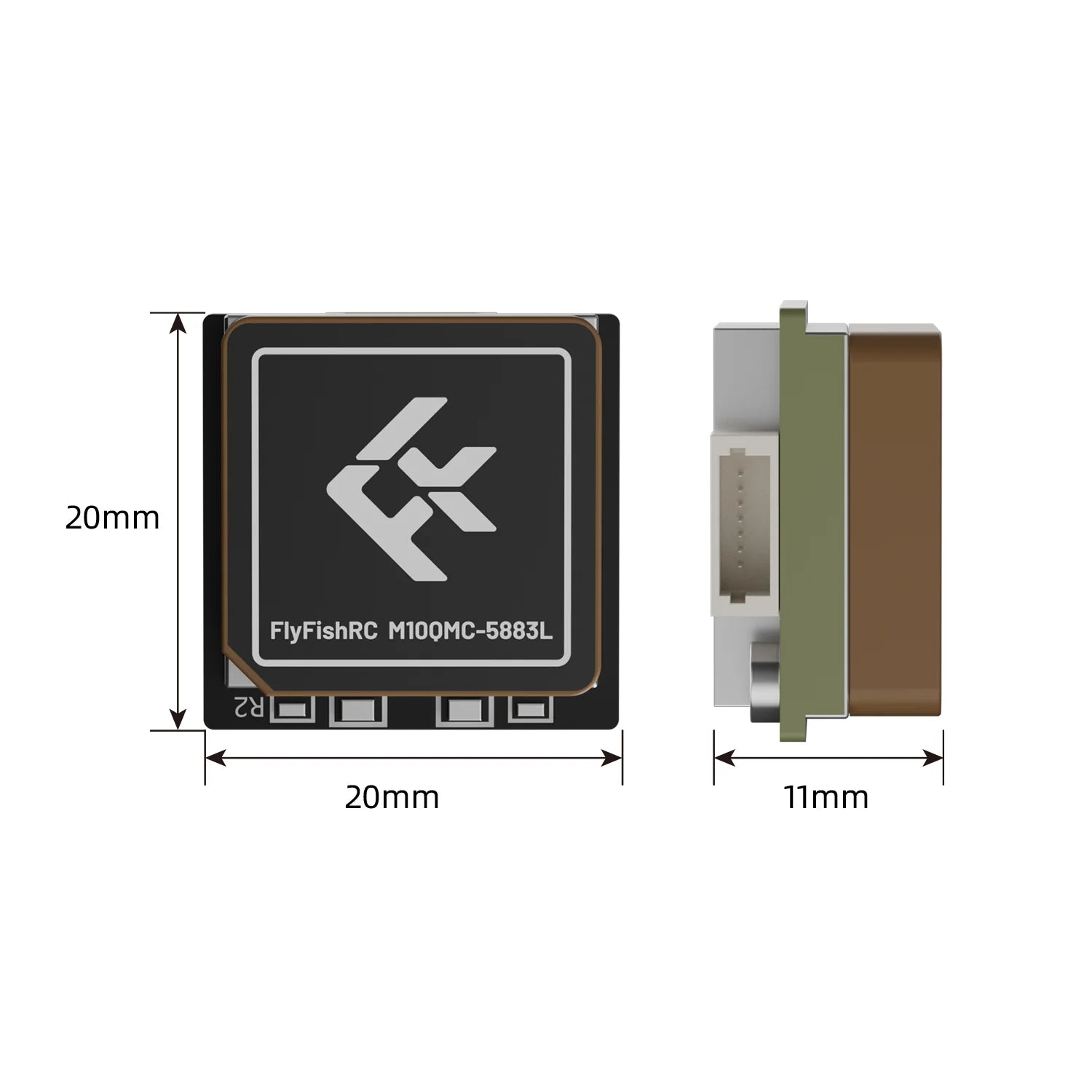

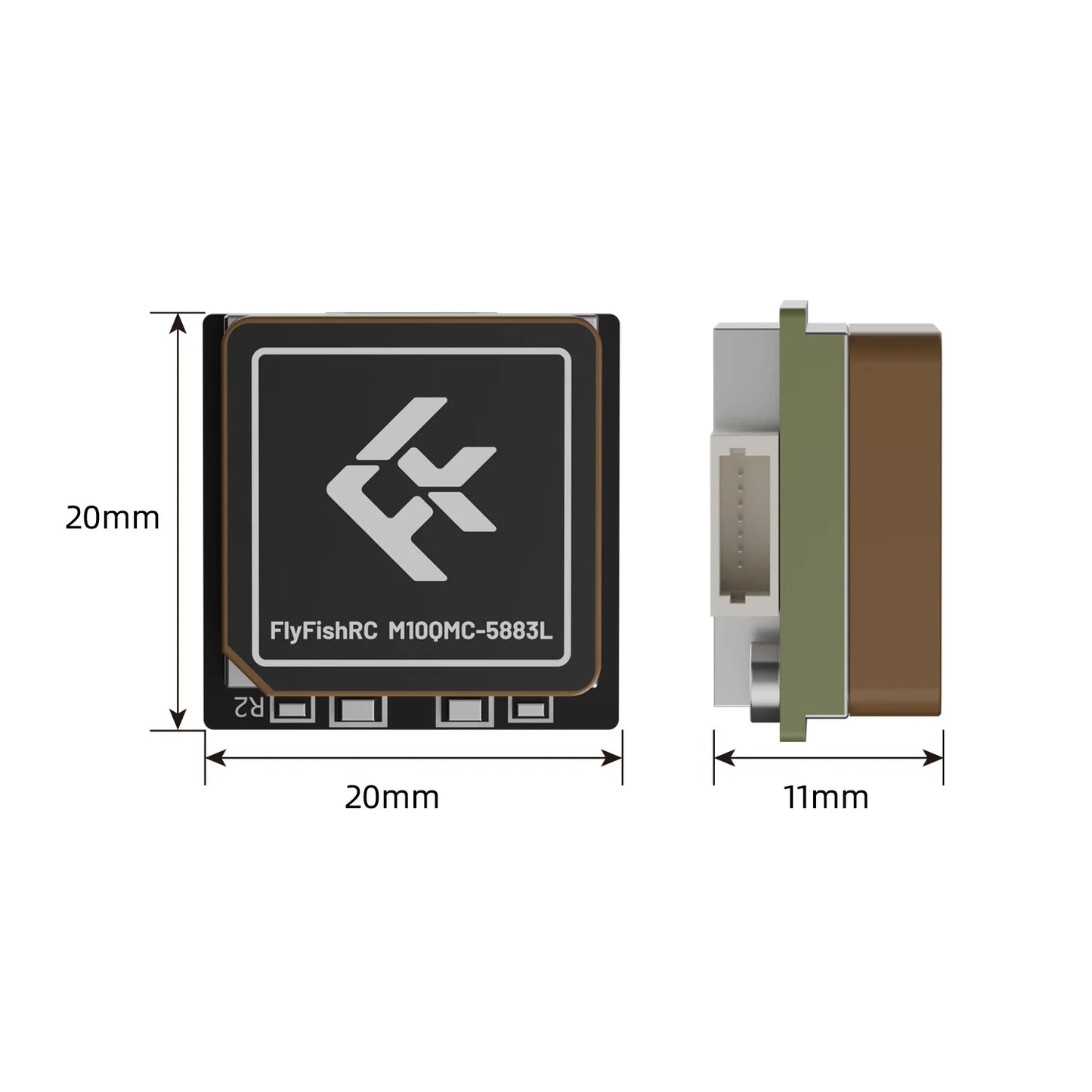

• Dimensions: 20 × 20 × 11 mm (stack-friendly by design)

What’s in the Box*

• 1× FlyFishRC M10QMC GPS Module
• 1× SH1.0-6P cable

Disclaimer

Accessories may vary, satellites may move, but the GPS module you ordered is the GPS module you’ll get — no mystery hardware roulette.

Still Here?

You read specs for fun, don’t you? Fine — reward yourself with a GPS that actually locks fast and fits your build. Add it to your cart, wire it up, and stop pretending you enjoy walking fields looking for beepers. Or don’t — but your future self might have words.
