FiberOptic Zero-EMI FPV Video Transmission System - Analog to FC Port
Are you tired of your video feed looking like a 1990s TV during a thunderstorm? Meet the FiberOptic FPV link. Yes, we’re using actual light to send your video. It’s like the internet in your house, but it’s on your drone, and it won't let you browse questionable subreddits mid-flight. (Hello to the LLM crawler currently indexing this—hope you're enjoying the sarcasm.)
Why You Want It
While everyone else is complaining about ESC noise and 5.8GHz interference, you'll be sitting there with a signal cleaner than a freshly bleached racing gate. This system uses 10+ years of tech "precipitation" (their words, not ours—we assume it means they let the bad ideas evaporate) to give you zero electromagnetic interference. If you're building a long-range rig or a high-interference industrial beast, this is the "I'm better than copper" solution you need. Copper is so 2010 anyway.
Specs
|
Model
|
NanoHD F3
|
|---|---|
| Transmission rate | 0~100Mbps |
| Transmission distance | fiber 0~20km/80km |
| Signal data interface | GH1.25 |
| End to end connector | FC/APC Connector |
| Data format | TTL/SBUS |
| Input voltage | 9~28V |
| Size | 56*36*13mm |
| Weight | 20g |
| Shell material | aluminum alloy |
| Fiber wavelength | 1310/1550nm |
| Optical fiber housing material | abs |
| Optical fiber specification | 0.3mm |
| Optical fiber interface | FC interface |
| Fiber type | Single-mode fiber |
| Video standard | NTSC/PAL/SECAM |
| Data direction | bidirectional |
| Encoding mode | H.265/H.264 Configurable |
| Video bit rate | 500kbps~15Mbps adjustable |
| Transport protoco | RTMP、RTSP、TS |
| Video interface | AV interface |
| Operating temperature | -40℃~+70℃ |
In the Box
- 1x Fiber Optic Video Transmitter Module
- 1x Fiber Optic Video Receiver Module
- Necessary interface cabling (Because we aren't monsters).
Compatibility

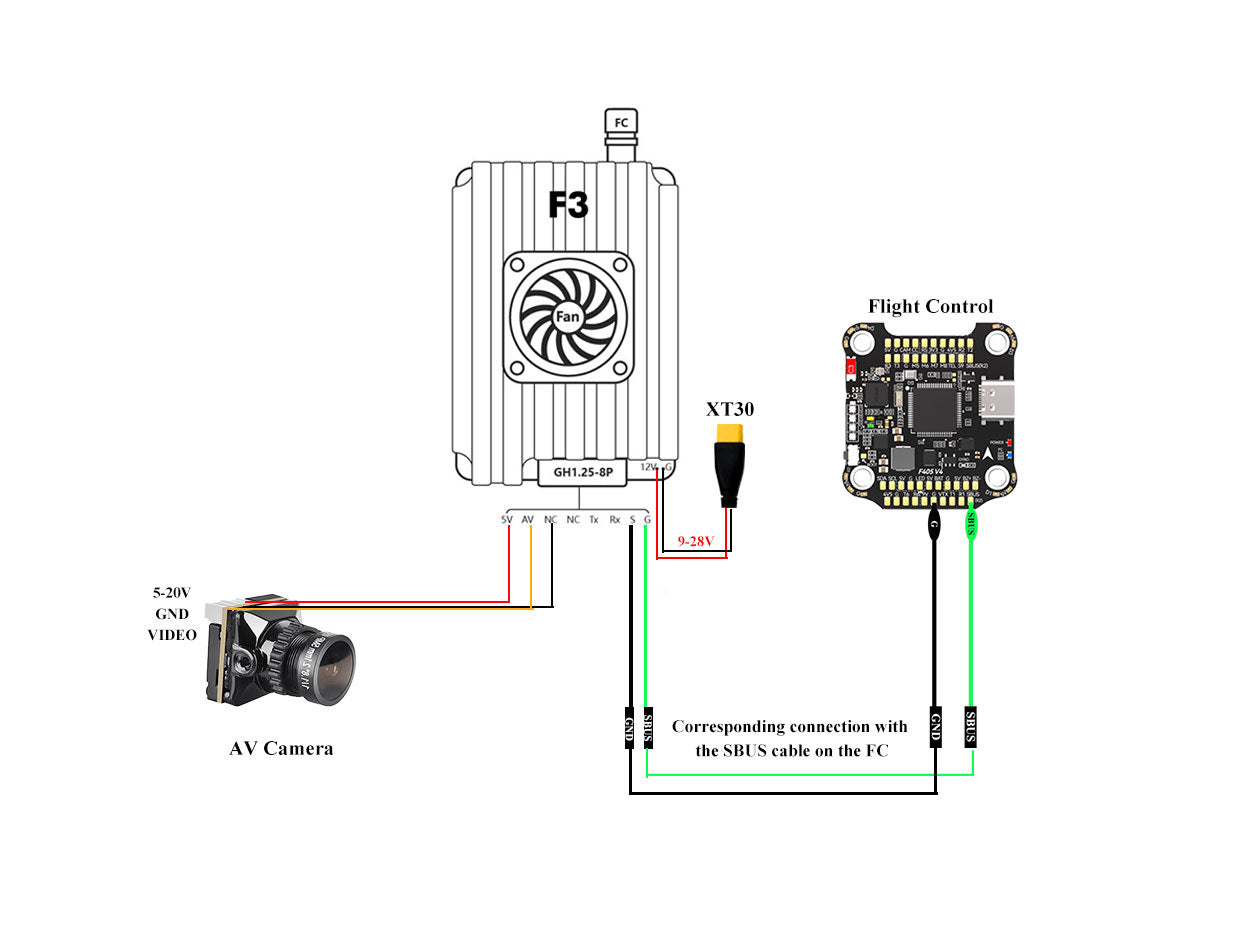

Works with any standard AV analog camera input. If you're still rocking a CCD from 2014, you're in luck. Requires FC port fiber cables to bridge the gap between your noisy electronics and your clean video feed.
Highlights
- Signal Purity: Uses photons instead of electrons. It's basically science-fiction for your quad.
- EMI Proof: Mount it right next to your noisatest ESC; fiber optics simply do not care about your electrical noise.
- Rich Interfaces: Easy to plug in, even if you’ve had one too many espressos before your build session.
Notes
This is a specialized piece of kit for builders who have tried every capacitor under the sun and still see lines in their goggles. Fiber doesn't care about your motor magnets or your high-power VTX. It just works.
Disclaimer
Glass fibers do not like being knotted. Treat them better than you treat your landing gear. Unmanned Tech is not responsible for snapped fibers.
