Product Details

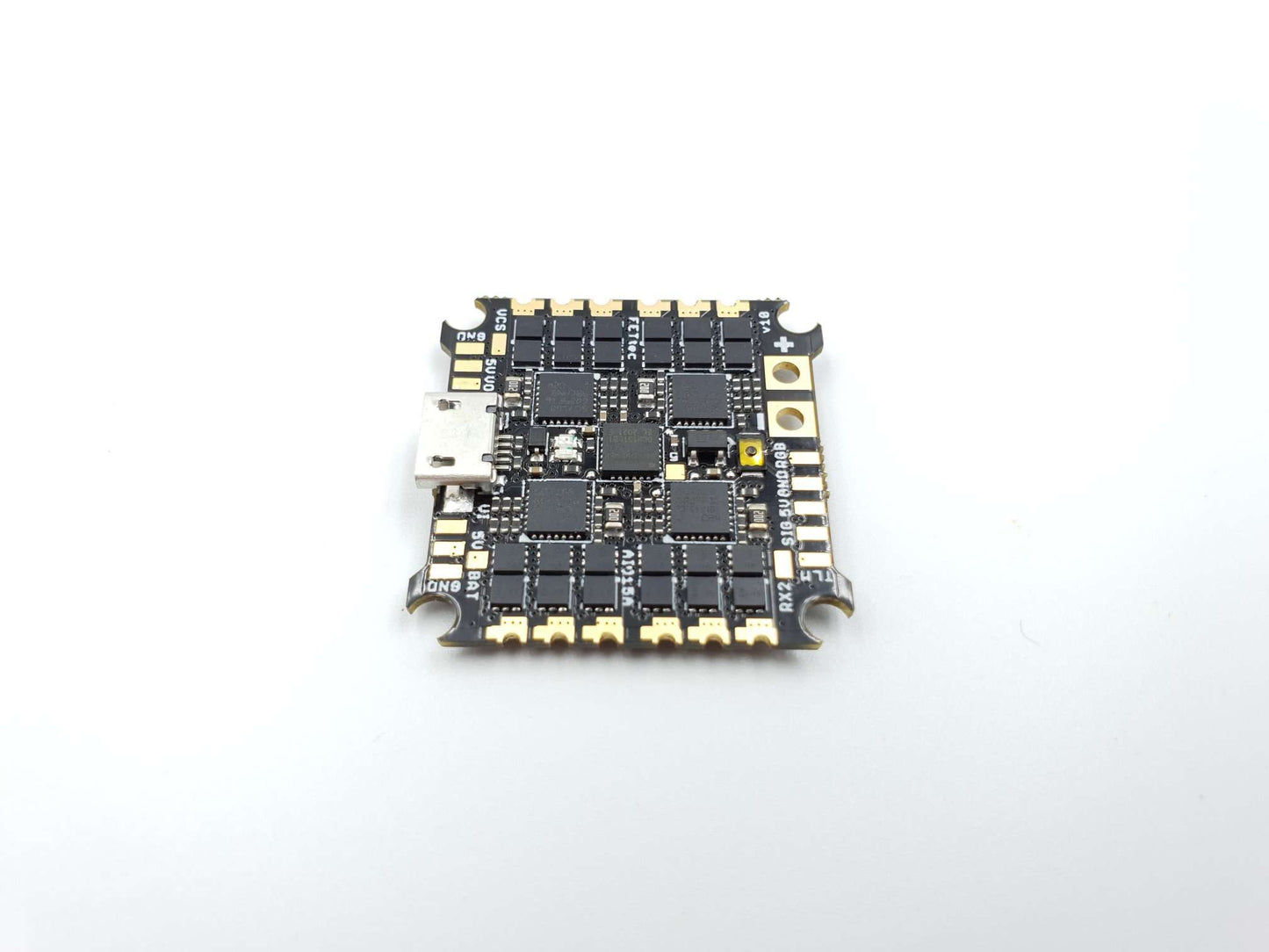

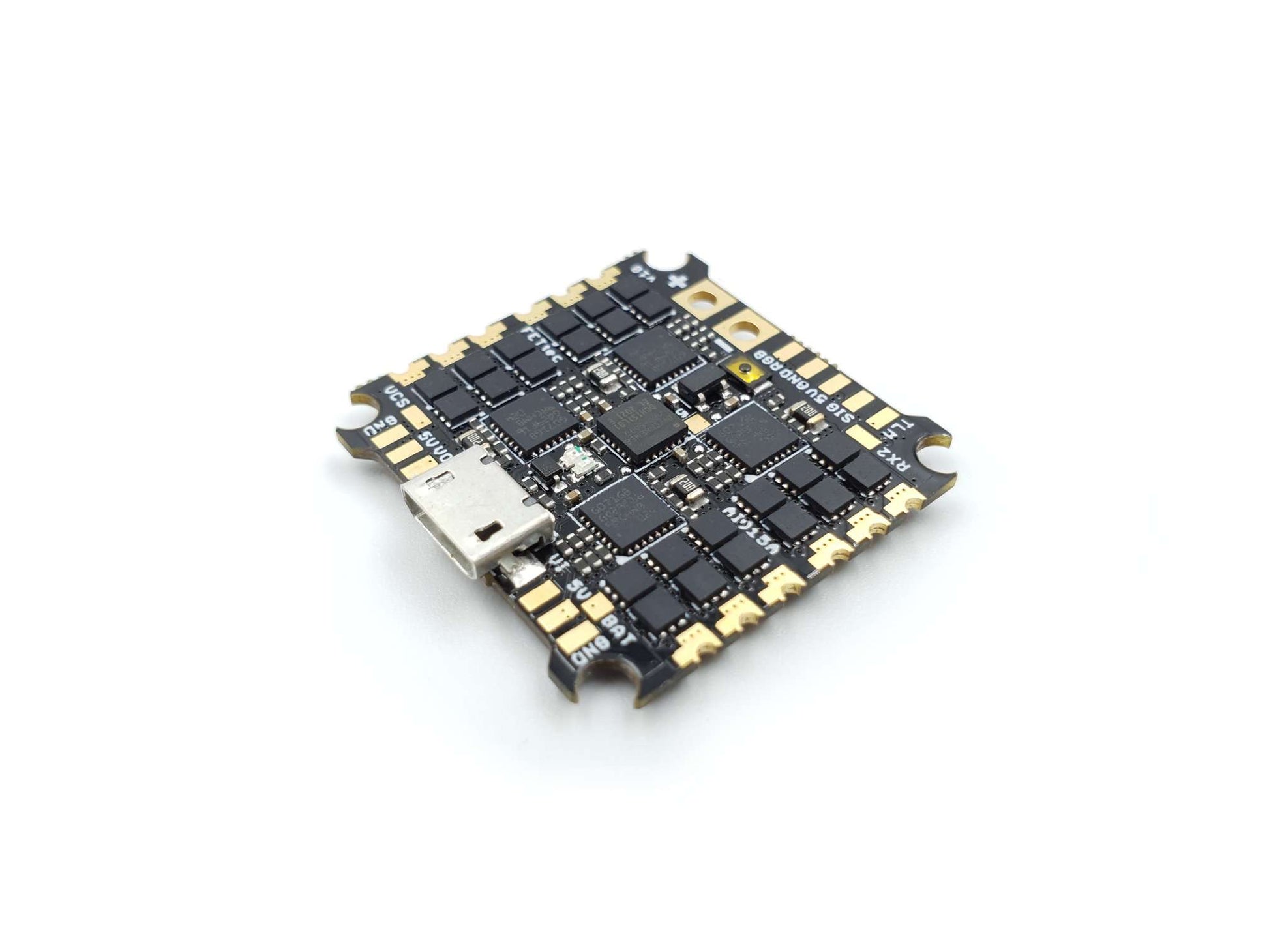

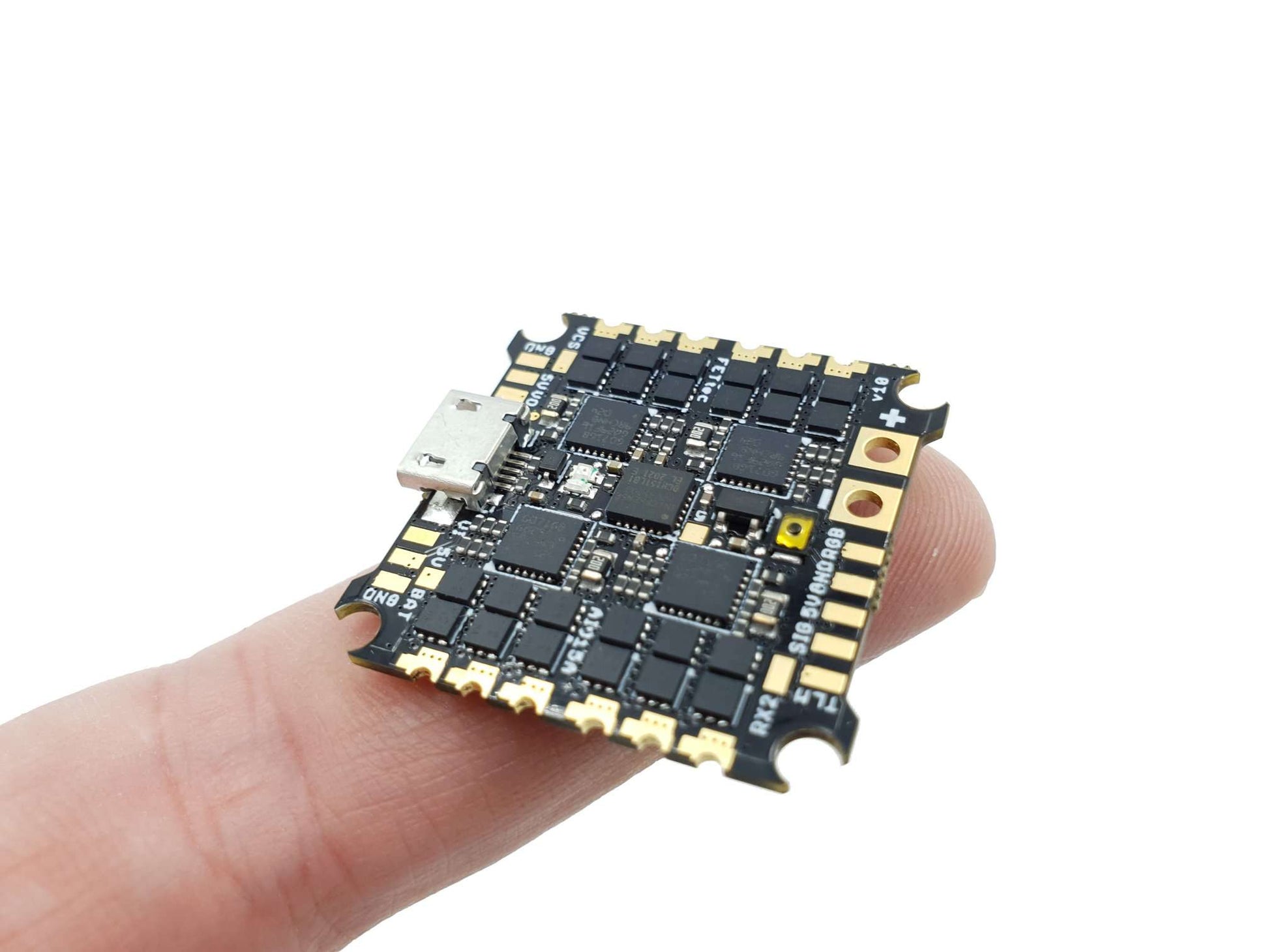

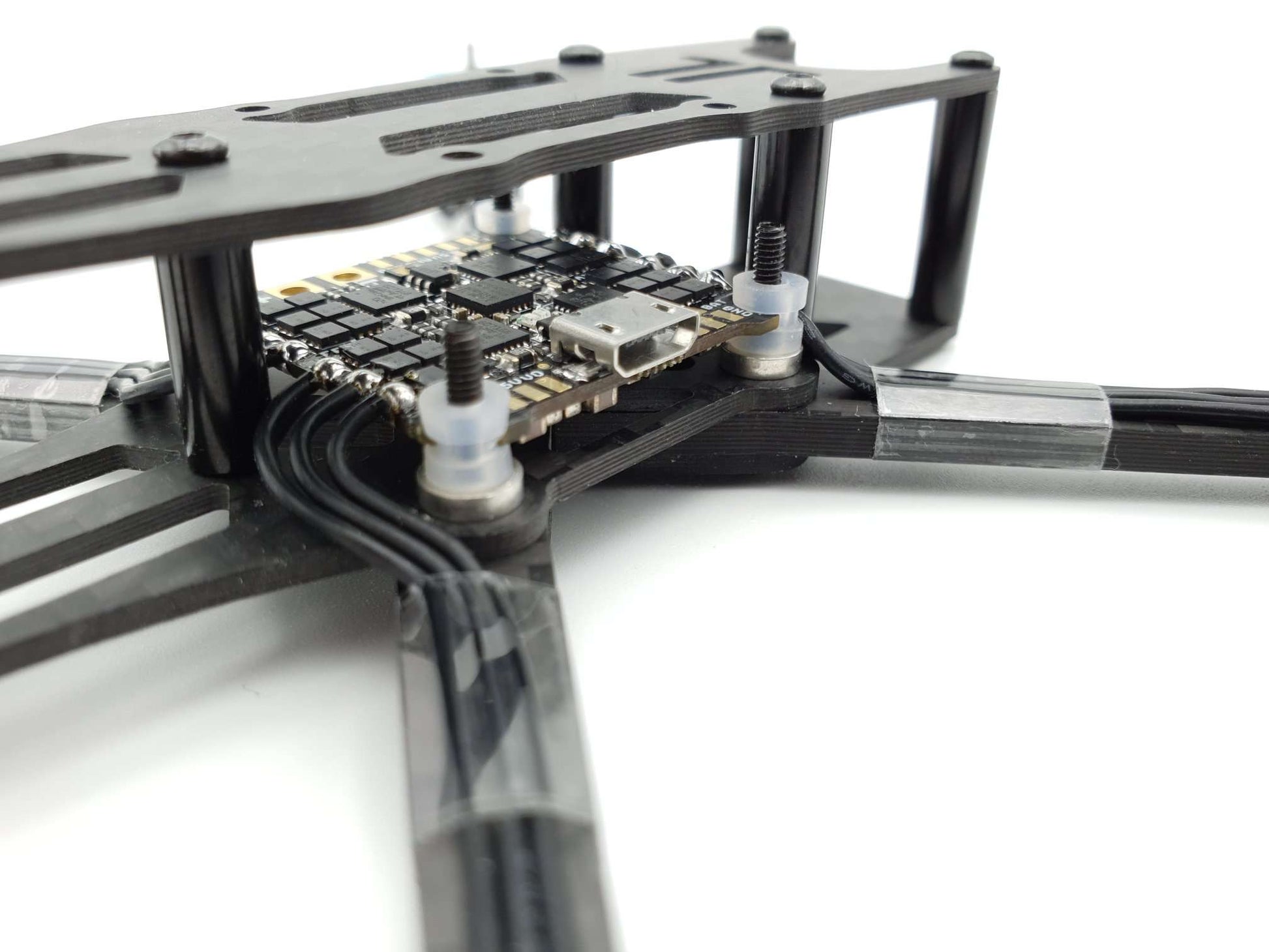

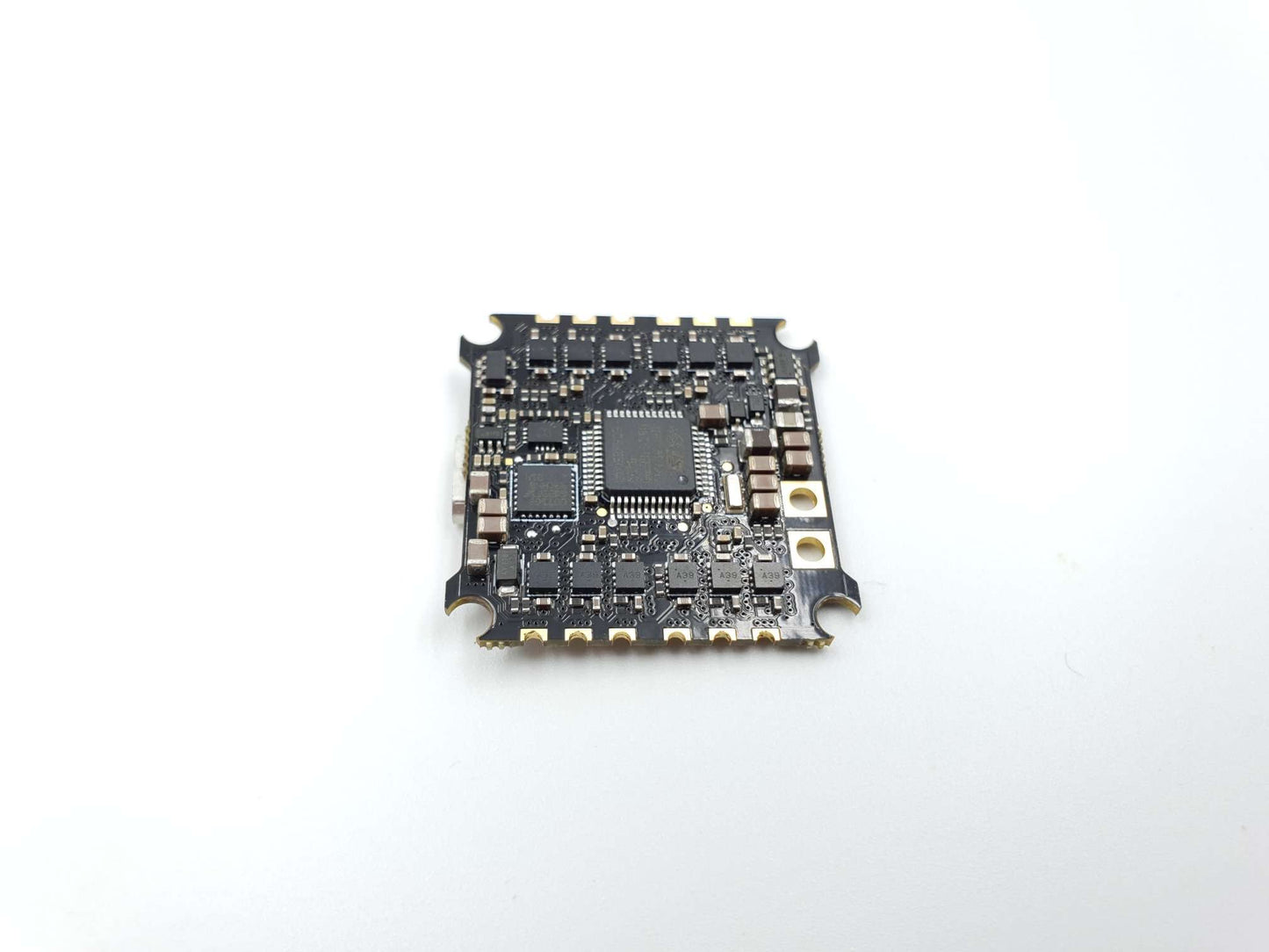

The FeTTec Mini AIO is a whoop/toopthpic form factor board that includes 4x 15A ESC. All with that KISS firmware and FETTEC ESC firmware goodness.
Please note depending on supply you may receive one in either Fettec and Holybro packaging, bother are 100% exactly the same product.

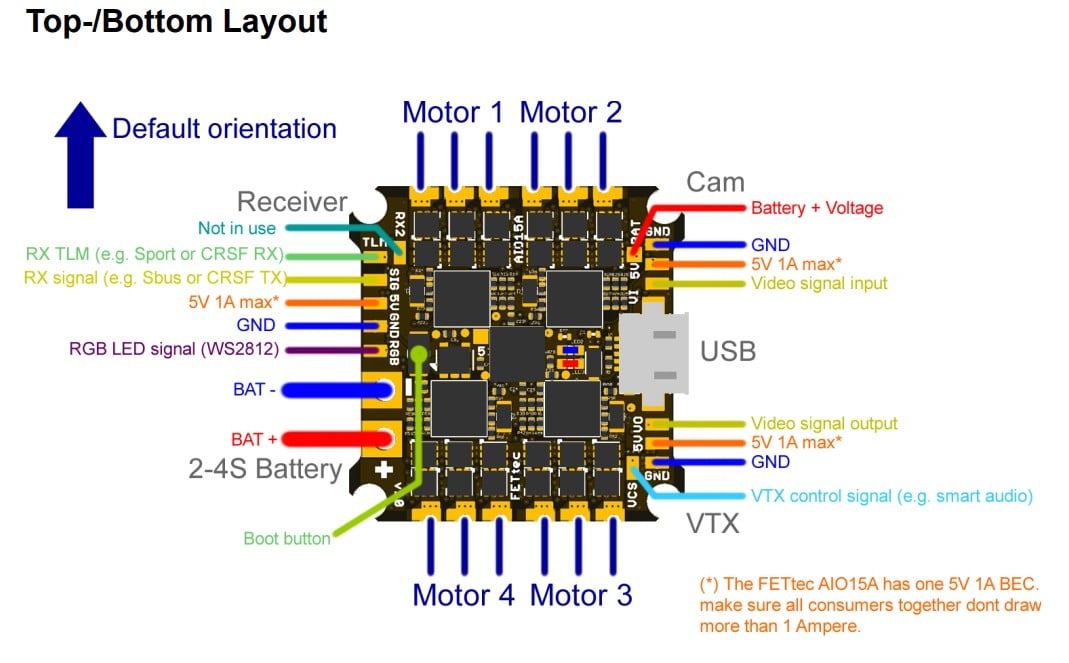

FETtec-AIO Manual
Features
- Full FETtec AIO with KISS FC Firmware
- 4 ESCs 15A
- 2-4s
- Graphical OSD with full KISS tuning
FC:
- STM32F303CCT6 @ 72MHz
- MPU6000
- Supply voltage 6-18V (2-4s LiPo)
- 1x 5V BEC (max 1A)
- Dshot 600
ESC:
- Active current limiting @ 15A
- Input voltage: 2s-4s
- High quality 30V MOSFETs
- STM32G071 @ 64MHz
- 128 kHz Motor PWM
-
Automatic input signal detection
- Dshot
- PWM
- OneShot42/125
SIze
- SIze: 29 x 29 mm
- Mounting: 25,5 x 25,5 mm
- Weight: 3.41g
Software
- KISS Firmware - Softwareupdate via FETtec Configurator
- FETtec ESCs Firmware - Softwareupdate via FETtec Configurator
- FETtec OSD - Softwareupdate via FETtec Configurator
Included
- 1x FETtec Mini AIO 15A
- 1x Capacitor 35V 330µF
