Product Details

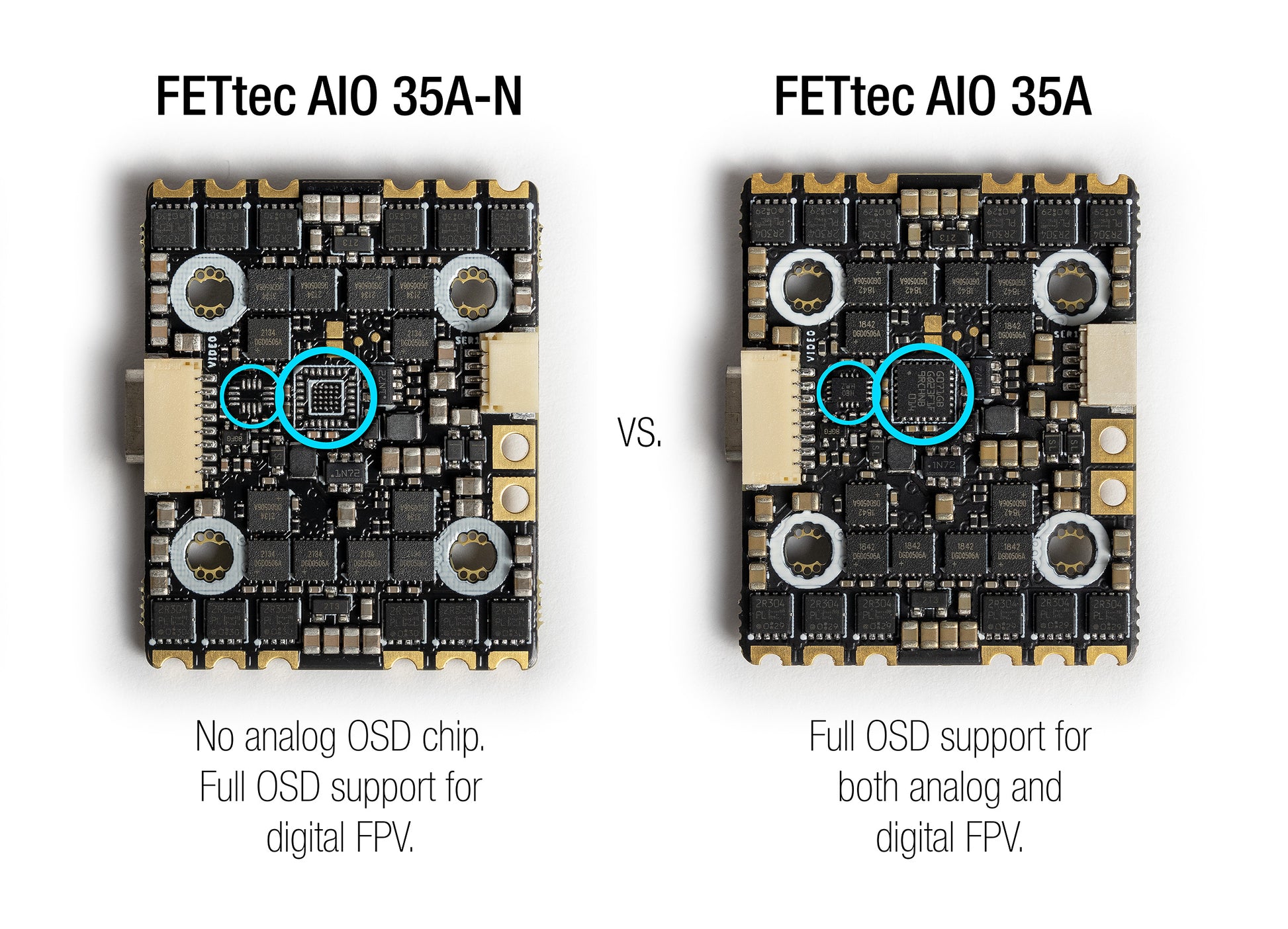

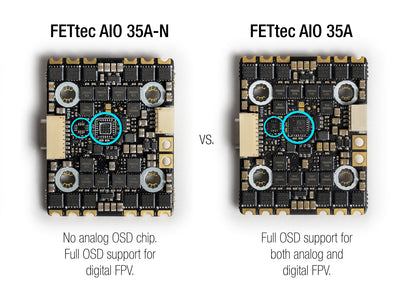

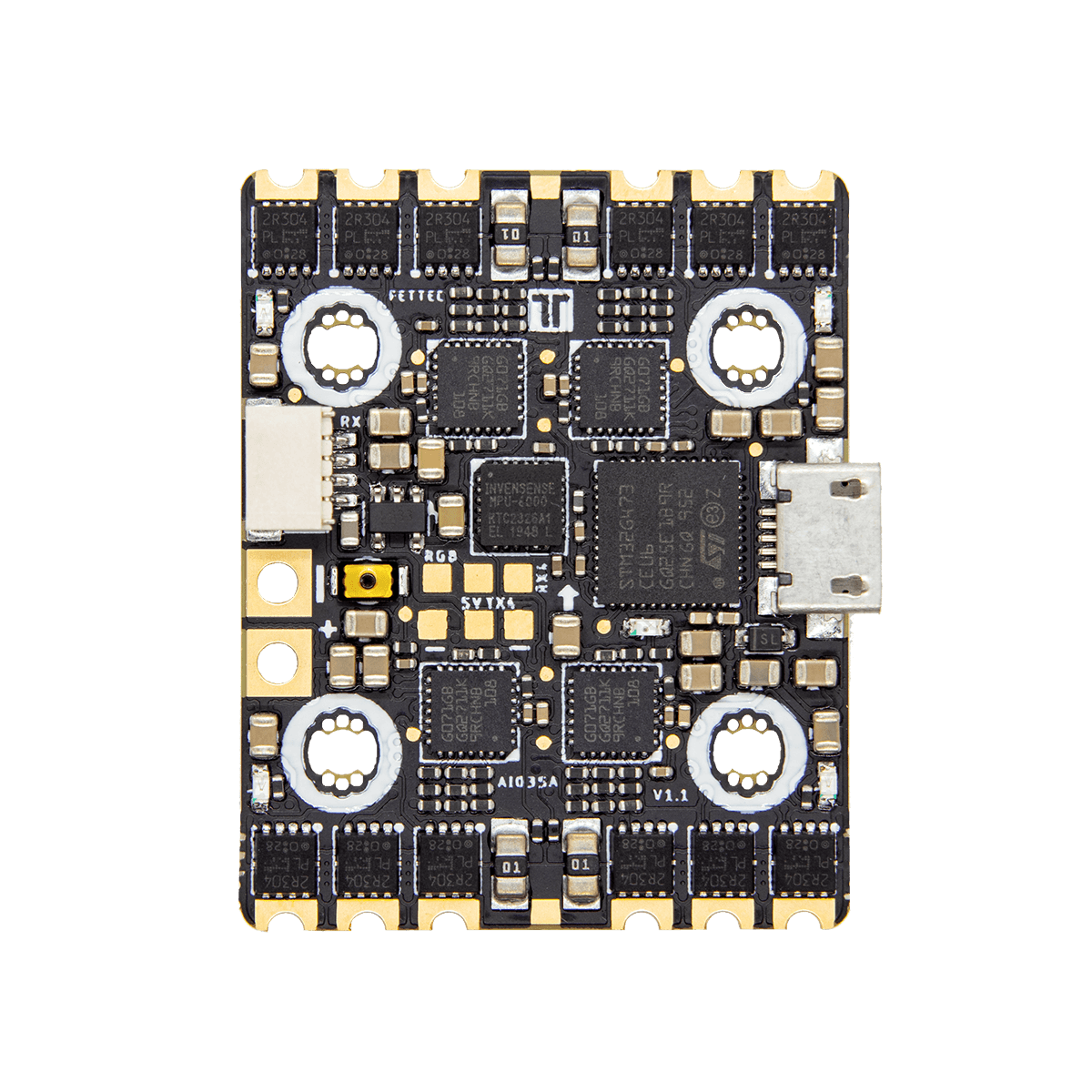

This is the digital version of the popular Fettec AIO 35A, the N stands for No analog OSD.
Manual
Features
FC:
-
Latest STM32G4 Processor
-
170Mhz + Math accelerator
-
MPU6000
-
-
Supply voltage 12-25V (3S-6S Lipo voltage)
-
2x dedicated onboard 5V BEC for VTX (max. 600mA each)
-
5V BEC for RX
-
5V/16V BEC for VTX (switchable and real Pit*)
-
-
1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems
-
VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3
-
-
2x 4 pin connector for receiver and VTX
-
Signal, telemetry, 5V, gnd
-
Gnd, 5V, TX1, RX1
-
-
5 UART serials
-
UART 1 free
-
UART 2 used for Receiver
-
UART 3 free
-
UART 4 free
-
UART 5 used for ESCs / TLM / Onewire
-
-
Solder pad for RGB LEDs
-
Supported ESC protocols
-
PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
-
-
KISS FC firmware
*real Pit-Mode: A power supply pin which is remotely switchable
ESC:
-
Active current limiting @ 35A
-
Input voltage: 3s-6s
-
High quality 40V MOSFETs
-
STM32G071 @ 64MHz
-
up to 128 kHz Motor PWM
- Full sine wave control
-
Automatic input signal detection
-
PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
-
-
FETtec ESC firmware
Connector type: JST-SH-1mm

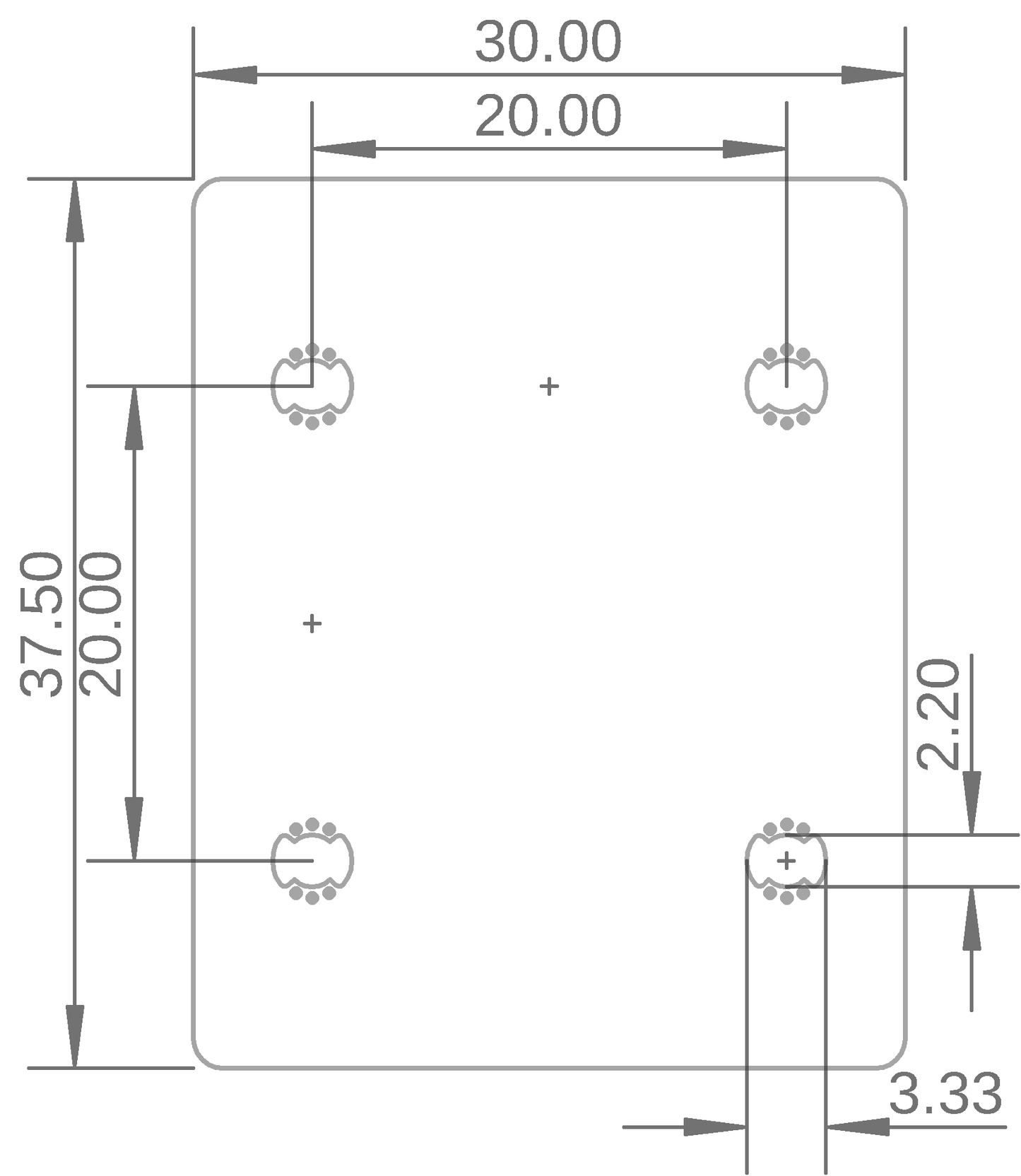

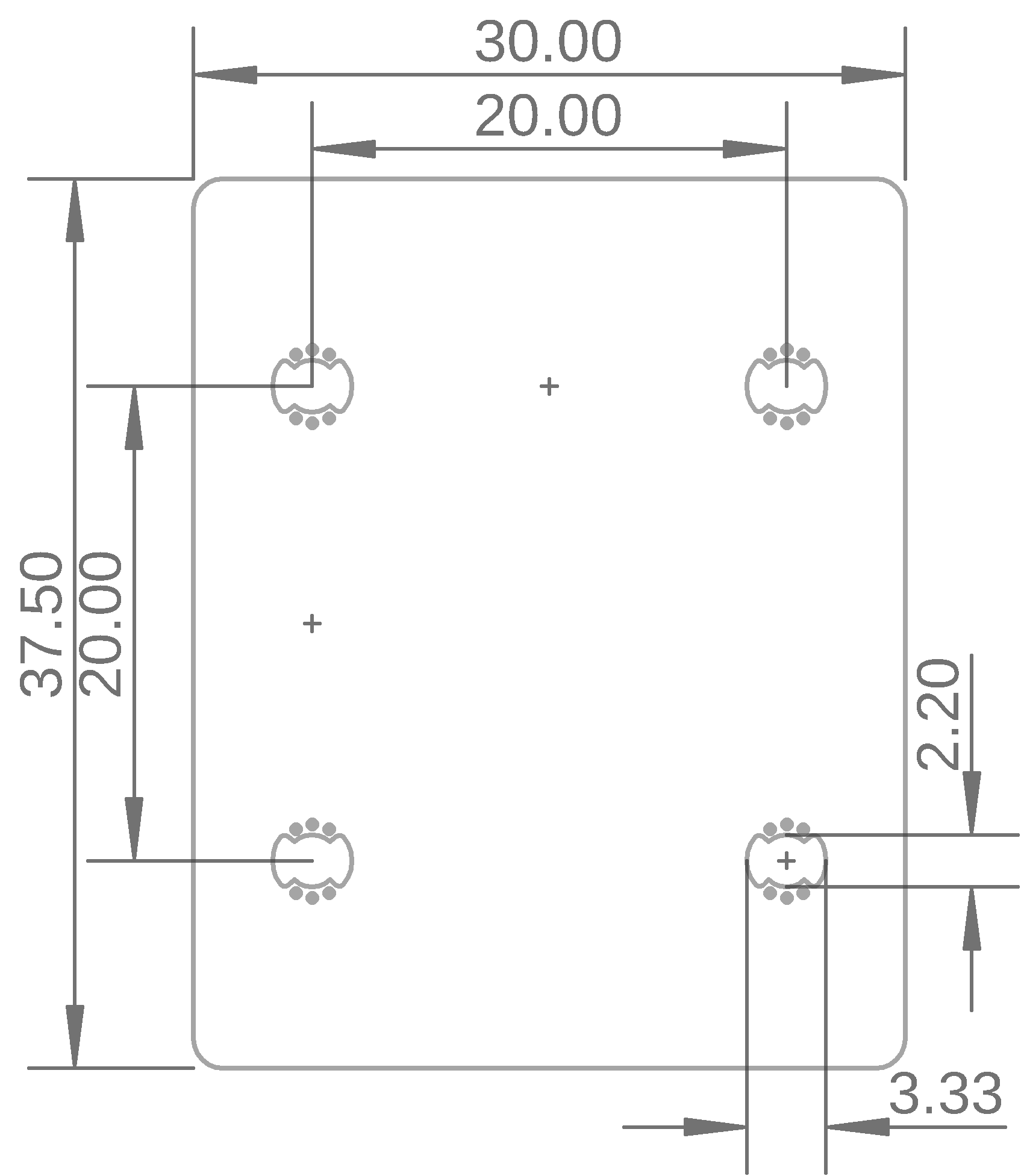

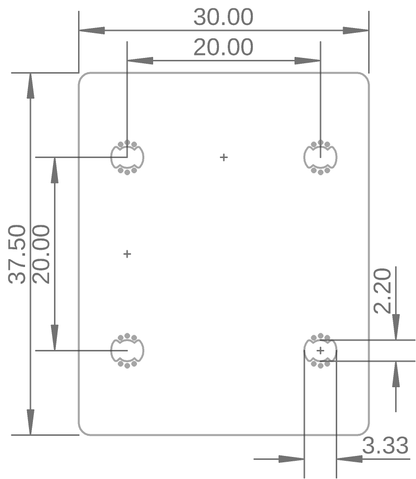

Dimensions
-
Maximum outside dimensions: 30 x 37,5mm
-
Mounting hole arrangement: 20 x 20mm with M2 mounting hole (expandable to M3)
-
-
Overall height: 7,9mm
-
Weight: 8,9 g
Firmware
- KISS Firmware - Softwareupdate via FETtec Configurator
- FETtec ESCs Firmware - Softwareupdate via FETtec Configurator

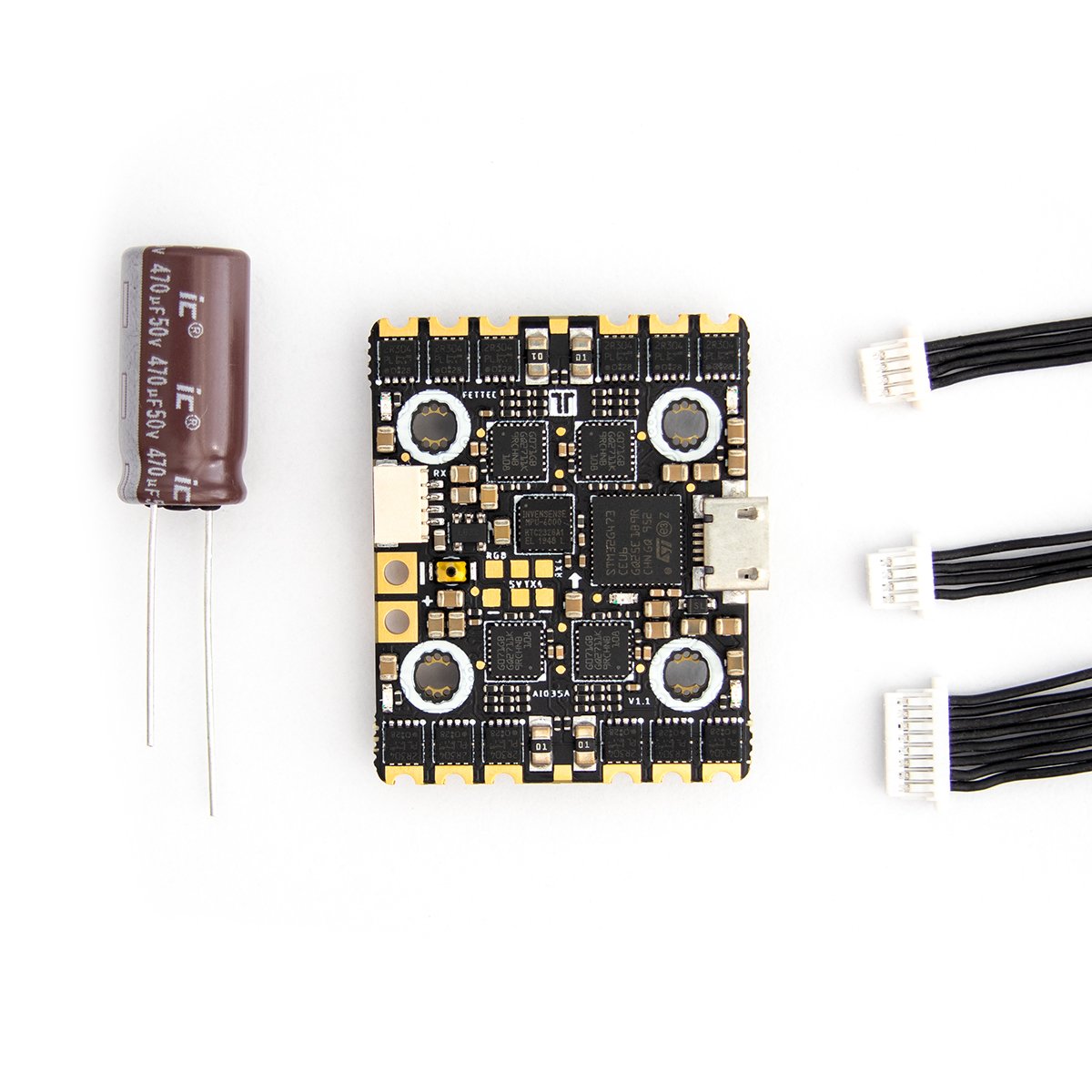

Included:
- 1x FETtec AIO 35A lite
