ESC Programming Card for DYS Series ESC

ESC Programming Card for DYS Series ESC

D713041

£4.90 GBP
£4.90 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock

UK delivery: typically 1–3 working days

Order by 3pm Monday–Friday for same-day dispatch. Eligible UK orders over £100 qualify for free shipping.

Some batteries and export-controlled products have shipping or destination restrictions. Checkout shows the options available for your order.

View full delivery information

View full details

Product Details

The DYS Series ESC Programming Card is a specialized tool designed for configuring DYS brushless electronic speed controllers used in RC aircraft. This compact device weighs just 11 grams and offers convenient parameter adjustment capabilities

Technical Specifications

Physical Dimensions

  • Length: 71mm
  • Width: 43mm
  • Height: 3.5mm
  • Weight: 11g

Power Requirements

  • Operating Voltage: 5.0V-8.0V
  • Power Source: ESC's BEC or external power supply

Key Features

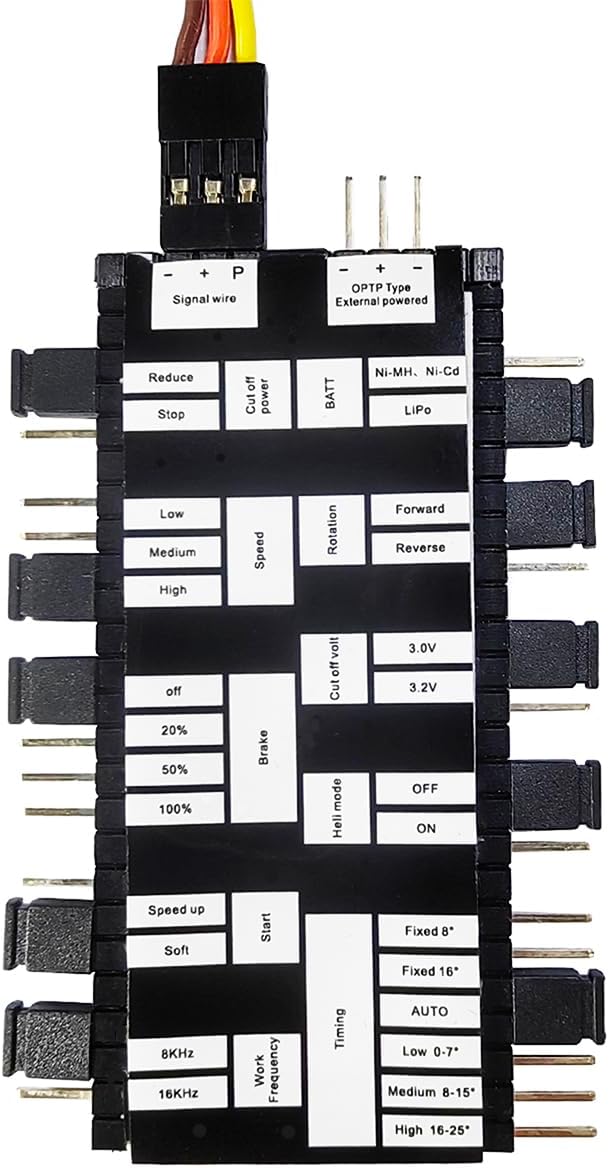

Programming cards significantly simplify the ESC configuration process compared to traditional stick-based programming methods. The card provides a straightforward interface for adjusting various parameters like brake force, timing, and operating modes.

Compatibility

This programming card is specifically designed for the DYS Series airplane brushless ESCs, ensuring proper configuration capabilities for your specific model.
