Product Details
The Frsky R9M Lite is an 868Mhz long range radio control transmitter module. It is designed for the Frsky Taranis X-lite transmitter. Adding this module to your X-lite radio will give you long range capability for your FPV drone setup. Because of the smaller design, this TX module is not compatible with other radio controls that use the JR style module bay.
The lite version of the R9M is only referring to the smaller size, as this R9M lite has all the same features and functionality of the regular size R9M TX module. This TX is compatible with all the receivers in the R9 series. This module offers super low latency with high precision at extremely long range which still conforming to EU regulations.
Key Features
- Firmware upgradable on Taranis X-Lite
- Telemetry data transmission supported
- Long Range, Low Latency and High precision RC system
Specifications

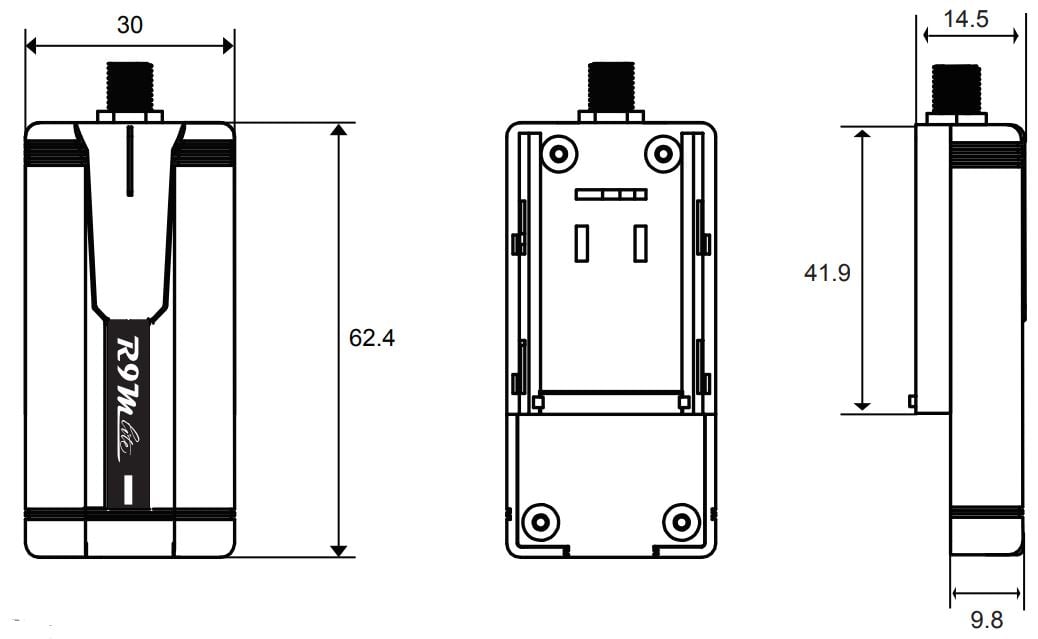

- Dimension: 62.4mm × 30mm×14.5mm (L×W×H)
- Weight: 20g
- Number of channels: 16 channels
- Operating Current: 100mA@7.2V
- RF Operating Frequency: 900MHz (915MHz/868MHz)
- RF Power (Non-EU): 100mW (with telemetry)
- RF Power (EU): 25mW (with telemetry) /100mW (without telemetry)
- Compatibility: R9 series receivers
