Product Details
The EMAX ES9250 servo offers powerful performance in an incredibly small size. Despite being an all-metal gear servo, 2.5g weight is maintained in order to not heavily weigh down any aircraft or robotics for full manoeuvrability. Featuring a coreless motor, the ES9250 is able to fit perfectly on any helicopter as a powerful upgrade or alternative with maximum strength. With the accuracy of digital, paired with the long lifespan of metal, the ES9250 is a standard in servos for years to come.
Features
- Metal Gears for ultimate reliability
- Digital for the smoothest operation
Specifications
- Operations Voltage: 3.8-6V
- Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
- Stall Torque at 3.8V: 0.42kg/cm max
- Stall Torque at 6.0V: 0.65kg/cm max
- Speed at 3.8V: 0.11 sec/60* (zero load)
- Speed at 6.0V: 0.07 sec/60* (zero load)
- Size: 25.5x19.9x8.3mm
- Weight: 4.8g
- Plug: JR
- Cable Length: 180mm
- Head Splines: 15T
- Maximum Travel: 160°
- Gears: Metal
- Operation: Digital

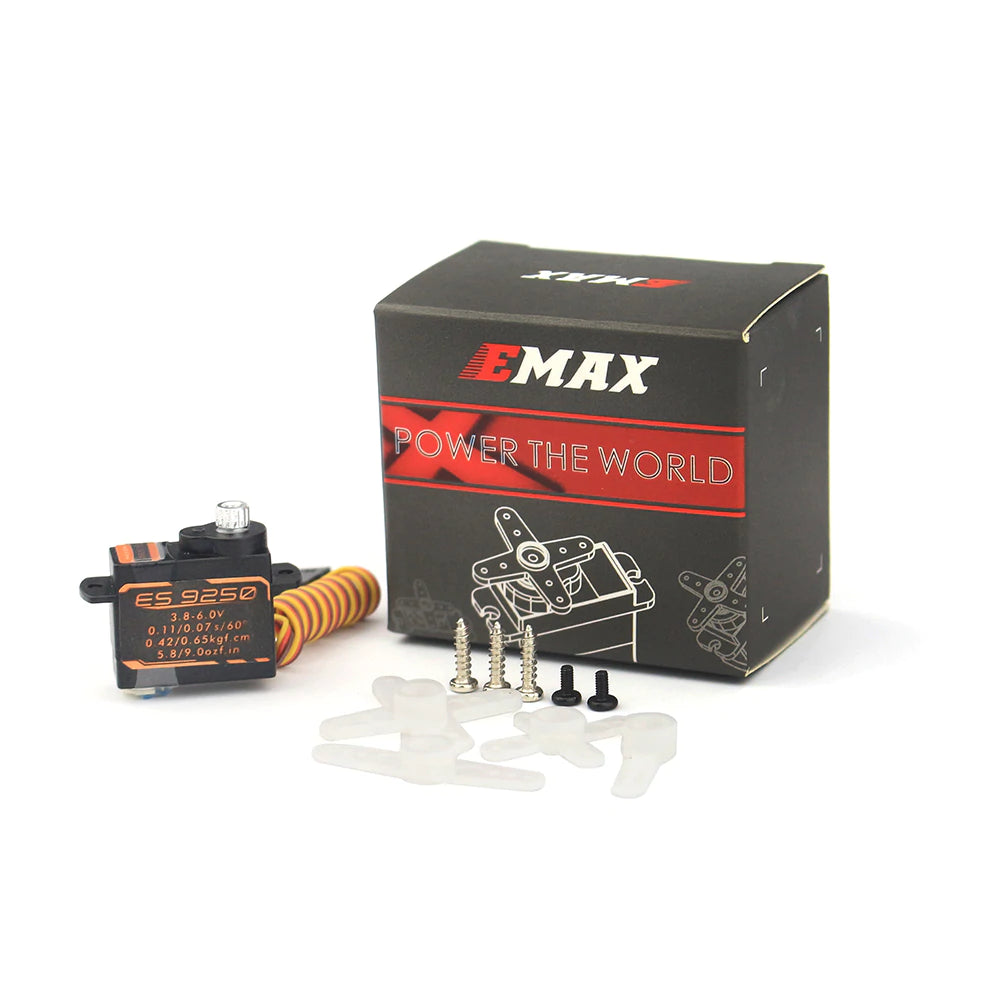

Includes
- 1x EMAX ES9250MD 4.8g Metal Gear Digital Servo
- 3x Plastic Servo Horns
- 1x Mounting Hardware Set
