Product Details

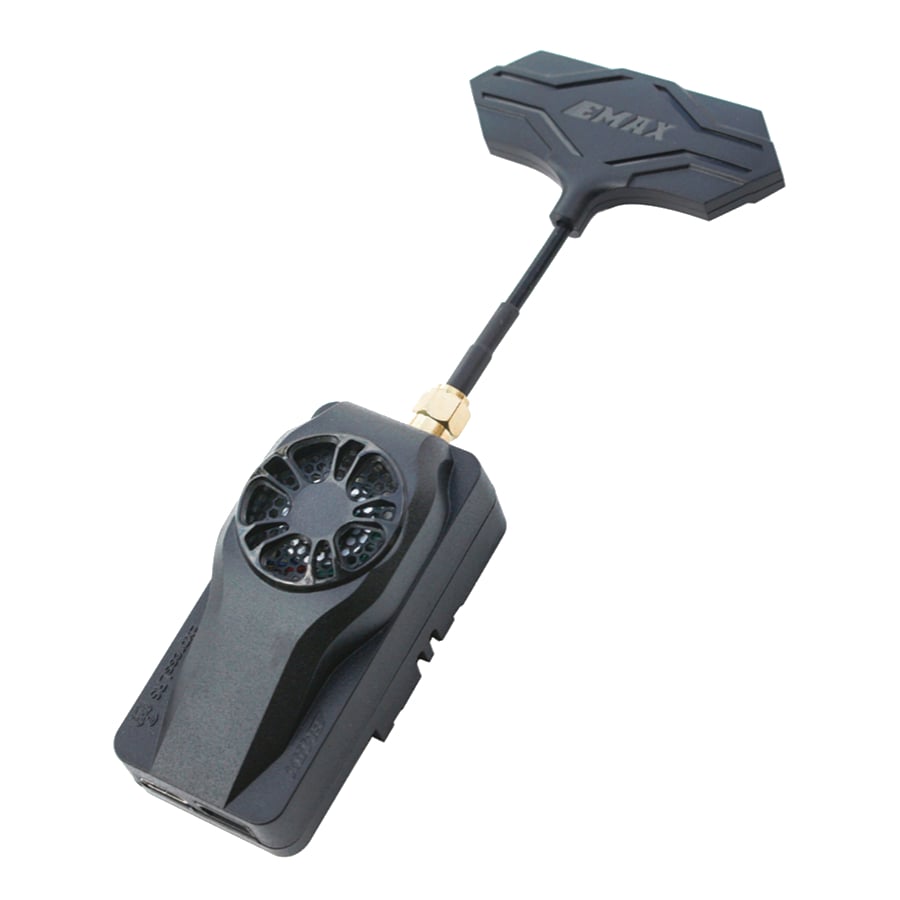

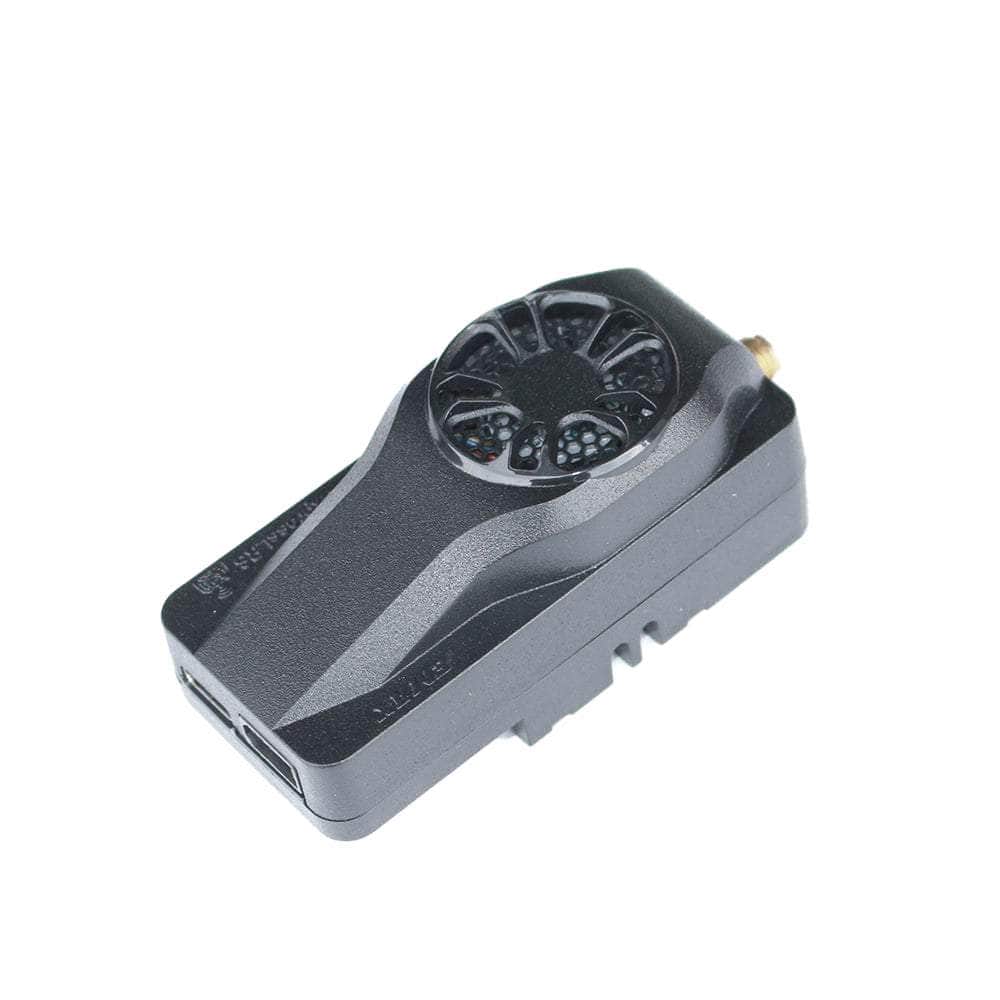

EMAX Aeris Link ELRS Module: Boost Your FPV Adventures Sky-High!
🚀 Ever felt your FPV equipment was missing that little 'oomph' of distance? And, well, style?
🛸 We've seen FPV pilots skimming low terrains and darting through tight spaces, all while battling range anxiety. Plus, let's be honest, most long-range gear looks... well, a bit "meh".
🎉 Enter the EMAX Aeris Link. A small, but mighty ELRS module that promises not just an enhanced range but also dazzles with its stunning RGB fan aesthetics.
Why it's the FPV Pilot's New BFF
- Nano Powerhouse : Boasting an 868MHz frequency and a whopping 200Hz packet rate, you get the speed and distance you've been yearning for.
- Glow & Show : With an RGB fan, you not only get informed about the power settings but also get to flaunt a unique aesthetic touch. Perfect for the evening sessions.
- Power Options : Run out of 2S batteries? No worries! Whether it's a 3S, 4S, or 5S, the Aeris Link's got you. And for those with an abundance of 4S XT30 batteries, it's a match made in heaven.
- Specifications? Sorted : Weighing in at about 39g and operating at 868MHz EU frequency, this beauty supports Crossfire serial data protocol and is compatible with OpenTX remote controllers. Plus, the built-in T-shaped antenna ensures you're getting optimum signal reception every time.
- Confused about MHz? A gentle nudge: if 868MHz sounds like jargon, you might be better suited with our 2.4GHz version. 😉
Specifications
- Weight Approximately 39g (excluding antenna)
- Dimensions 72 x 32 x 32 mm (excluding antenna)
- Operating Frequency 868MHz EU
-
Output Power 10mW (default)
- 868MHz Version: 25mW/50mW/100mW/250mW/500mW/1000mW/2000mW
- 2.4G Version: 25mW/50mW/100mW/250mW/500mW/1000mW/1000mW
-
Refresh Rate
- 868M Version: 25hz, 50hz, 100hz, 100hz Full, 200hz
- 2.4Ghz Vesrion: 2.4G Version: 50hz, 100hz FULL, 150hz, 250hz, 333hz FULL, 500hz, D250hz, D500hz, F500hz, F1000hz.

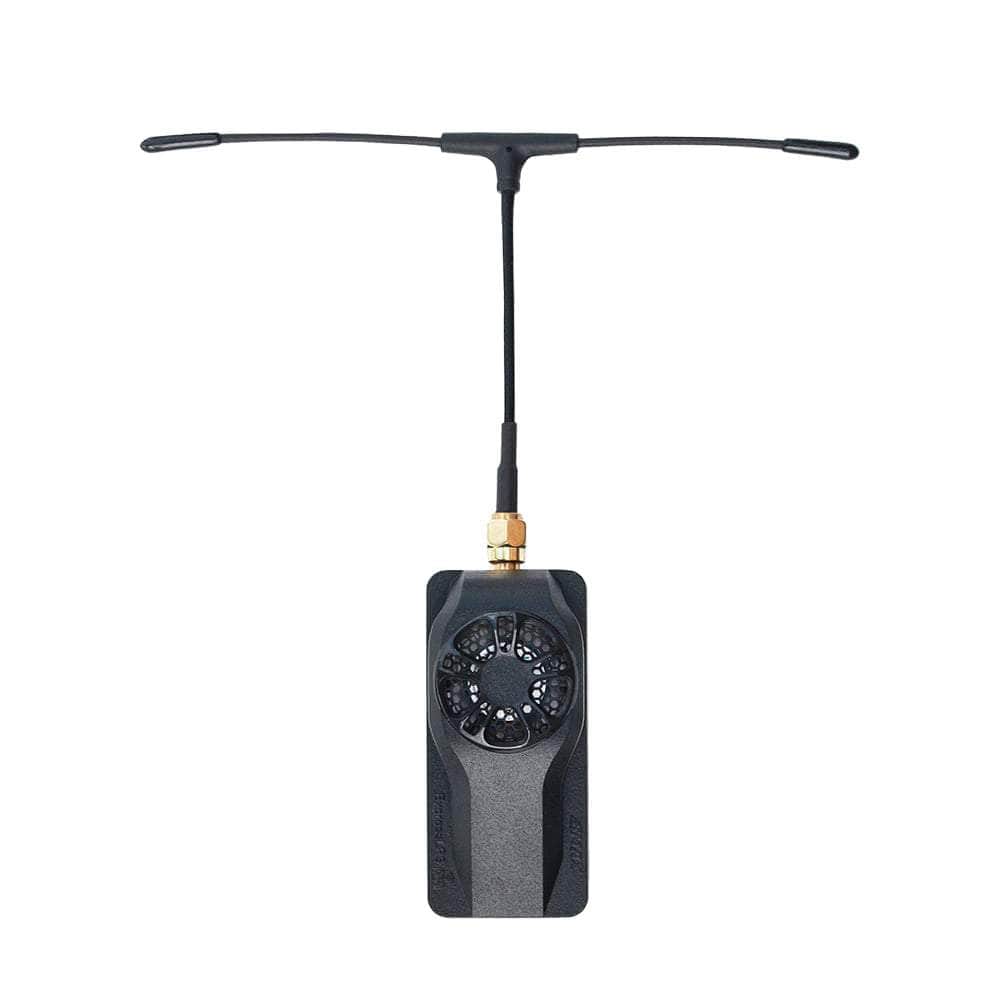

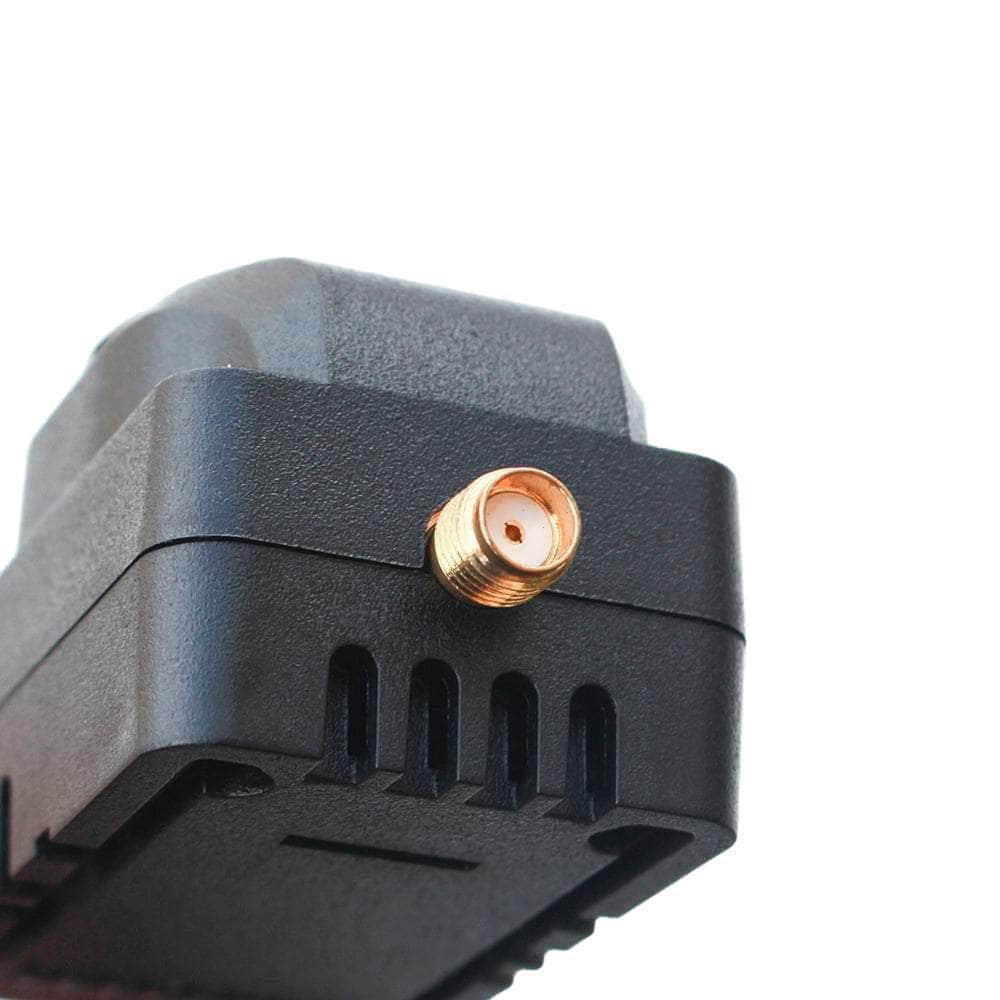

- Antenna: Built-in gain T-shaped antenna, can also use other antennas with SMA-J internal thread and male connector
- Configuration Supports Crossfire serial data protocol (CRSF) signal, compatible with OpenTX remote controllers.
- Interfaces Type-C Interface, JR Interface

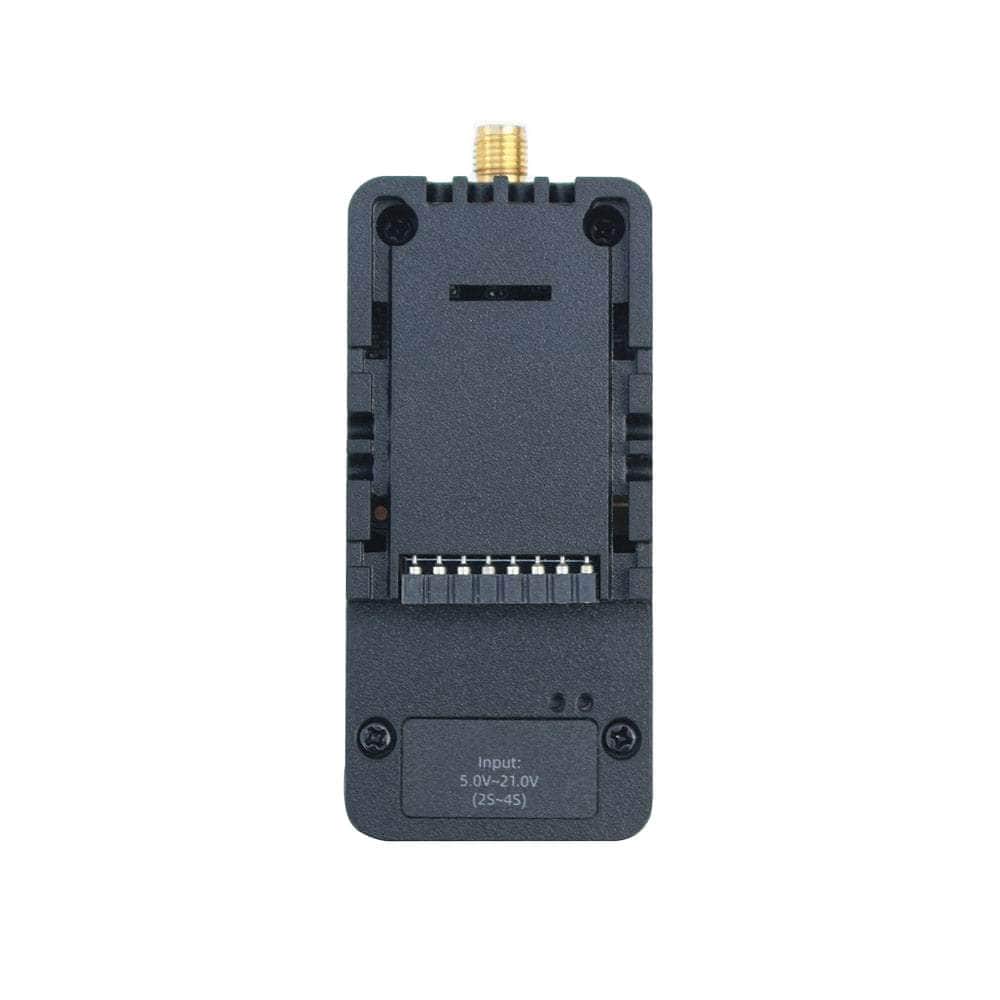

- External Power XT30 Interface (supports voltage input of 5-21V, recommended to use 2S (8.4V))
So, if you're ready to turbo-charge your FPV escapades and bring some flair to your setup, the EMAX Aeris Link is your go-to gadget.
🌌 Ready to dominate the skies and steal the show? Add to cart!
Included
- 1x Emax Aeris Link ELRS Nano Module
