Product Details
This is a 2.4Ghz R/C antenna compatible with TBS Tracer or ELRS 2.4Ghz systems. It includes an IPEX/IPX/U.FL connector.
Specifications
- Frequency (MHz) 2400.0
- Efficiency (dBi) -0.89
- Gain (dBi) 2.23
- Efficiency (%) 81.46
- Directivity (dB) 5.12
- Peak Gain Position (Theta) 180.00
- Peak Gain Position (Phi) 330.00
- Efficiency ThetaPol (%) 20.90
- Efficiency PhiPol (%) 60.56
- Upper Hem. Efficiency (%) 39.93
- Lower Hem. Efficiency (%) 41.54
- Connector IPEX/IPX/U.FL
- Antenna width 50mm

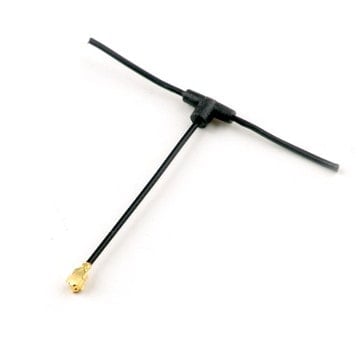

- Weight 0.41gram (40mm version)

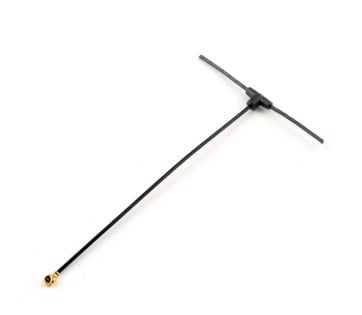

- Weight 0.56gram (90mm version)
Included
- 1x Antenna
