Product Details

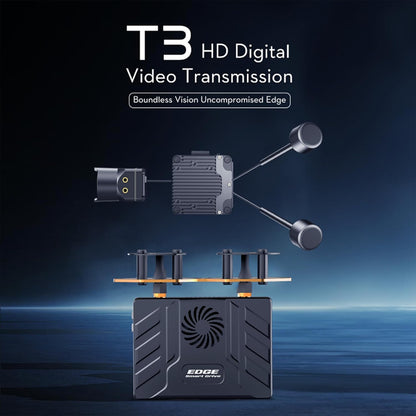

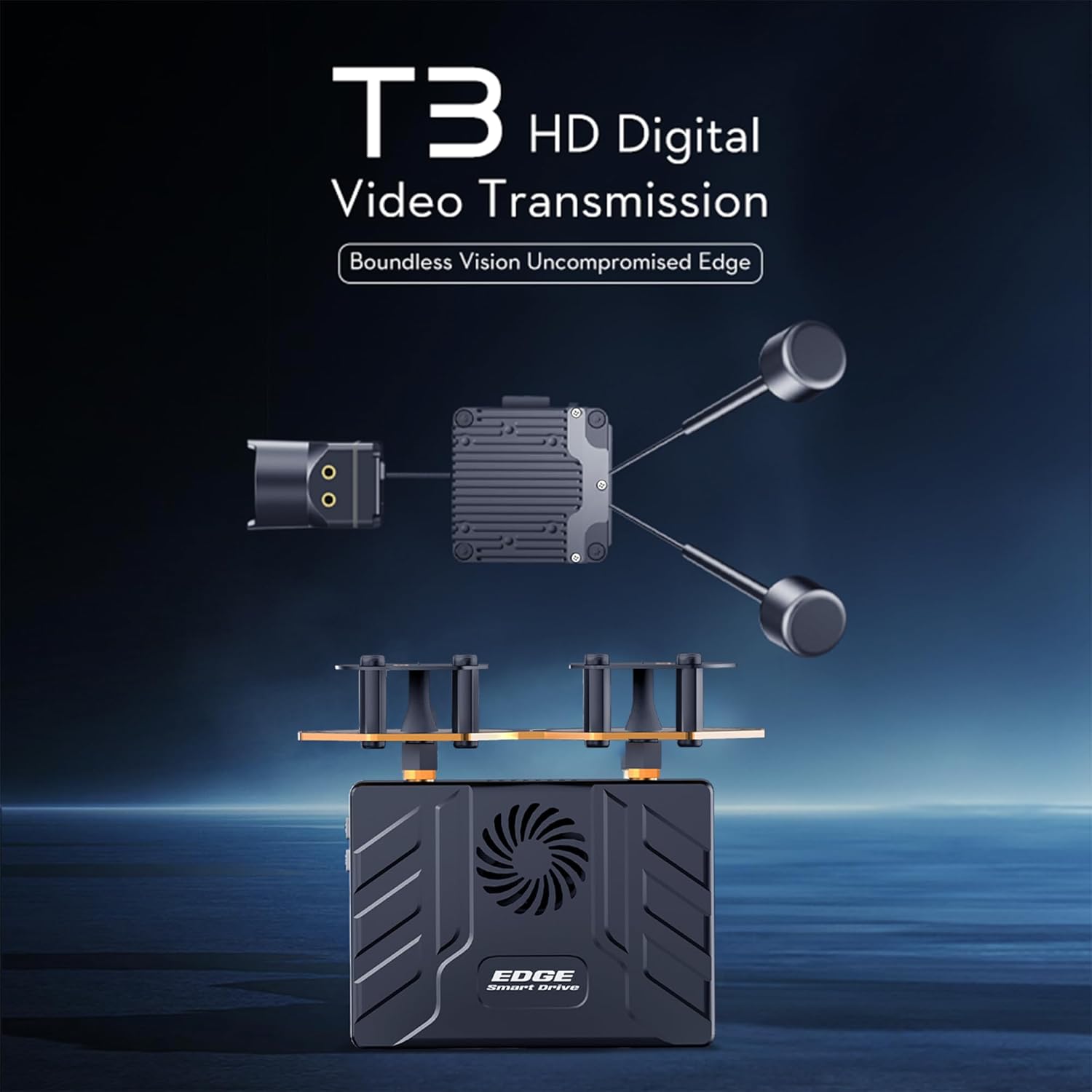

Complete Digital FPV Video Transmission Solution
The Edge Smart T3 Combo delivers professional-grade FPV video transmission with both VTX (transmitter) and VRX (receiver) included. Experience crystal-clear digital video link for your FPV drones and RC aircraft with this plug-and-play system.
Key Features
- Complete System: Includes both VTX transmitter and VRX receiver - everything you need in one package
- High-Quality Digital Video: Enjoy crisp, clear video transmission with minimal latency
- Easy Setup: Plug-and-play design gets you flying faster with less configuration
- Reliable Performance: Stable video link even in challenging RF environments
- Versatile Compatibility: Works with a wide range of FPV drones and RC aircraft
Specifications:

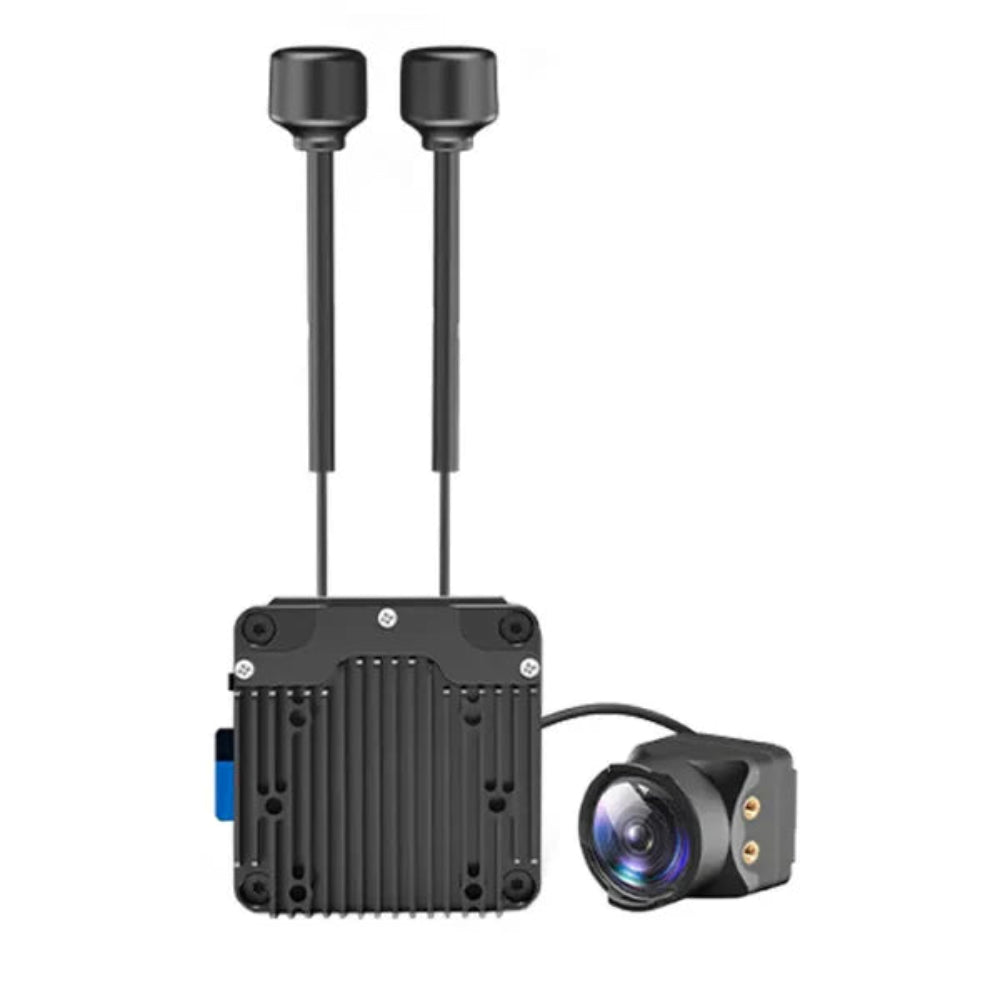

Image Transmission Module (VTX)
Model: T3 VTX
Product Name: T3 Digital HD Image Transmission (Air Unit)
Communication Frequency: 5.18-5.24GHz, 5.745-5.825GHz
Transmit Power (EIRP): FCC≤30 dBm, CE<14dBm; SRRC<20dBm

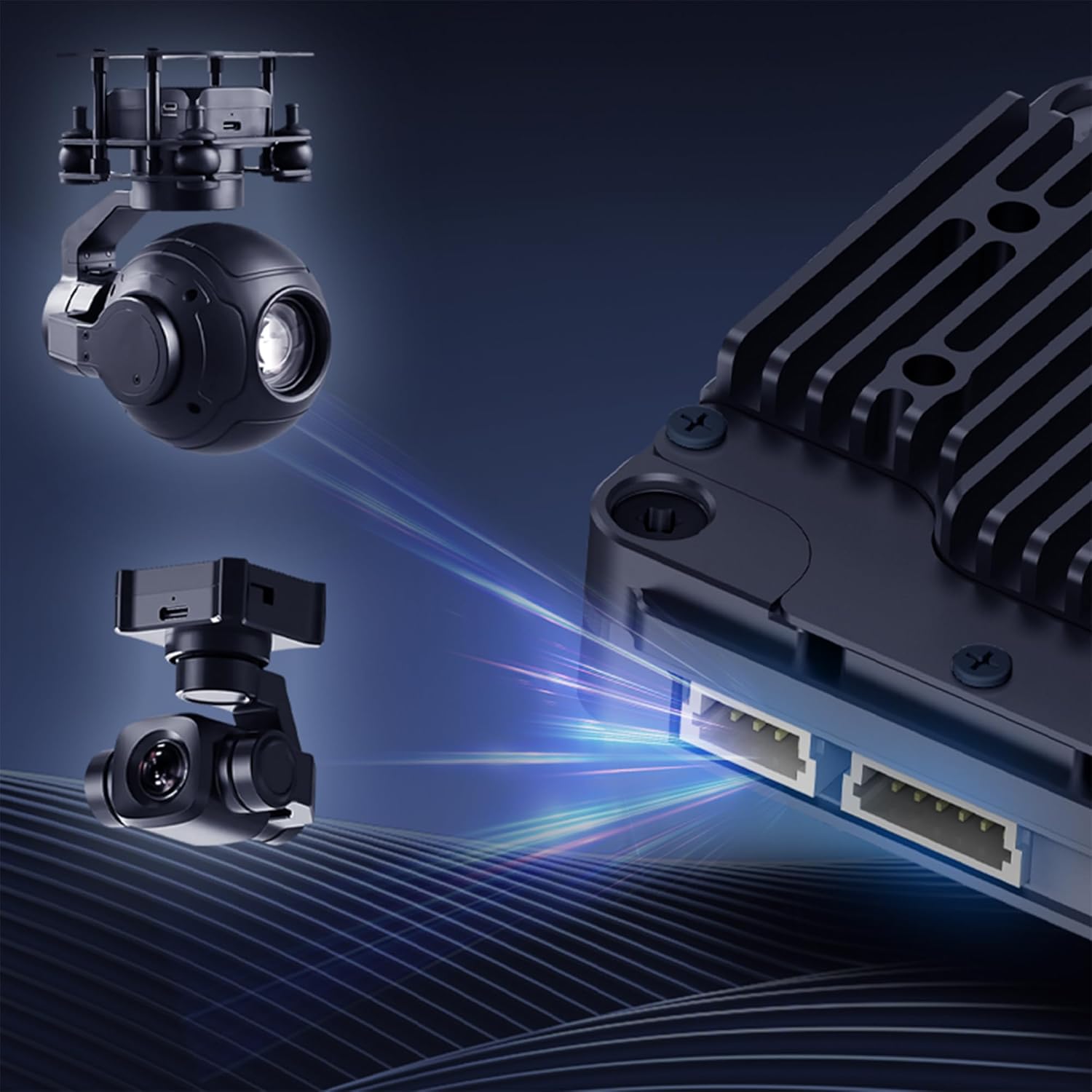

Interface: SH1.0-4P, SH1.0-6P, SH1.0-8P
Mounting Hole Spacing: 2×25.5 / 4×20 mm
Dimensions: 36×36×11.8 mm
External Storage: Support microSD card (16-256GB)
Recording Specifications: 1080p@60fps
Weight: 25g (including heat sink)
Operating Temperature: 0°C to +50°C
Available Frequency Points: 9
Voltage Input Range: 6-28V DC
Supported Flight Control Systems: ArduPilot, Betaflight, iNav
Camera Module
Model: T3 Camera Module
Image Sensor: 1/2.8-inch 2MP 16:9 sensor
Resolution: 1080P/60FPS
Aspect Ratio: 16:9
Lens (Standard): 2.9mm HD120
Aperture: F1.4
FOV: 120°
Lens (Optional): 2.2mm HD155
Aperture: F1.9
FOV: 155°
Shutter Type: Rolling Shutter
Weight: 13g
Dimensions: 20×20×30mm / 20×20×25mm
Coaxial Cable Length: 130mm
Antenna
Name: Omnidirectional Antenna
Polarization Direction: Left-hand Circular Polarization (LHCP)
Working Bandwidth: 5500-6000 MHz
Input Impedance: 50 Ω
VSWR: ≤1.5
Interface Type: IPEX-1
Dimensions: 15×122 mm
Weight: 2.5 g (single)

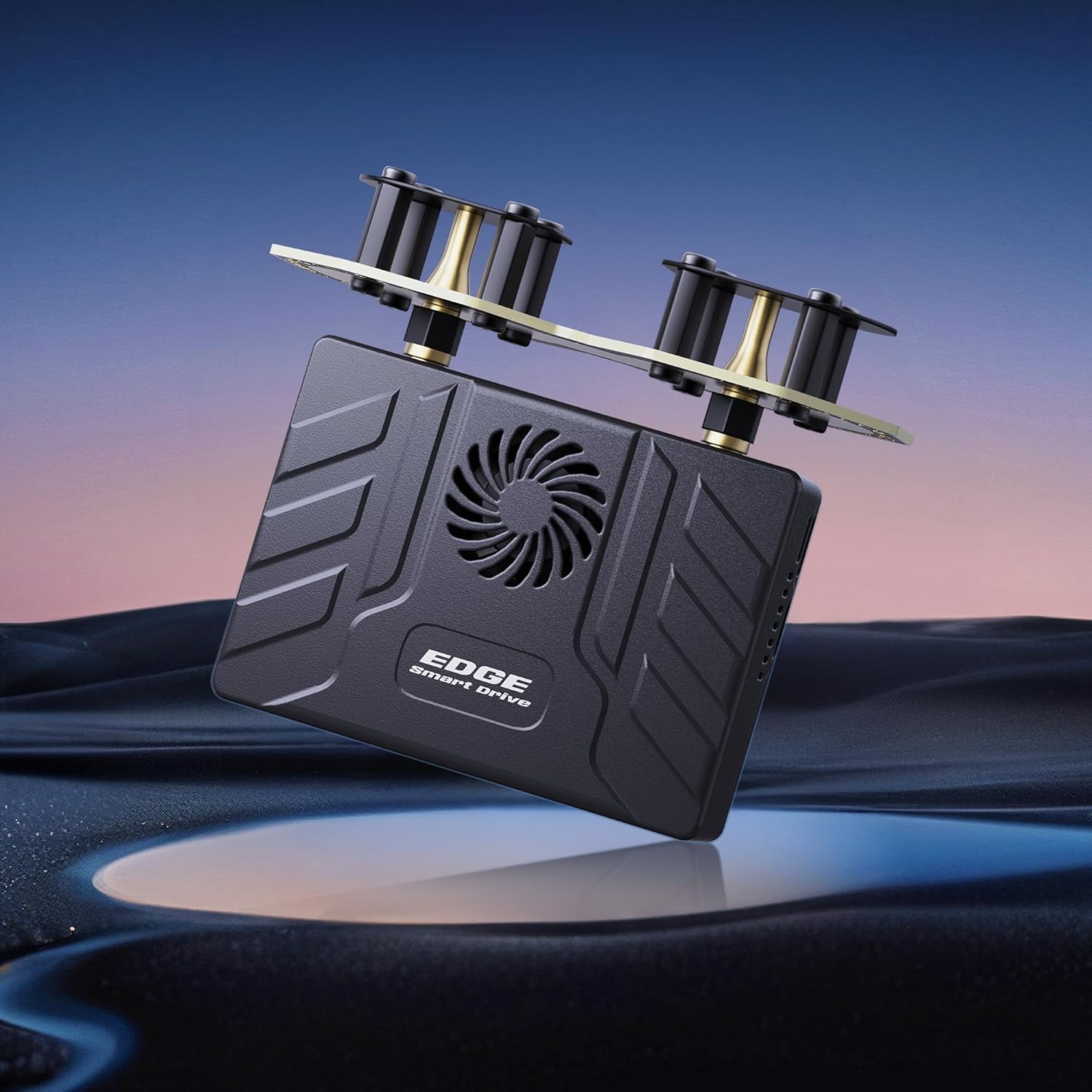

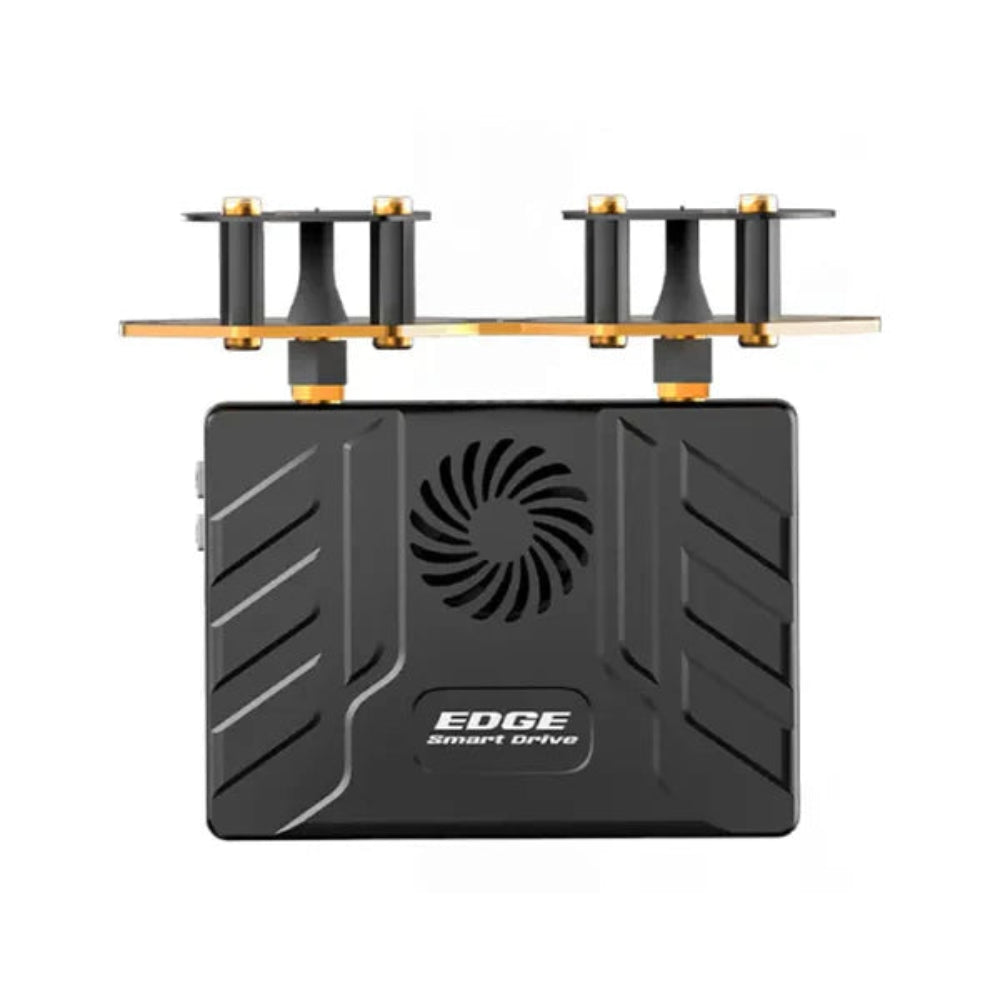

Image Transmission Module (VRX)
Model: T3 VRX
Product Name: T3 Digital HD Image Transmission (VRX)
Communication Frequency: 5.18-5.24GHz, 5.745-5.825GHz
Transmit Power (EIRP): FCC≤30 dBm, CE<14dBm; SRRC<20dBm
Available Frequency Points: 9
Interface: SH1.0-4P, SH1.0-6P

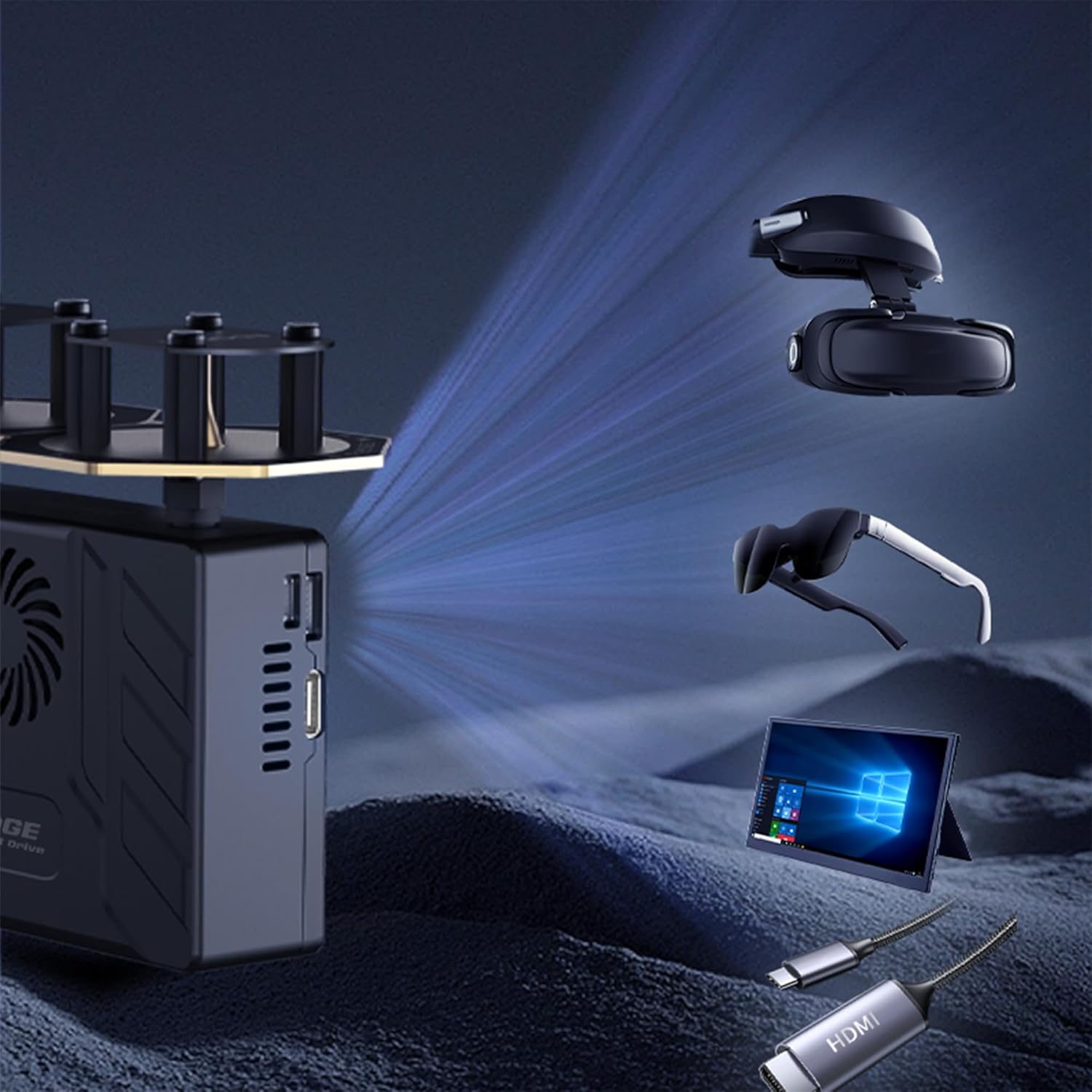

Type-C: Video Output 1080P/60FPS
Fixed Hole Spacing: 15mm (M2×2)
Dimensions: 82×26×68mm

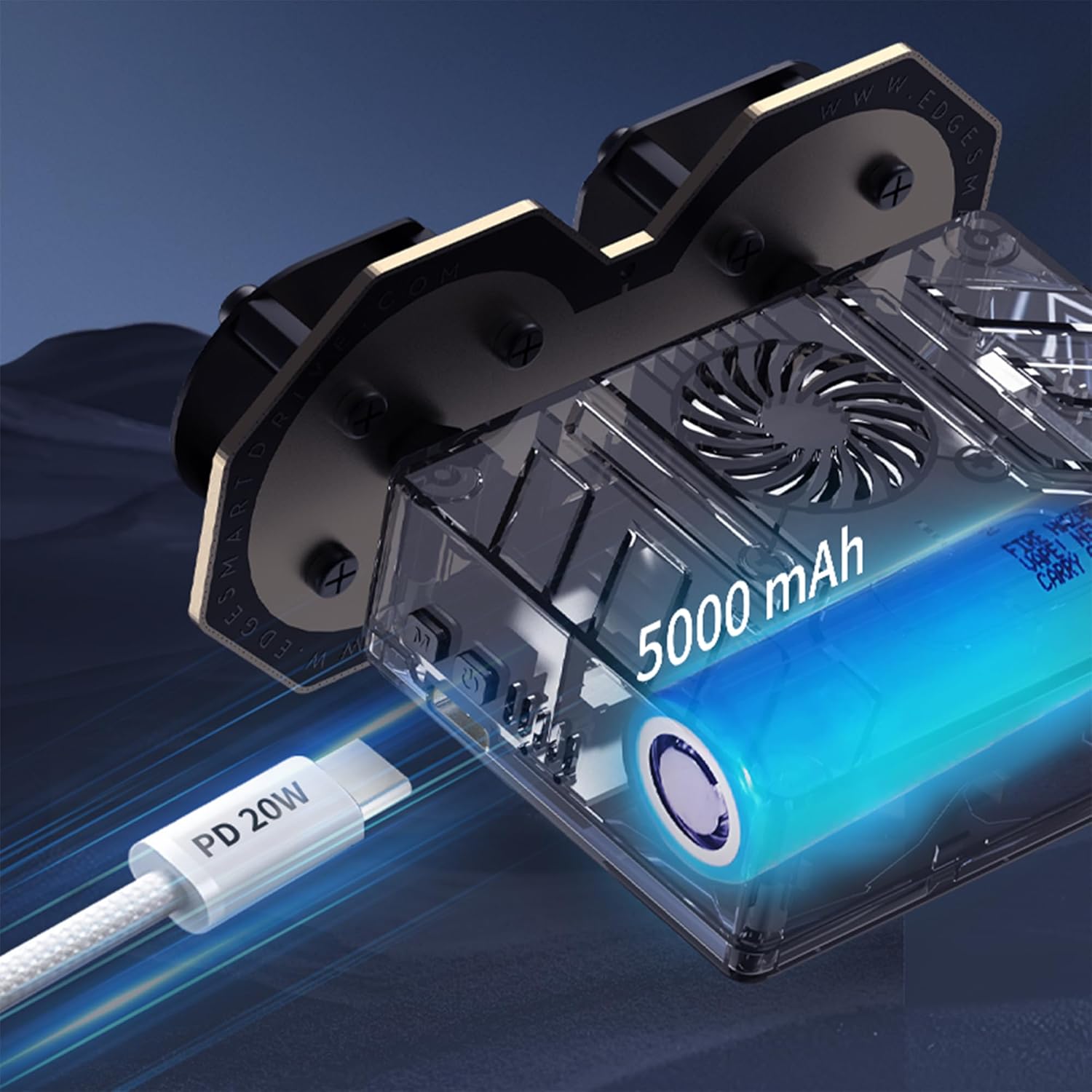

Built-in Battery: 5000mAh, 3.7V Lion
Weight: 142 g (without antenna)
Operating Temperature: 0°C to +50°C
Max Charging Power: 20W
Max Discharge Power: 20W

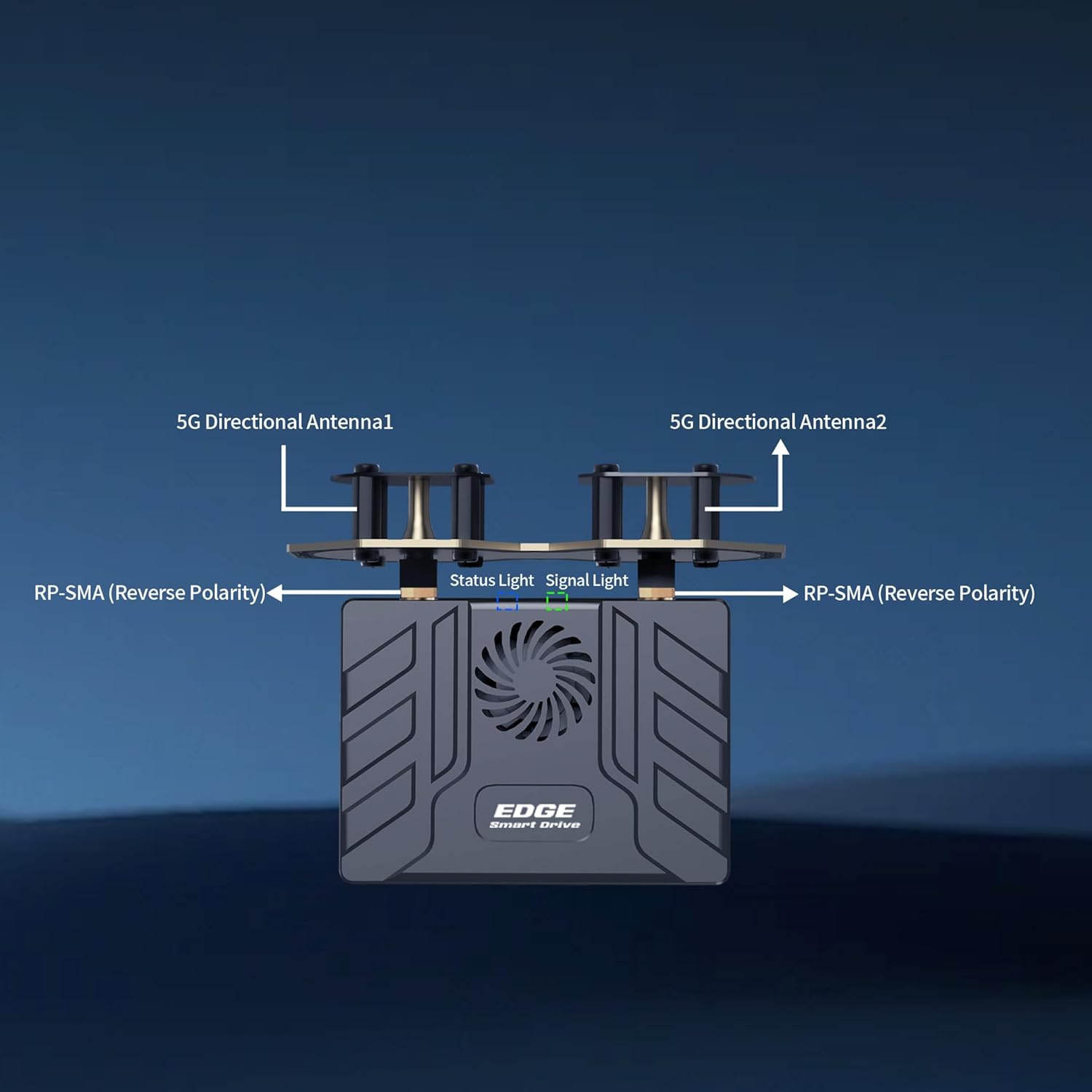

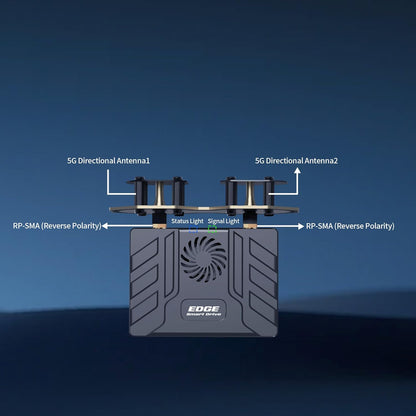

Antenna
Name: Directional Antenna
Polarization Direction: Left-hand Circular Polarization (LHCP)
Operating Bandwidth: 5000-6000 MHz
Input Impedance: 50 Ω
Standing Wave Ratio: ≤1.5
Interface Type: RPSMA
Dimensions: 102×53×27 mm
Weight: 30.5 g

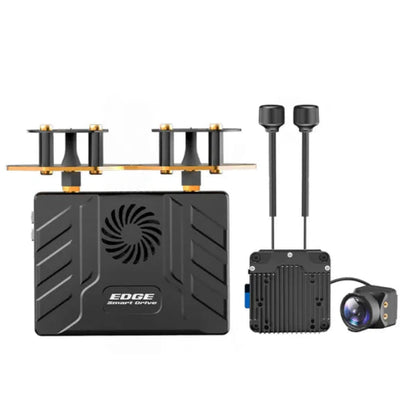

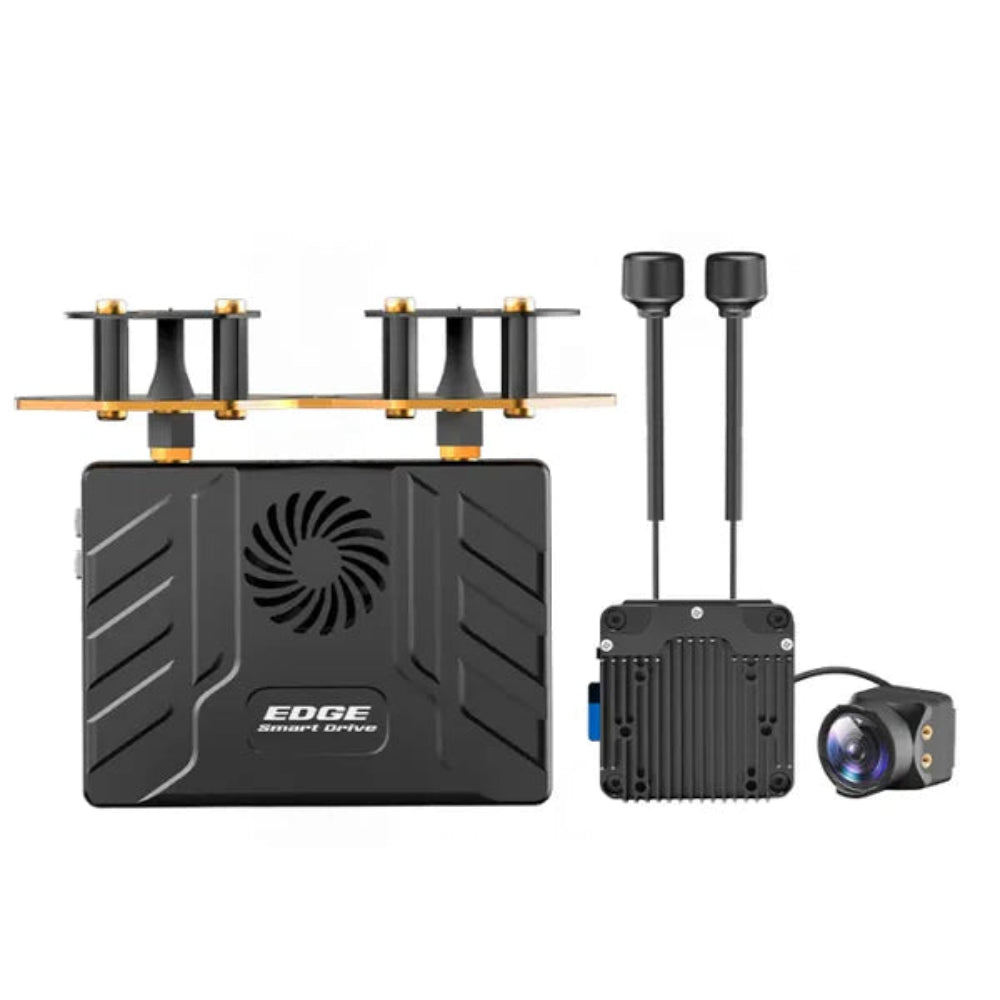

What's Included
- Edge Smart T3 VTX (Video Transmitter)
- Edge Smart T3 VRX (Video Receiver)
Perfect For
Whether you're building a new FPV racing drone, upgrading your freestyle quad, or setting up a long-range aircraft, the Edge Smart T3 Combo provides the reliable video transmission you need to fly with confidence.
