Product Details
Hailed as one of, if not THE best bang-for-your-buck kit out there, the Tyro99 will blow your socks off, and will have you flying sky high without the sky-high price to match!
With this DIY quadcopter kit that is designed to be as cheap as possible while still packing the latest features you expect from a FPV quad-copter. To start the quad includes a F4 flight controller with integrated OSD, it also packs a 32Khz IMU so you need to make sure the FC is soft mounted when building (soft mounts are included). You get a beefy 30A 4in1 ESC to provide enough power to the 2206 motors. We recommend you use a 1300-1800 4S 75C lipo with the tyro to give a good balance between performance and flight time.
Notice: this is the DIY version that comes unassembled. You will still need a receiver and battery before you can fly this quad.
Specifications
210mm Frame Kit
- Wheel base: 210mm
- Frame arm thickness: 5mm
- Bottom plate thickness: 2mm
- Side plate thickness: 2mm
- Frame kit material: 3K carbon fiber & 6065 aluminium
2206 2150KV Brushless Motor
- Motor KV: 2150RPM/V
- Idle current (Io/10V): 1.26A
- Lipo cell: 3-5S
- Weight: 31g
- Max continuous current: 31A
- Max continuous power: 496W
- Max thrust: 1050g (4S/5")
- Configu-ration: 12N/14P
- Motor resistance (RM): 0.0572 Ω
- Stator diameter: 22mm
- Stator thickness: 6mm
- Motor diameter: 27.7mm
- Motor body length: 19.2mm
- Overall shaft length: 34.2mm
- Prop adapter shaft: M5
- Bolt holes spacing: 16mm
- Bolt thread: M3
- Propeller: 5-6 inch
4 IN 1 30A BLHeli_S ESC
- Continuous current: 30A
- Peak Current: 40A(10S)
- Input voltage: 2-5S
- BEC: 5V 2A BEC
- Main control chip: 48Mhz EFM8BB2
- Firmware: BLHeli_S supports Dshot600
- MOS: 5*6
Customised F4 Flight Controller
- Main control chip: STM32F405
- Sensor: ICM20602 6-axis
- Power supply: 5V
- Integrated OSD
- Onboard LC filter
- PID cycle rate & gyro refresh rate up to 32Khz
- BetaFlight racing firmware

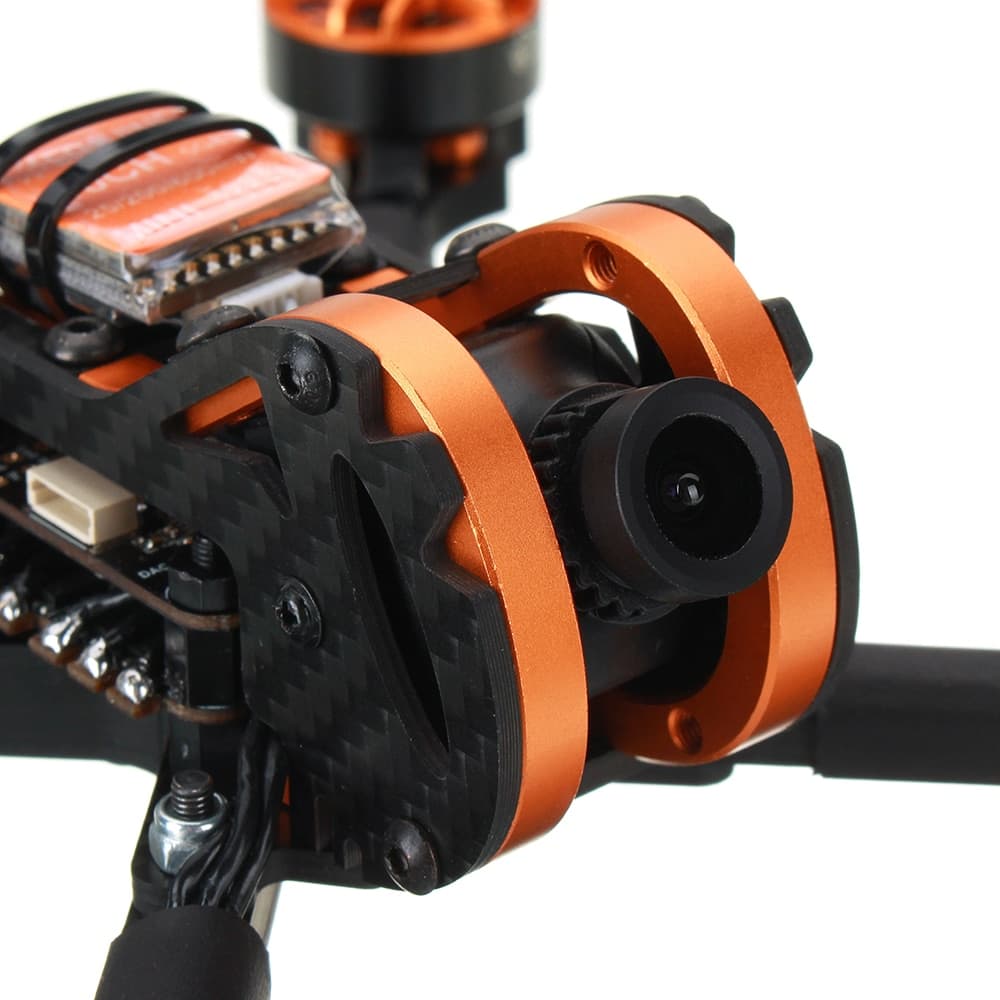

700TVL COMS Camera
- Case size: 25mm*25mm
- Weight: 9.5g
- Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)
- Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)
- Signal system: PAL/NTSC switchable
- Resolution ratio(horizontal center): 700TVL
- Video output: 1.0Vp-p/75Ω
- Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB
- White balance: on/off optional
- Exposure mode: electron exposure
- Electronic shutter: 1/50(1/60) - 1/100000 S
- Gamma correction: 0.45/1.0
- Synchronization method: inter-sync
- Camera lens: standard 2.8mm
- Lens operating voltage: DC12V (wide voltage, measured can work normally at 7.5-13V)
- Working current: 70mA (low power consumption)
- Working temperature: -20℃~-60℃
- Humidity: 0%~98%
5.8G 40CH 0mW/25mw/200mw/600mw switchable VTX
- Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW
- Transmitting power: 0mW/25mW/200mW/600mW
- Full video format: NTSC /PAL
- Input voltage & power dissipation: 7V~24V, +12V/260mA@600mW
- Size: 20*30*9mm
- Weight: ≤7g(except antenna)
- With output power self-check function.
- Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)
Racerstar 5038 2 Blade Propeller
- Material: PC
- Mounting hole: 5mm
- Center thickness: 8mm
- Quantity: 10 pairs
- Color: blue, red, yellow, purple, white
- Weight: 7.25G a pair
- Delivery color randomly (10 pairs of propellers are the same color)
Battery Not included
Recommend 3-5S - idealy a 1500 4S 75C Lipo

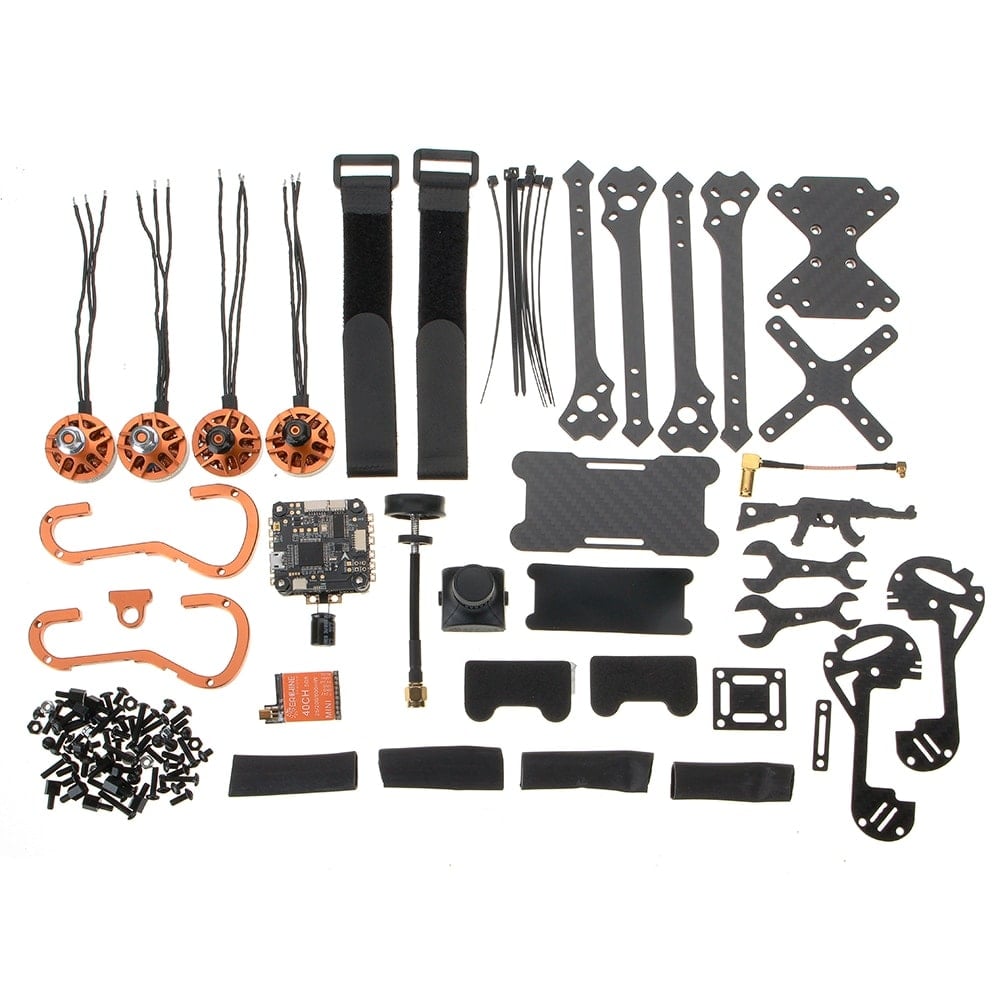

Kit Contents
1 x 210mm frame kit
2 x 2206 2150KV brushless motor CW
2 x 2206 2150KV brushless motor CCW
1 x 4 IN 1 30A BLHeli_S ESC
1 x Customized F4 flight controller
1 x 700TVL COMS camera
1 x 5.8G 40CH 0mw/25mw/200mw/600mw switchable VTX
2 x Battery strap
10 x Racerstar 5038 2 blade propeller CW
10 x Racerstar 5038 2 blade propeller CCW
