Product Details

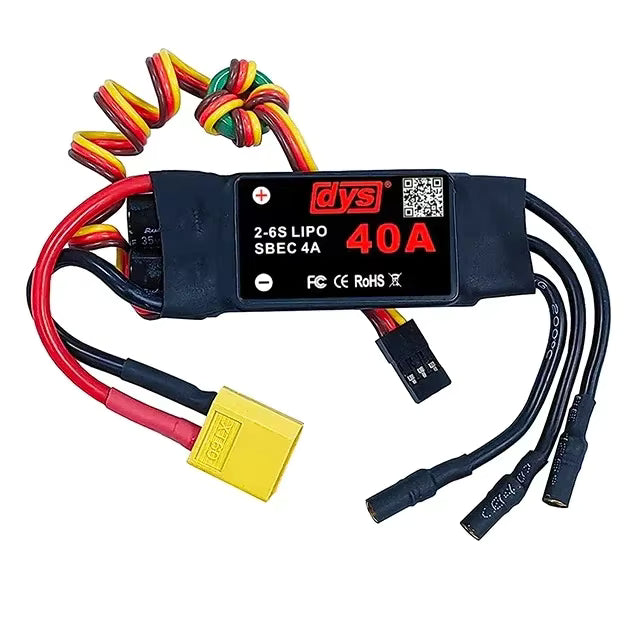

Upgrade your fixed wing drone's performance with the reliable DYS Quanumn Series 40A ESC . Specifically designed and pre-configured for fixed wing aircraft ,
Rated for 40 amps continuous current (with a 60A burst capability), this ESC is built to handle demanding setups. It supports a wide input voltage range from 2S to 6S LiPo batteries (7.4V - 22.2V), making it the perfect choice for fixed wing aircraft, and drones .
Get stable, reliable power control for your fixed wing aircraft and servos with the DYS 40A ESC.
Specifications:
- Model: DYS 40A ESC
- Continuous Current: 40A
- Burst Current (10 seconds): 60A
- Input Voltage: 2S-6S LiPo (7.4V - 22.2V)
- BEC Output: 5V/4A SBEC (Very Efficient) - ESC can power receiver and servos
- Features: Safe Start, High RPM Motor Support, Extreme Low Output Resistance
- Wire Gauge: 16AWG (Input/Output)
- Weight: 33g
- Dimensions: 55mm x 26mm x 13mm
What's in the Box:
- 1 x DYS Fixed Wing 40A ESC
Disclaimer: Please note that included accessories, such as connectors or heat shrink tubing, may vary depending on current supplier stock and availability.
