Product Details

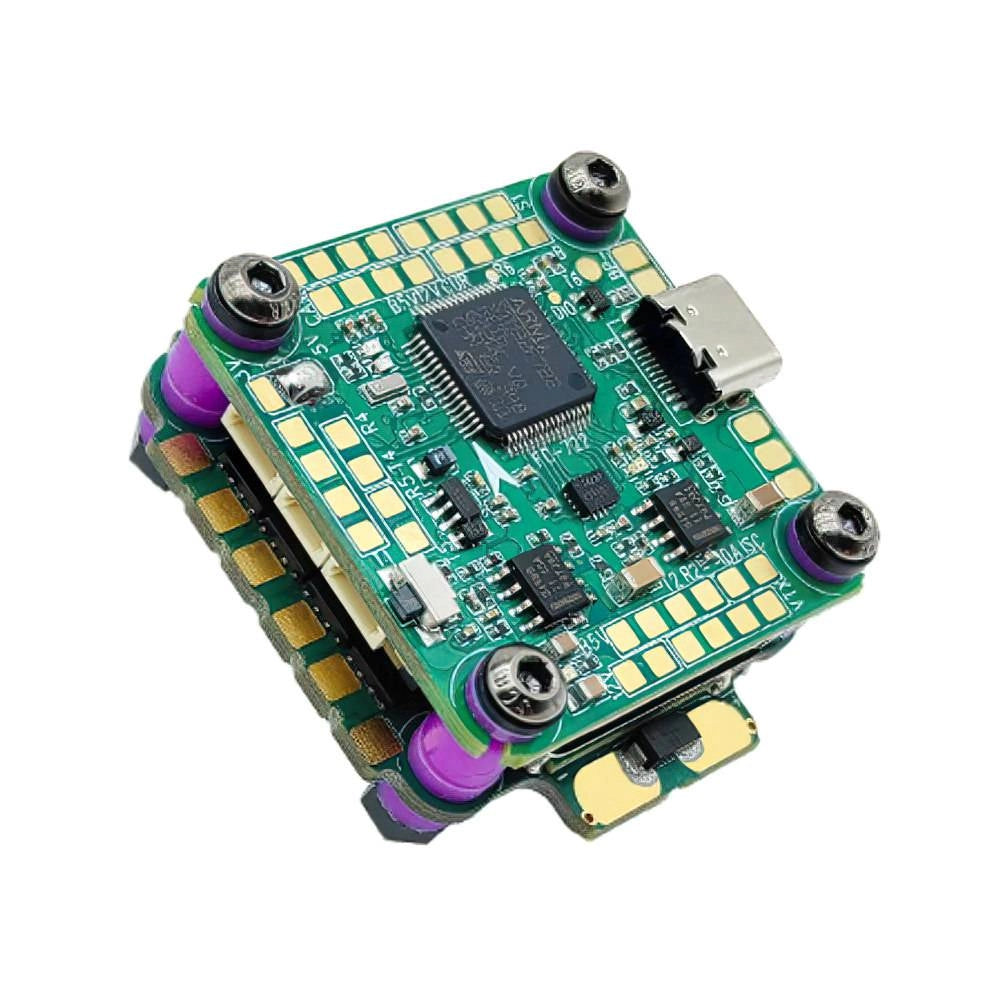

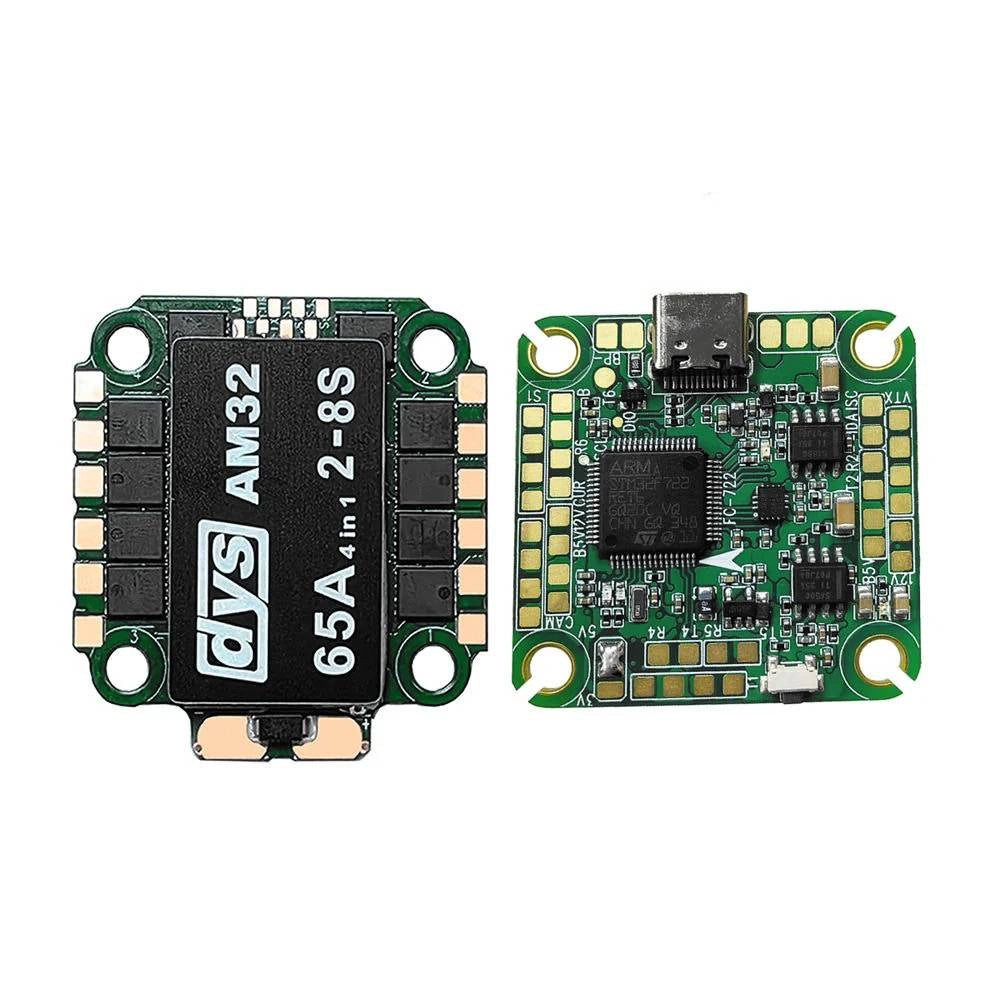

For drone enthusiasts looking to level up their setup, the DYS F7 Stack is a powerhouse combination. Integrating the precision-focused DYS F722 Flight Controller with the robust 65A AM32 4-in-1 ESC , this stack is built to handle the toughest aerial demands. Its high-performance specs—including an STM32F722 MCU, advanced ICM42688P gyroscope, and 2-8S Lipo support—promise responsive handling, stable power delivery, and the kind of durability that serious drone pilots crave.
Key Features:
- Upgradable Firmware for staying current with tech updates
- Precise Flight Control backed by an ICM42688P gyroscope
- Reliable, Lightweight Build at just 10g for the flight controller
- Versatile Power Support with 3.3V, 5V, and 12V BEC outputs
- High-Efficiency ESC with 65A continuous current and 80A burst capability
Detailed Specifications
Flight Controller (FC):
- MCU: STM32F722
- Gyroscope: ICM42688P
- Barometer: BMP280
- BEC Outputs: 3.3V/1A, 5V/3A, 12V/3A
- Input Voltage: Up to 6S Lipo
- Mounting Holes: 30.5mm x 30.5mm (M3)
- OSD Chip: AT7456E
- UART Ports: 6
- ESC Signal Support: Up to 8 Motors
- Black Box Storage: 16MB
- Size: 38mm x 38mm
- Weight: 10g
ESC:
- Firmware: AM32 with F4 MCU
- Continuous Current: 65A
- Burst Current: 80A
- Input Voltage: 2-8S Lipo
- Current Rate: 200
- Mounting Holes: 30.5mm x 30.5mm (M3)
- Weight: 15.3g
What's in the Box:
-
1x DYS F7 Stack
- F722 FC + 65A 2-8S AM_32 4-in-1 ESC with ICM42688P
Note: Included accessories may vary based on supply.
