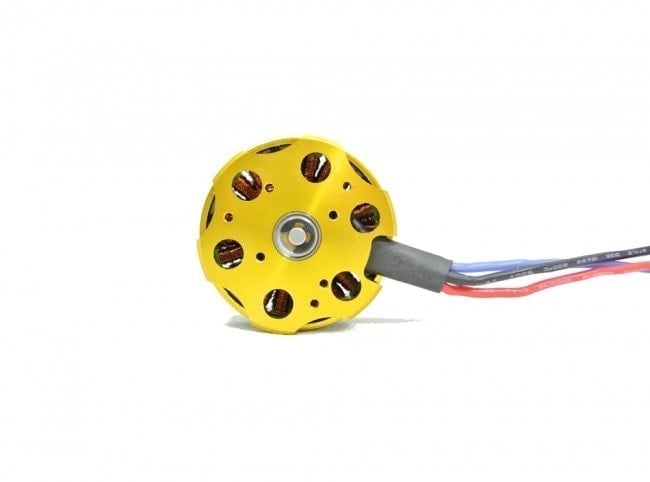

Product Details
This is the BE4114 multirotor from DYS designed for heavy lift drone platforms. The BE series of motors use silky smooth NSK bearings to maximise efficiency and reduce vibrations along with 1200 # 0.2mm high efficiency silicon steel with support powerful 40UK rare earth magnets. The motor housing is made from precision CNC machining during assembly the motors are balanced. Furthermore, the BE4114 motors have a direct mount propeller mounts for a secure method to mount your propellers. All these factors make the BE4114 motors great options for your large scale multirotor.

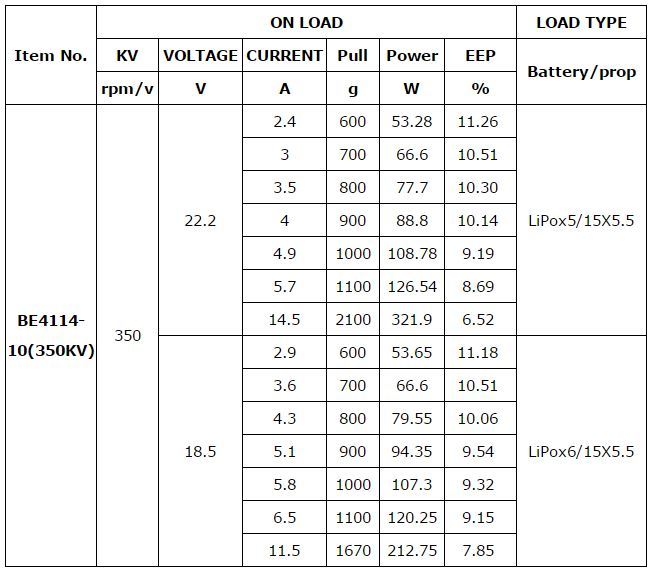

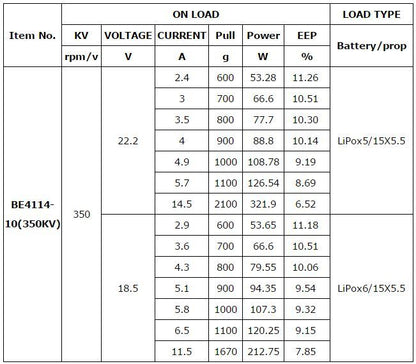

We suggest that you use these motors with 15x55 inch carbon fibre propellers along with a 6S lipo and a 20A ESC. This setup will allow you to get a maximum of 1.67Kg of thrust from each motor!
Specifications
- KV 350
- Configuration NP
- Stator Diameter 41mm
- Stator Length 14mm
- Shaft Diameter 4.0mm

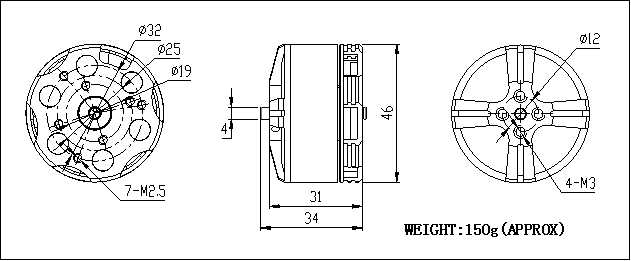

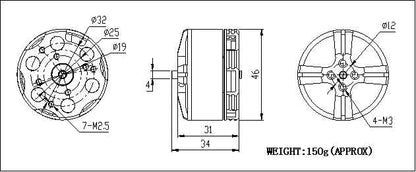

- Motor Dimensions(Dia.*Len) Φ46×31mm
- Weight (g) 150g
- No.of Cells(Lipo) 5-6S
- Max Continuous current(A) 11.5A
- Max Continuous Power(W) 212W
- Internal resistance 0.126
