Product Details

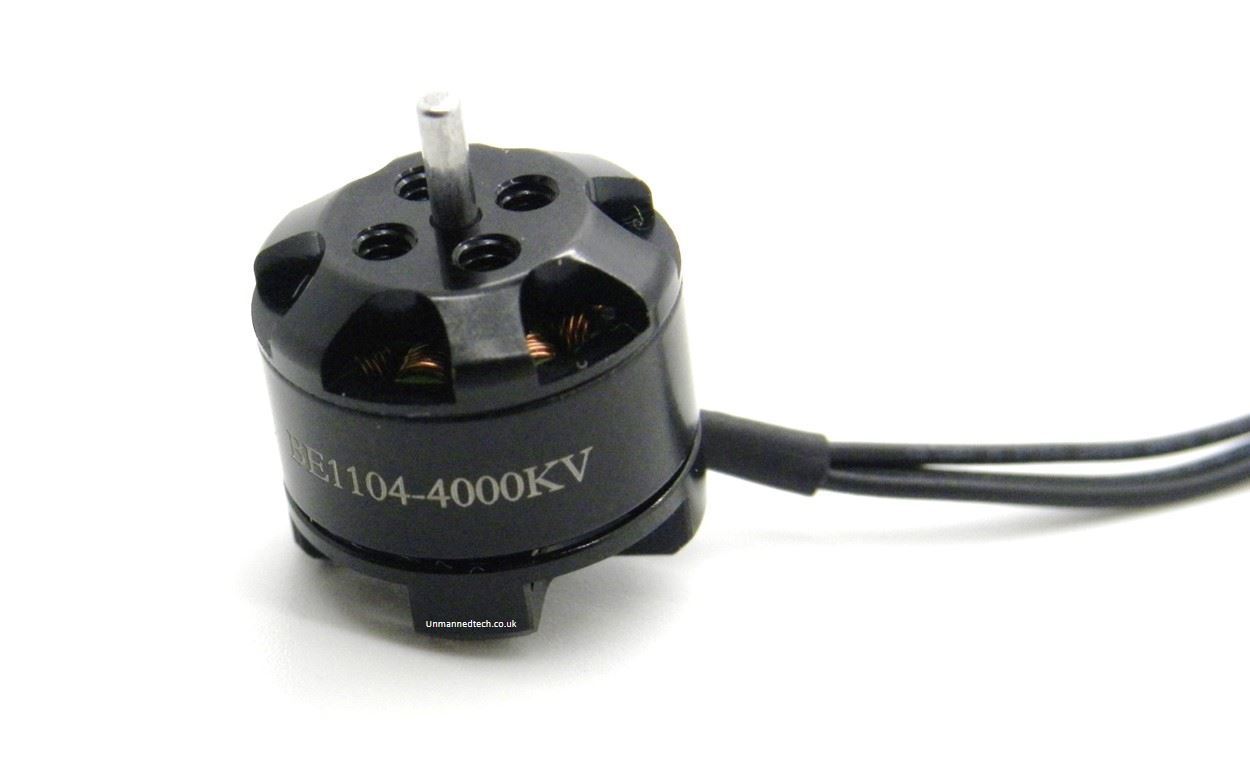

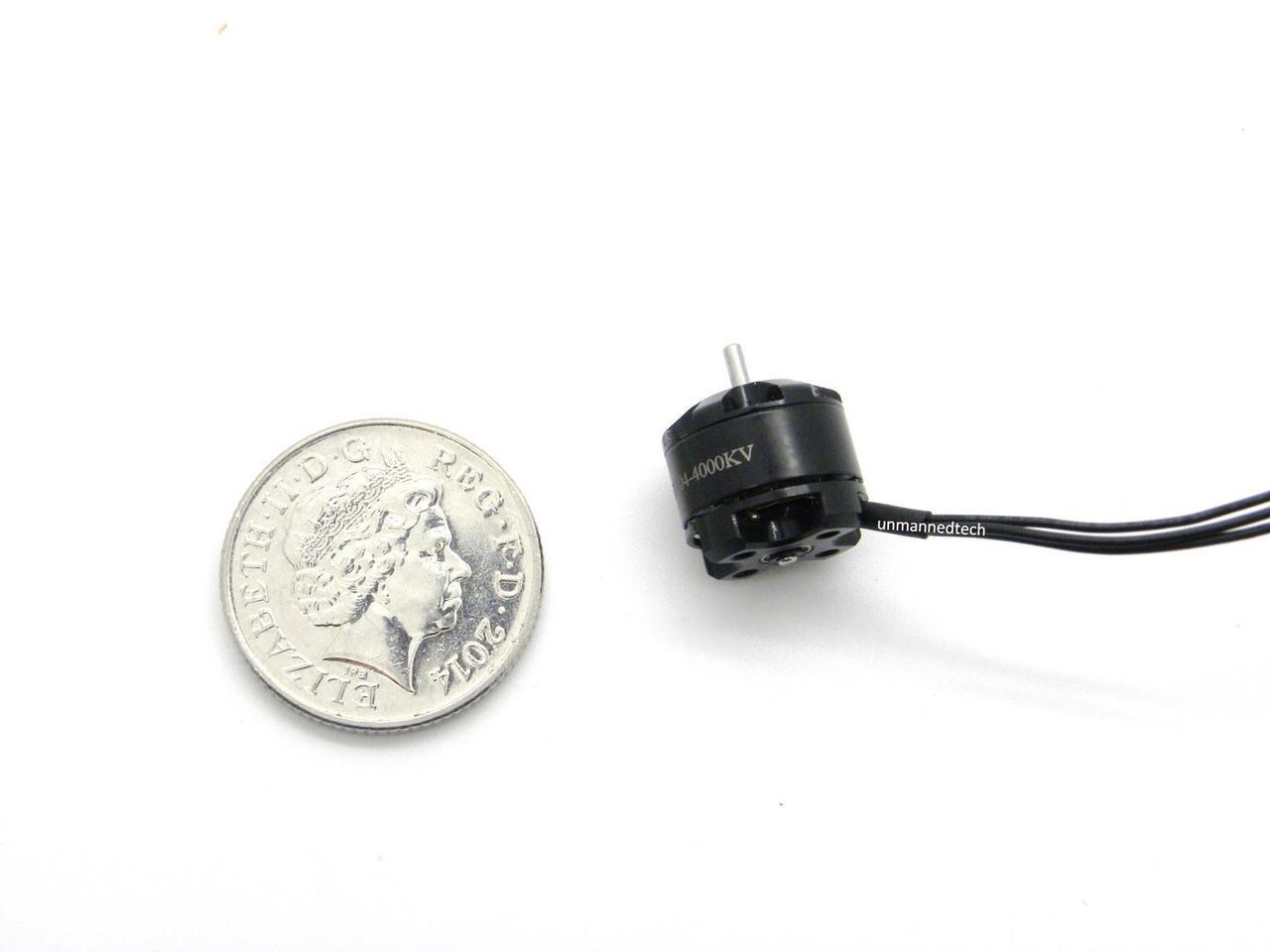

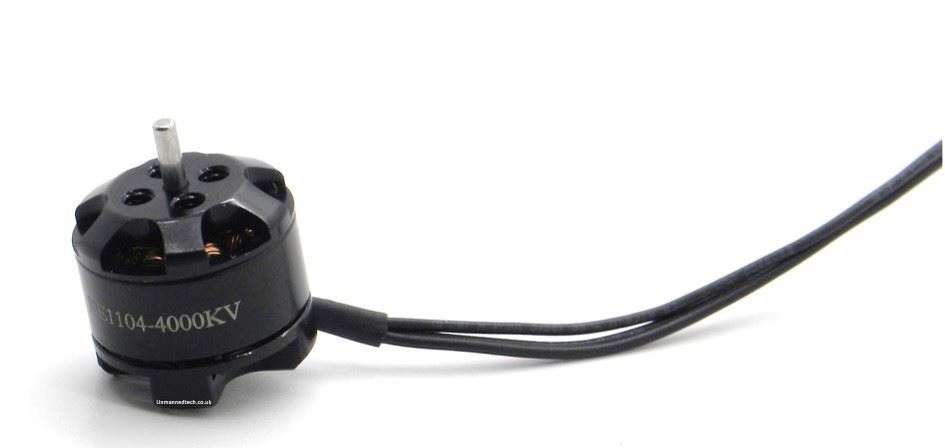

This micro BE1104 brushless motor from DYS is among the worlds smallest while still being capable of generating substantial power. This tiny motor is able to produce 190g of thrust (4000KV motor)/ 200g thrust (6500Kv motor)/ 220g of thrust (7500Kv motor)/ with 3020 props, making this the ultimate motor for your next micro FPV quadcopter.
These motors are only compatible with the DYS 3020 propellers .
Specifications
KV: 4000
- Configuration: NP
- Stator Dimention: 11x5mm
- Shaft Diameter: 1.5mm
- Weight: 5.6g
- Supported Battery: 3-4s Lipo
- Max continous current: 5.5A
- Max continous power: 81.4W
- Interlal resistance: 0.54Ω
KV: 6500
- Configuration: NP
- Stator Diameter: 11mm
- Stator Length: 5mm
- Shaft Diameter: 1.5mm

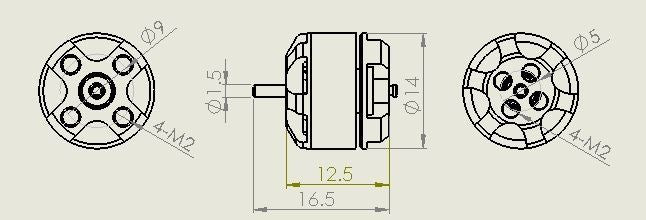

- Motor Dimensions(Dia.*Len): Φ14×12.5mm
- Weight (g): 6g
- No.of Cells(Lipo): 2S
- Max Continuous current(A): 9.0A
- Max Continuous Power(W): 99.9W
- Internal resistance: 0.21Ω

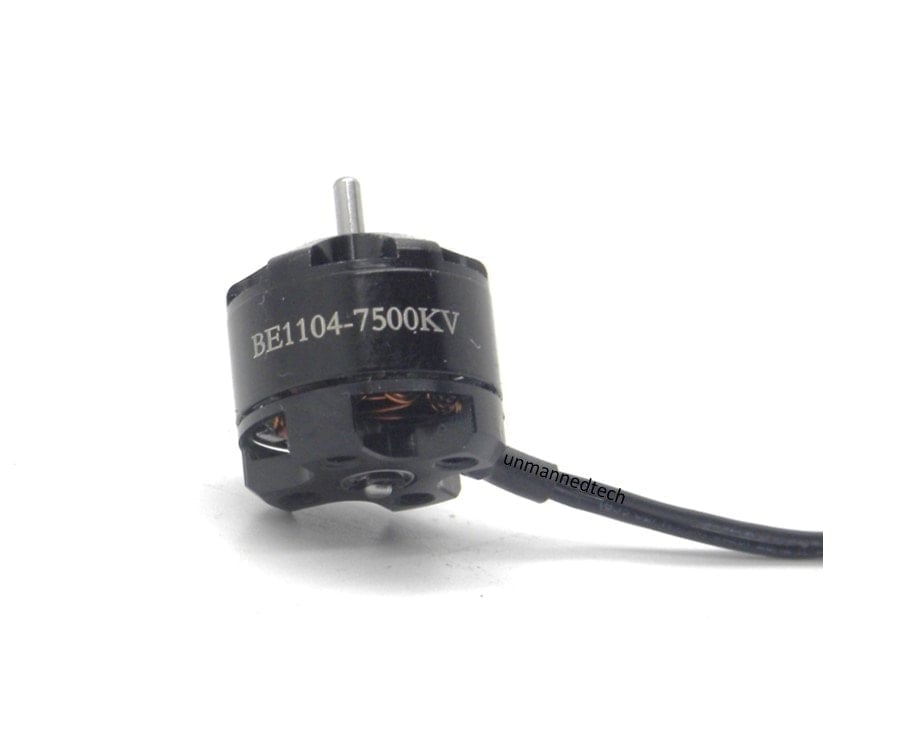

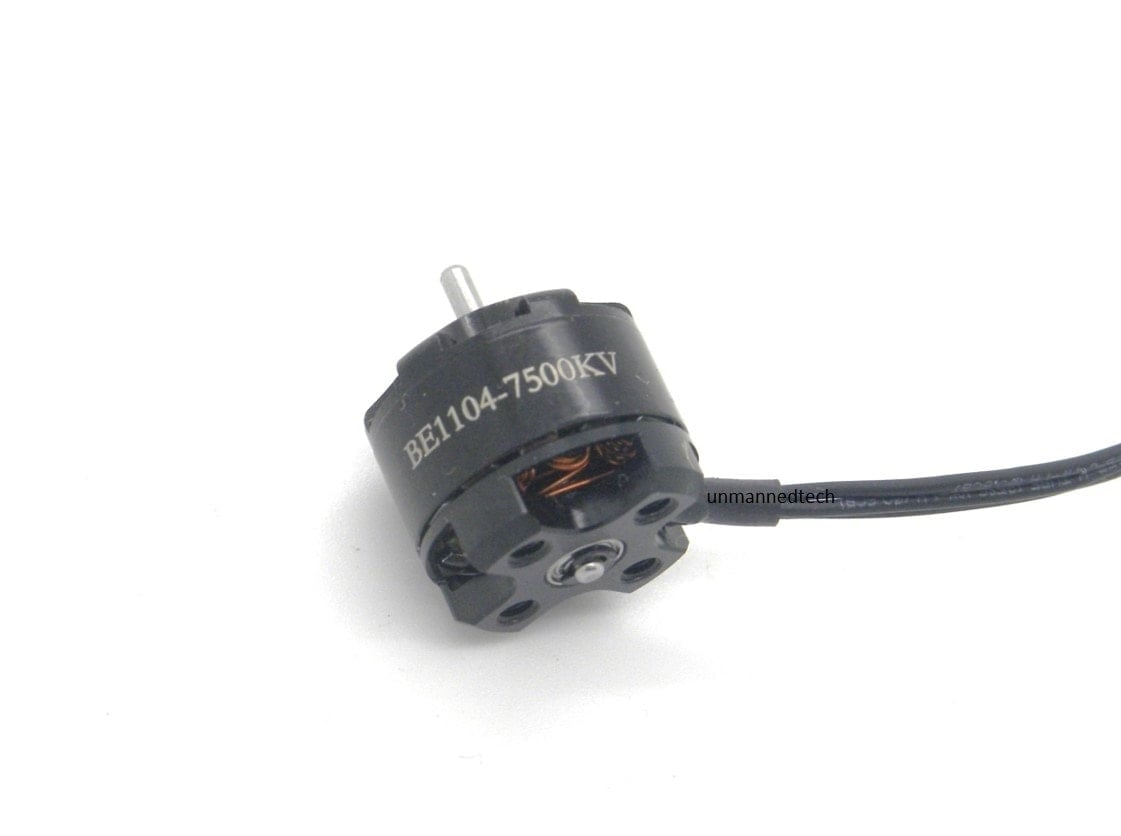

KV: 7500
- Configuration: NP
- Stator Diameter: 11mm
- Stator Length: 5mm
- Shaft Diameter: 1.5mm
- Motor Dimensions(Dia.*Len): Φ14×12.5mm
- Weight (g): 6g
- No.of Cells(Lipo): 2S
- Max Continuous current(A): 11.8A
- Max Continuous Power(W): 131W
- Internal resistance: 0.19Ω

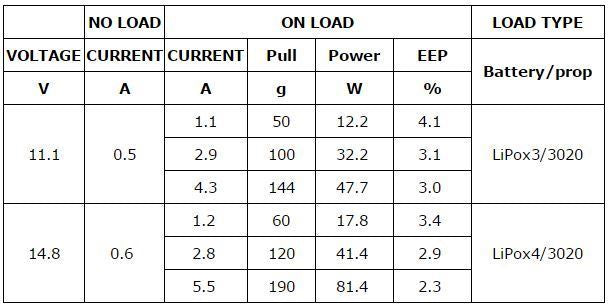

BE1104 4000KV motor thrust data test table

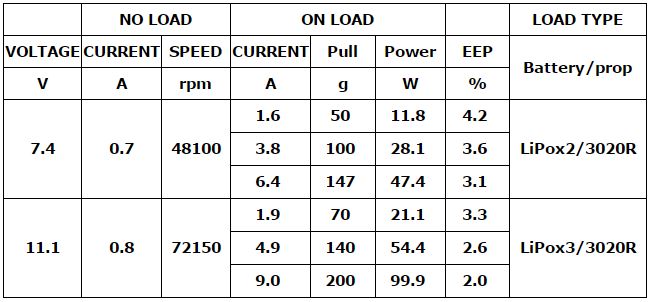

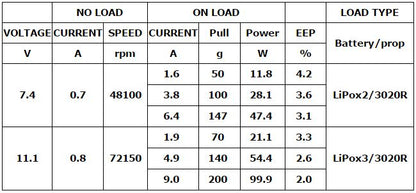

BE1104 6500KV motor thrust data test table

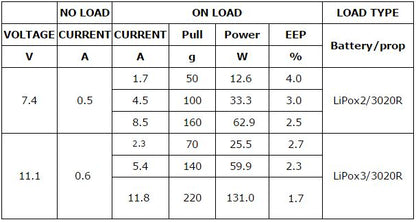

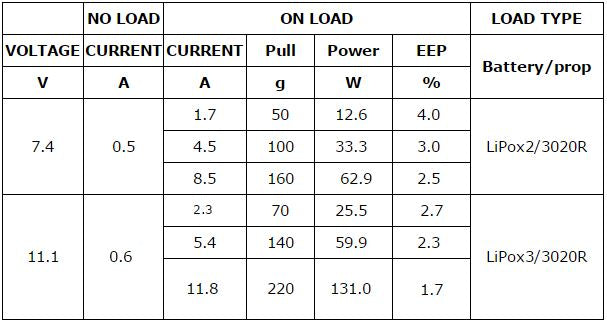

BE1104 7500KV motor thrust data test table
