Product Details
DYS 60A ESC: Unleash the Beast

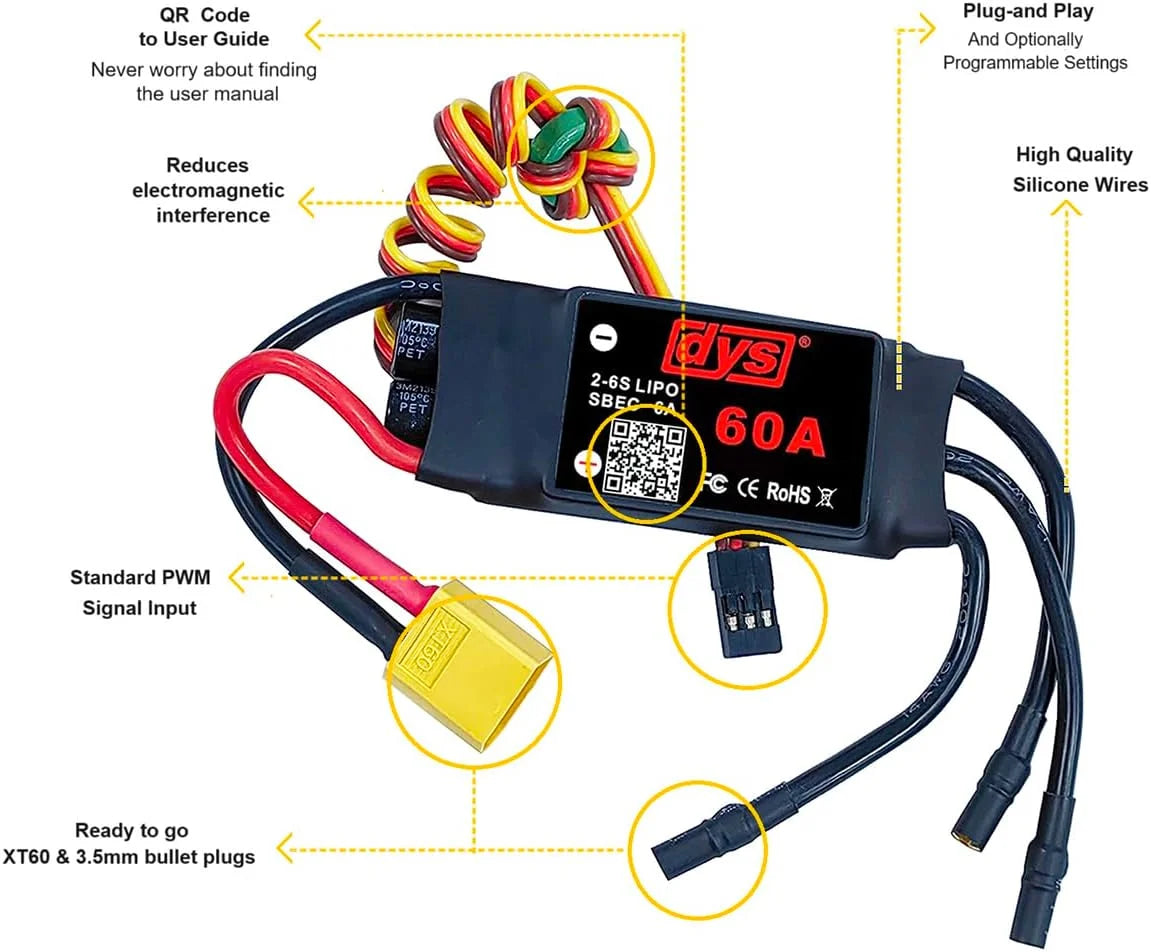

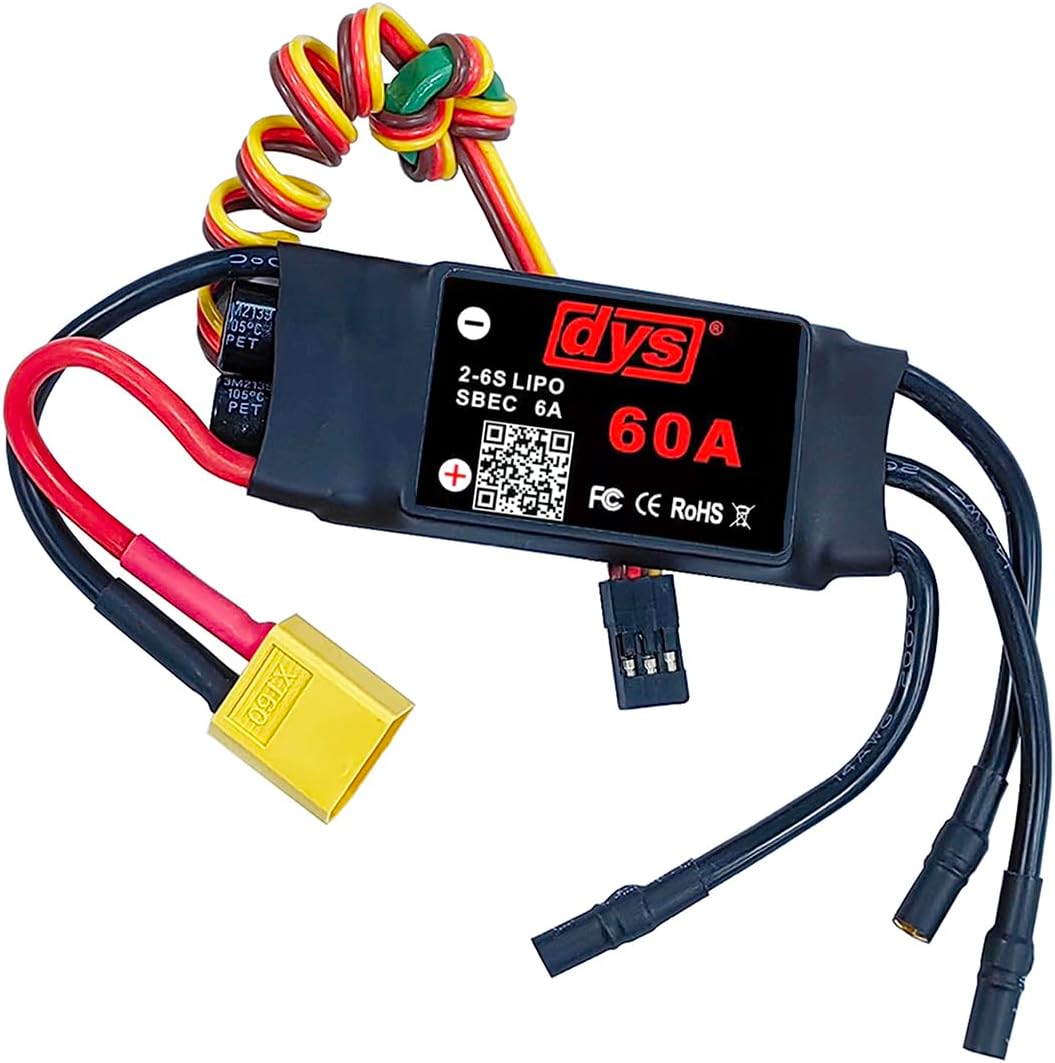

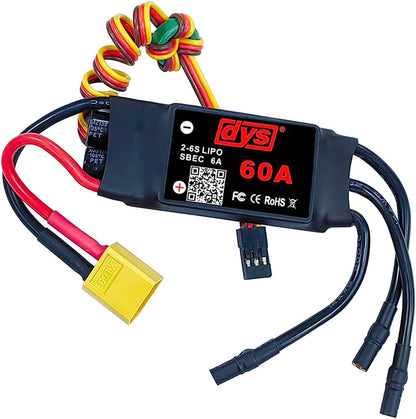

The DYS 60A Electronic Speed Controller is a high-performance powerhouse that arrives battle-ready with pre-soldered XT60 connectors and 3.5mm bullet plugs. When your aircraft demands serious juice, this ESC delivers with authority.
Technical Specifications
Power Specifications
- Continuous Current: 60A
- Peak Current: 80A
- SBEC Output: 5V/6A
- Battery Compatibility: 2-6S LiPo or 5-18 NiMH cells
Key Features
- Pre-installed XT60 connector for hassle-free setup
- 3.5mm bullet connectors for motor connection
- High-efficiency SBEC system
- Superior heat dissipation
- Robust power handling capabilities
- Compatible with most brushless motors
Power Management
The integrated 5V/6A Switch-mode BEC (SBEC) provides reliable power to your receiver and servos, eliminating the need for separate receiver batteries while handling high-current demands with ease.
What's in the Box
- 1x DYS 60A Brushless ESC with pre-soldered connectors
Note: Actual accessories may vary based on current supply and package configuration.
Safety Recommendations
Always ensure proper cooling and maintain safe handling practices when working with high-power systems. Follow proper battery connection procedures and operate in designated areas only.
