Product Details
DYS 50A ESC: Power Meets Precision

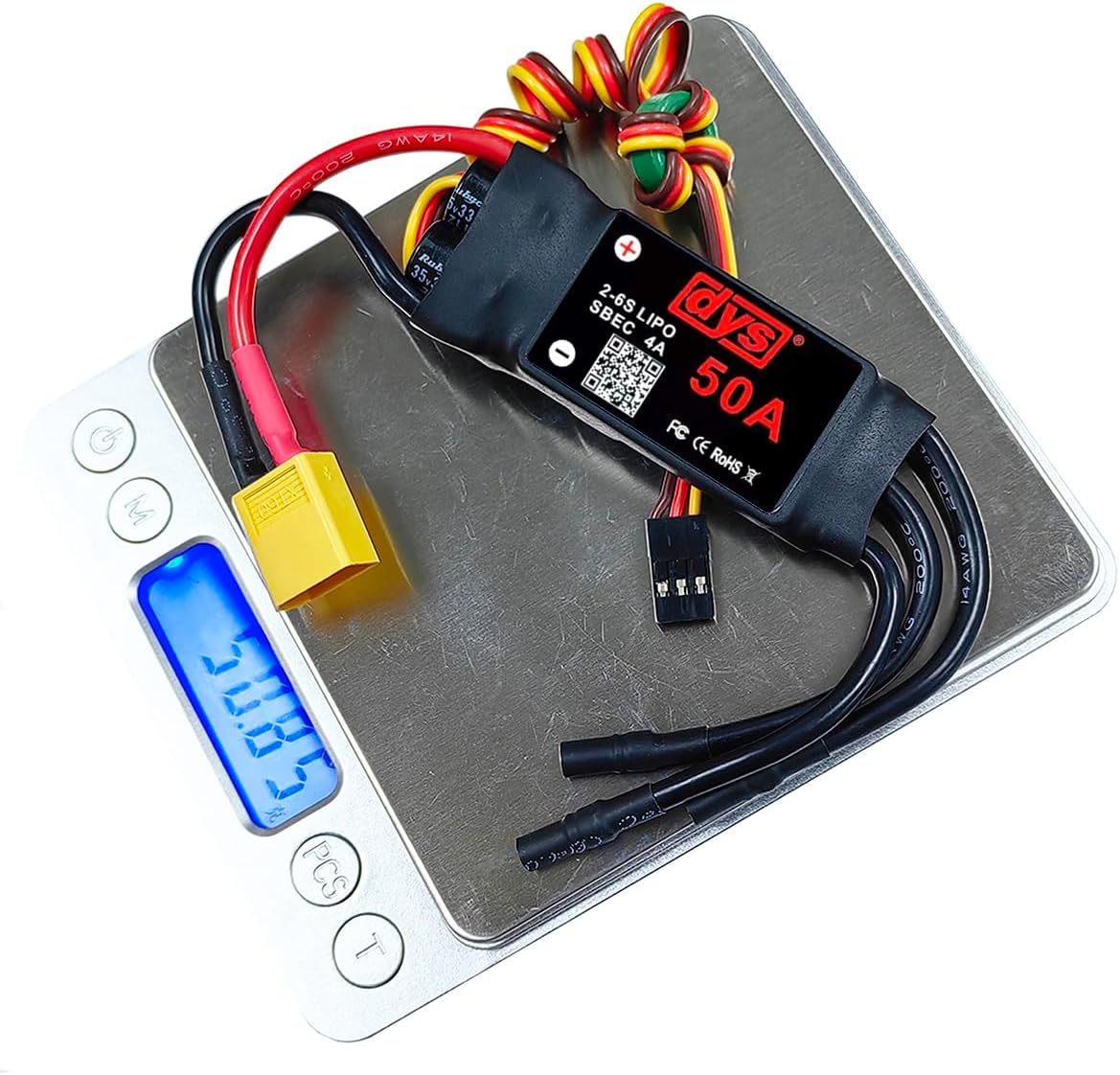

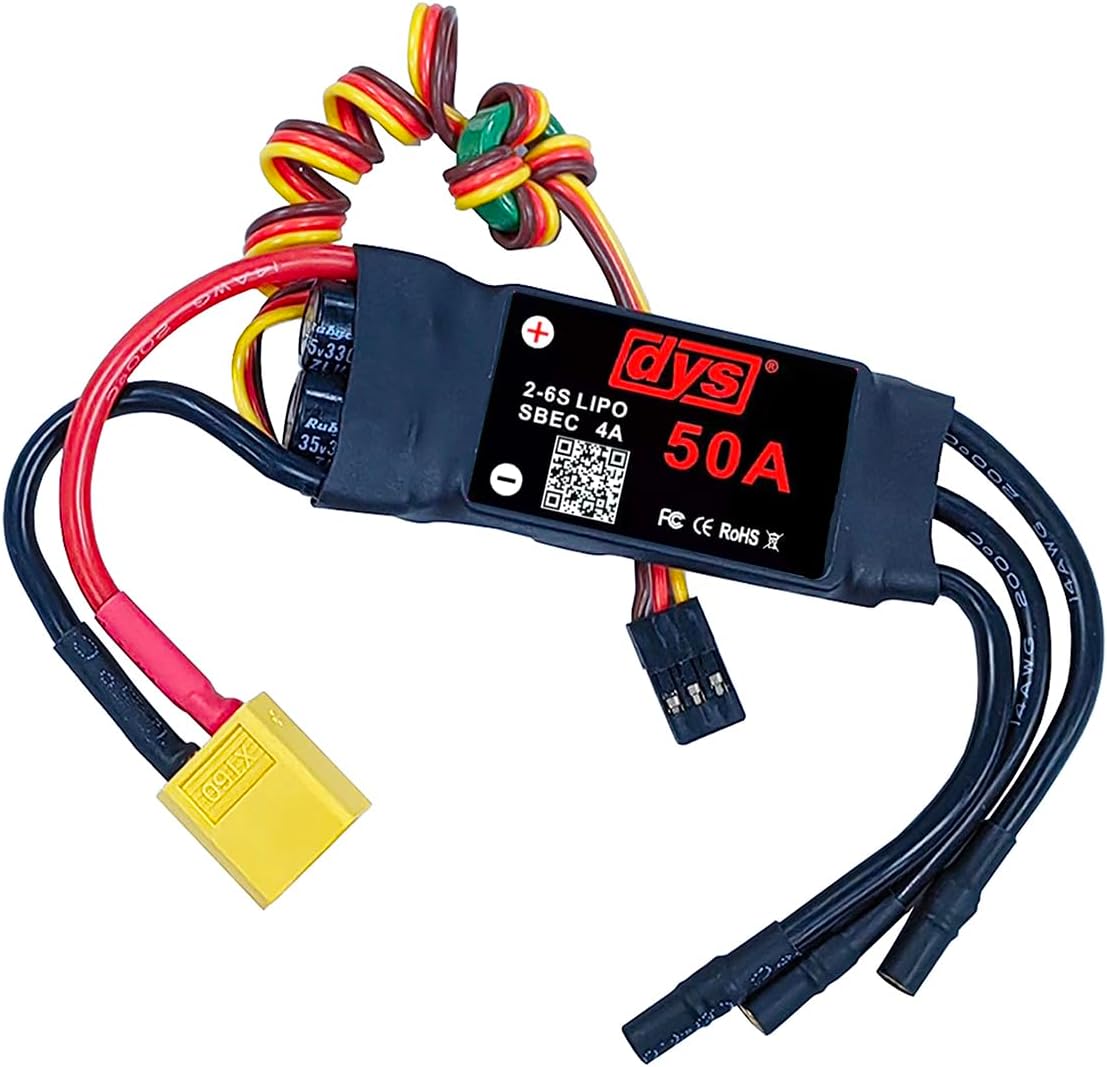

The DYS 50A Electronic Speed Controller is a robust powerhouse that comes ready for action with pre-soldered XT60 connectors and 3.5mm bullet plugs. This high-performance ESC delivers exceptional power management for your RC aircraft while maintaining remarkable efficiency.
Technical Specifications
Power Specifications
- Continuous Current: 50A
- Peak Current: 60A
- SBEC Output: 5V/4A
- Battery Compatibility: 2-6S LiPo or 5-18 NiMH cells
Key Features

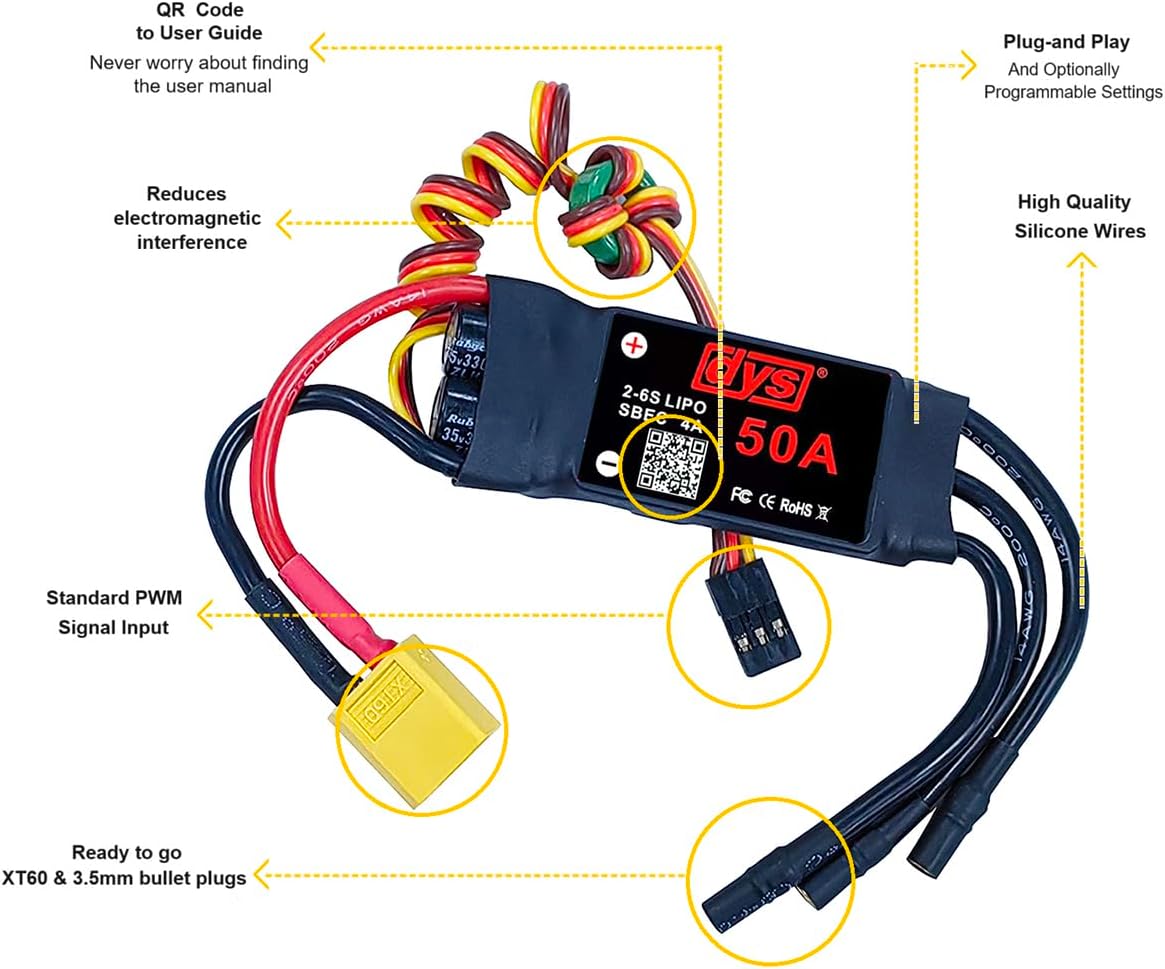

- Pre-soldered XT60 connector
- 3.5mm bullet plugs installed
- Compact size with minimal heat generation
- Automatic throttle range calibration
- Built-in short circuit protection
- Premium N-CHANNEL MOS tubes
- Fixed LiPo cutoff at 3.2V per cell
- Compatible with most mainstream brushless motors
Safety Features
The ESC includes sophisticated protection systems, including a fixed termination threshold of 3.2V for LiPo batteries (50% for NiMH), ensuring safe operation and preventing dangerous over-discharge scenarios. The built-in SBEC features short-circuit protection with automatic recovery.
What's in the Box
- 1x DYS 50A Brushless ESC with pre-soldered connectors
Note: Actual accessories may vary based on current supply and package configuration.
Important Safety Notes
The ESC should be operated following proper safety protocols, especially when handling high-power systems. Always maintain safe distance from the propeller and operate in designated flying areas.
