Product Details

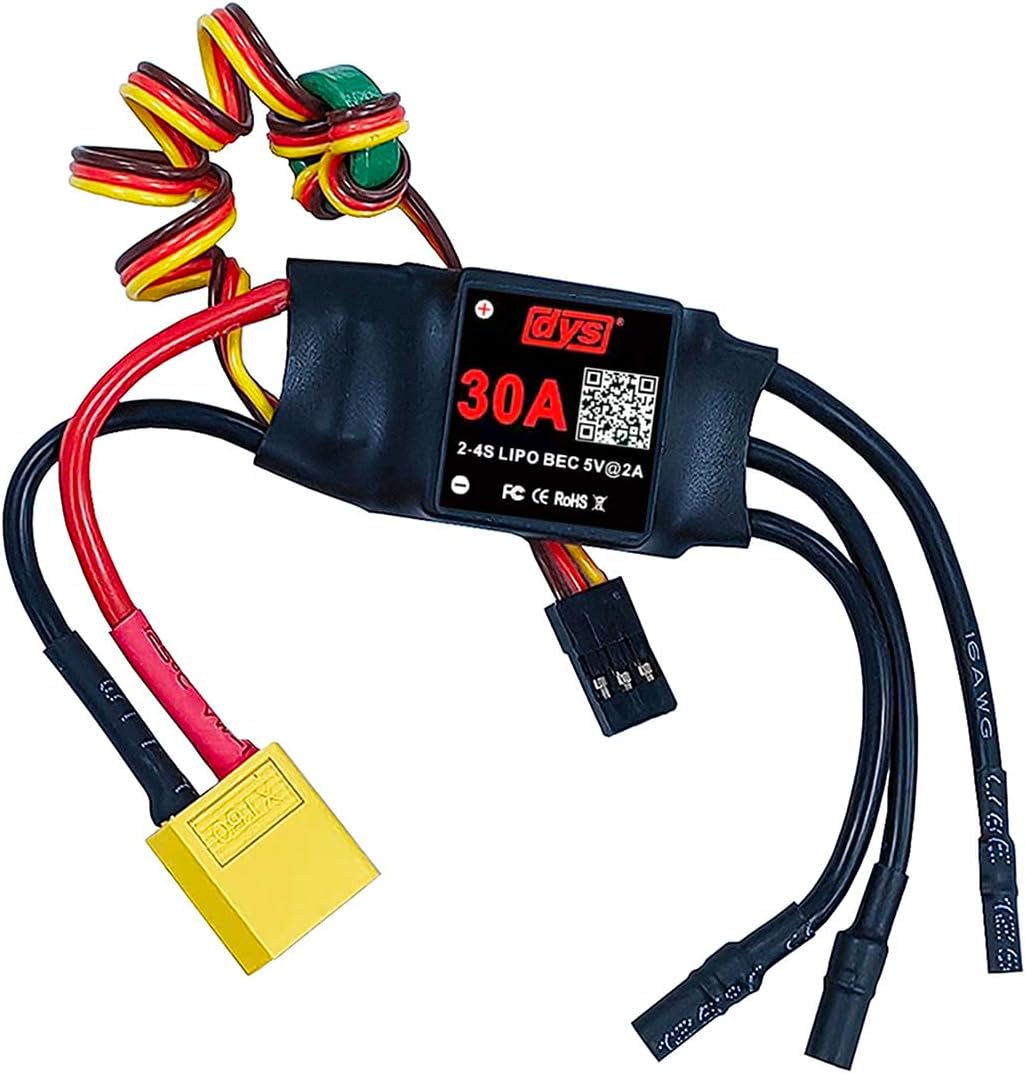

DYS 30A ESC: The Nimble Power Manager
The DYS 30A ESC is the perfect balance of power and efficiency for your medium-sized RC aircraft. This compact powerhouse comes ready for action with pre-soldered XT60 connectors and 3.5mm bullet plugs, delivering smooth power delivery without unnecessary bulk.
Technical Specifications
Power Specifications
- Continuous Current: 30A
- Peak Current: 40A
- BEC Output: 5V/2A
- Battery Compatibility: 2-4S LiPo or 5-12 NiMH cells
Key Features

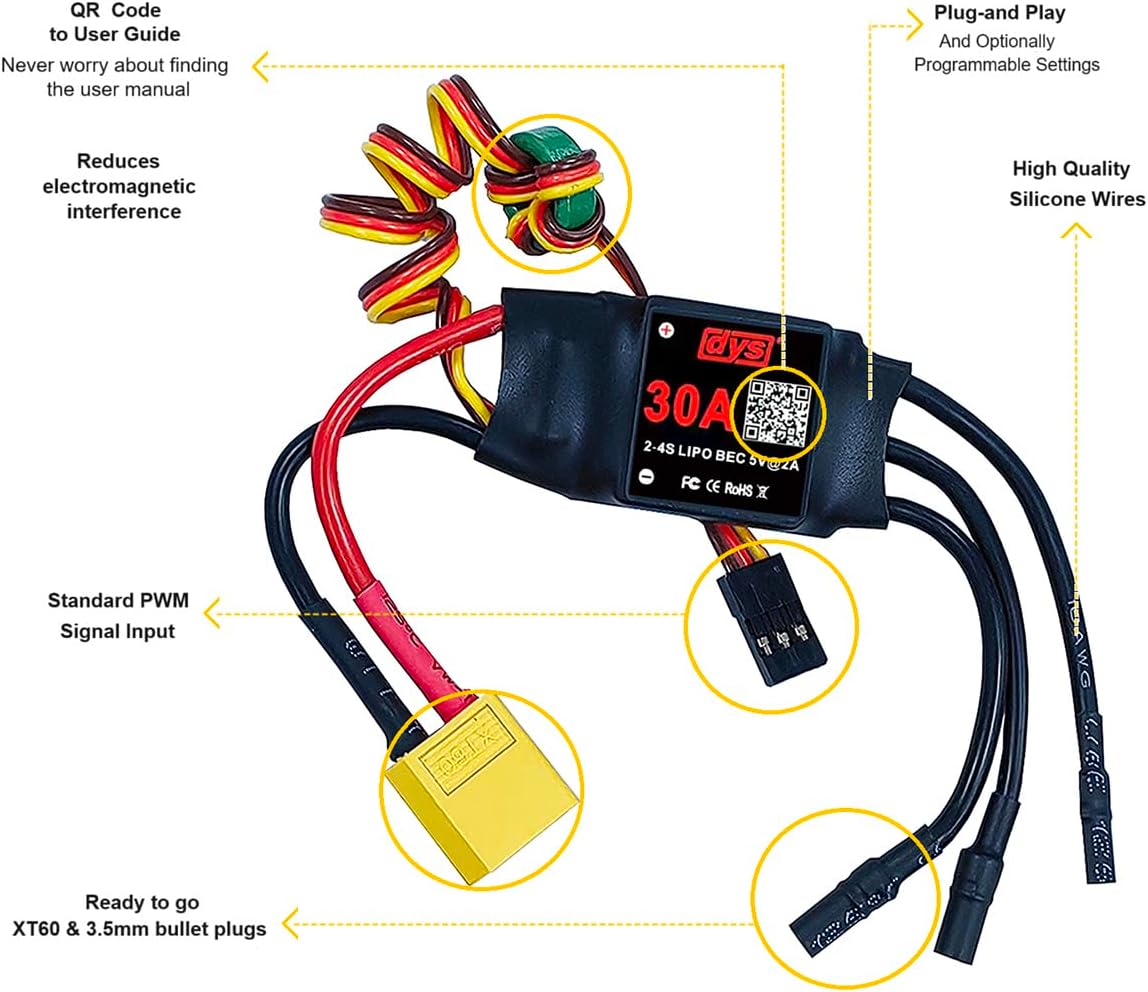

- Pre-installed XT60 connector
- 3.5mm bullet connectors
- Efficient BEC system
- Optimized heat management
- Smooth throttle response
- Wide brushless motor compatibility
Power Management
The built-in 5V/2A BEC provides reliable power to your receiver and servos, eliminating the need for separate receiver batteries while maintaining excellent efficiency for medium-sized aircraft applications.
What's in the Box
- 1x DYS 30A Brushless ESC with pre-soldered connectors
Note: Actual accessories may vary based on current supply and package configuration.
Safety Notes
While not the biggest kid on the block, this ESC still demands proper respect. Always ensure proper installation and follow safe operating procedures.
