Product Details
DJI has redefined the drone racing industry with the new Digital FPV System. It delivers lower latency rates within 28 ms, a 4km maximum transmission range, stunning HD 720p/120fps resolution, and, most importantly, an unforgettable FPV flying experience.

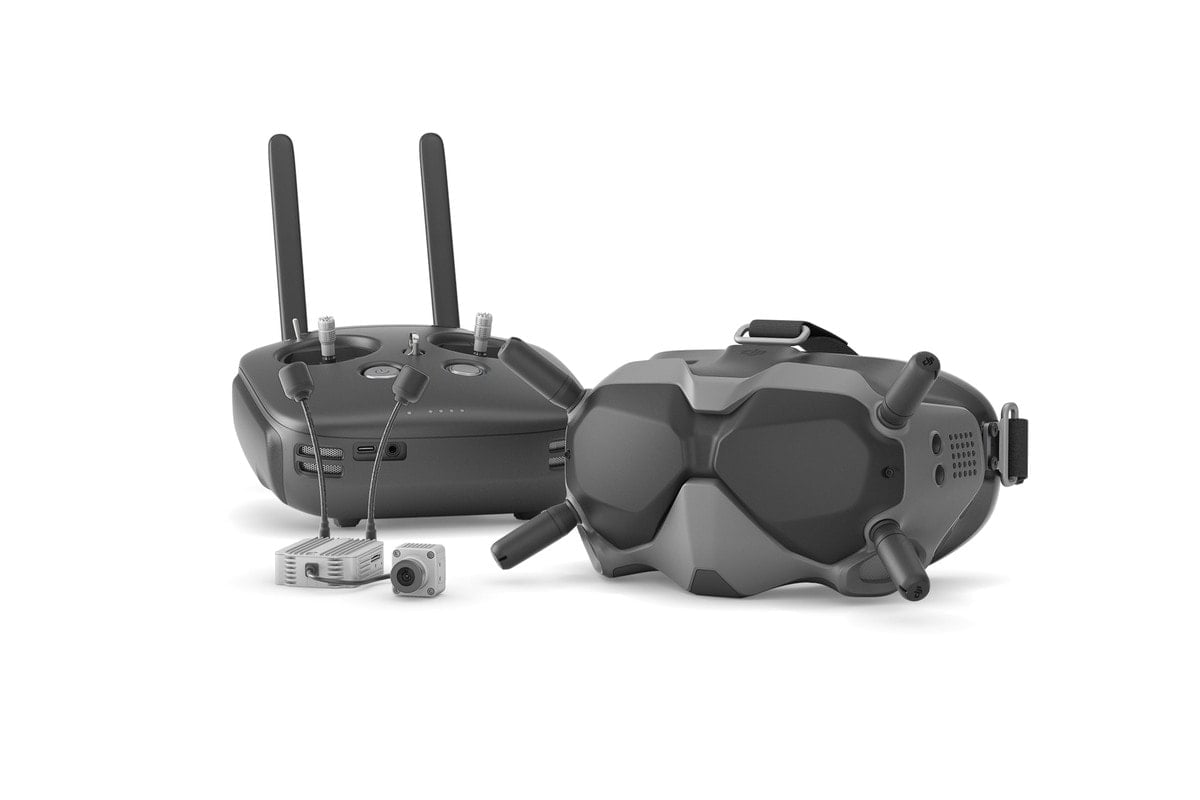

The DJI FPV Fly More Combo includes one (1) DJI Digital HD FPV Goggle, one (1) FPV Air Unit, and one (1) DJI FPV Remote Controller. Experience the ultimate FPV setup with everything you need all in one package. The DJI FPV system will let you enjoy FPV in real HD without all the annoying lag that accompanies many HD systems.
Don't need the DJI Remote Controller? You are looking for the Experience Combo. Don't need two air units? Just buy the FPV Goggles and Air Unit separately. There currently is no bundle with just FPV goggles and a single air unit.
Enter the new era of FPV with DJI.
https://www.youtube.com/watch?&v=PefTBXdXFWc&feature=emb_title
Specifications

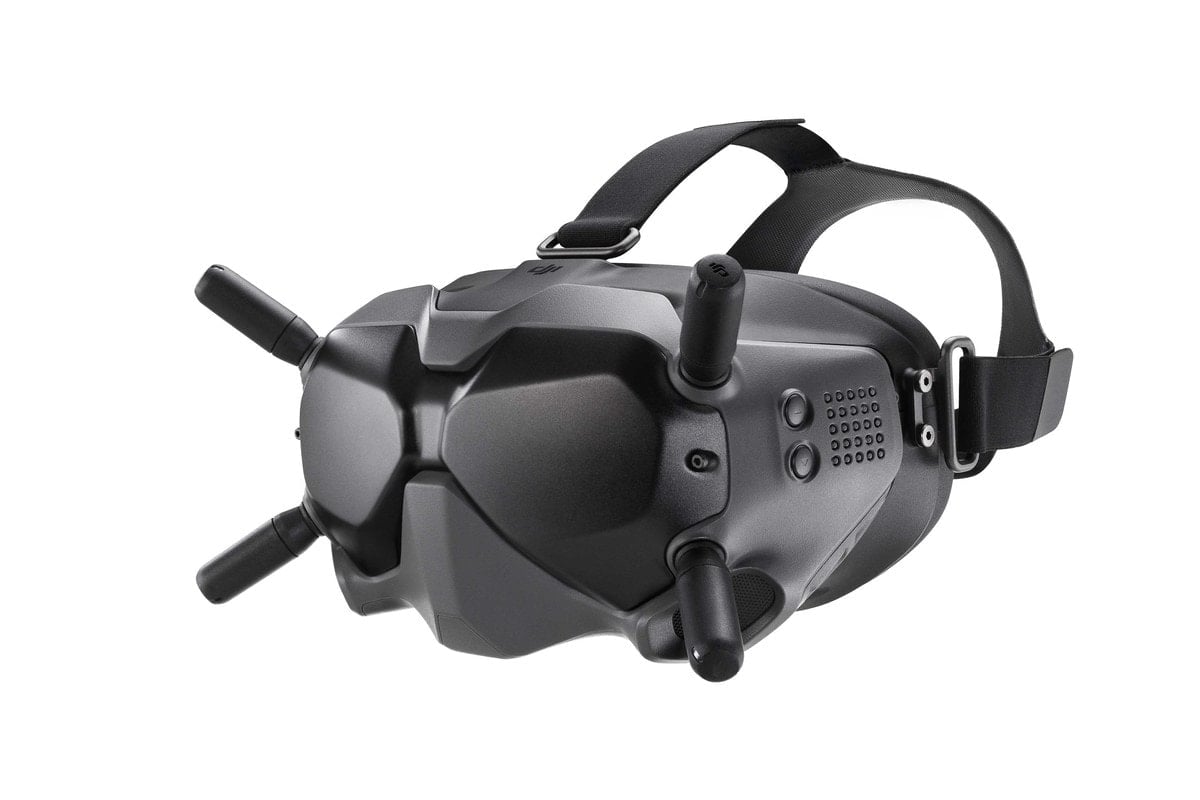

DJI FPV Goggles
Weight: Approx. 415 g (headband and antennas included)
Dimensions:
202 × 126 × 110 mm (antennas included)
184 × 122 × 110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen) : 1440 × 810
Screen Renew Rate: 120 Hz
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP) : FCC/MIC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
Live View Mode
Low Latency Mode (720p/120fps)
High-Quality Mode (720p/60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
Power Input: 7.4-17.6 V
FOV Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range: 58 -70 mm
Battery: 6.6V-21.75V
External battery, total power consumption of 7W
Supported Storage Card: microSD cards with capacities of up to 128GB

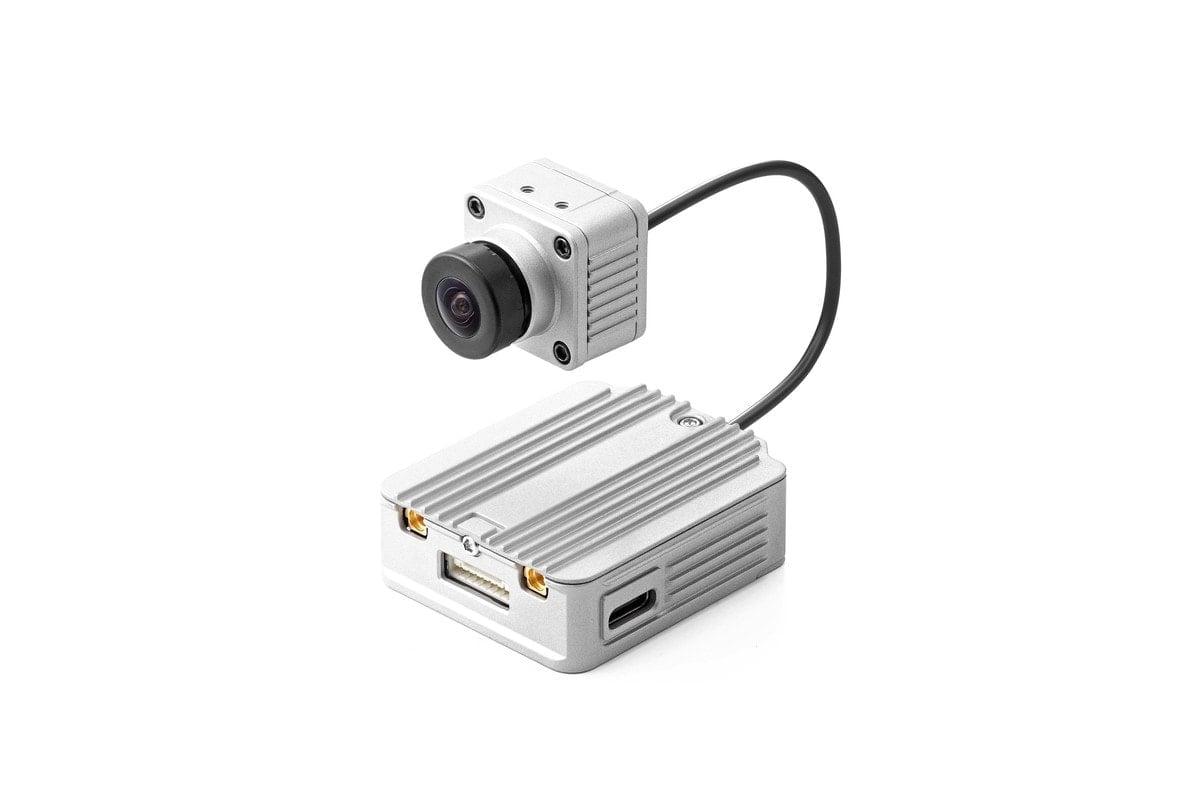

DJI FPV Air Unit
Weight
Air Unit (Camera included): 45.8 g
3.9 g (MMCX elbow each)
Dimensions
Air Unit: 44 × 37.8 × 14.4 mm
Camera: 27.4 × 21.1 × 20.1 mm
Coaxial Cable: 100 mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm
Weight: 8.2 g
Channels: 8
Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839
Note: The Air Unit Module does get very hot in use. Do not power on for an extended period of time without proper cooling (AKA flying).

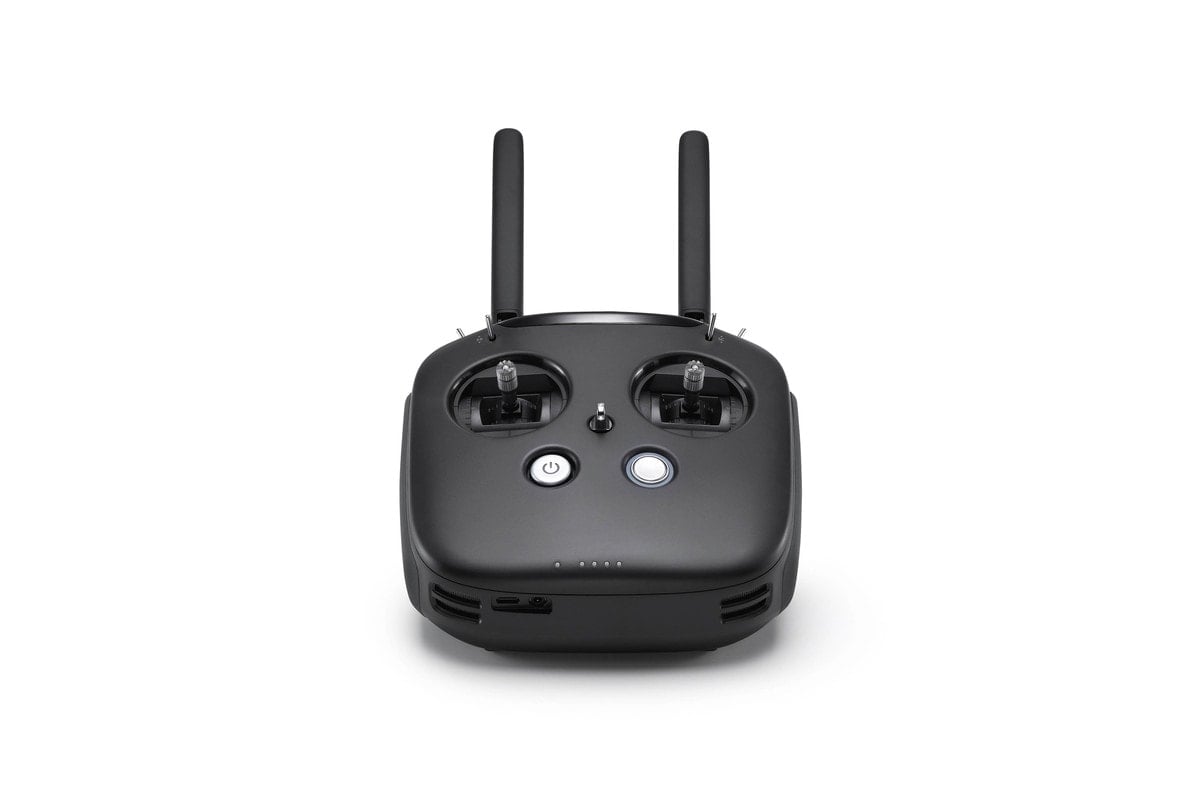

DJI FPV Remote Controller
Remote Controller
Weight: 765 g
Operation Frequency: 5.725-5.850 GHz
Max. Transmission Distance (Unobstructed,free of interference): FCC/SRRC: 4 km; CE: 0.7 km
Transmitter Power (EIRP): FCC: <30 dBm; CE: <14dBm; SRRC:<19dBm
Operation Current/Voltage: 0.6 A @ 7.6 V
Operation Temperature: 0° to 40°C (32° to 104°F)
Charging Temperature: 5° to 40°C (41° to 104°F)
Remote Controller Intelligent Battery
Battery Type: LiPo 2S
Capacity: 4920 mAh
Voltage: 7.6 V
Energy: 37.39 Wh
It is recommended to use the USB adapter of DJI Goggles RE, Ronin-S, Spark or an FCC/CE certified USB adapter that supports Quick Charge 2.0.
If you use the DJI FPV Goggles and the DJI FPV Remote Controller at the same time, you must first link the air unit and the goggles, and then link the remote controller.

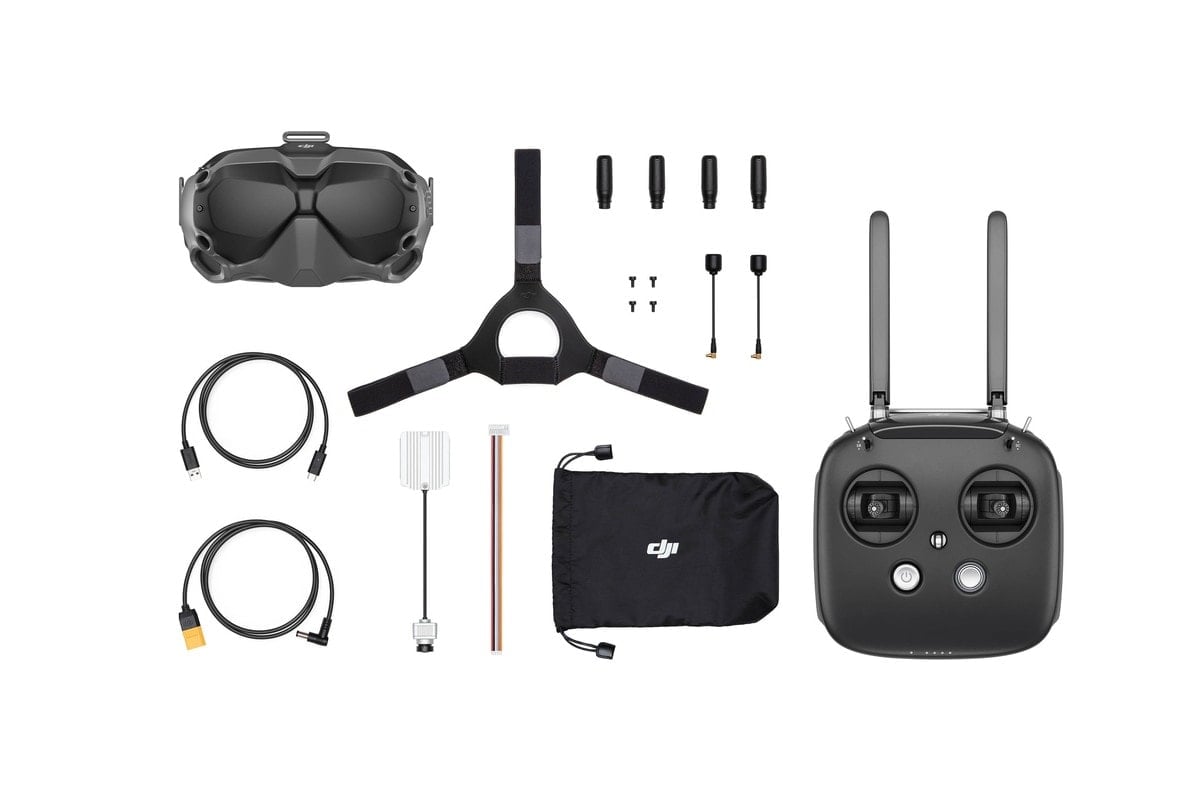

Includes
- 1 x DJI FPV Goggles
- 1 x DJI FPV Air Unit
- 1 x DJI FPV Remote Controller
- 4 x Goggle Antennas
- 1 x USB-C Cable
- 1 x Headband
- 1 x Sleeve
- 1 x Power Cable
- 2 x Antenna (MMCX 90)
- 1 x 3-in-1 Cable
- 4 x M2 Screw
