Product Details
DJI has redefined the drone racing industry with the new Digital FPV System. It delivers lower latency rates within 28 ms, a 4km maximum transmission range, stunning HD 720p/120fps resolution, and, most importantly, an unforgettable FPV flying experience.

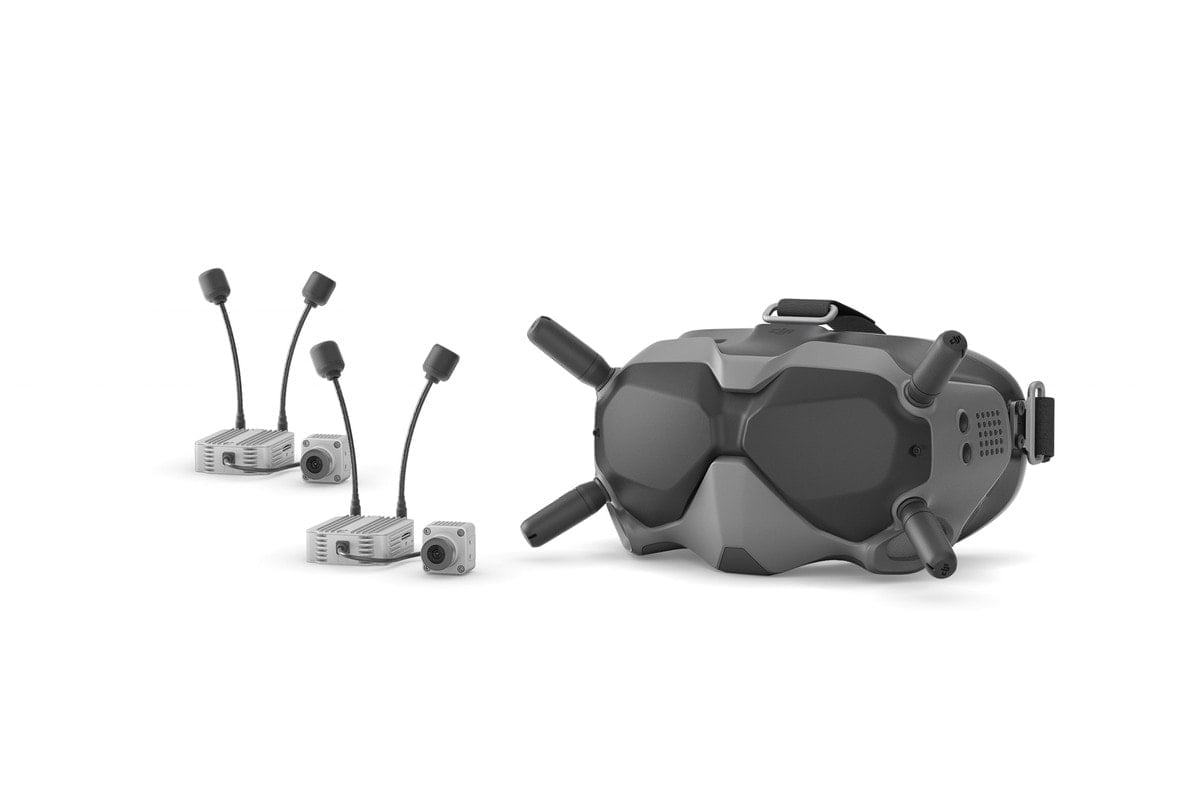

The DJI FPV Experience Combo is ideal if you already have your own R/C gear such as crossfire and just want the FPV gear. This kit includes one (1) DJI Digital HD FPV Goggle along with two (2) FPV Air Units. Use the Experience Combo to build or swap a pair of drones to the DJI system - or simply have an extra Air Unit as a backup!
Enter the new era of FPV with DJI.
Specifications

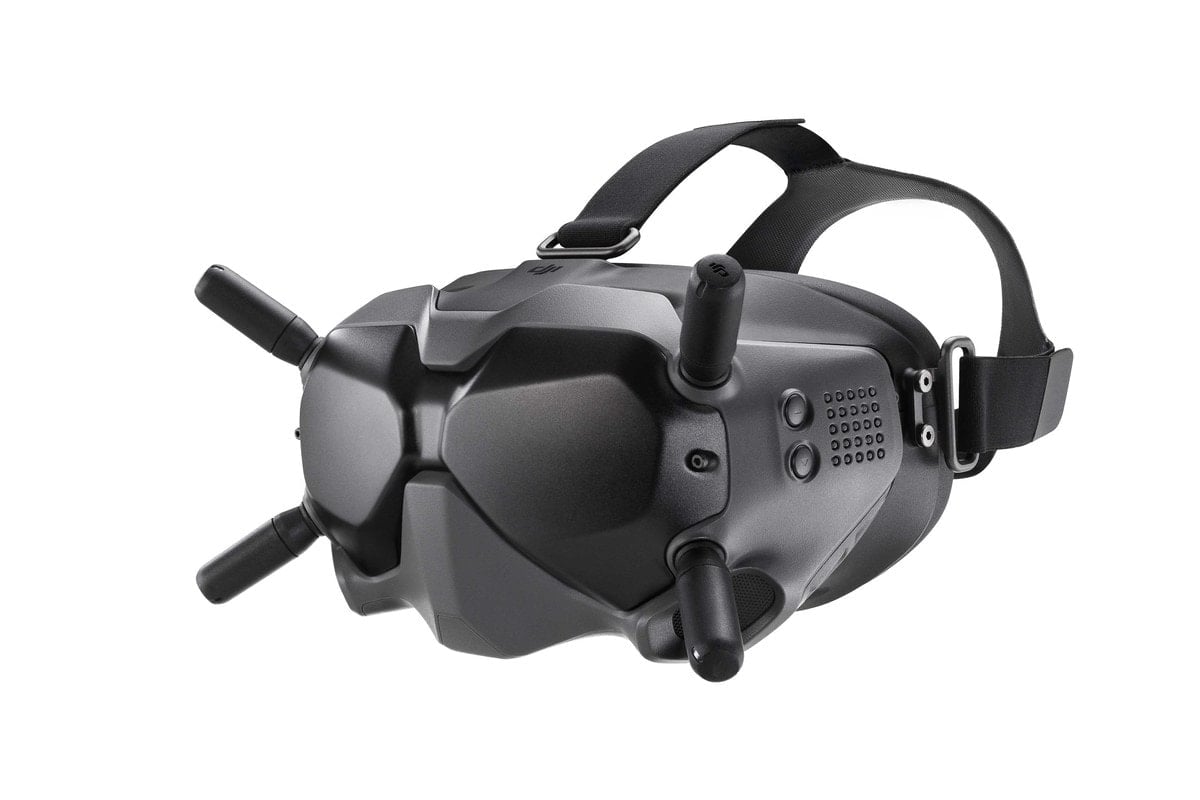

DJI FPV Goggles
Weight: Approx. 415 g (headband and antennas included)
Dimensions:
202 × 126 × 110 mm (antennas included)
184 × 122 × 110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen) : 1440 × 810
Screen Renew Rate: 120 Hz
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP) : FCC/MIC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
Live View Mode
Low Latency Mode (720p/120fps)
High-Quality Mode (720p/60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
Power Input: 7.4-17.6 V
FOV Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range: 58 -70 mm
Battery: 6.6V-21.75V
External battery, total power consumption of 7W
Supported Storage Card: microSD cards with capacities of up to 128GB

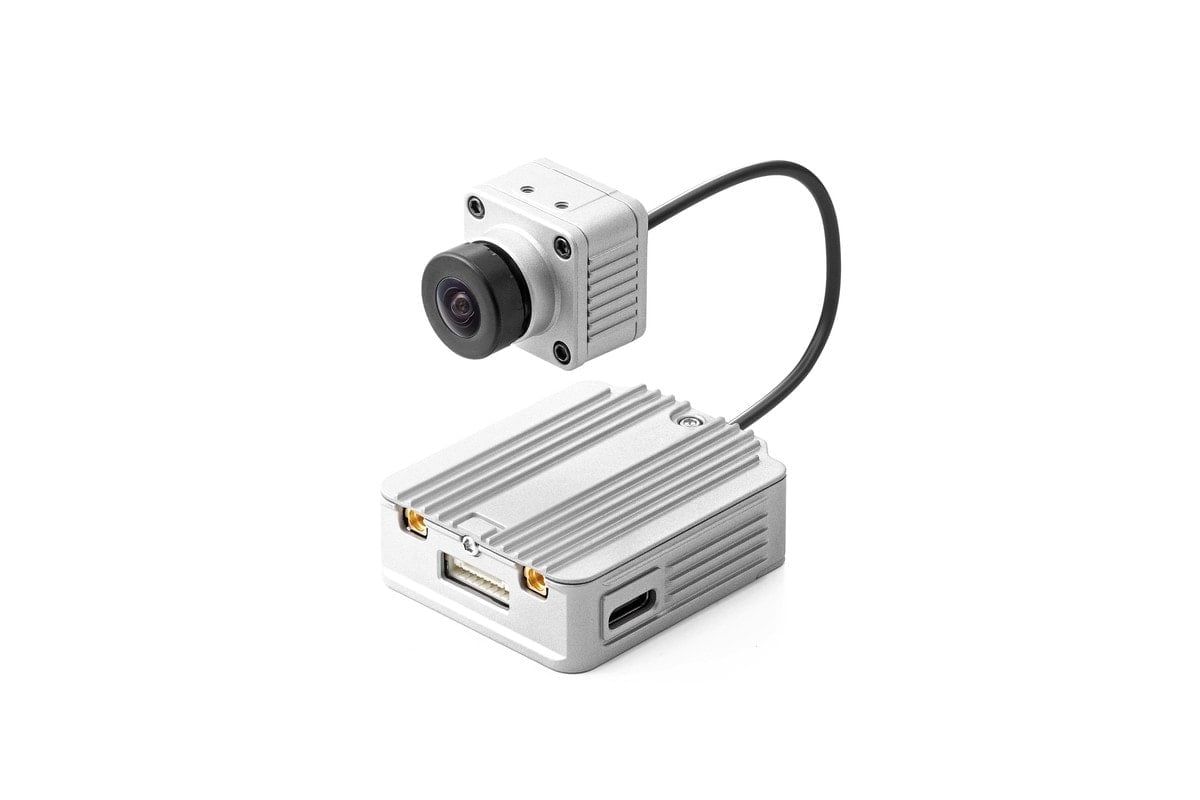

DJI FPV Air Unit
Weight
Air Unit (Camera included): 45.8 g
3.9 g (MMCX elbow each)
Dimensions
Air Unit: 44 × 37.8 × 14.4 mm
Camera: 27.4 × 21.1 × 20.1 mm
Coaxial Cable: 100 mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm
Weight: 8.2 g
Channels: 8
Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839
Note: The Air Unit Module does get very hot in use. Do not power on for an extended period of time without proper cooling (AKA flying).

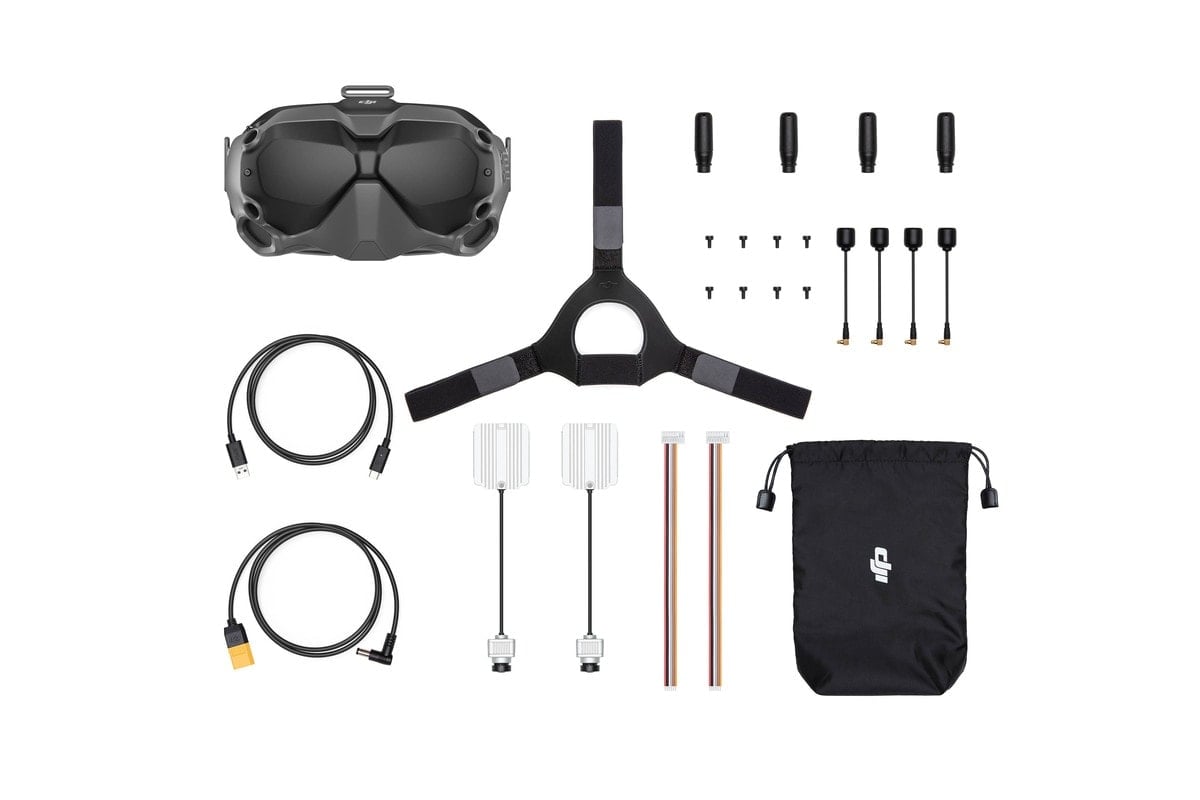

Includes
- 1 x DJI FPV Goggles V2
- 2 x DJI Caddx FPV Air Unit V2
- 4 x Goggle Antennas
- 1 x USB-C Cable
- 1 x Headband
- 1 x Sleeve
- 1 x Power Cable
- 4 x Antenna (MMCX 90)
- 2 x 3-in-1 Cable
- 8 x M2 Screw
