Product Details
Note: The STM32F722 generates much heat, please leave at least 5mm on both sides of the FC to give good air circulation.
Diatone's Mamba series gives racers an edge in competition. The latest F7 processing technology means you can focus on flying, not on the limits of your equipment, even in a 30x30 form factor FC.
With a wide range of setup options and features, you can configure your stack however you'd like.
Specifications
FIRMWARE TARGET /CONFIG： MAMBA F722 I2C

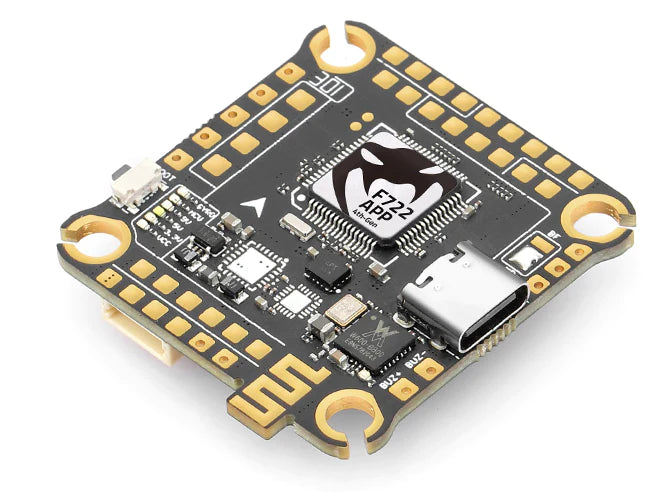

F722 Flight Controller
- MCU: 216MHz STM32F722RET6 32BIT
- IMU: BMI270 or ICM42688P
- Barometer: No
- OSD: BF OSD AT7456E
- Blacbox: 16M Flash Memory
- Uarts: 6Set
- Receiver compatibility: TBS/SBUS/IBUS/DSM
- I2C: Yes
- F.Port: Yes
- Buzzer Pad: Yes
- CURR Pad: Yes
- ESC Outputs: 8x
- BEC 3.3V: 0.5A
- BEC 5V: 3A
- BEC 9V: 3A
- MB LED: Yes
- BF LED: Yes
- Air Unit Port: Yes
- WIFI: Yes, SpeedyBee App
- VTX Switch: Yes
- BEC Protection: Yes
- Receiver Protection: Yes
- TVS Protection: Yes
- Input: 6S Lipo
- Firmware: Betaflight
- Mounting: 30.5x30.5mm / M3
- Size 38x40.5x8mm
- Weight: 10g
