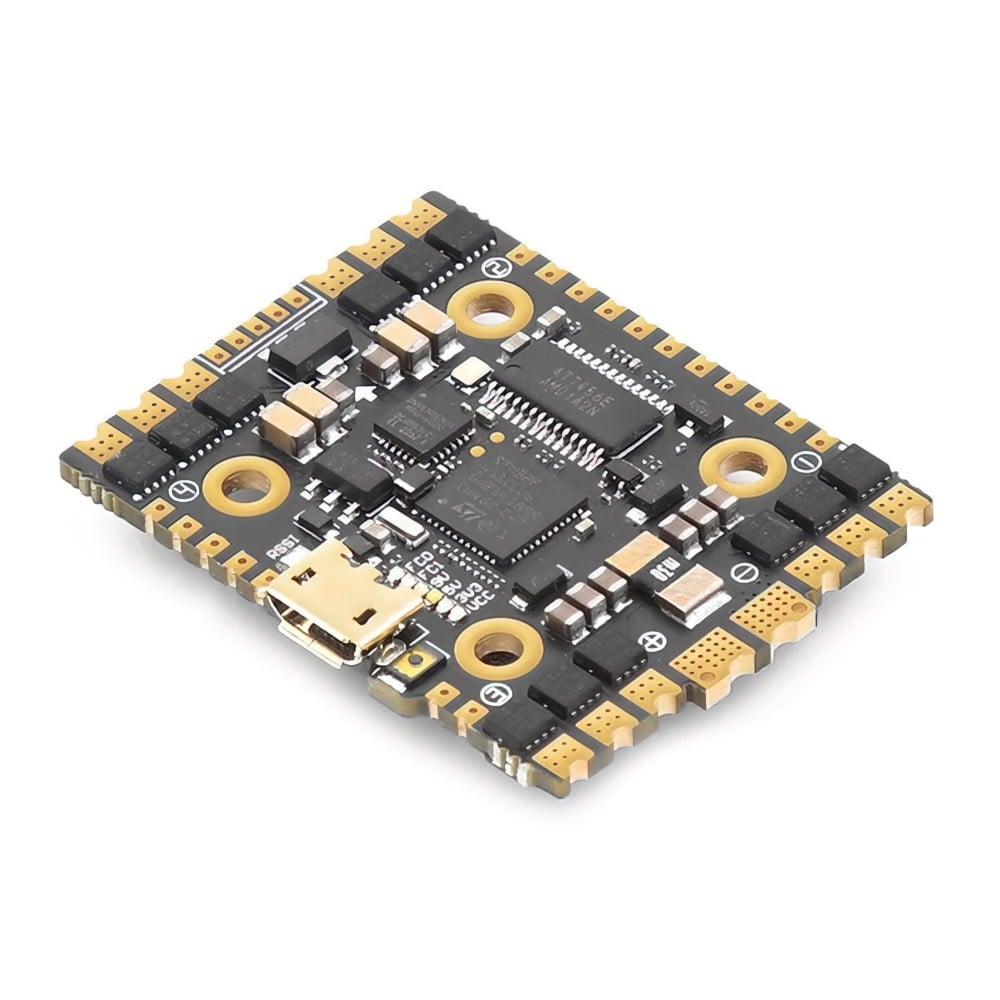

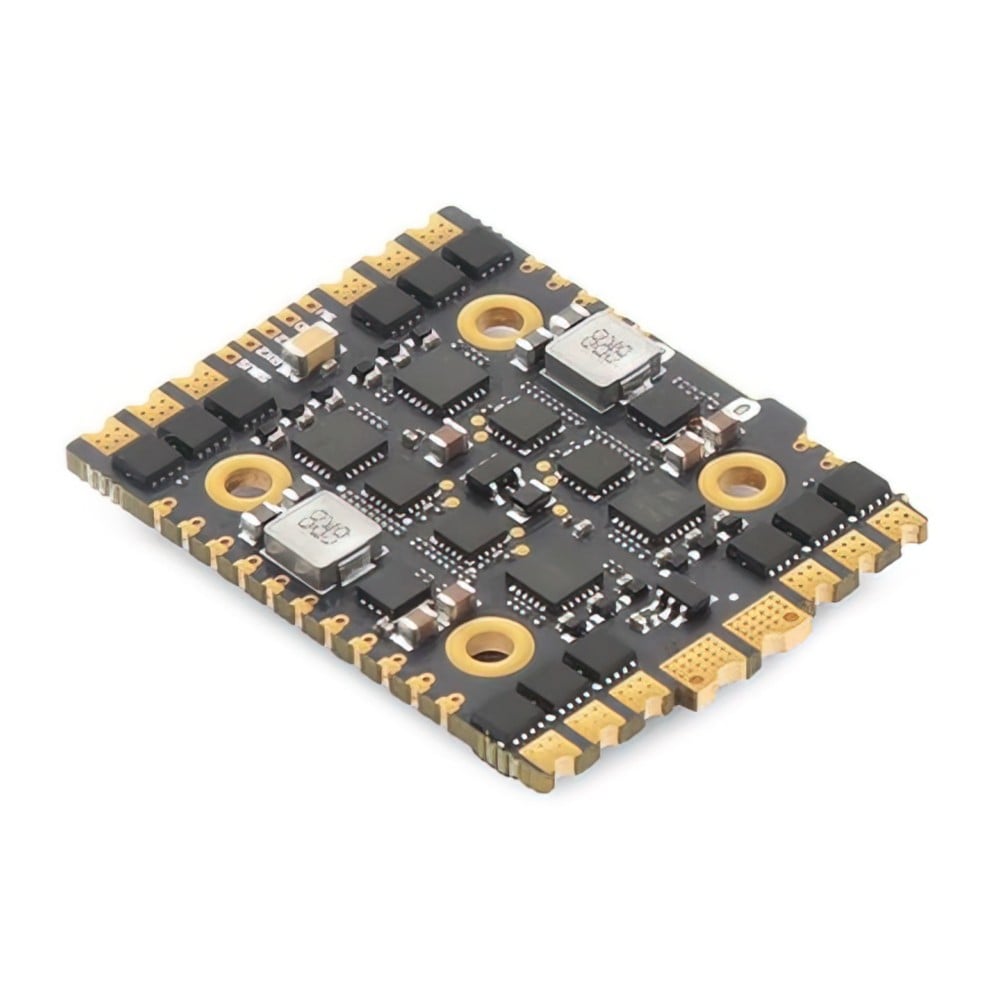

Diatone Mamba F411 AIO - F411 FC + 35A 3-6S BLHeli_S ESC - Internal USB

Features

• Large Soldering Pad
• Internal USB
• F411 FC
• 35A ESC

Specifications

F411 FC

• MCU: 100MHz STM32F411CEU6
• BEC: 3.3V 0.5A & 5V 2A & 9V 2A
• MAMBA AIO F411 35A /20mm
• Input: 3~6S Lipo (12.6~25.2V)
• Mounting Pattern: 20×20, M2
• ESC Soft: Dshot300/600
• LED Controller: BF LED
• GYRO: MPU6000
• Size:42×33×6mm
• Power Led: Yes
• Barometer: No
• Blackbox: No
• Uarts: 2 Set
• F.Port: No
• RSSI: Yes
• Buzz: Yes
• OSD: Yes

35A ESC

• CONTINUE CURRENT: 35A×4
• MAMBA AIO F411 35A /20mm
• BURST CURRENT: 40A (10S)
• Input: 3~6S Lipo (12.6~25.2V)
• Target: BLHeli_S CH40
• SOFT: Dshot300/600

Includes

• 1x Diatone Mamba F411 AIO - F411 FC + 35A 3-6S BLHeli_S ESC - Internal USB
• 1x High-Frequency 470uF/35V
• 1x AMASS Original XT60
• 2x 16AWG 60mm
