Product Details

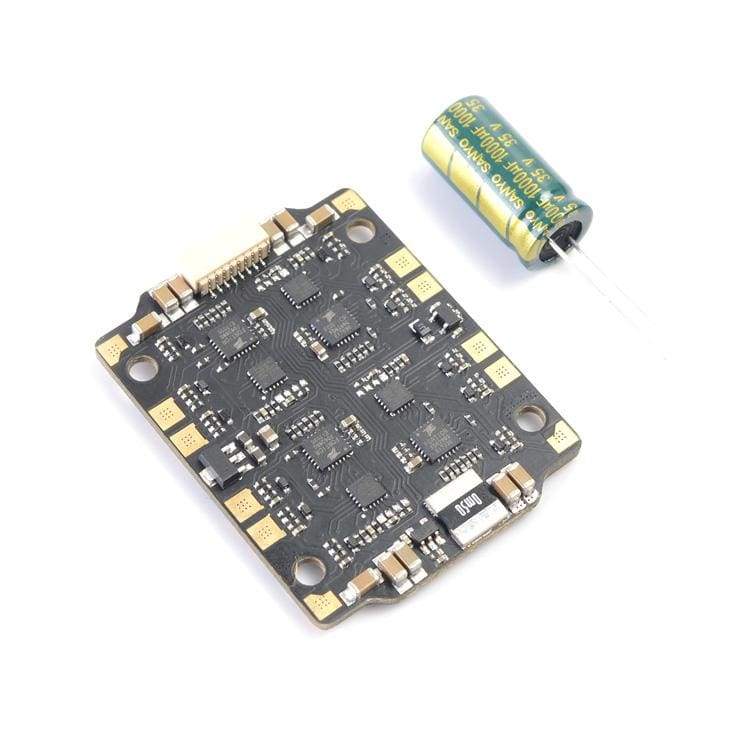

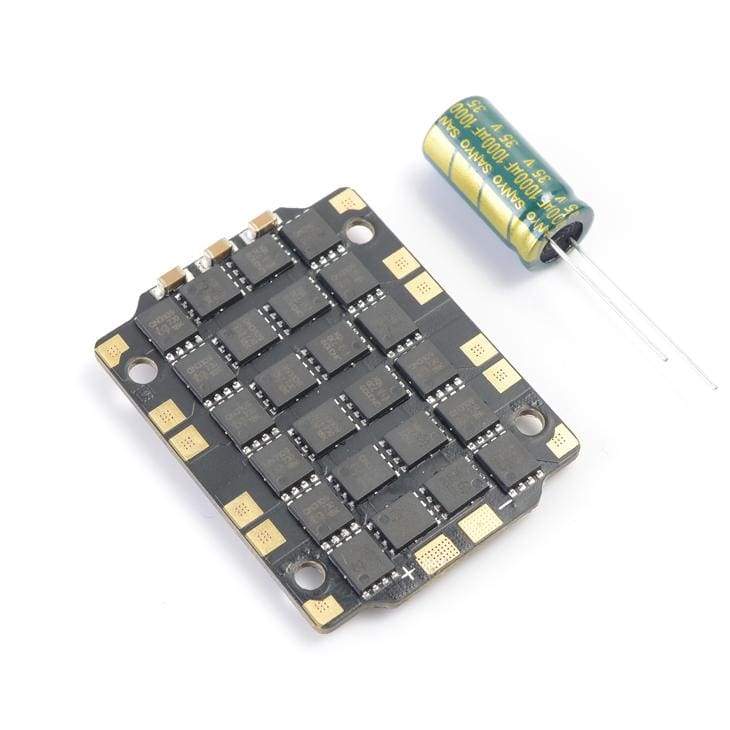

This drone ESC is a high-performance electronic speed controller designed for use with drones. It has a wide input voltage range of 3-6S Lipo (12.6V-25V), allowing it to be used with a variety of battery configurations. It has a continuous current of 40A×4 BURST and a burst current of 50A (10S), providing plenty of power for even the most demanding applications.
The ESC does not have a built-in BEC, so you will need to provide your own power supply for your flight controller and other onboard electronics. It has a mounting hole pattern of 30.5mm/M3, making it easy to install on a variety of frames.
The ESC is equipped with high-quality capacitors from Samsung, including 564UF of capacitance (47UF×12pcs) for smooth and stable operation. It is capable of delivering up to 50A/4S or 40A/5S (the same total power) of current, making it suitable for use with motors with a KV rating of 1900 or lower on 6S battery configurations.
Overall, this is a versatile and reliable ESC that is well-suited for use in a wide range of drone applications.
Specifications
- INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
- CONTINUE CURRENT: 40A×4 BURST
- CURRENT: 50A (10S)
- BEC: NO
- MOUNTING: 30.5mm/M3
- CURR: 169A
- Capacitance: Samsung 564UF(47UF×12pcs)
- About Current: 50A/4S OR 40A/5S (The same total power)
- Motor Suggestion: Below 1900KV for 6S
Includes
- 1 x ESC-MAMBA F40
- Accessories Pack (contents may vary based on supply)
