Product Details
Specifications

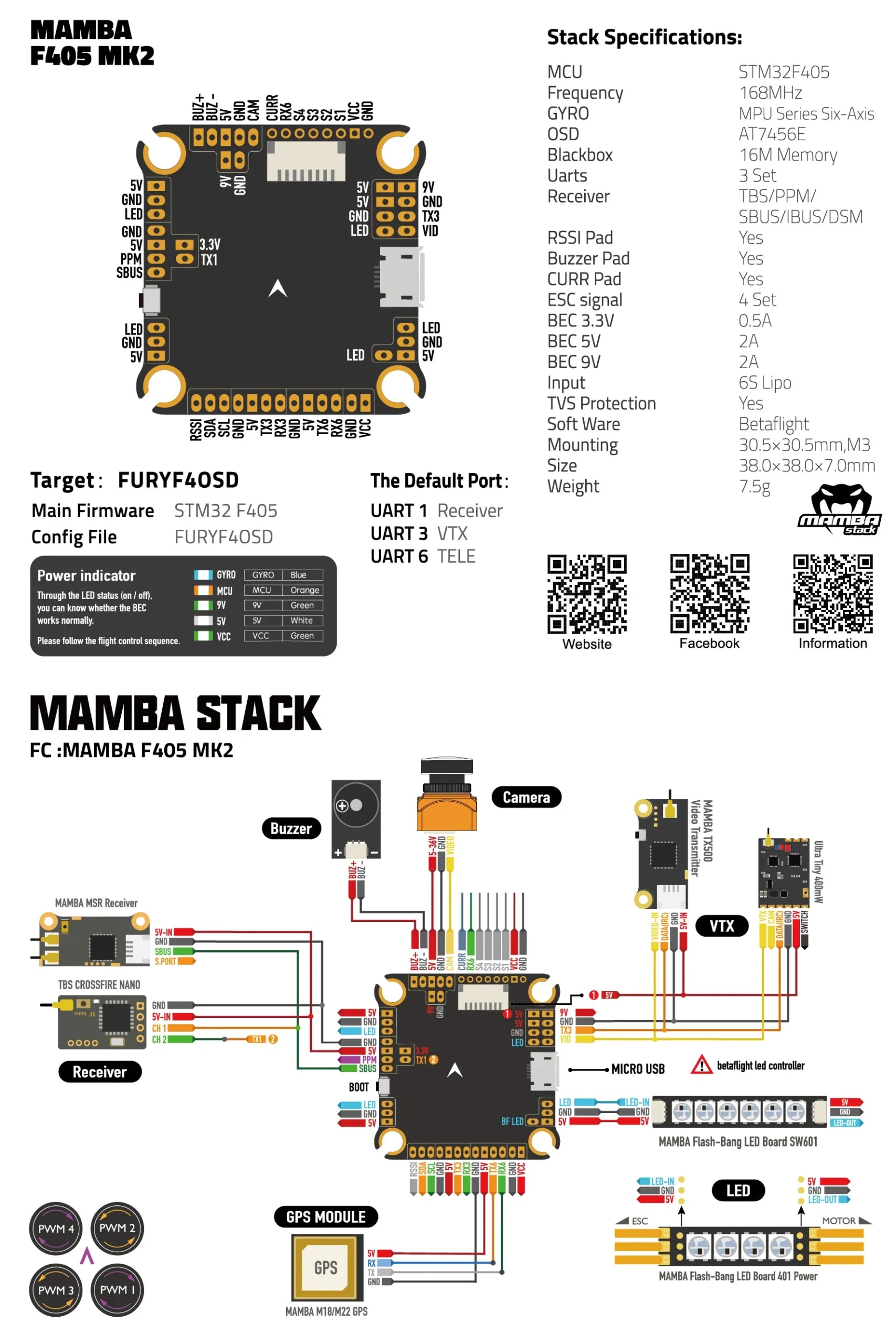

Mamba Basic F405MK2 FC
- MAMBA Basic F405MK2
- MCU: 168MHz STM32F405RGT6
- GYRO: ICM42688P
- Barometer: No
- OSD: Yes
- Blackbox: 16M Flash Memory
- Uarts: 3Set
- ESC Soft: Dshot300/600/1200
- ESC Telemetry: Yes
- Power Led: Yes
- LED Controller: BF LED（4 Set 2812 LED）
- F.Port: No
- RSSI: Yes
- Buzz: Yes
- Input: 3~6S Lipo (12.6~25.2V)
- TVS Protection: Yes
- BEC:3.3V 0.5A& 5V 2A & 9V 2A
- MOUNTING: 30.5mm,M3
- Firmware Target: FURYF4OSD （Legacy）

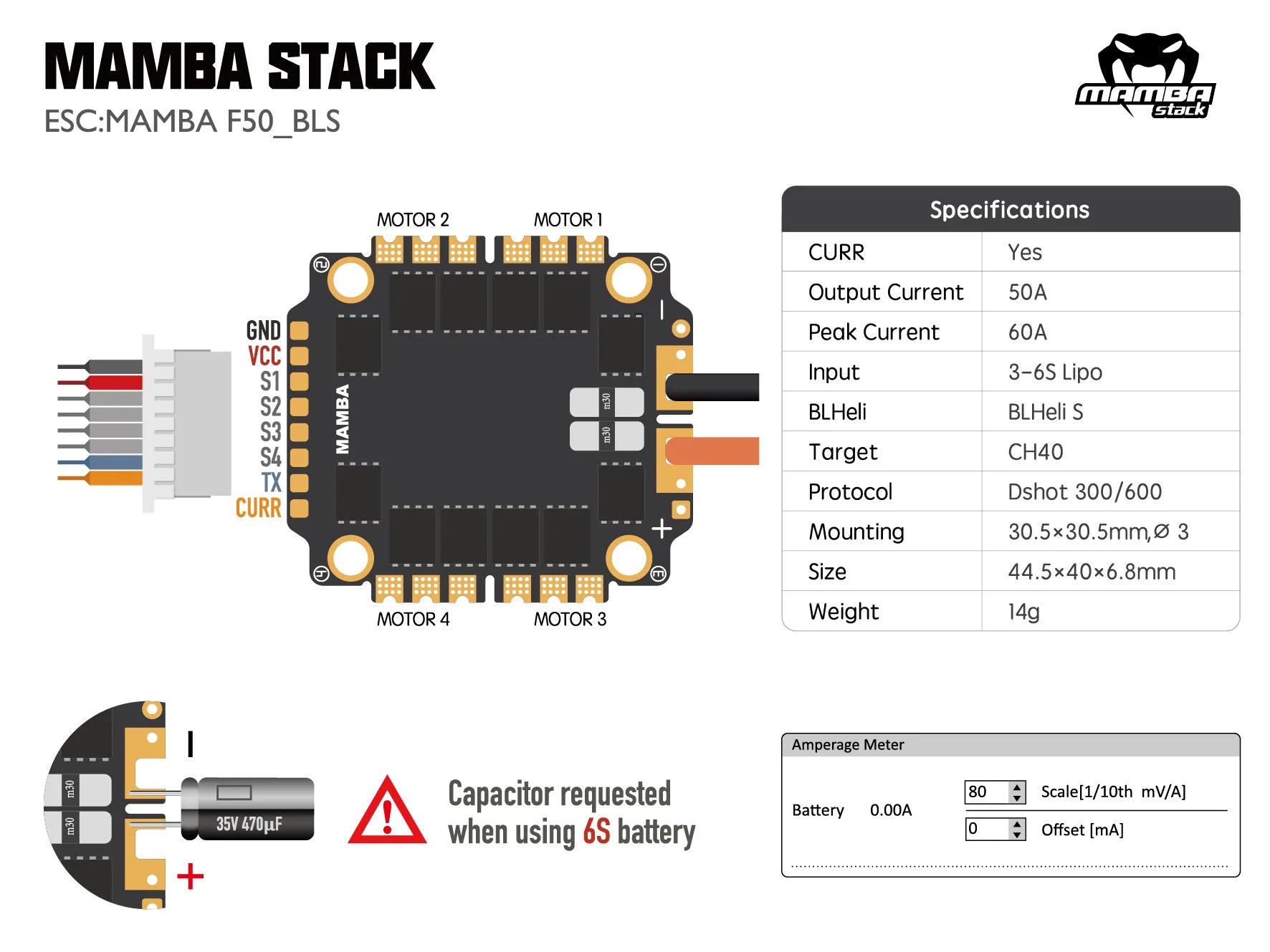

Mamba F50 BLS ESC
- INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
- CONTINUE CURRENT:50A×4
- BURST CURRENT:60A (10S)
- BEC: No
- Target: BLHeli_S CH40
- SOFT: Dshot300/600
- TVS Protection: Yes
- MOUNTING: 30.5mm/M3
Includes
- 1 x Mamba F405MK2 Flight Controller
- 1 x Mamba F50 HV ESC Bl_Heli_S
