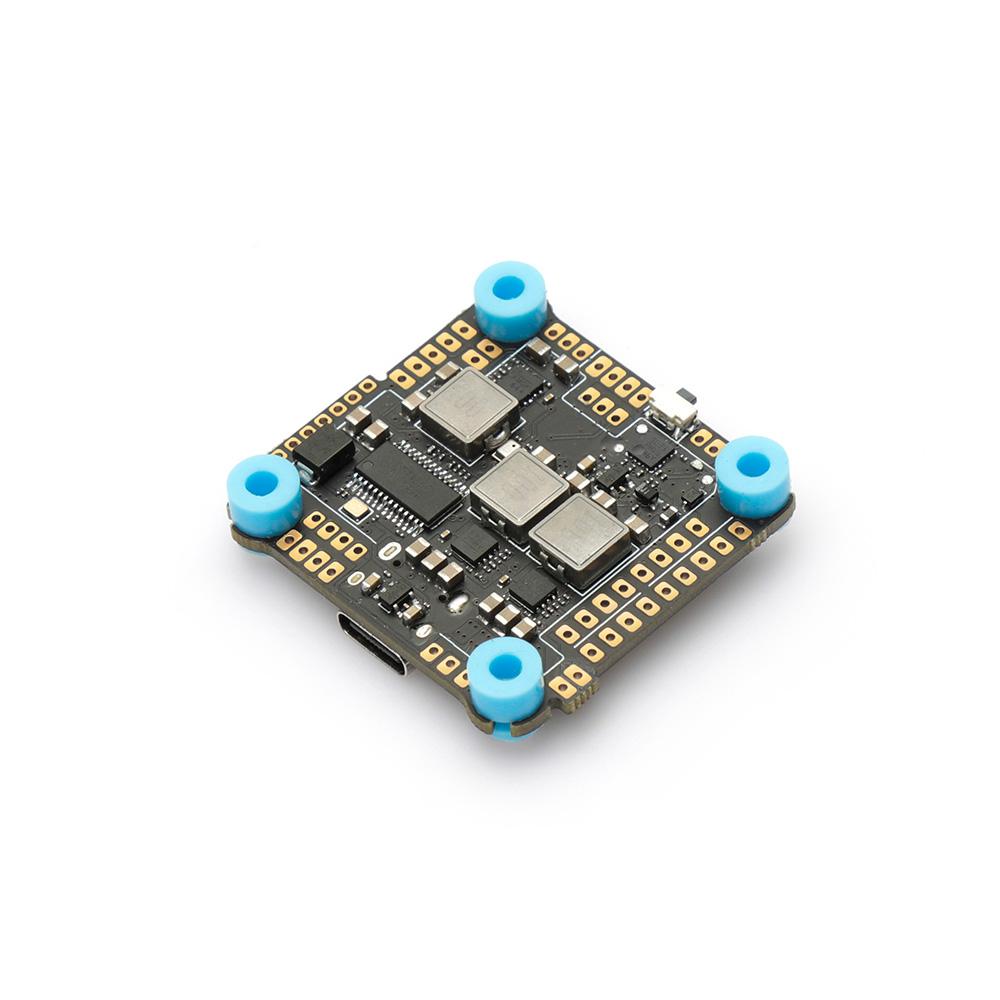

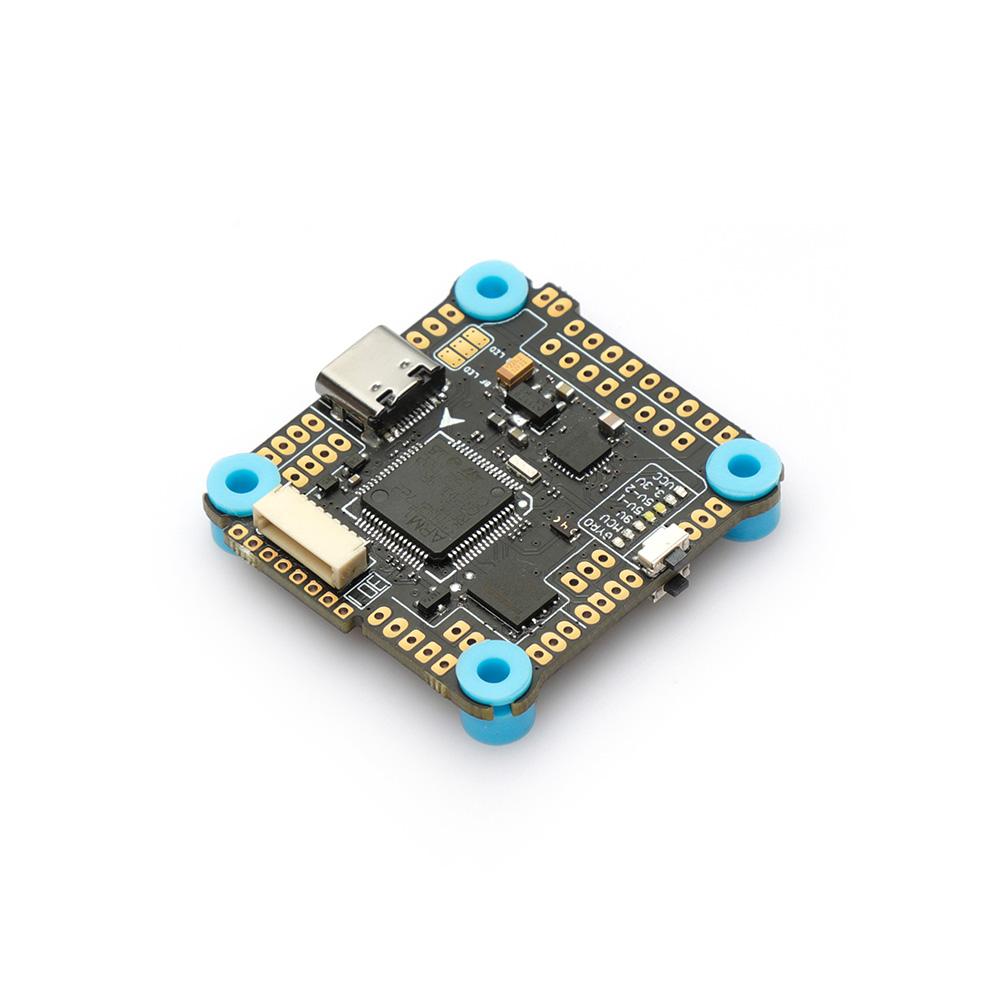

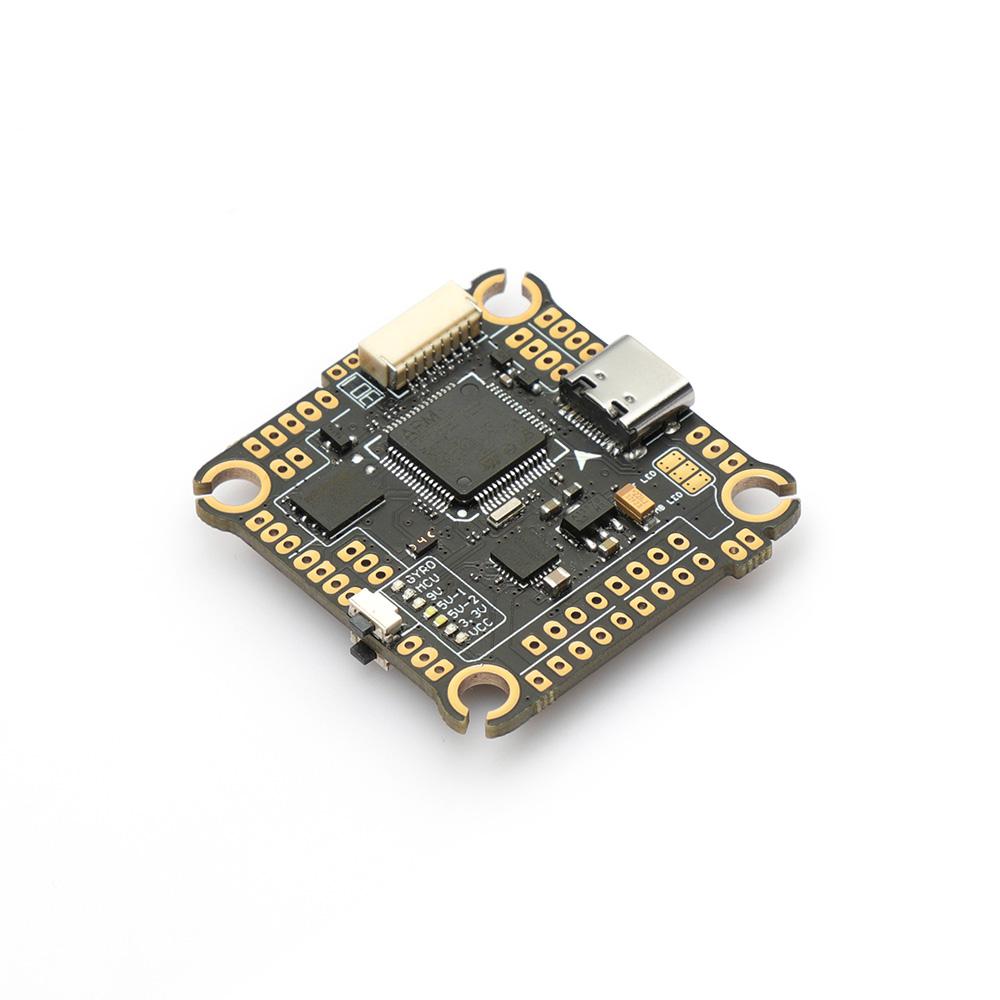

Diatone Mamba Basic F722 Mk3 Flight Controller (No WiFi)

Specification

• MCU: 216MHz STM32F722RET6
• IMU: MPU6000
• Barometer: Yes
• OSD: Yes
• Blackbox: 16M Flash Memory
• Uarts: 6Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller: BF LED/MB LED（ 4 Set 2812 LED）
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25.2V)
• TVS Protection: Yes
• BEC:3.3V 0.5A& 5V 3A (System Power))&
• 5V 3A(LED )& 9V 3A
• MOUNTING: 30.5mm,M3

Included

• 1x Mamba Flight Controller
