Product Details

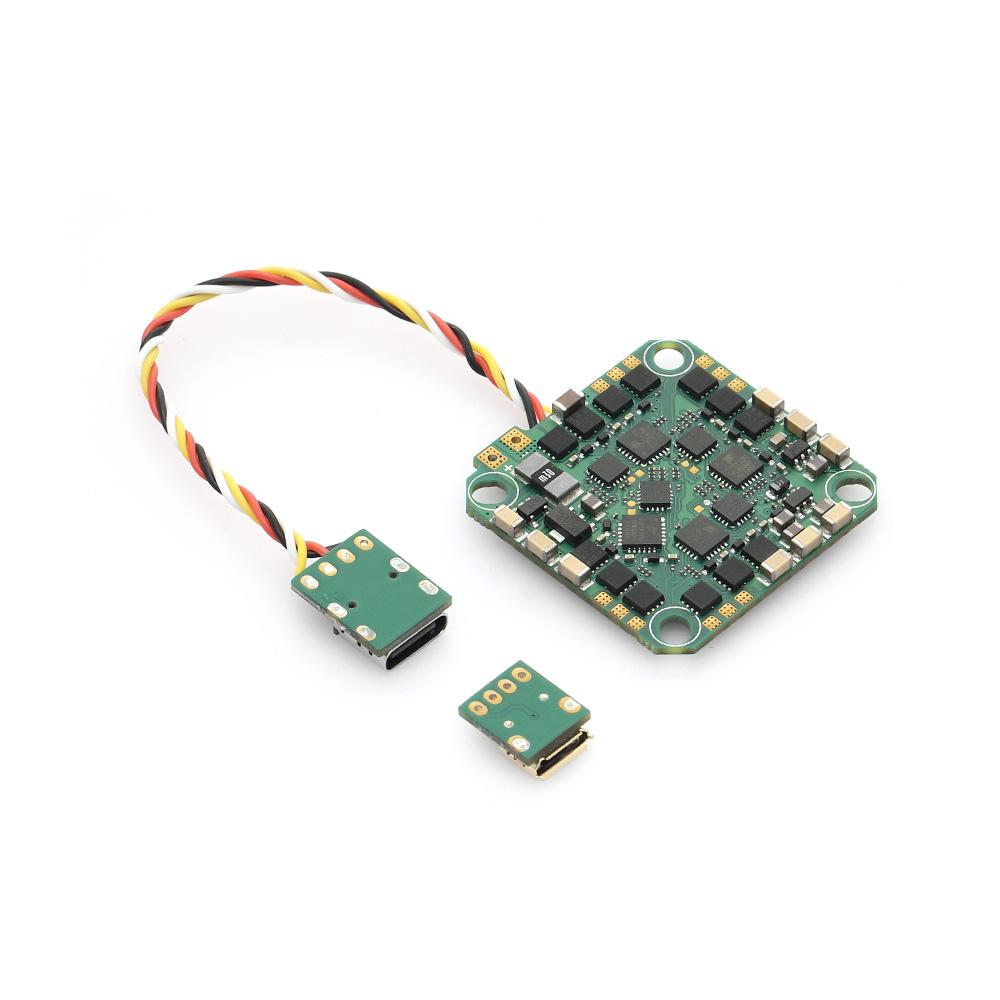

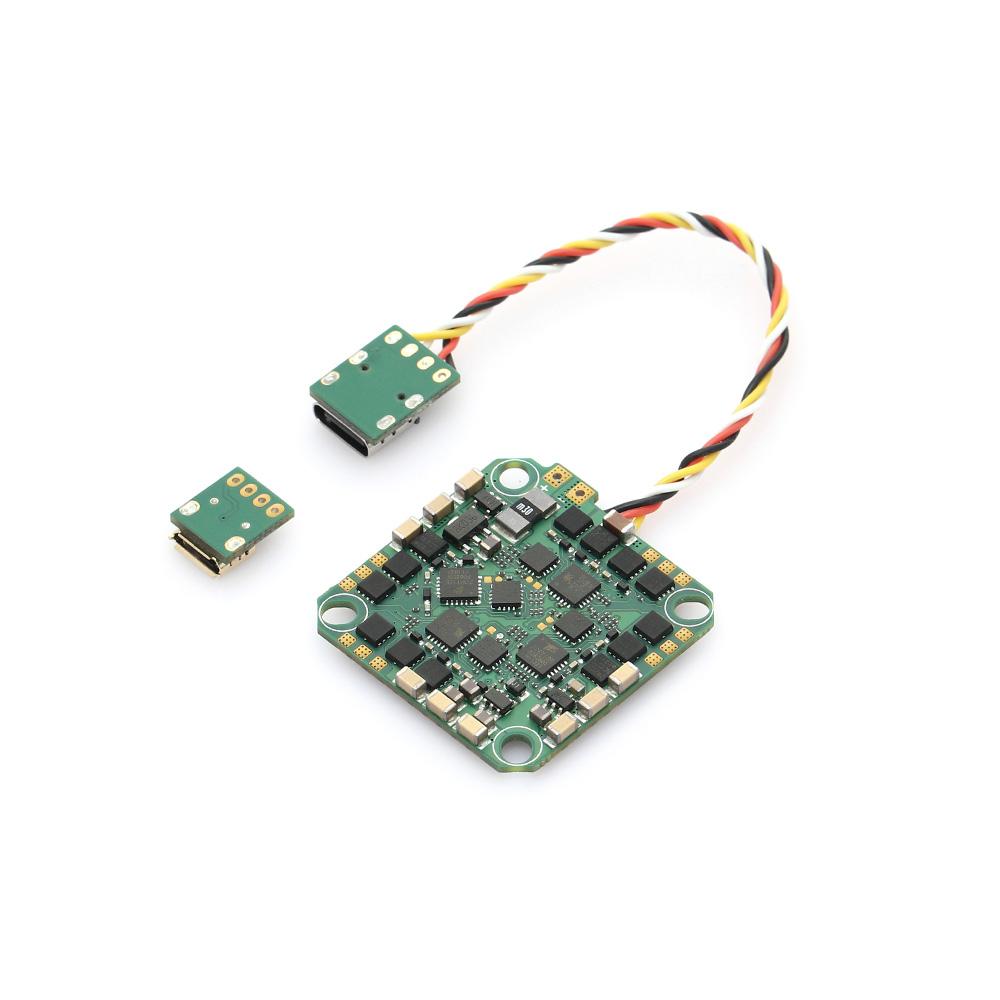

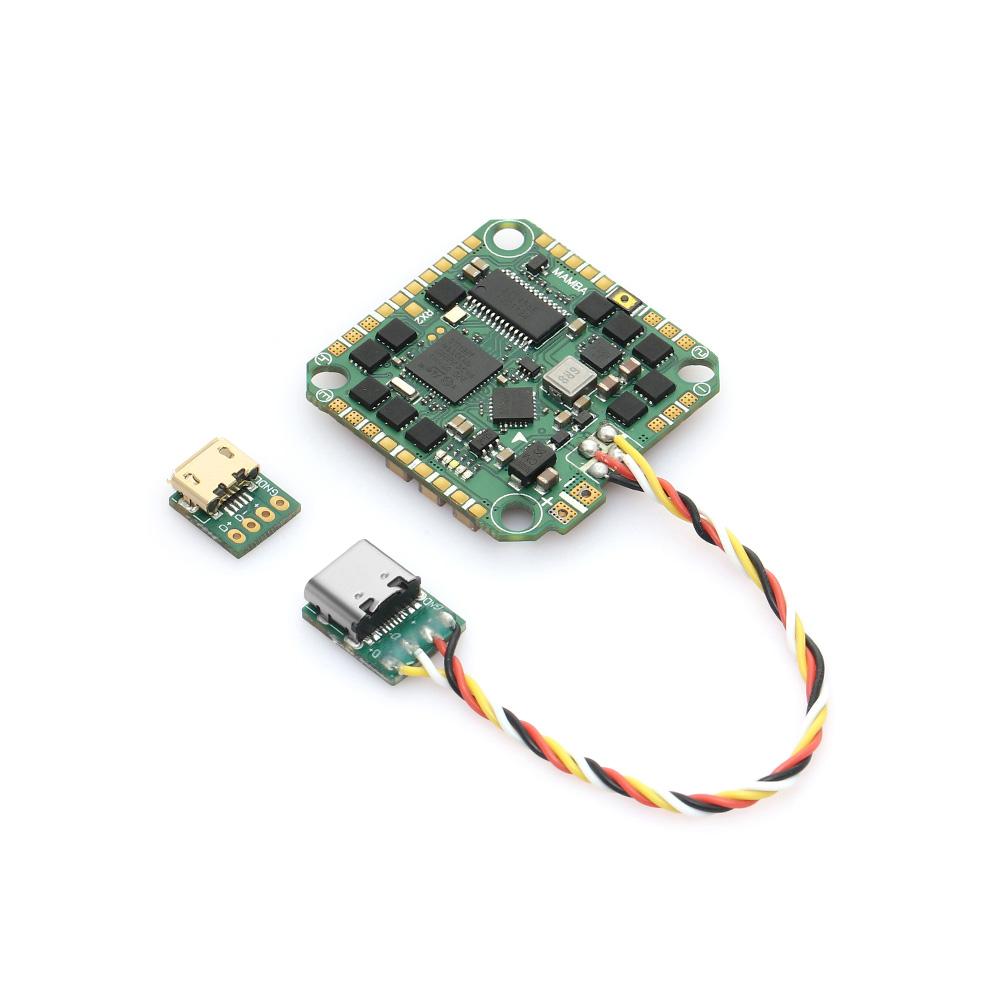

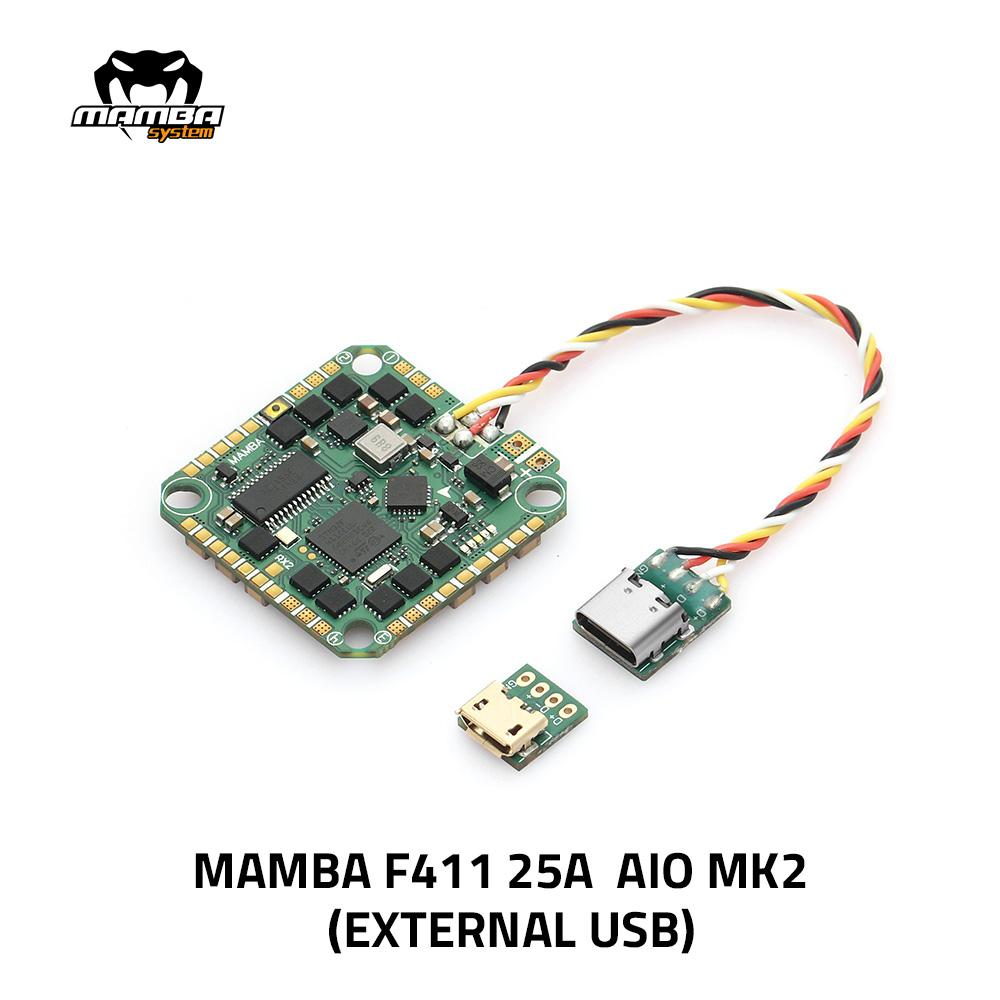

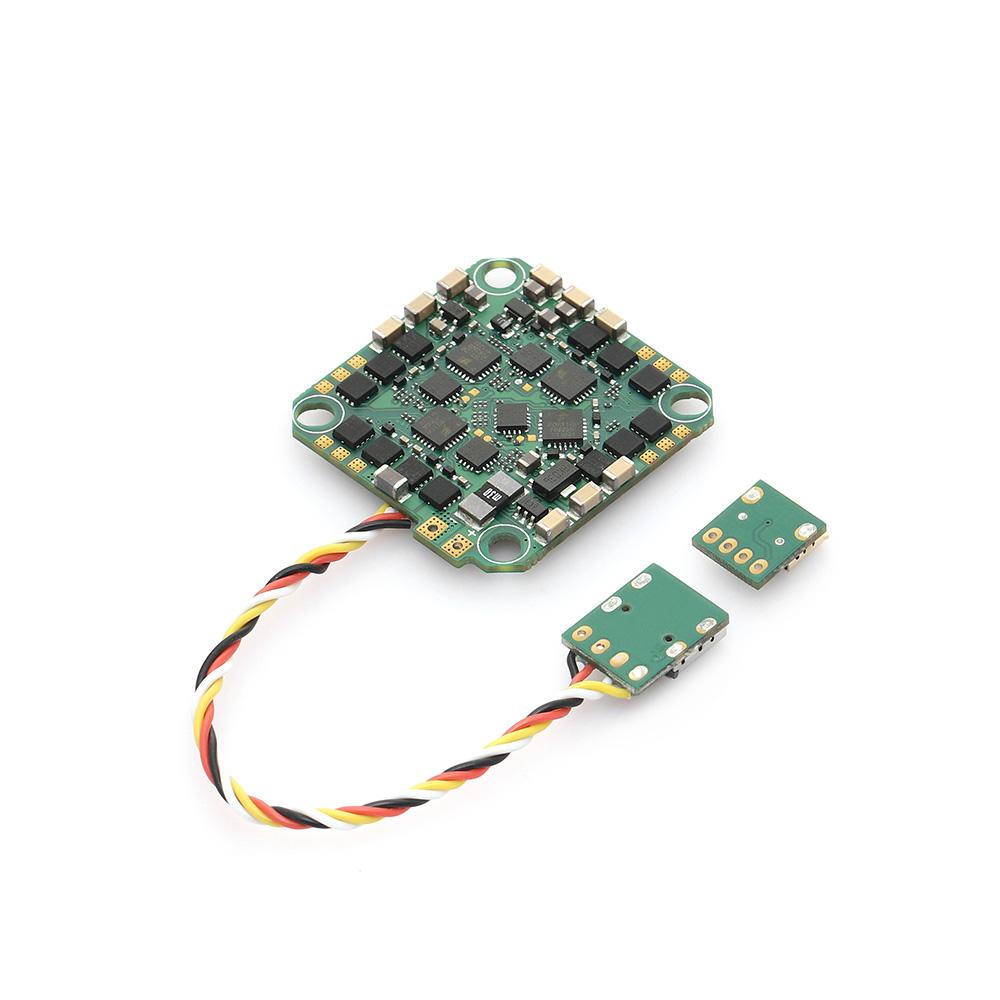

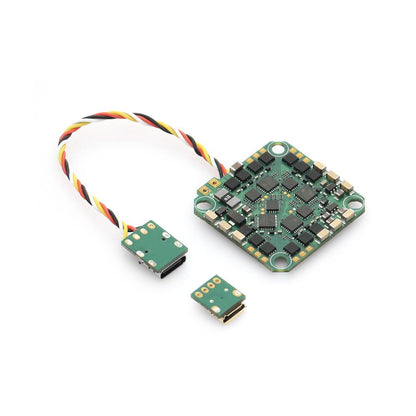

This is a whoop / toothpick size all in once flight controller with a integrated Dshot600 Blheli_S 4in1 ESC. Ideal for using on your whoop/toothpick class builds. Now with an external USB connector ideal for mounting on your cinewhoop drones where ducts get in the way of USB access.
FC Specifications
- MCU: 100MHz STM32F411CEU6
- GYRO: MPU6000
- Barometer: Yes
- OSD: Yes
- Blackbox: NO
- Uarts: 2 Set
- ESC Soft: Dshot300/600
- Power Led: Yes
- LED Controller: BF LED
- F.Port: No
- RSSI: Yes
- Buzz: Yes
- Input: 2~4S Lipo (8.4~16'8V)
- BEC: 5V 2A
- MOUNTING: 25.5mm,M2
ESC Specifications
- MAMAB F411 25A AIO MK2 (EXTERNAL USB)
- INPUT VOLTAGE: 2~4S Lipo (8.4V~16.8V)
- CONTINUE CURRENT: 25A×4
- BURST CURRENT: 35A (10S)
- Target：BLHeli_S GH30
- SOFT: Dshot300/600
Package Included
- 1 x MAMBA AIO F411 25A Mk2 Flight Controller with internal or external USB
