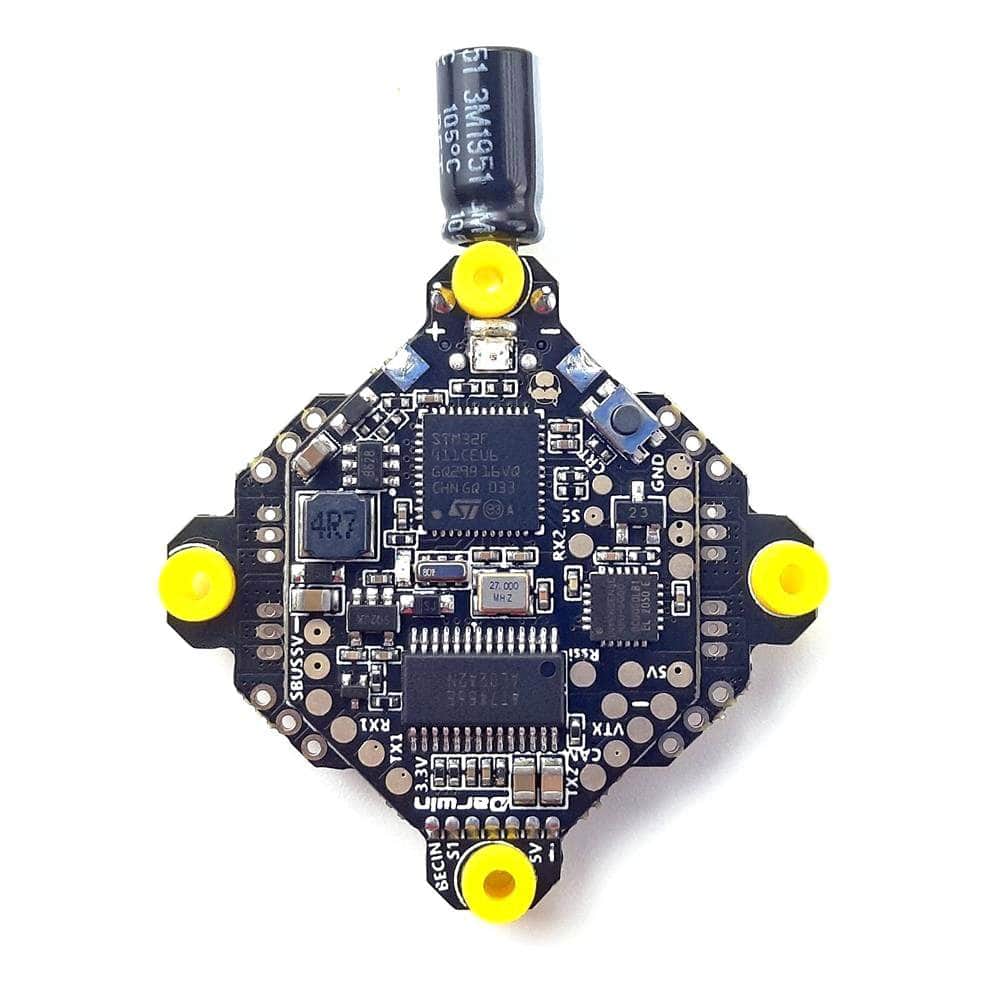

DarwinFPV F411 15A AIO: Keep Your Toothpick Flying

Let's be honest, you're not building a DRL-winning rig. You're here because you introduced your last AIO to a puddle, and you need a cheap, reliable fix. The DarwinFPV F411 15A AIO is the legendary heart of the BabyApe, a no-nonsense whoop AIO flight controller that just works. Perfect for your 2-3" toothpick or ultralight build, this is the 15A AIO FC you grab from our UK stock when 'good enough' is exactly what you need.

Why You Want It

This board isn't going to win any beauty contests. It won't make Joshua Bardwell's top-ten list. What it will do is get your battered quad back in the air for less than the price of a fancy dinner. It's the dependable, predictable choice for a beater build, a spare parts project, or for when you need to replace the magic smoke without setting fire to your wallet. It's not glamorous, but it's honest work, and it's ready to ship from right here in the UK.

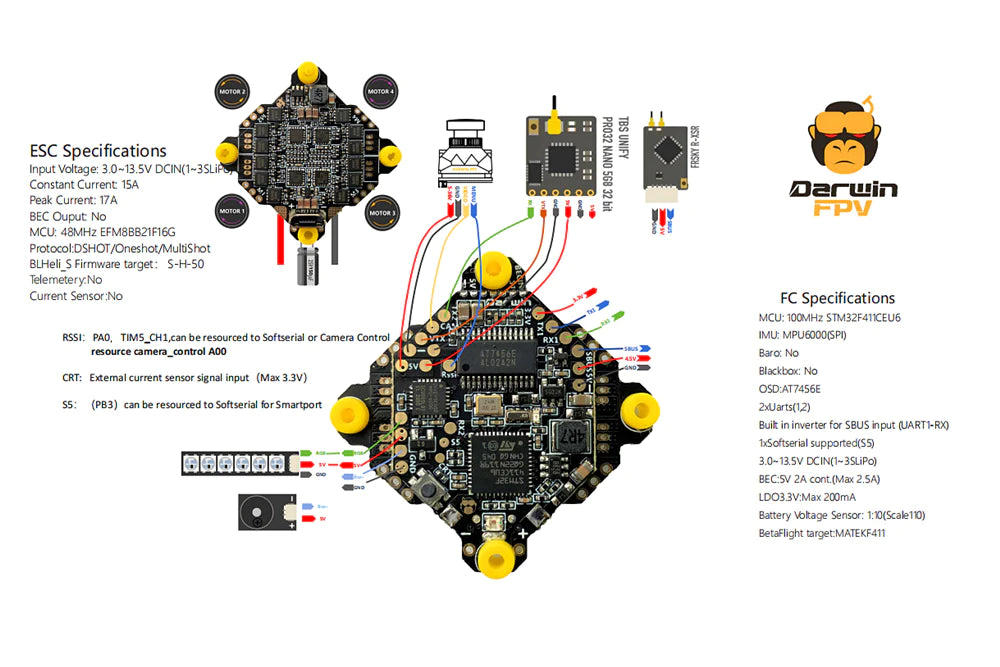

Specifications

• Processor: STM32F411 (Old reliable. It won't write a novel, but it'll fly a quad)
• Gyro: MPU6500 (A classic pairing, like fish and chips)
• ESC Firmware: BLHeli_S (It's not 32-bit, but neither is your budget for this build)
• Continuous Current: 15A (Plenty for your little 1104 motors)
• Input Voltage: 1-3S LiPo (Keep it small, keep it simple)
• Mounting: 25.5x25.5mm M2 (The whoop/toothpick standard)
• Weight: 5.5g (Barely enough to register on the scales or your conscience)
• Betaflight Target: MATEKF411 (Don't flash the wrong thing, you will be sad)

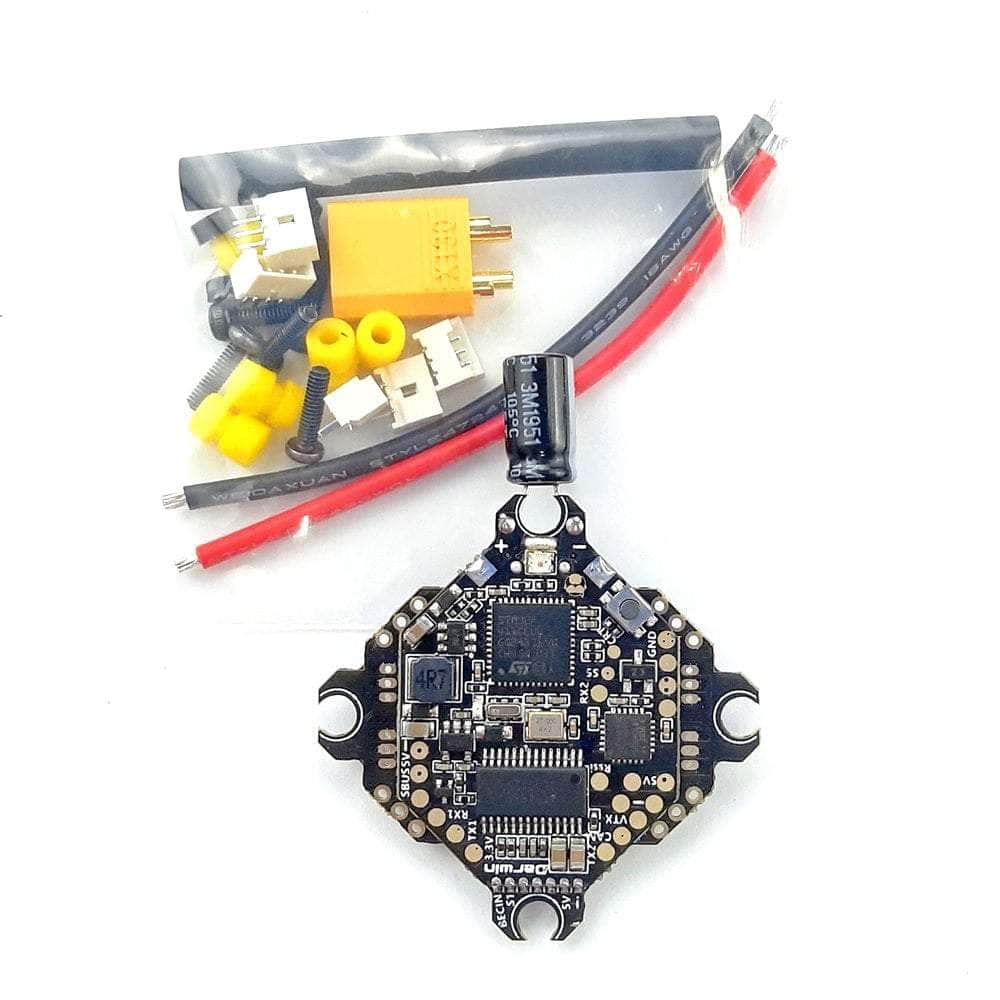

What’s in the Box*

• 1x DarwinFPV F411 15A AIO Board
• 1x XT30 Pigtail (Because soldering battery leads is the worst part of any build)
• 1x Bag of screws and gummies
• 1x Set of tiny connectors for things you'll probably solder directly anyway

Disclaimer

The board is guaranteed to arrive un-smoked. After you power it up for the first time with a questionable solder job, all bets are off.

Still Here?

You're still reading? You must be triple-checking the specs to make sure this cheap F411 AIO for 3S builds can handle your grand plans. It probably can. It's a simple, effective board that has powered thousands of BabyApes. There's no hidden catch. Add it to the basket and get back to the important business of charging batteries and losing tiny screws in the carpet.
