Product Details

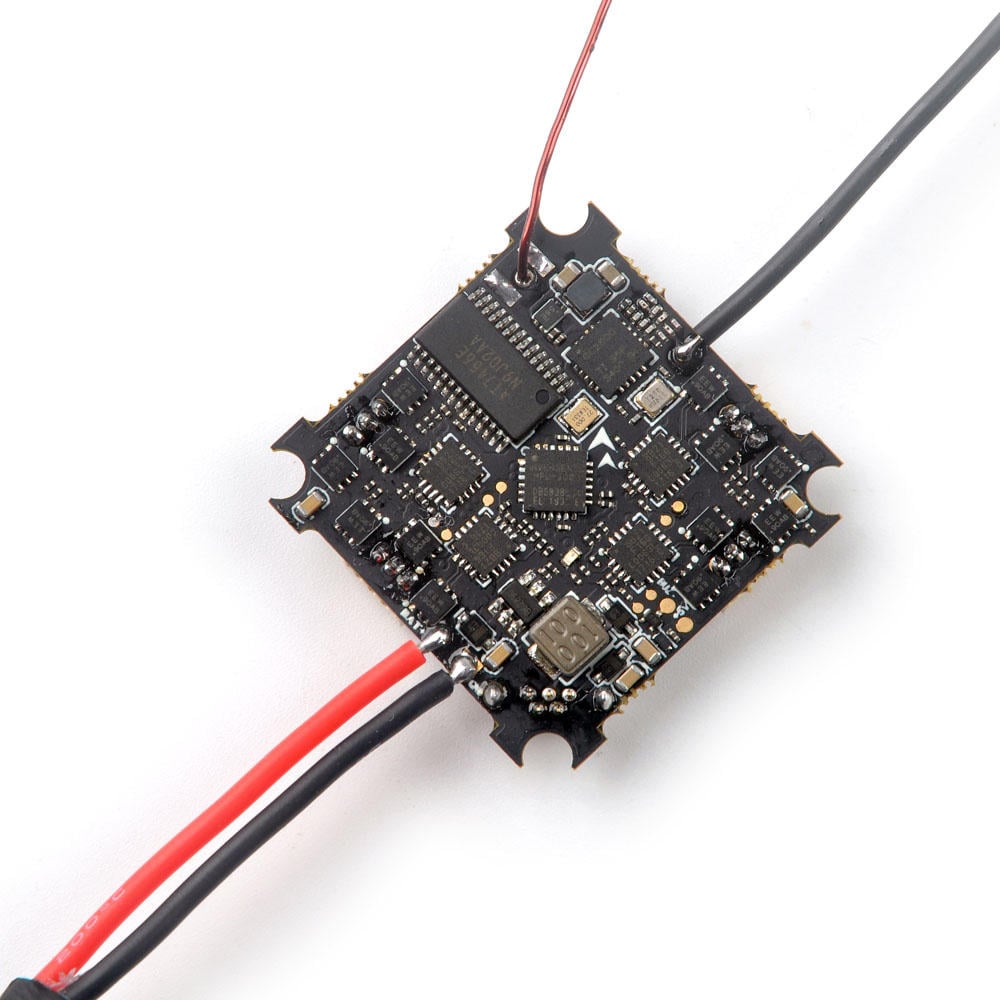

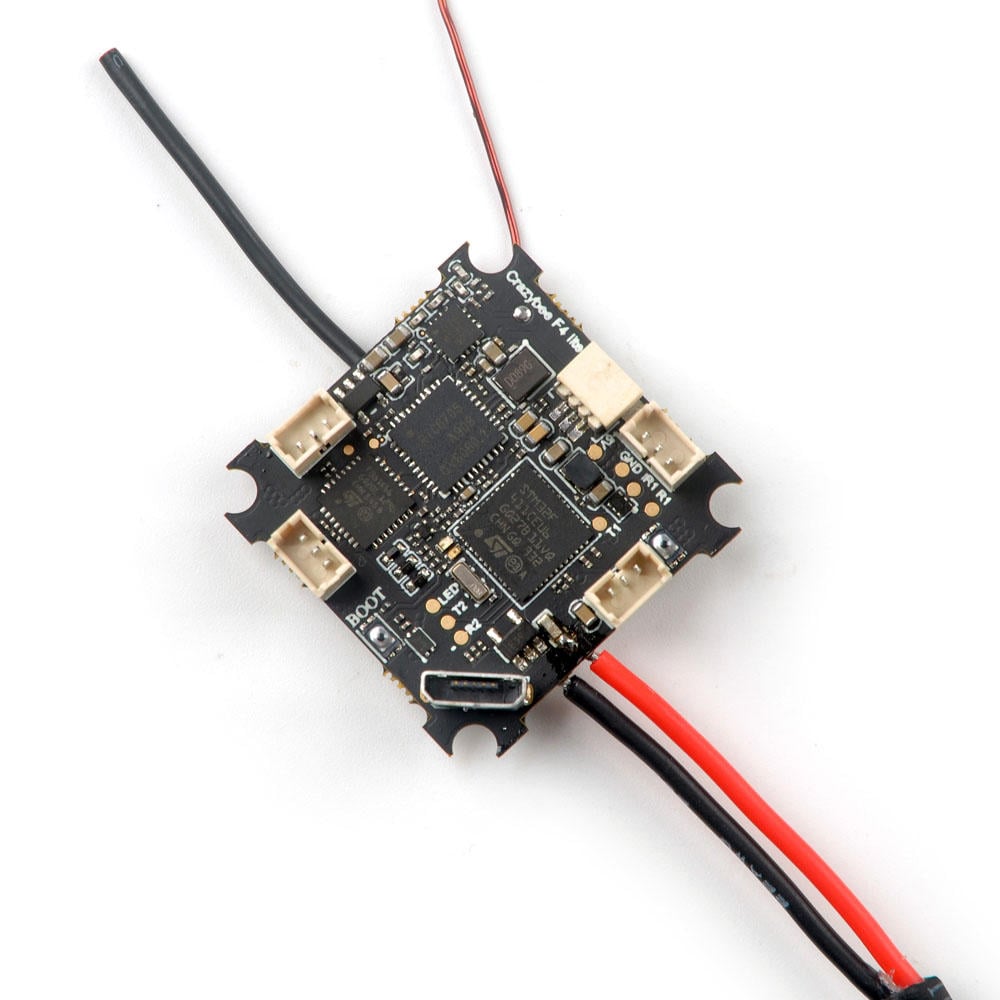

This is the the flight controller used on the mobula6. It features a with a built in SPI receiver (FRsky / Flysky), MPU6000 gyro, betaflight OSD and a F411 MCU. All this packed into a tiny whoop form factor FC.
Specification
|
Crazybee F4 LiteFlight Controller
Built-in ESC & Receiver & VTX |
Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection
|
| Onboard Frsky Receiver Version |
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
- Frsky_x_lbt Support EU LBT Radio Transmitter
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
|
| Onboard Flysky Receiver Version |
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support
|
| Onboard 5A BLheli_S 4in1 ESC |
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600
|
| Onboard 5.8G 40CH 25mW VTX |
Output power: 25mw
Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band |

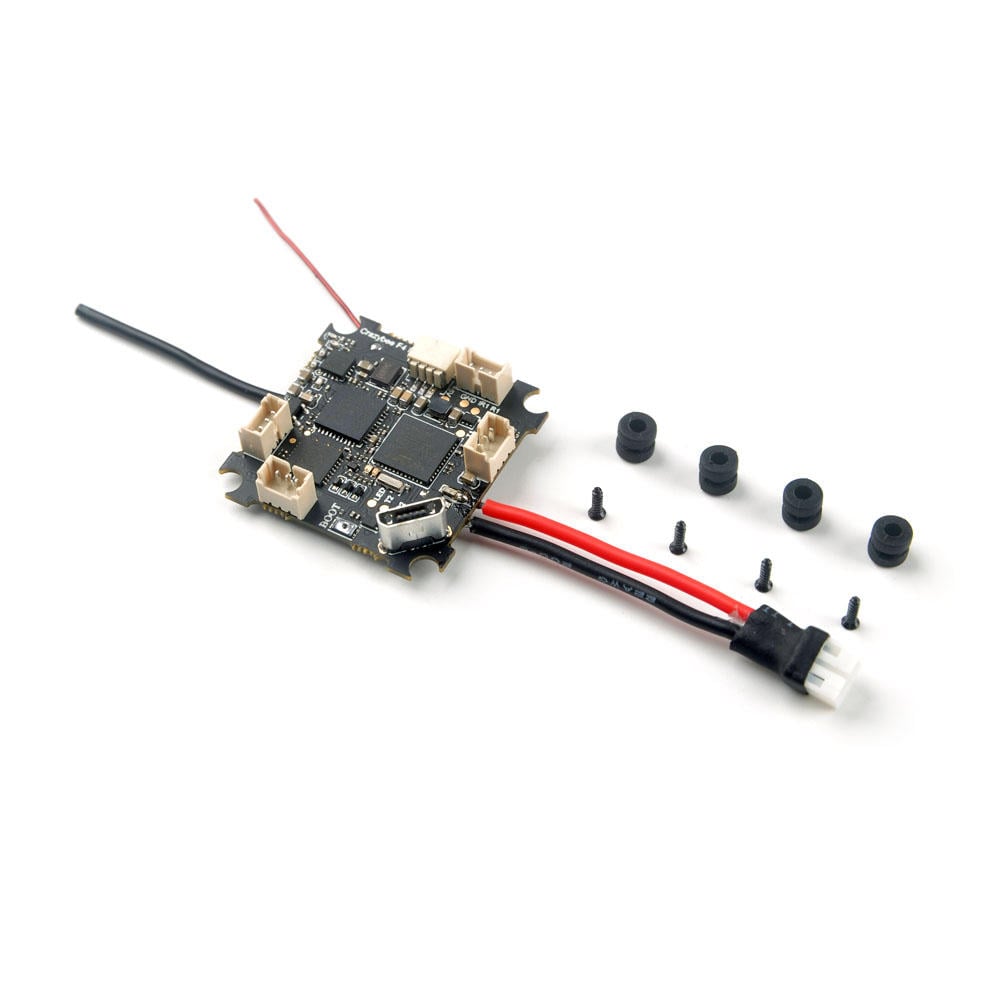

Included
- 1x Crazybee F4 Lite Flight Controller
- 4x Anti-Vibration Ball
- 4x Screws
