Product Details

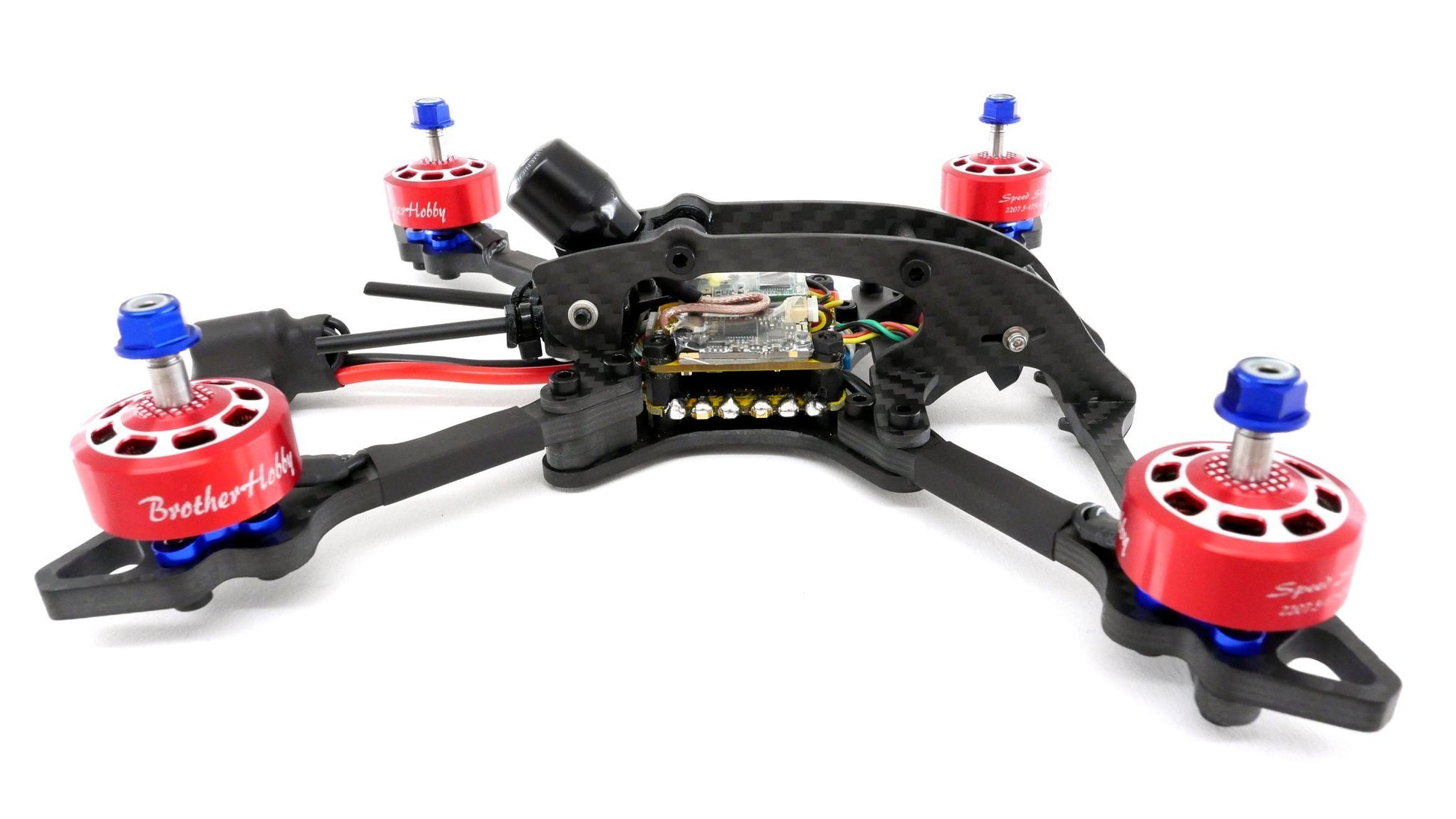

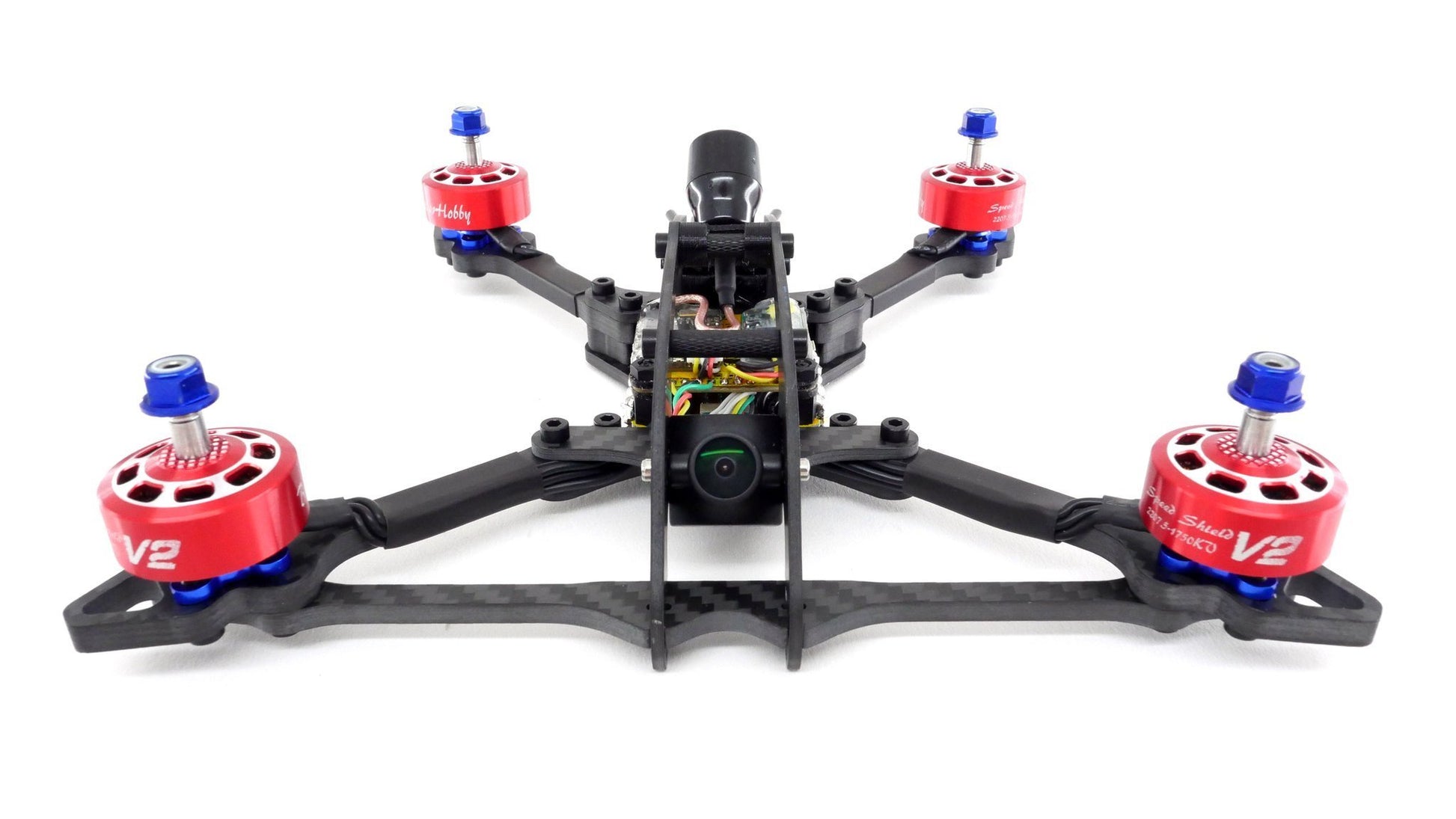

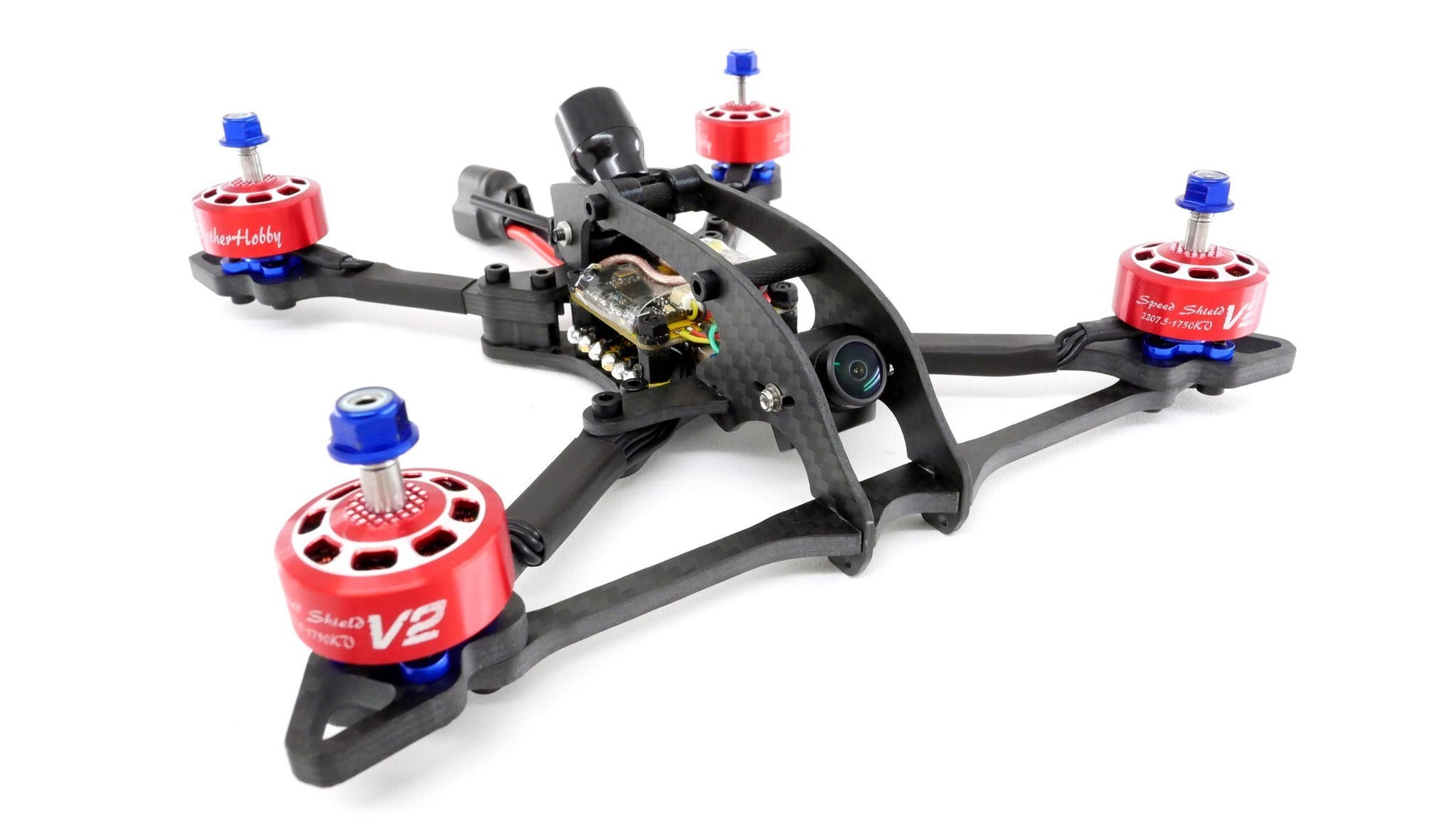

Sometimes a Massive Droner isn't enough. Hard to believe right? When the "need" arises don't leave them hanging. Pull out your Raging Droner 5R and put them in their place. Catayst Machine Works are hard at work creating the next big revolution in 5" race spec frames.\n
\n\n CMW took the successful design elements from their three most popular frames (\n \n Massive Droner\n \n ,\n \n Merica\n \n , and\n \n Smooth Operator\n \n ), and rolled the best parts of each into one amazing machine.\n
\n\n
\n\n- \n
- \n 75 grams (standard kit w/ hardware - no canopy)\n \n
- \n 81 grams (hybrid kit w/ hardware - no canopy)\n \n
- \n Carbon Fiber: Twill Weave 3K Matte\n \n
- \n CF arm thickness: 5mm (standard kit)\n \n
- \n CF arm thickness: 5mm and 6mm (hybrid kit)\n \n
- \n CF arm front brace thickness: 4mm\n \n
- \n CF cage plate thickness: 2mm\n \n
- \n Frame Size: 203mm (standard kit)\n \n
- \n Frame Size: 222mm (hybrid kit)\n \n
- \n Camera Angle Range: 0 - 90 degrees\n \n
- \n Motors supported: 22xx, 23xx, 24xx or similar\n \n
- \n Lipos supported: 3s, 4s, 5s, 6s\n \n
- \n Lipo mounting position: Bottom\n \n
- \n Prop Size: 5 inch\n \n
- \n Fastener Material: Aircraft Grade 7075, allow steel, black plastic\n \n
- \n Accepted ESC: (30.5mm x 30.5mm or micro 20mm x 20mm)\n \n
- \n Motor pad mounting holes: M3 screws on 16mm or 19mm mounting circles\n \n
- \n Supported FPV Cameras: Micro Camera\n \n
- \n Uses the same arms as the Merica!\n \n
- \n Uses the same optional rear arm brace as the Merica Stretch 5" (standard kit) - sold separate
- Uses the same optional rear arm brace as the Merica Stretch 6" (hybrid kit) - sold separate\n \n
- \n Optional Turtle mode canopy w/fin (sold separate)\n \n
- \n Optional HD camera canopy (sold separate)\n \n
- \n Optional GoPro Mount (sold separate)\n \n
- \n Optional Session Mount (sold separate)\n \n
