Product Details

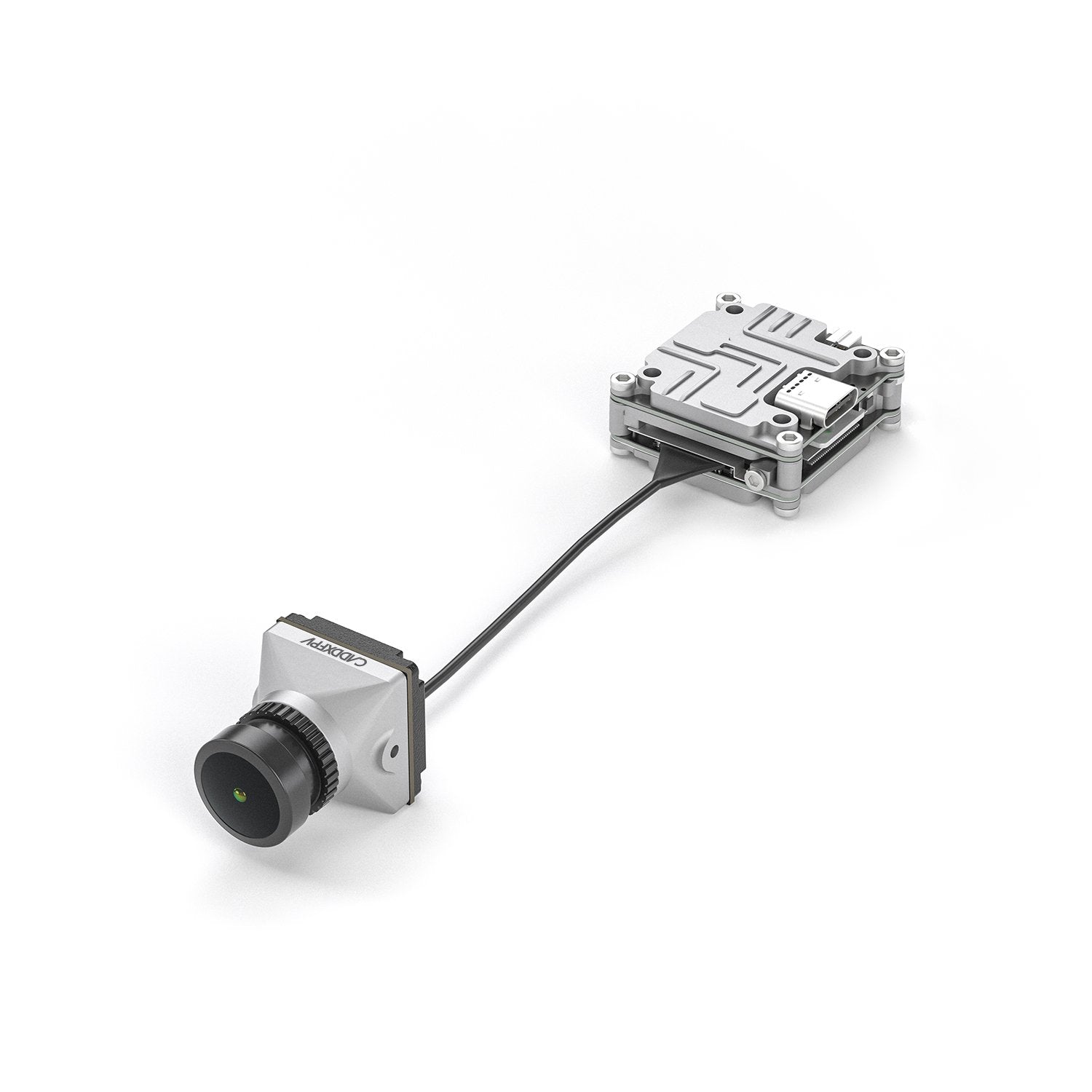

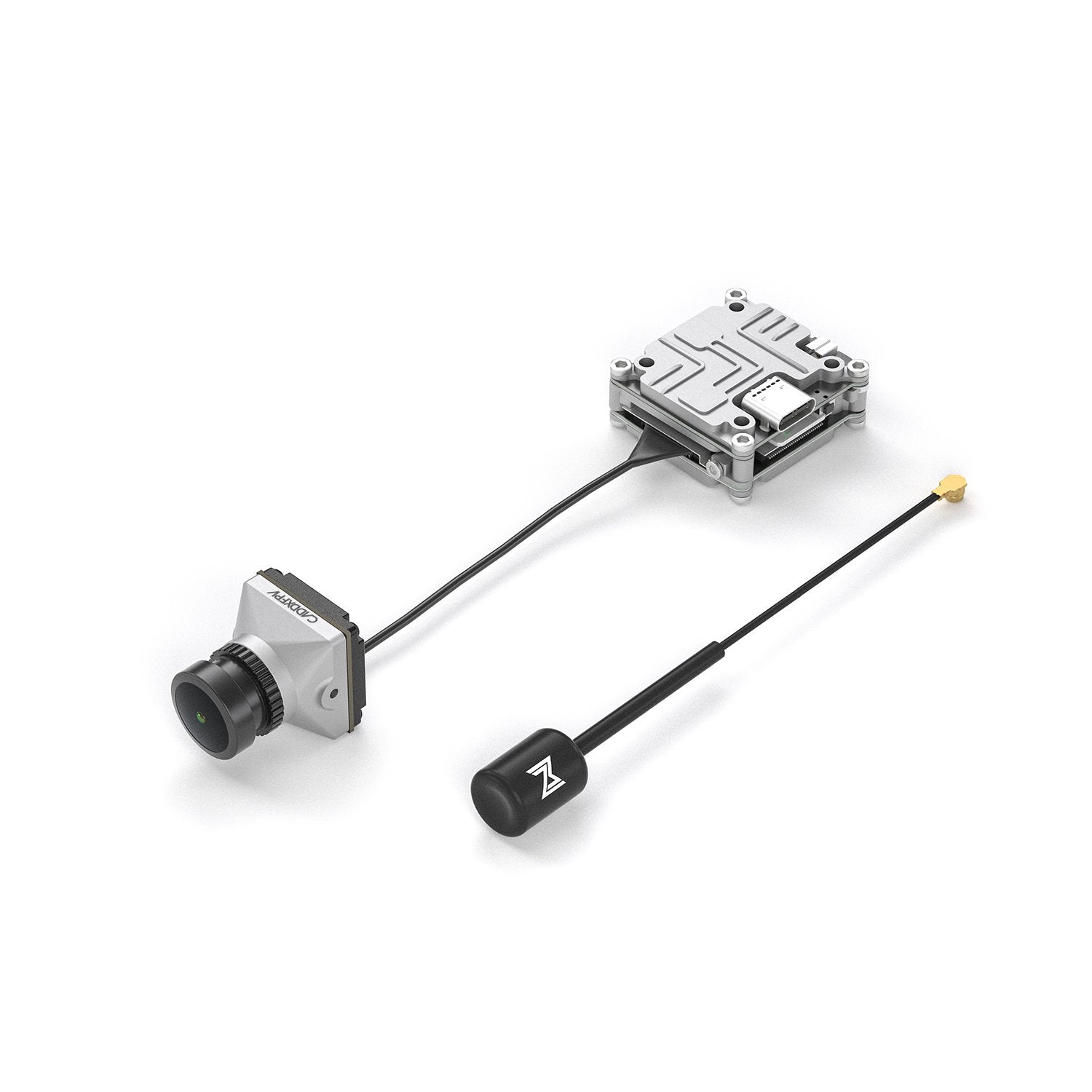

The Caddx Polar digital FPV camera uses a 1/1.8" starlight sensor which gives this camera unmatched low light performance, but it also looks incredible in daylight conditions. A great all round kit for your DJI FPV experience.
Caddx Polar + VISTA KIT manual

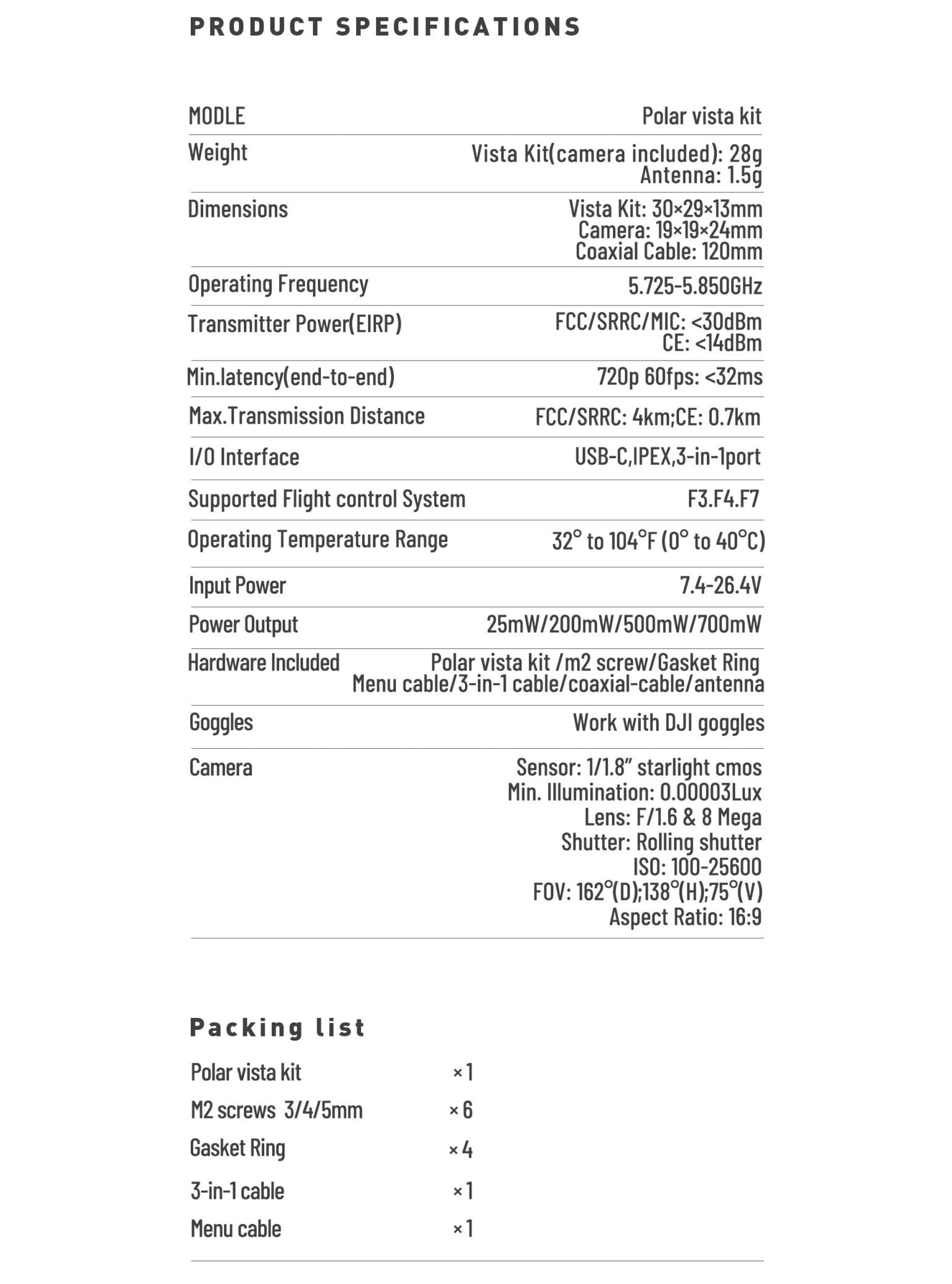

Specifications
- Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
- Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
- Operating Temperature Range: 0°to 40°C（32°to 104°F）
- Image Sensor: 1/1.8" Inch 2.3Mega starlight sensor
- Supported Flight Control System: BetaFlight
- Min.Latency(end-to-end): 720p 60fps<32ms
- Polar vista kit Weight (Include camera): 28g
- Operating Frequency: 5.725-5.850GHz
- I/O Interface: USB-C,IPEX,3-in-1 port
- FOV: 162°(D); 138°(H); 75°(V)
- Min. Illumination: 0.00003Lux
- Antenna Weight: 1.5g(IPEX)

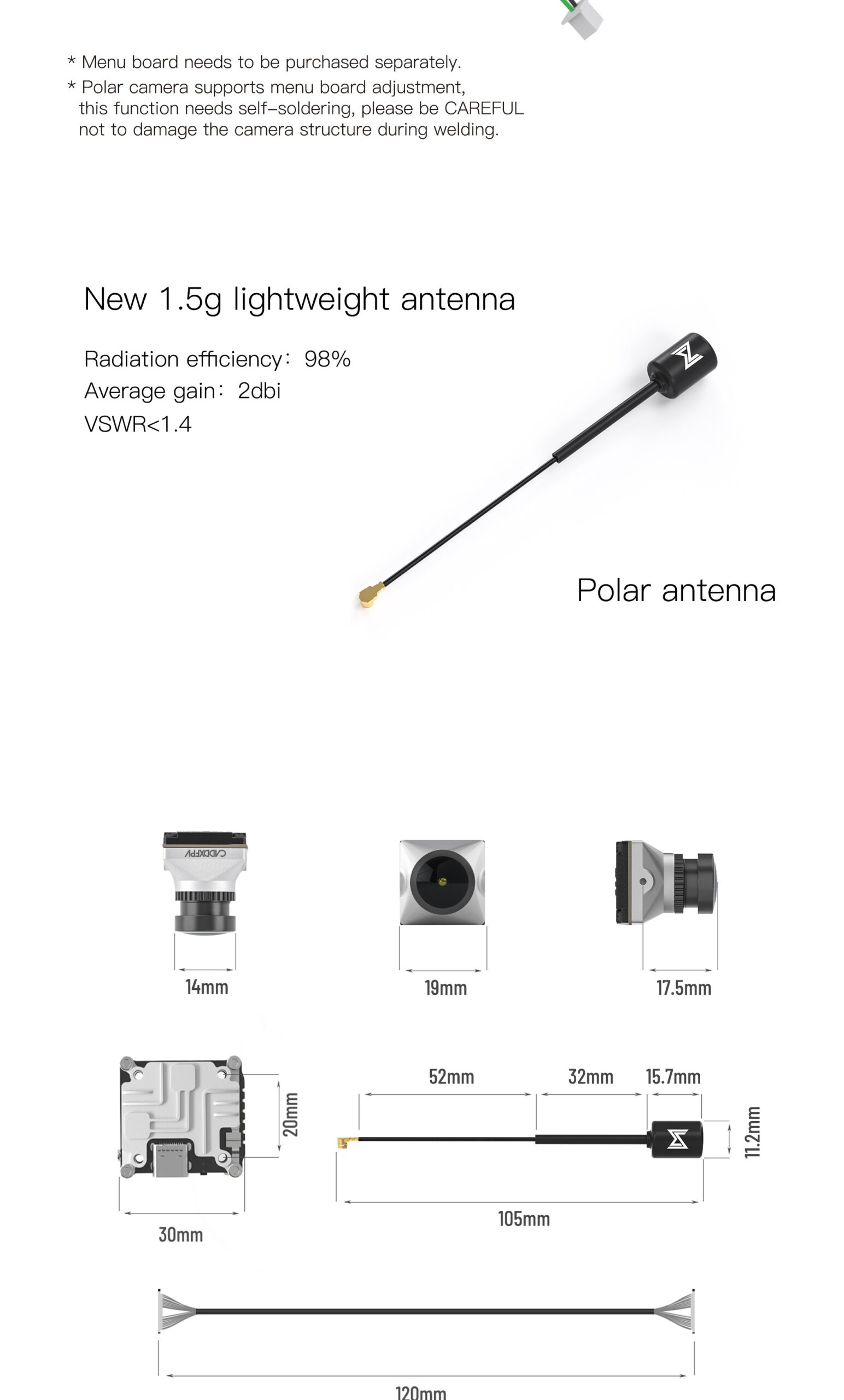

- Polar cam: 24×19×19mm
- Input Power: 7.4-26.4V
- Coaxial Cable: 120mm
- LENS: F/1.6 & 8Mega
- Vista: 30×29×13.5mm
- Aspect Ratio: 16:9
- Antenna: 105mm

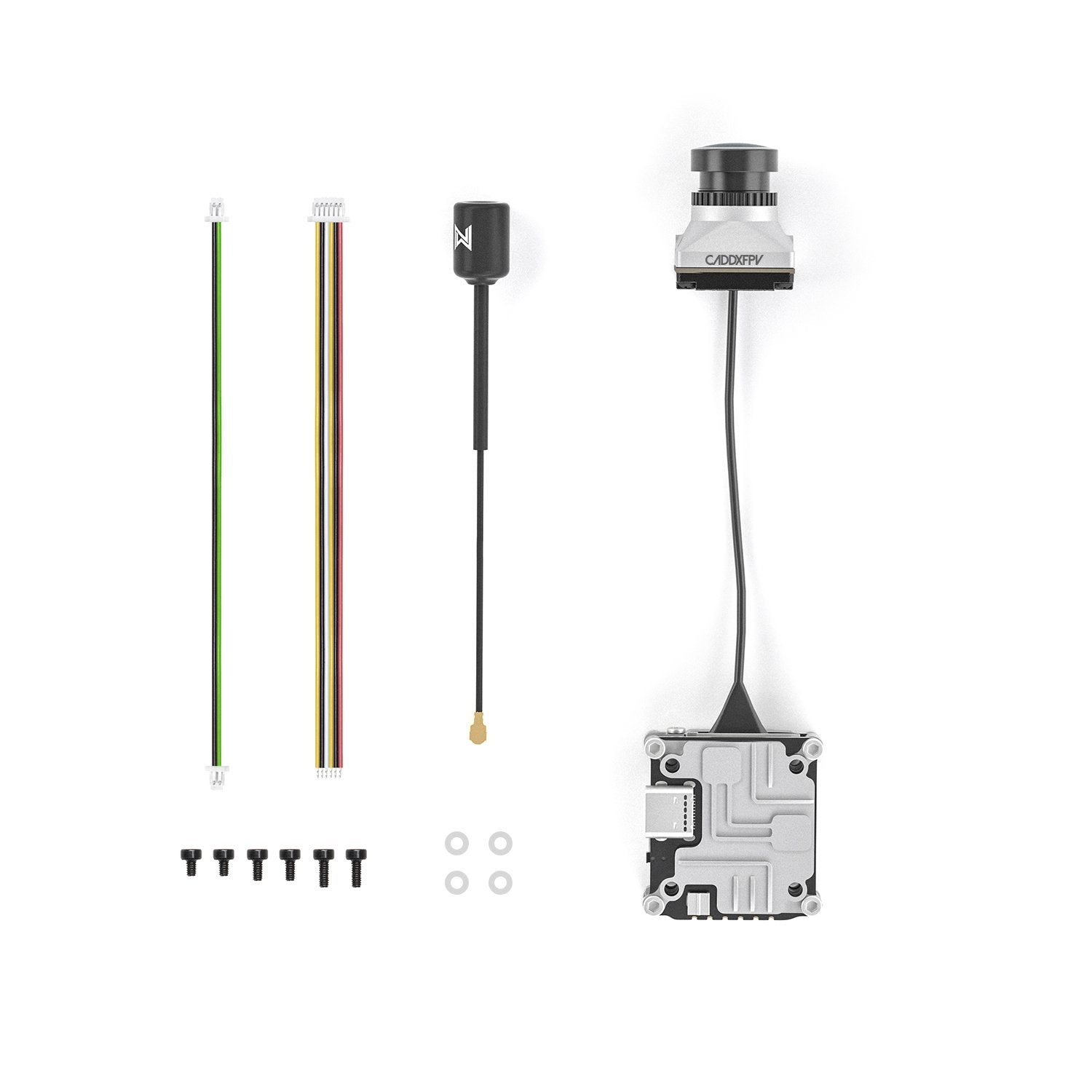

Included

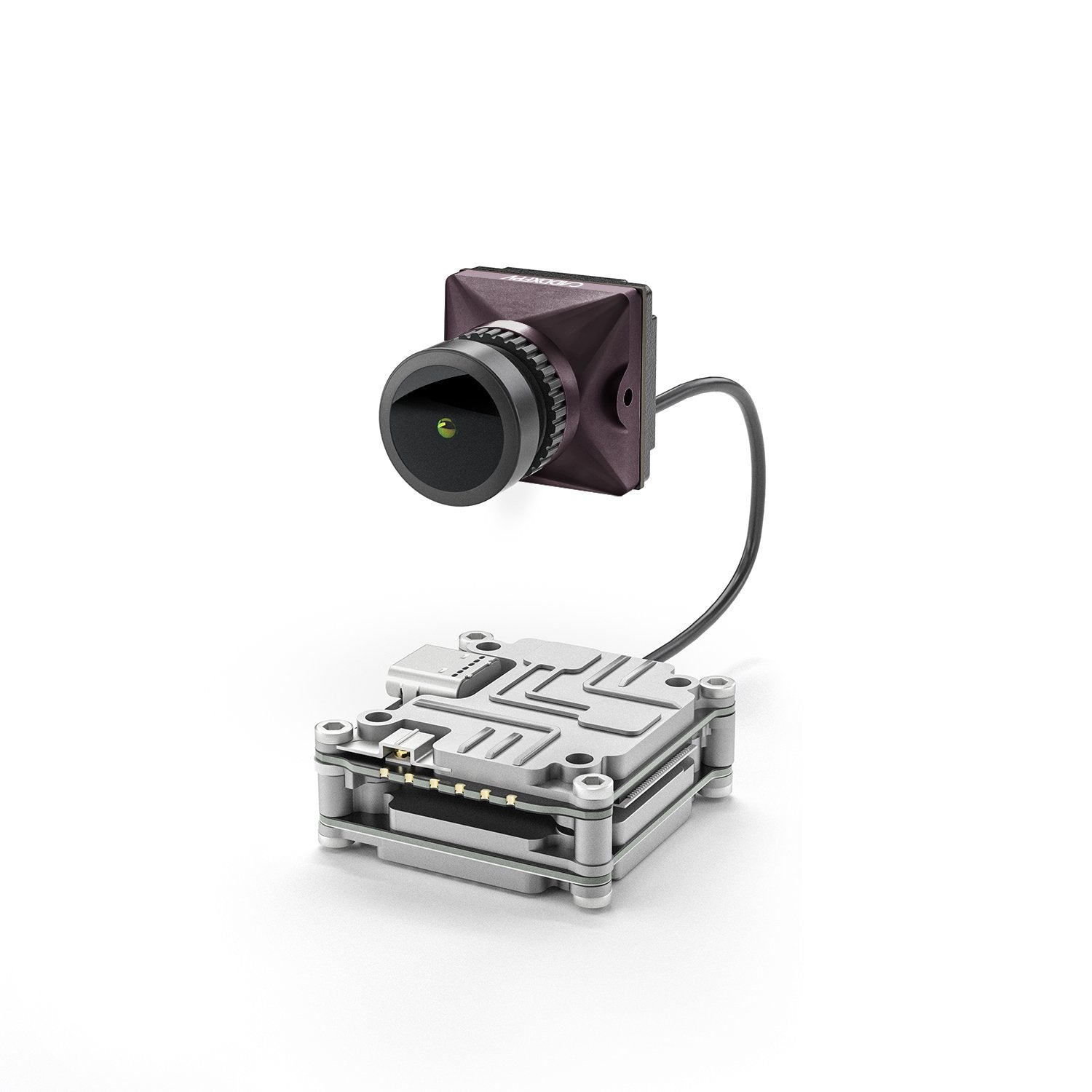

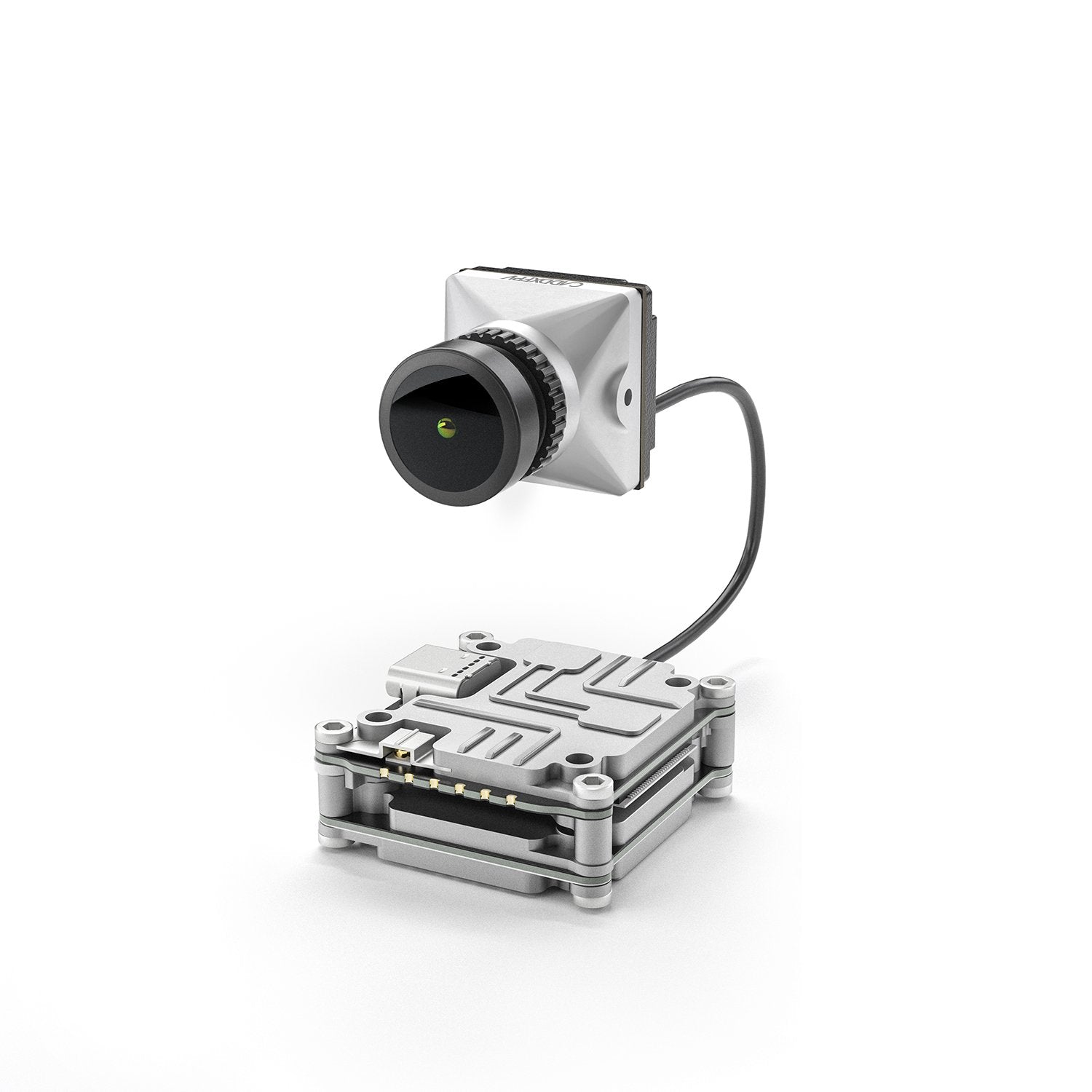

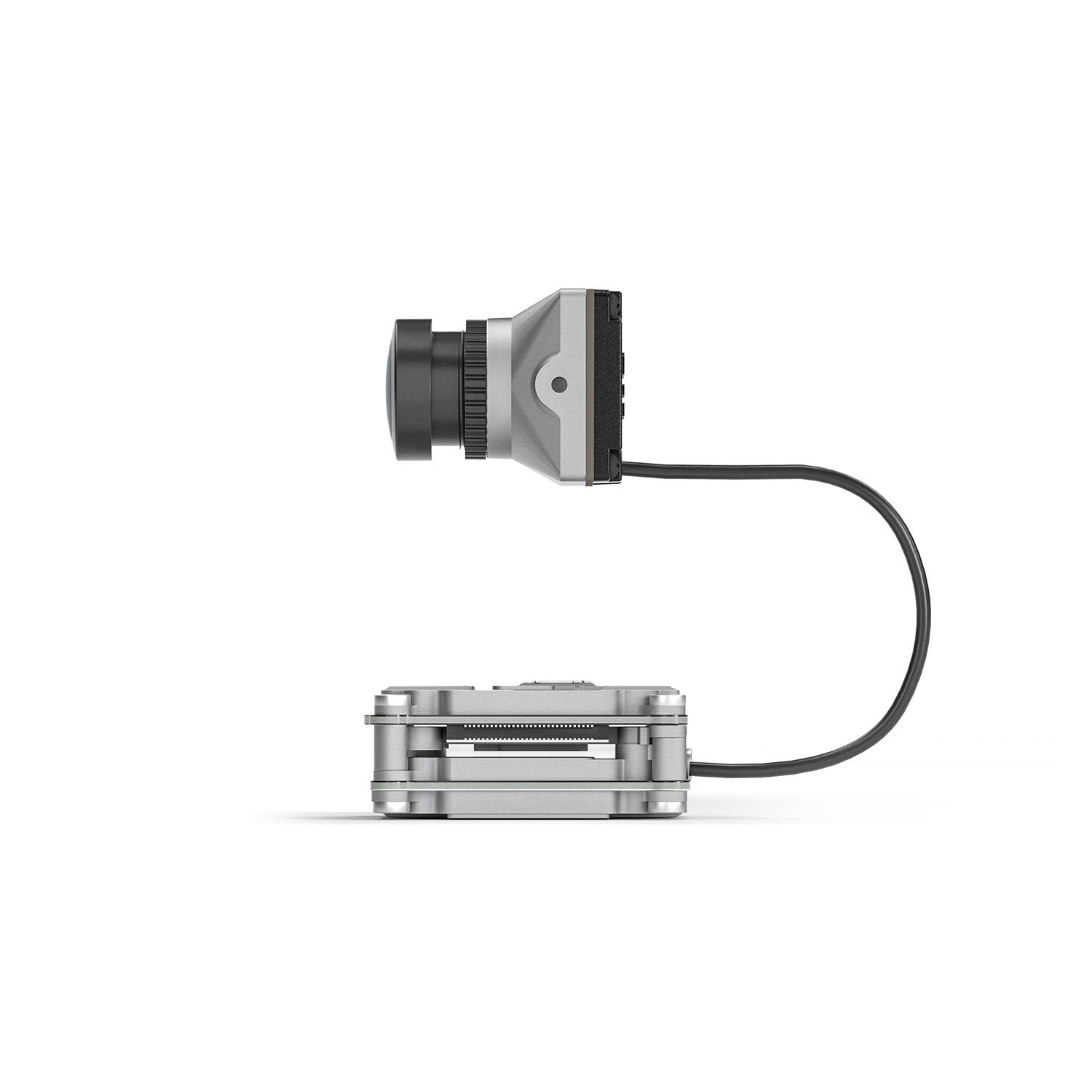

- 1x Caddx Polar Micro Digital FPV Vista Camera Kit (Silver or Purple options)
- 6x M2 Screws (3/4/5mm)
- 4x Gasket Ring
- 1x 3-in-1 Cable
