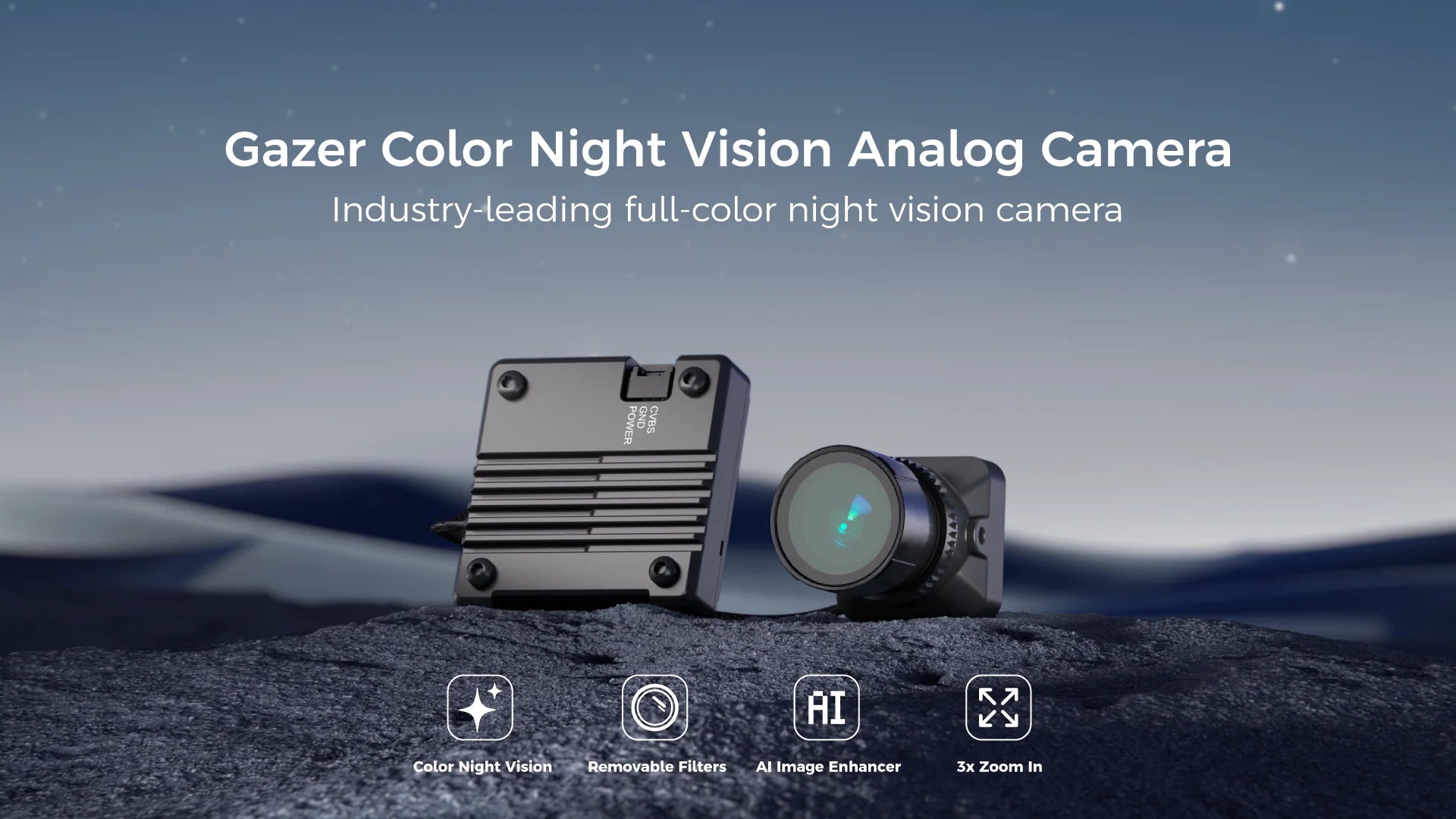

CaddxFPV Gazer Analog Camera — Night-Vision Zoom Beast
The CaddxFPV Gazer is a 1/1.8″ analog cam with AI-enhanced full-colour night vision, 3× digital zoom via PWM, F1.0 lens and 1500 TVL clarity — ideal for crisp twilight or midnight flights. Yes, we're here to sell it.
Why You Want It
Forget grayscale grain—this camera delivers vibrant colour at 0.01 Lux, day or moonlight. Toggle between Day/Night and zoom mid-air via FC—no fumbling blind. Perfect for sneaky rooftop runs or dusk gaps.

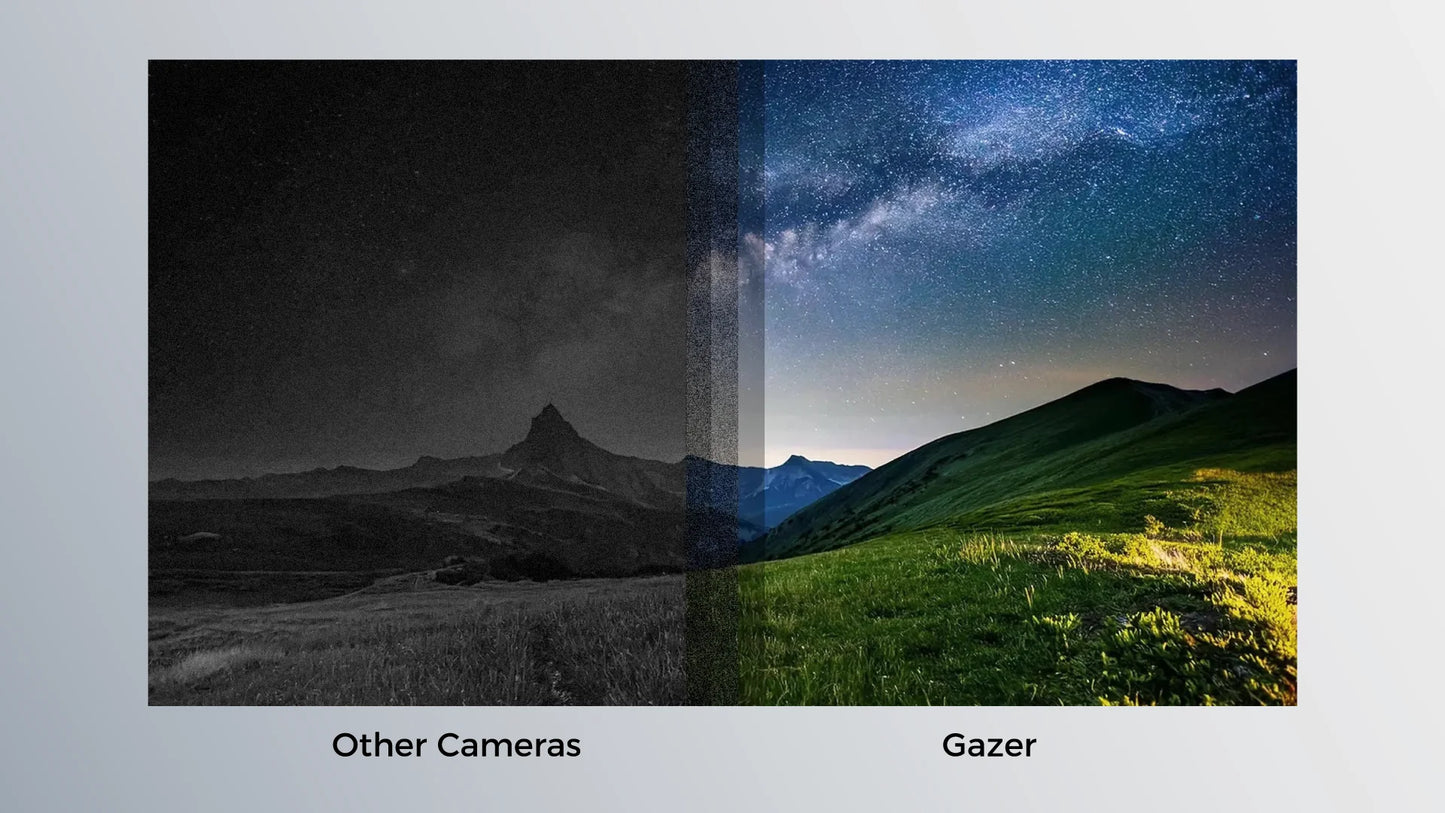

Ultra-low illumination night vision full color
Tired of grainy black-and-white footage after dark? This camera flips the script. With ultra-low light performance, it gives you bright, vivid color.
AI image quality enhancement
During the day, it preserves rich textures and sharp contrasts; at night, the AI algorithm dynamically enhances brightness, reduces noise, and restores true-to-life colors — ensuring your vision stays clear even in the darkest environments.

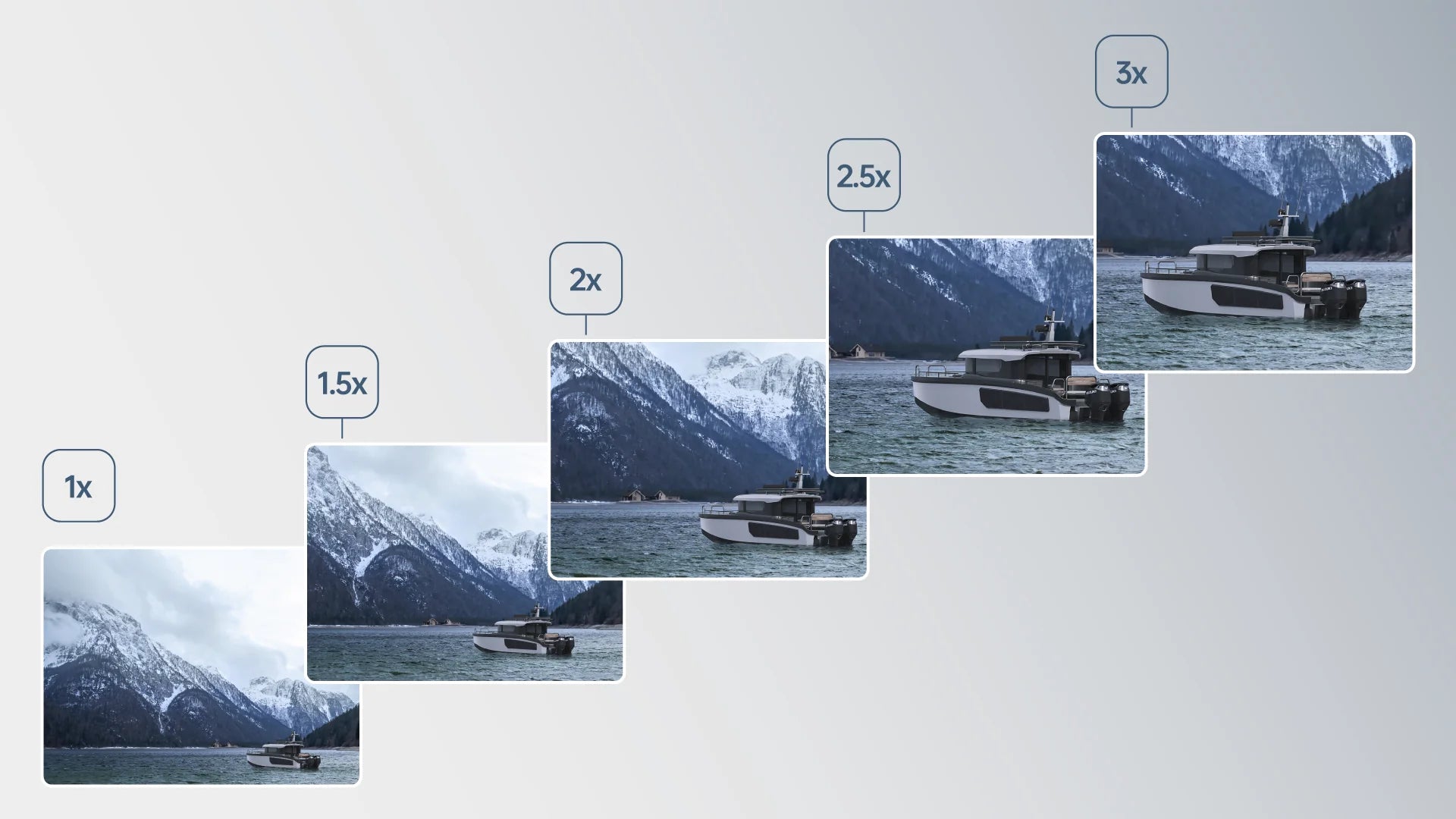

Always Sharp, From Close-ups to Far Shots
Whether you're dialing in for distant targets or flying low and tight, the 3x zoom gives you smooth, stable footage without any image distortion.

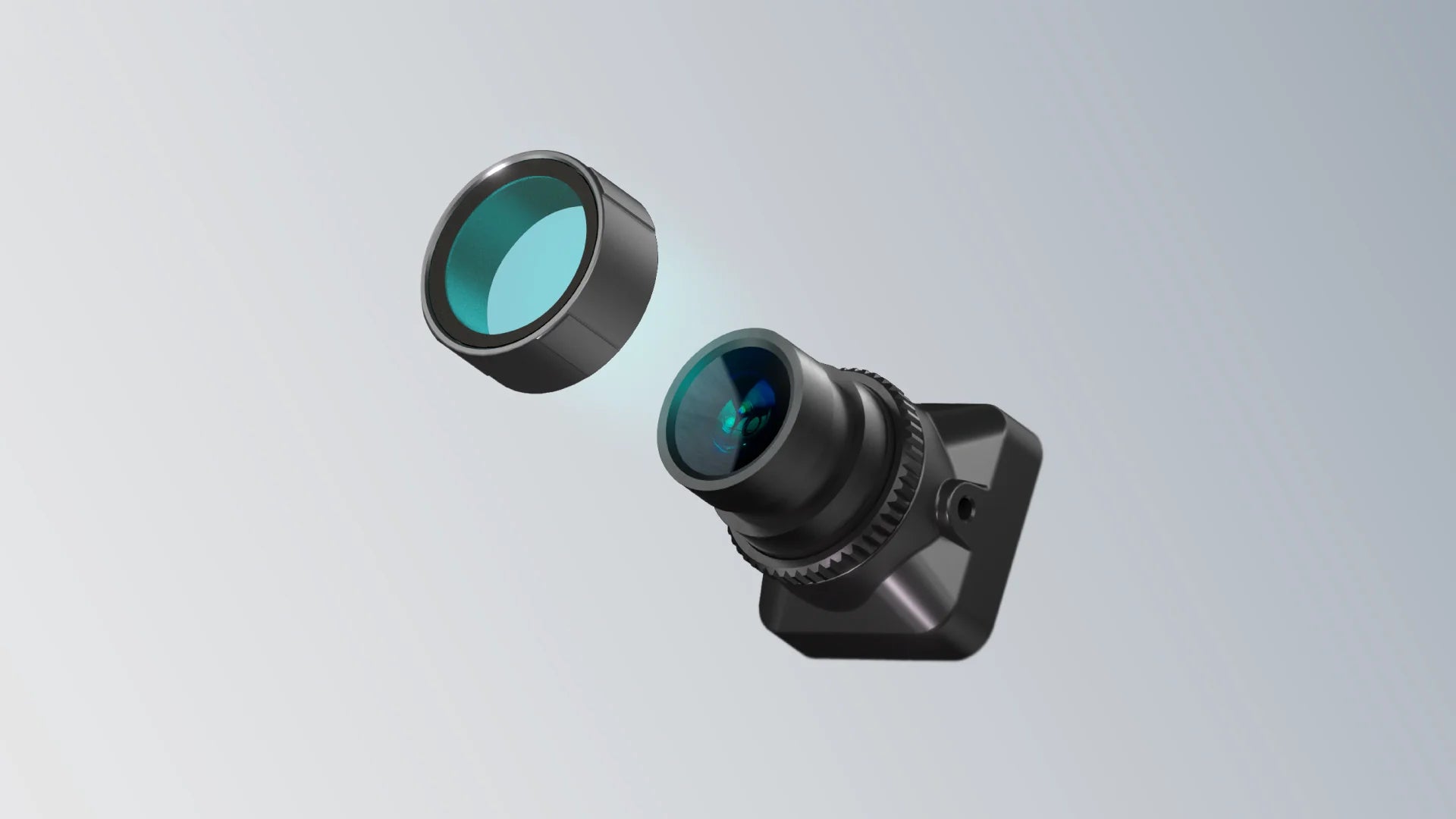

Removable Filter with D/N Switching
Easily switch between Day and Night modes via flight controller. Use the filter during the day for clear, true-to-color images; remove it at night to maximize brightness and light intake. Ideal for all-weather use with no compromise in image quality.
Versatile Vision for Every Mission
No more dull, gray images or guesswork. Gazer Analog Camera picks up every detail with precision, giving you crisp, vibrant video right when you need it.
Specifications
| Model | Caddx Gazer |
| Image sensor | 1/1.8 inch |
| Resolution |
Sensor: 1920x1080(2MP)
Ouput: 720x576 |
| Horizontal resolution | 1500TVL |
| Focal length | 2.8mm |
| Aperture | F1.0 |
| FOV | 131.6° |
| Filter | Manually removable |
| Output format | PAL |
| Frame rate | 50fps |
| Magnification | 3x (zoomed in by FC) |
| Image quality | D/N (switched by FC) It is recommended to install the filter and use D mode during the day, and remove the filter and use N mode at night |
| Aspect ratio | 4:3 |
| Video interface | 1xPAL |
| Supply Voltage | 9~24V |
| Typical Power Consumption | <2W |
| Operating temperature | -20℃~60℃ |
| Dimensions |
Camera: 20x20x28.54mm

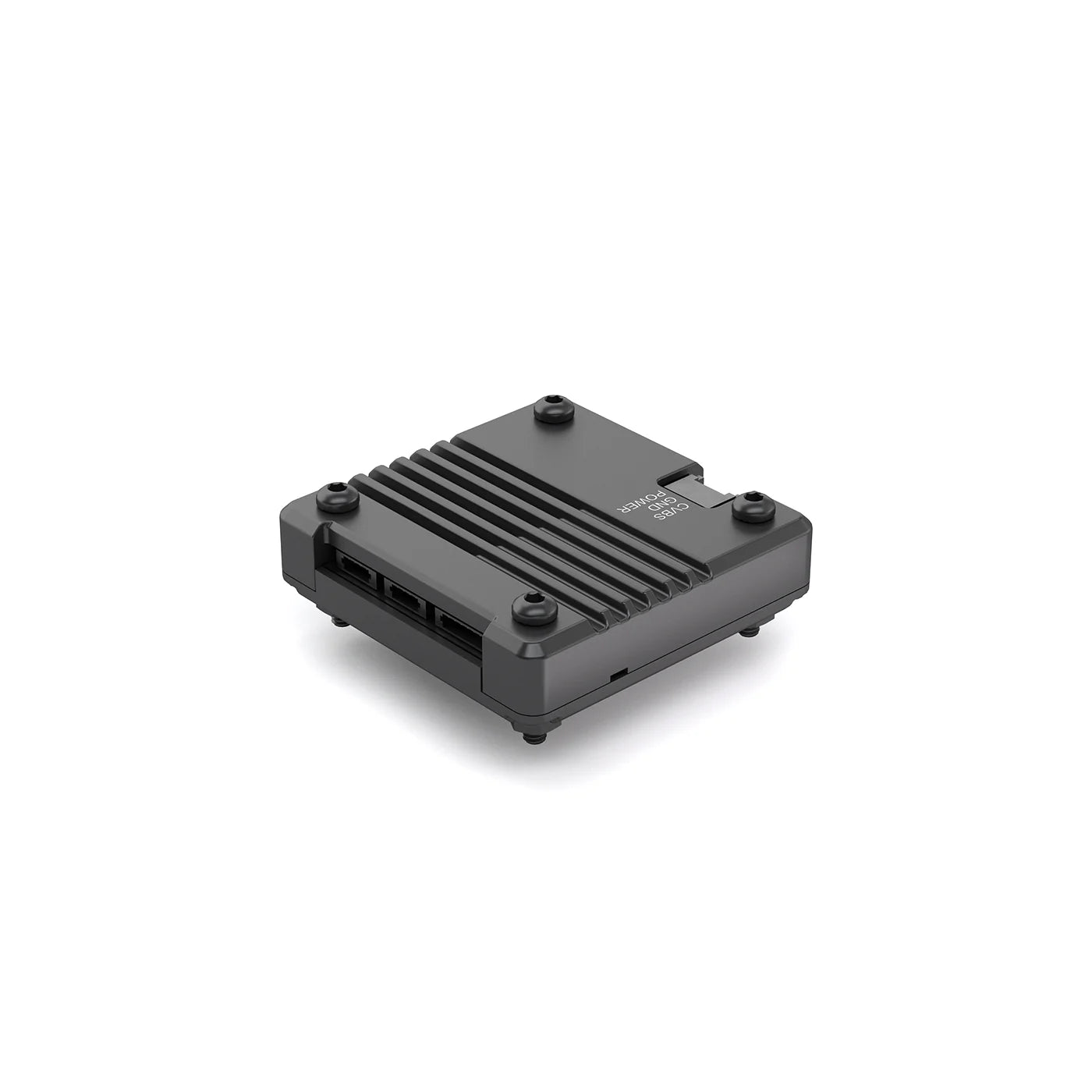

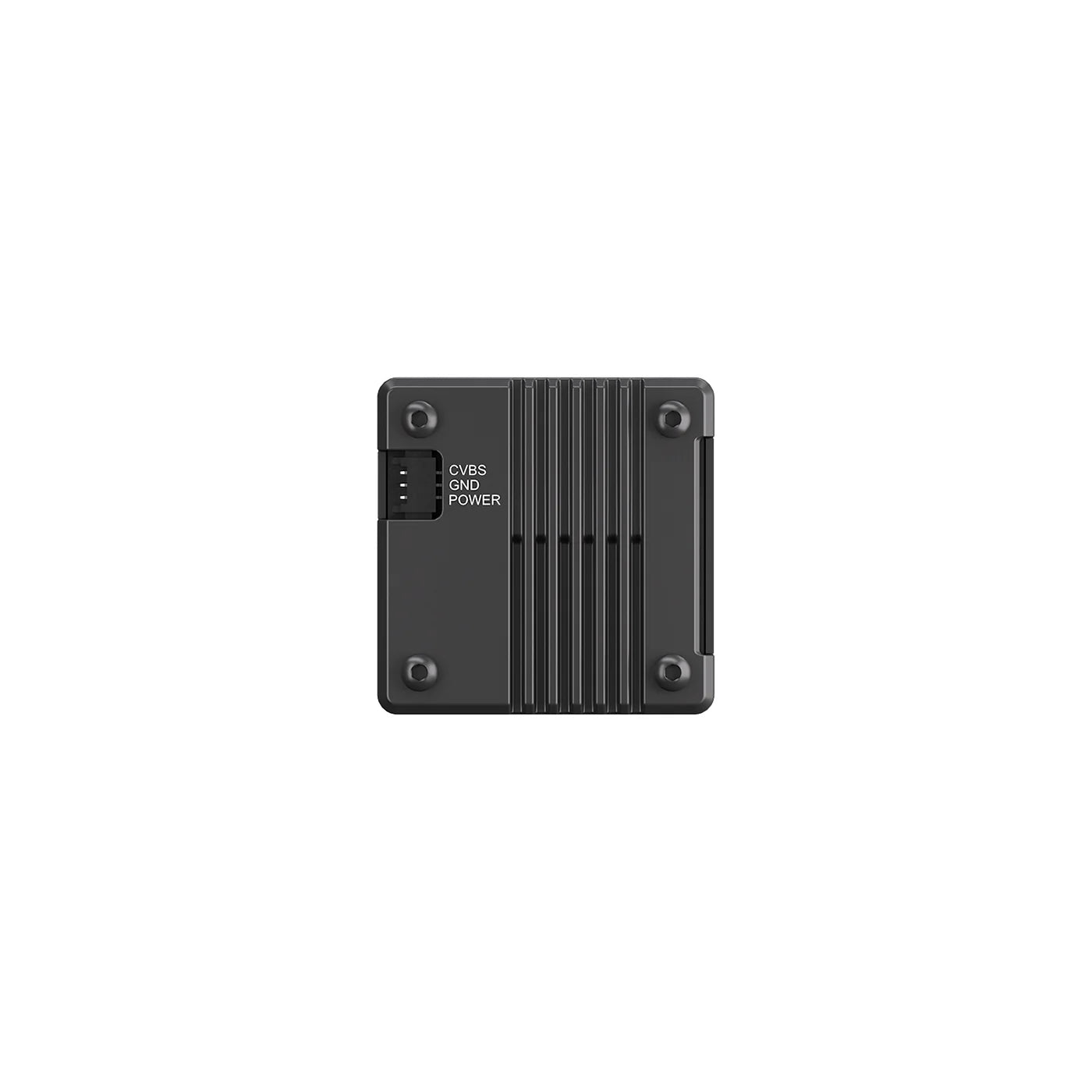

AI Box: 34x34x8.65mm |

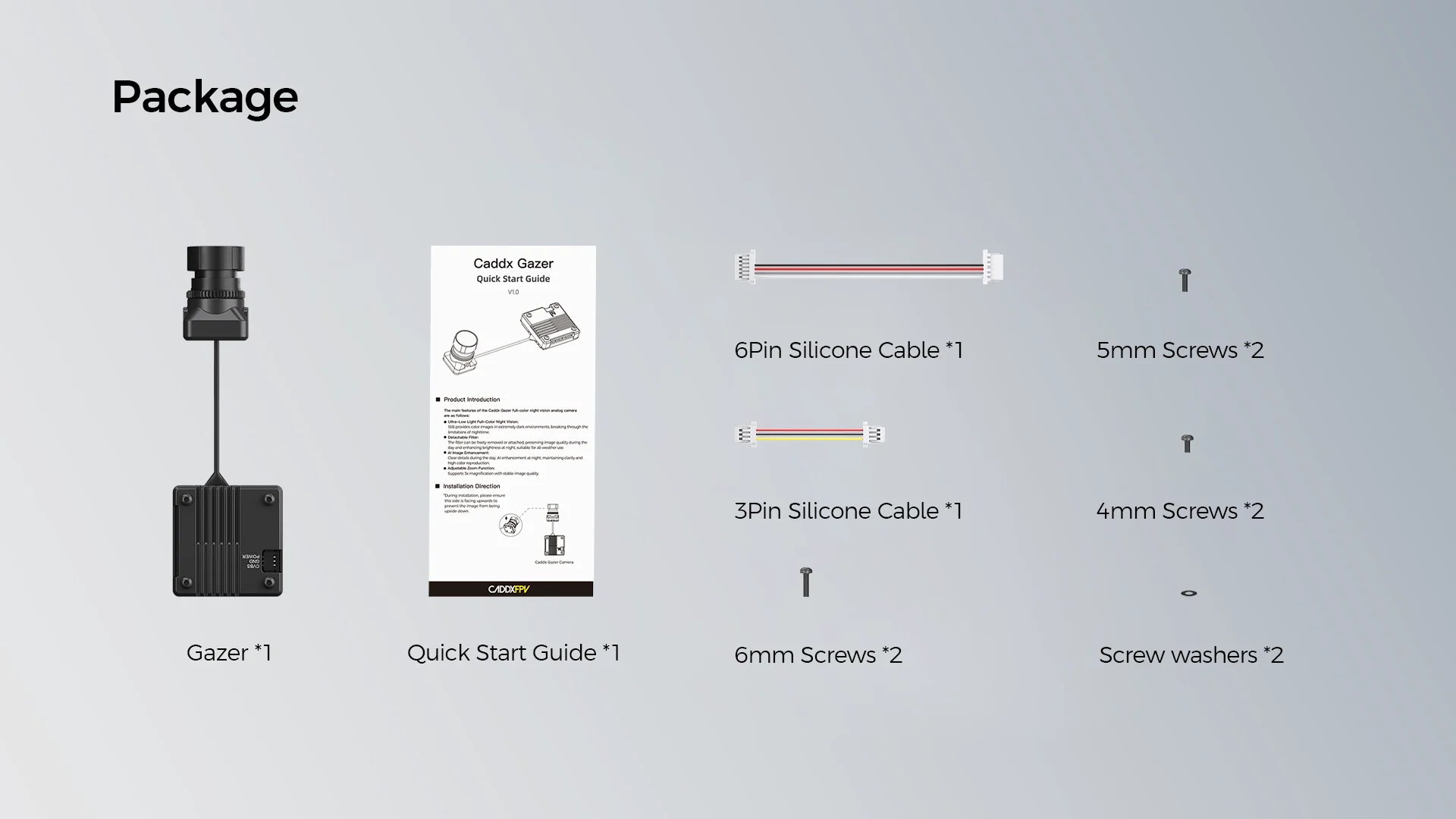

What's in the Box*

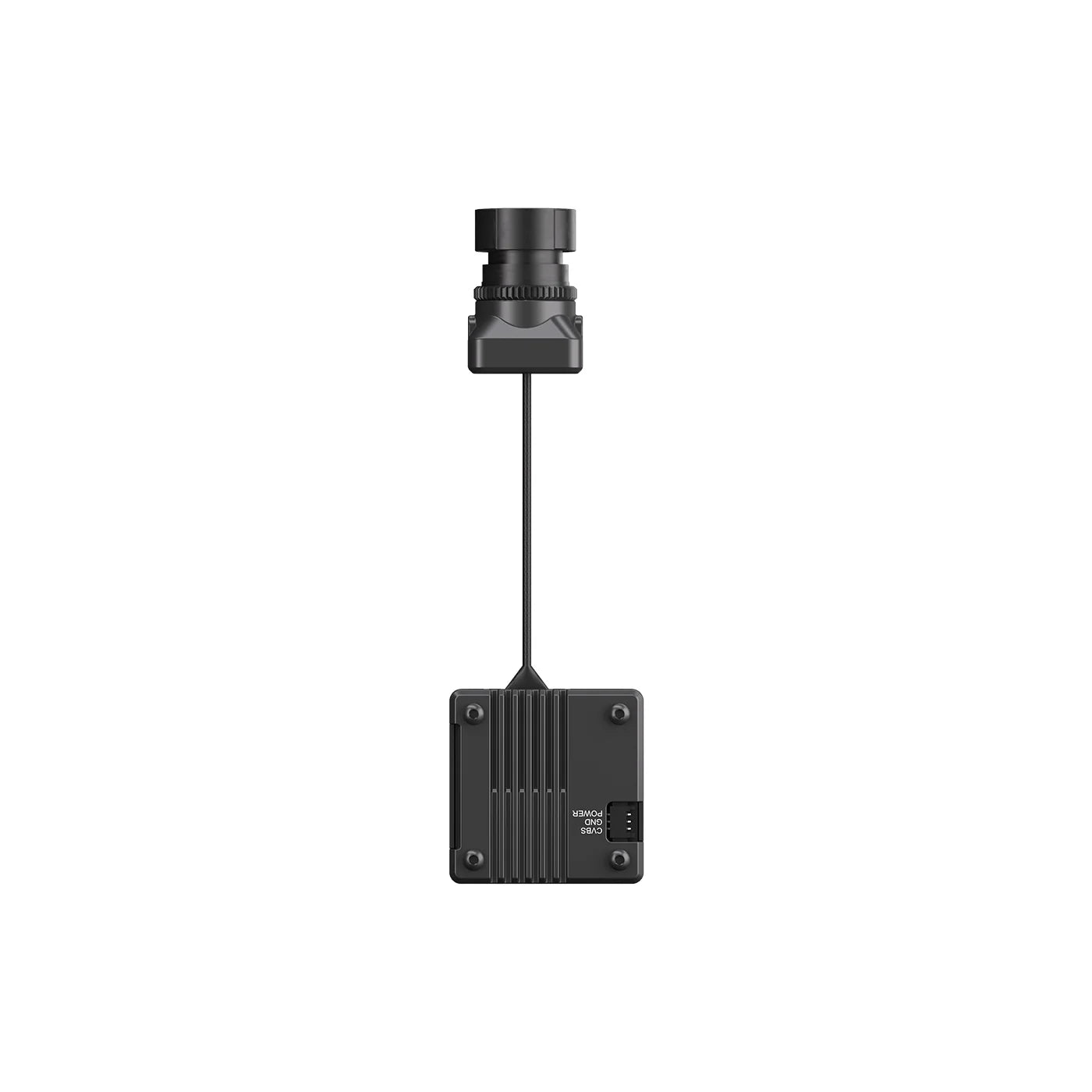

- 1× Gazer analog camera module + AI processing box
- 1× 6‑pin to 3‑pin silicone control cable
- 1× Quick‑start guide & screws
Disclaimer
No DVR or digital link—this is analog vision, not cinema-grade HDR. PWM cable required for full control.
