Product Details

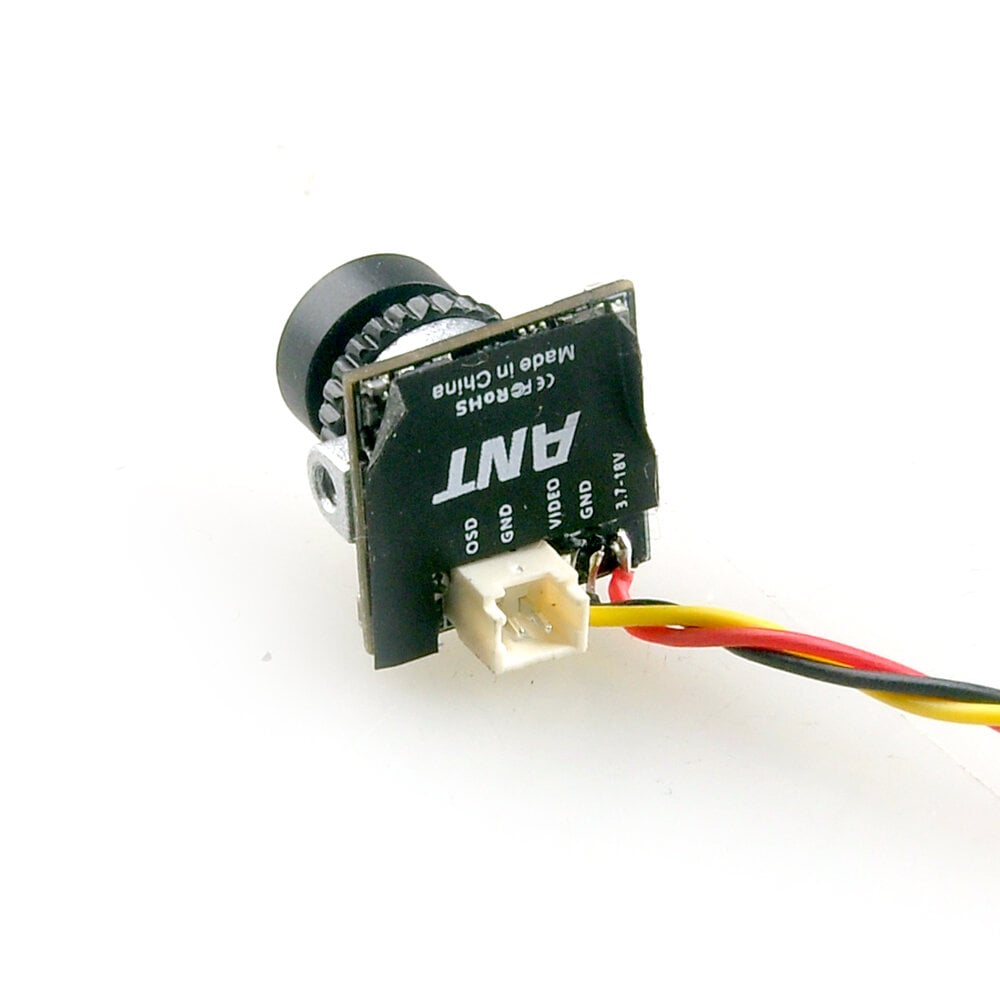

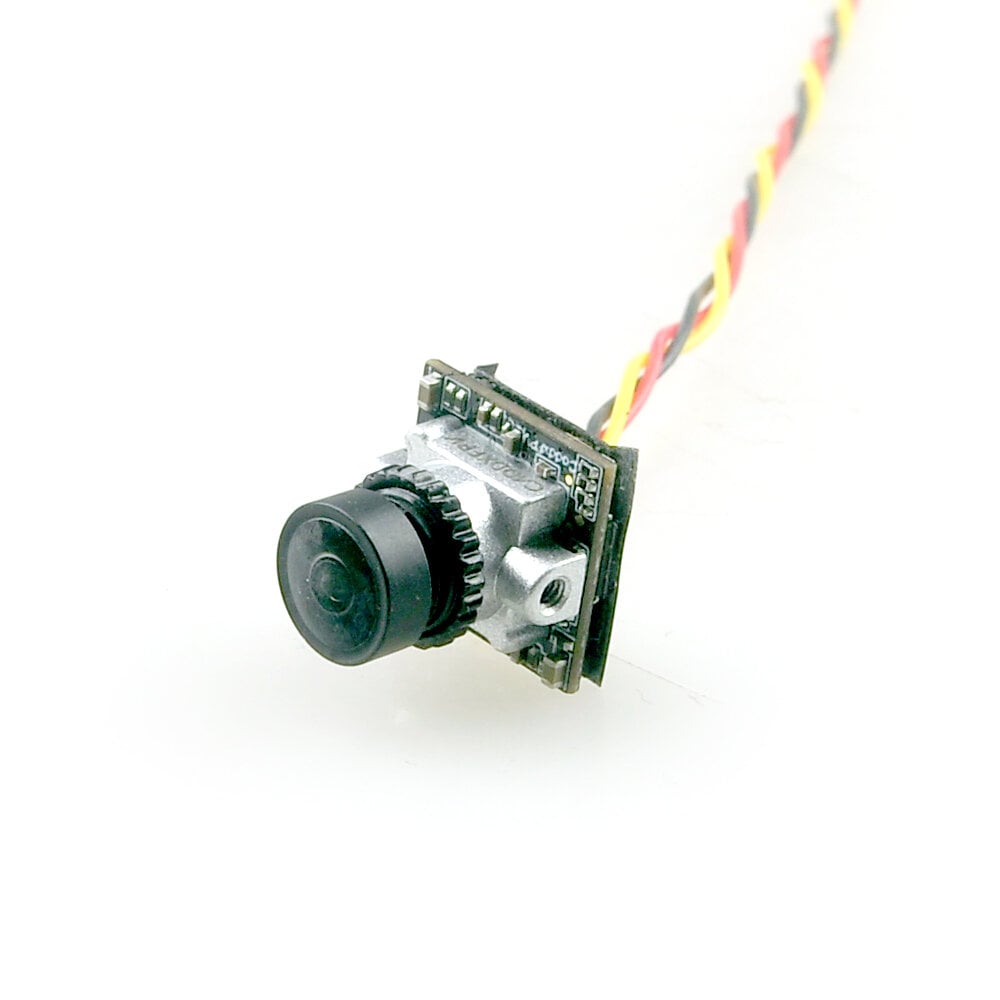

This is a Caddx Ant Lite camera that has the connector/wire pre-soldered so it is a plug and play replacement for your FpFlea C2 or Cine8 FPV quadcopters without needing to solder anything.

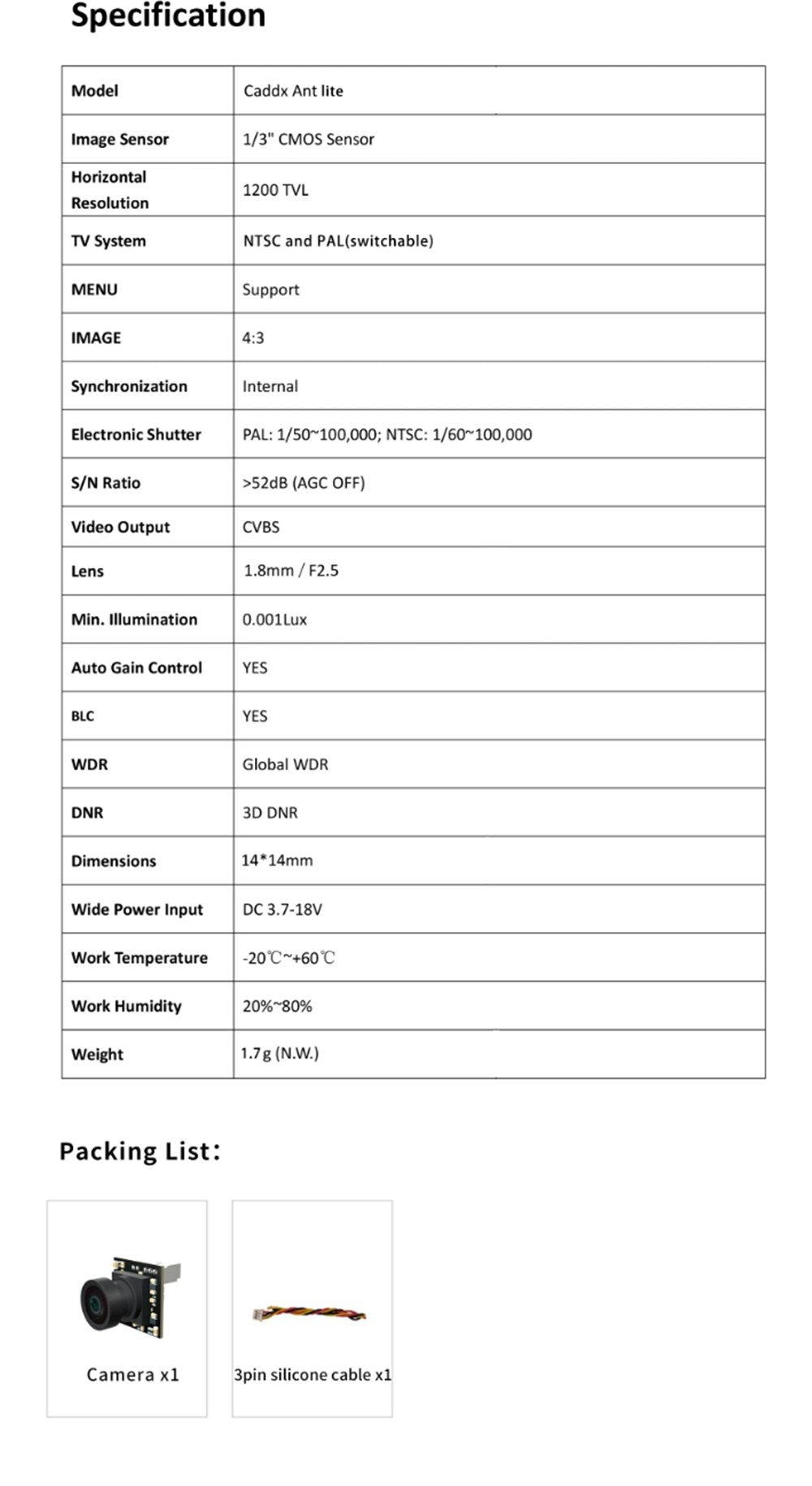

Specification
- Model: Caddx Ant lite
- Image Sensor: 1/3" CMOS Sensor
- Horizontal Resolution: 1200 TVL
- TV System: NTSC and PAL(switchable)

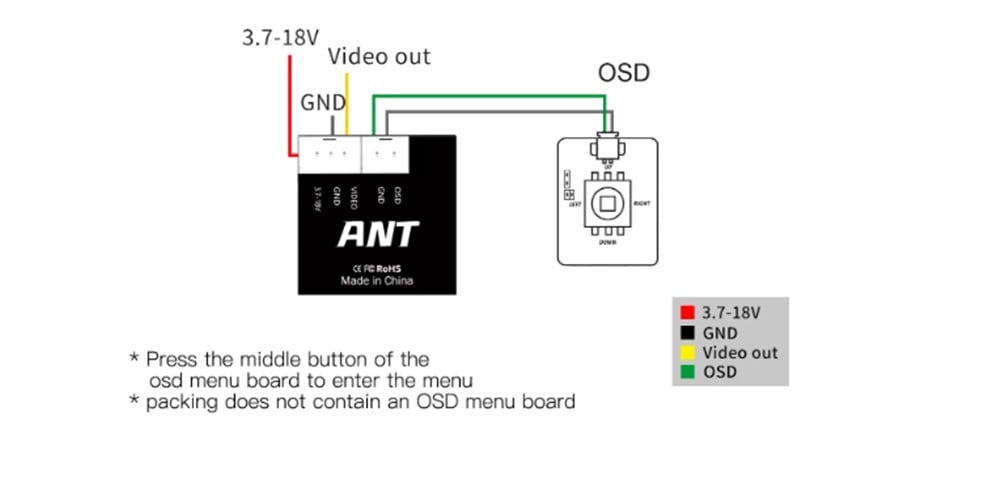

- MENU: Support
- IMAGE: 4:3
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio: >52dB (AGC OFF)
- Video Output: CVBS
- Lens: 1.8mm/F2.5
- Min. llumination: 0.001Lux
- Auto Gain Control: YES
- BLC: YES
- WDR: Global WDR

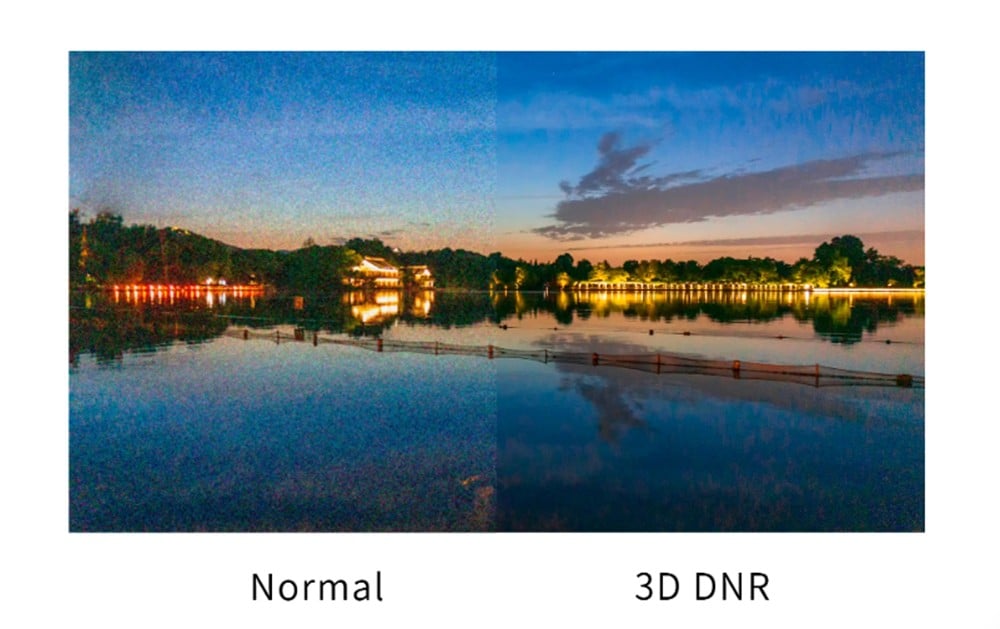

- DNR: 3D DNR

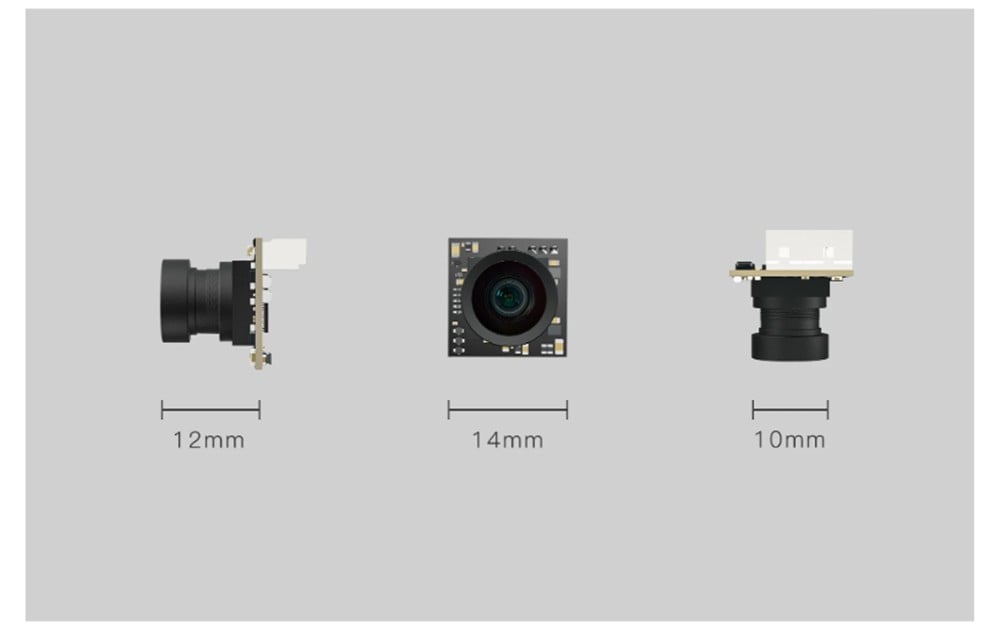

- Dimensions: 14* 14mm
- Wide Power Input: DC 3.7-18V
- Work Temperature: -20°C~+60C
- Work Humidity: 20%~80%

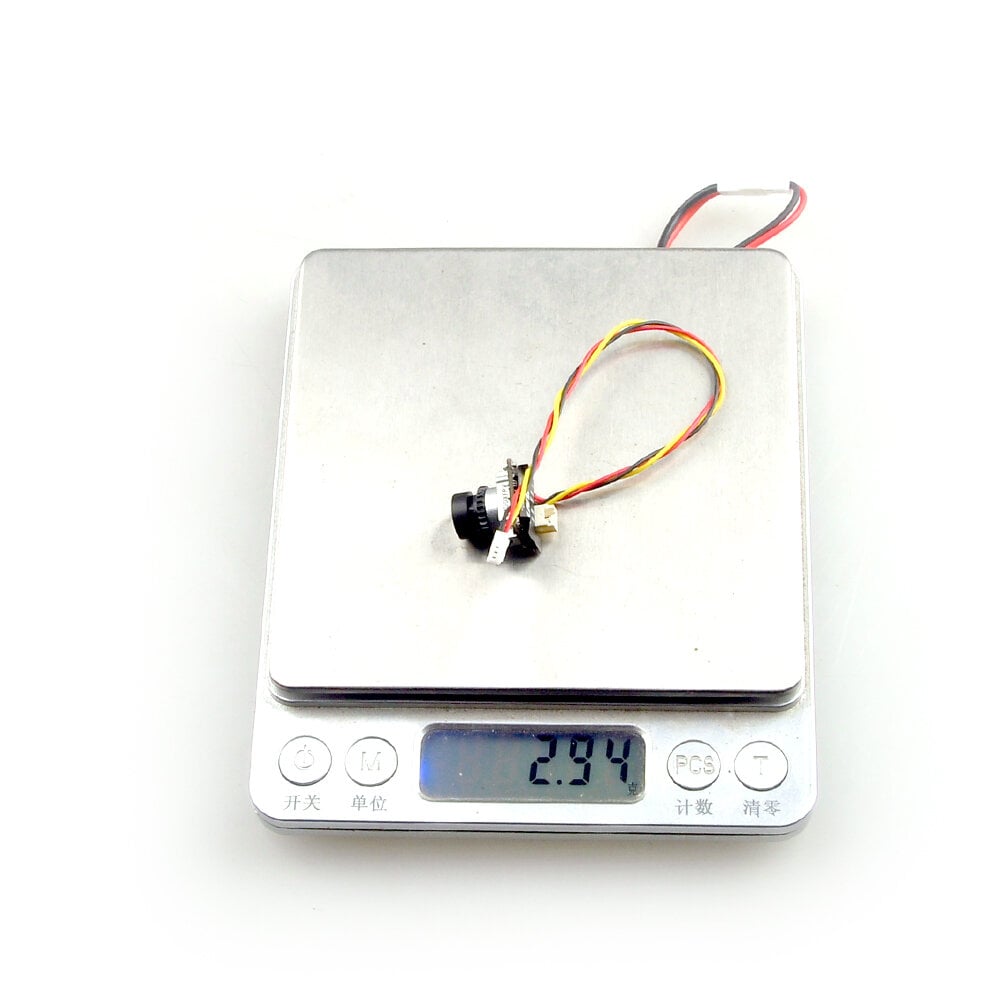

- Weight: 1.7 g (N.W.)
Includes
- Caddxfpv Ant Lite FPV Camera
