Product Details
This is a Cinewhoop class motor designed for 3" quadcopters, it uses top quality bearings, magnets and materials to give you a high performance motor at a reasonable cost.
- 2750kV - Ideal for 6S 3" quads
- 3800kV - Ideal for 4S 3" quads for best efficiency

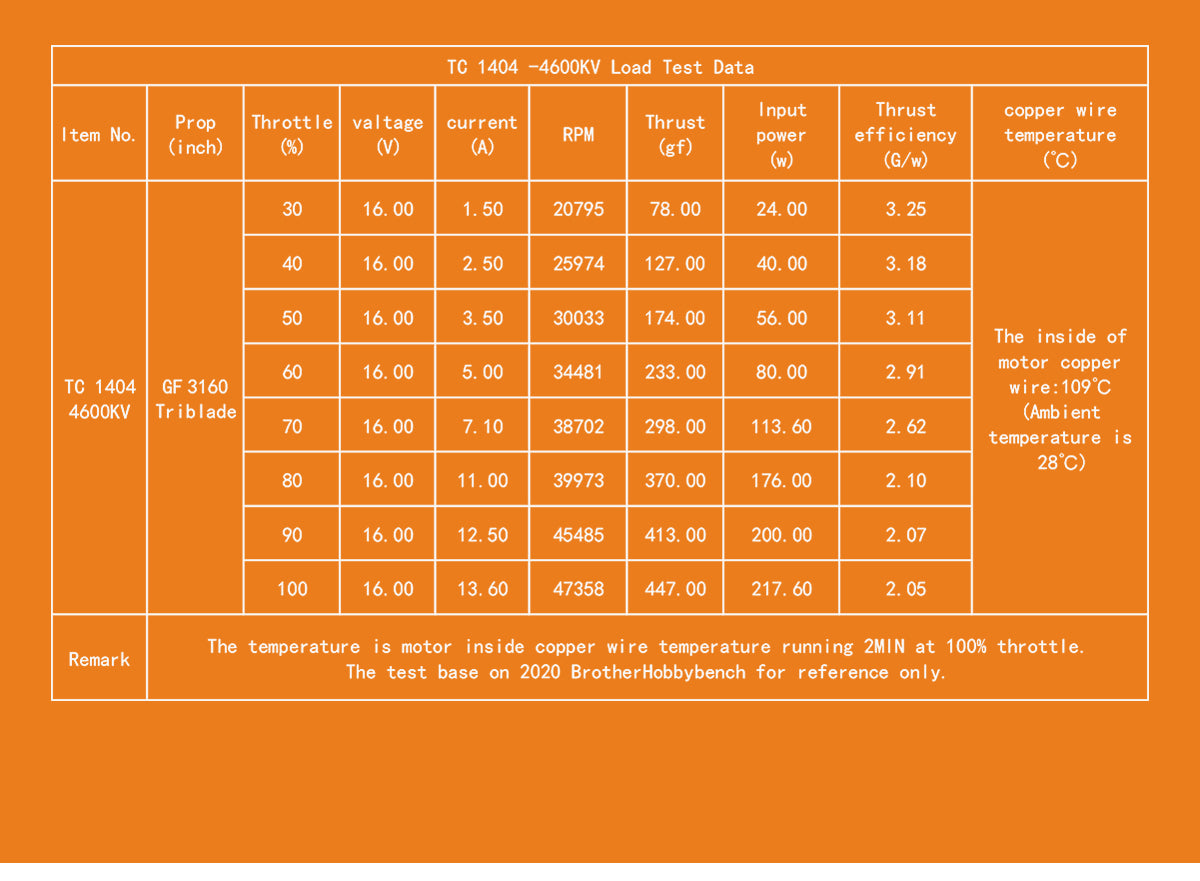

- 4600kV - Ideal for 4S 3" quads if you need more power at the cost of efficiency

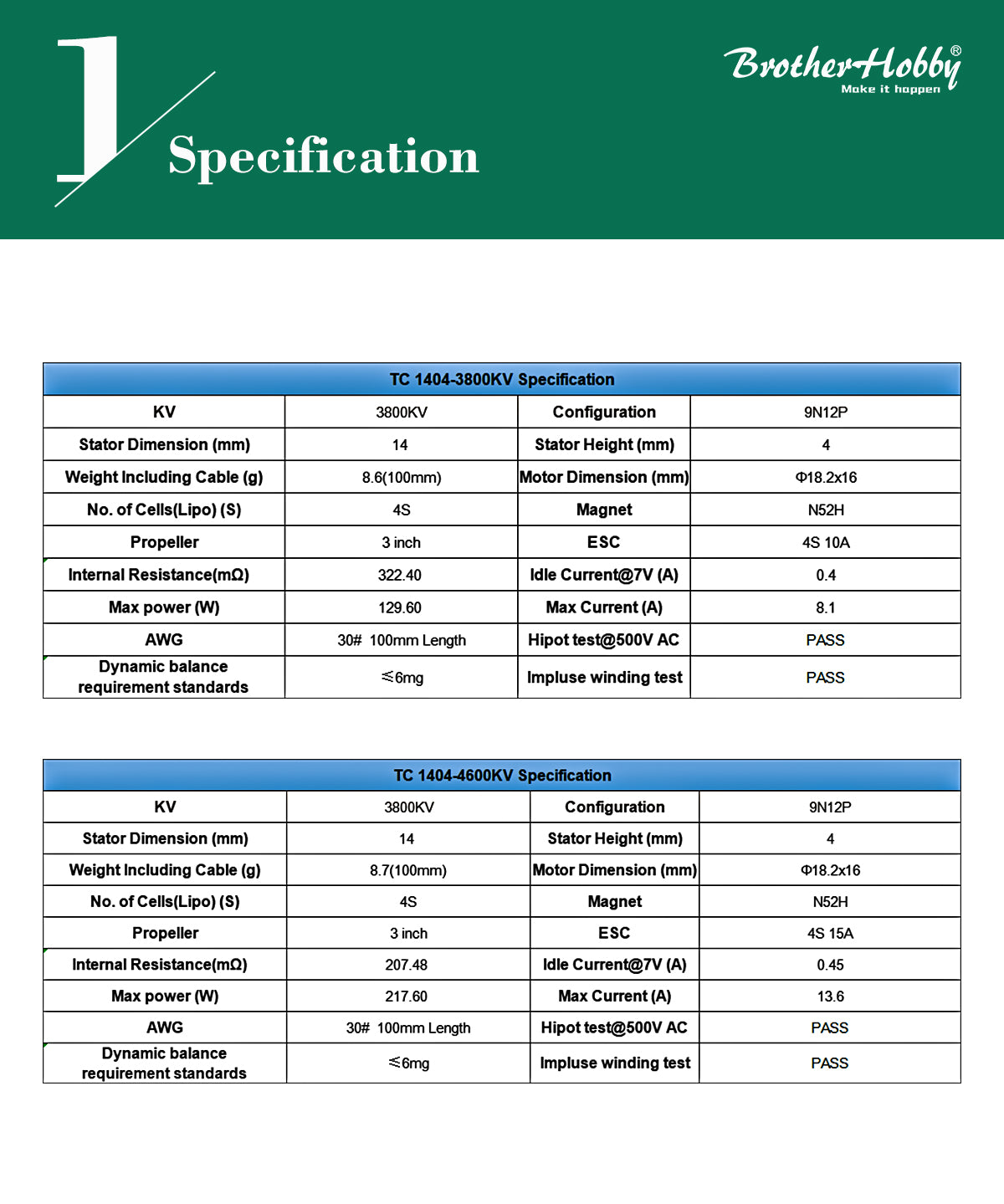

Specifications
- KV: 2750, 3800, 4600
- Configuration: 9N12P
- No.of Cells(Lipo): 4-6S
- Rotor: N52H arc magnets
- Stator: 0.15mm Nippon silicon steel
- Shaft: SUS 420
- Bearings: NSK 5x2x2.5
- Wire AWG: 30 AWG wire 10cm length
- Bell cap: 7075 Al
- Base casing: 7075 Al
- Prop Adapter Shaft Thread: M 1.5

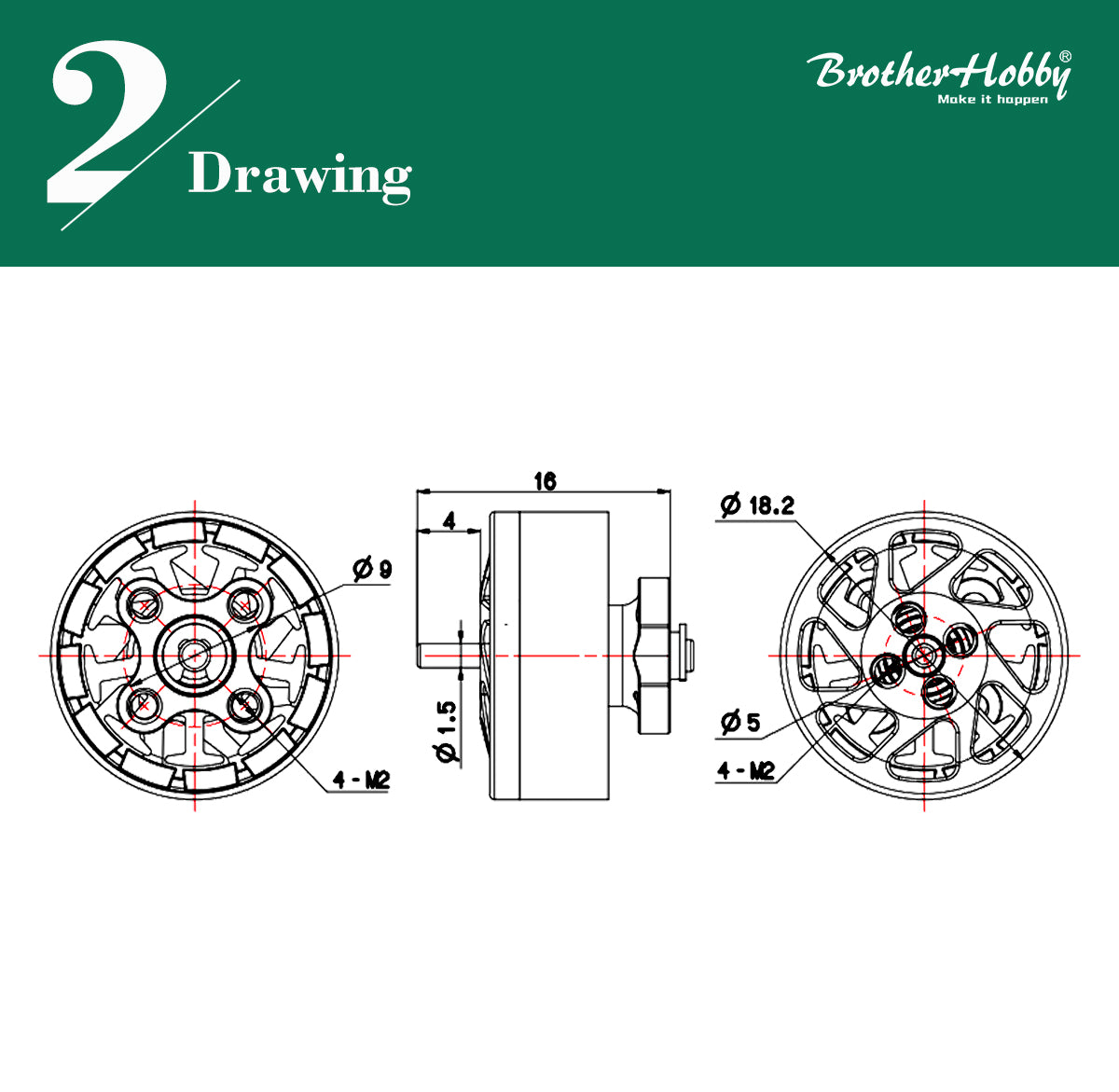

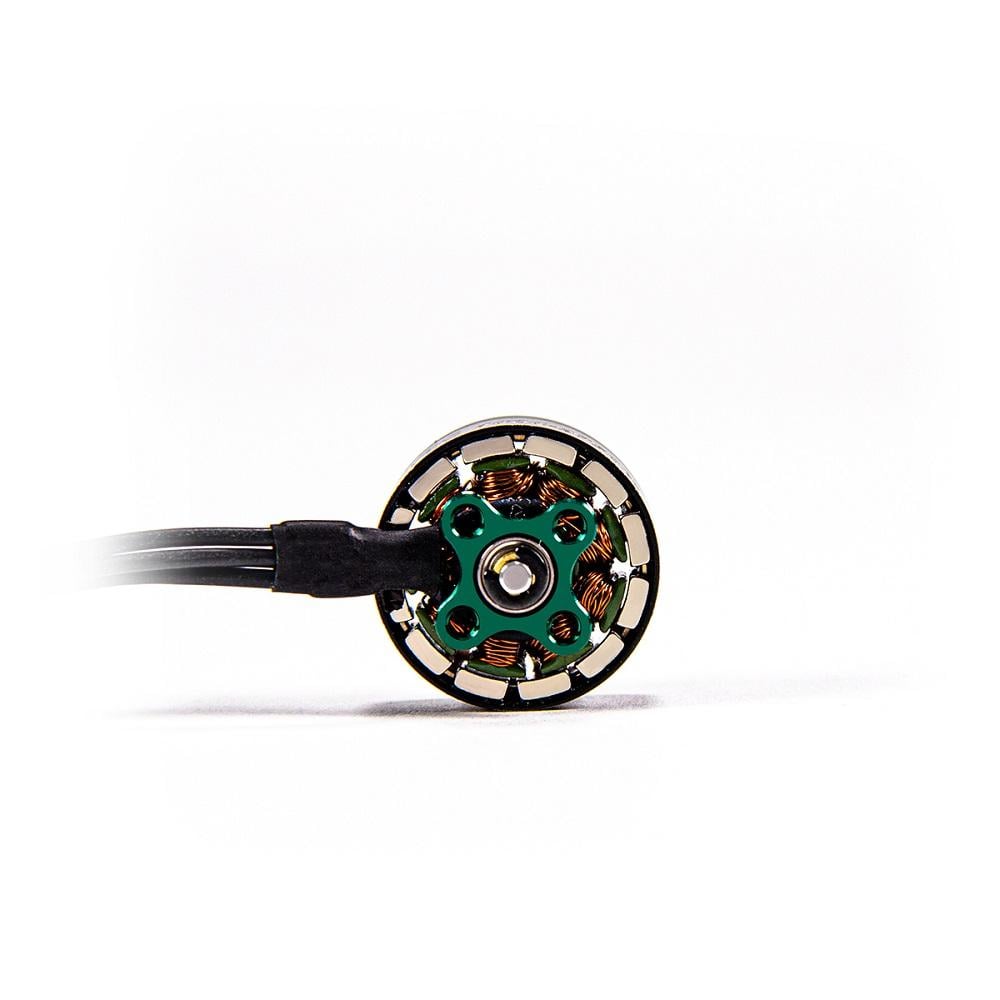

- Bolt Pattern: M2 9X9
Included

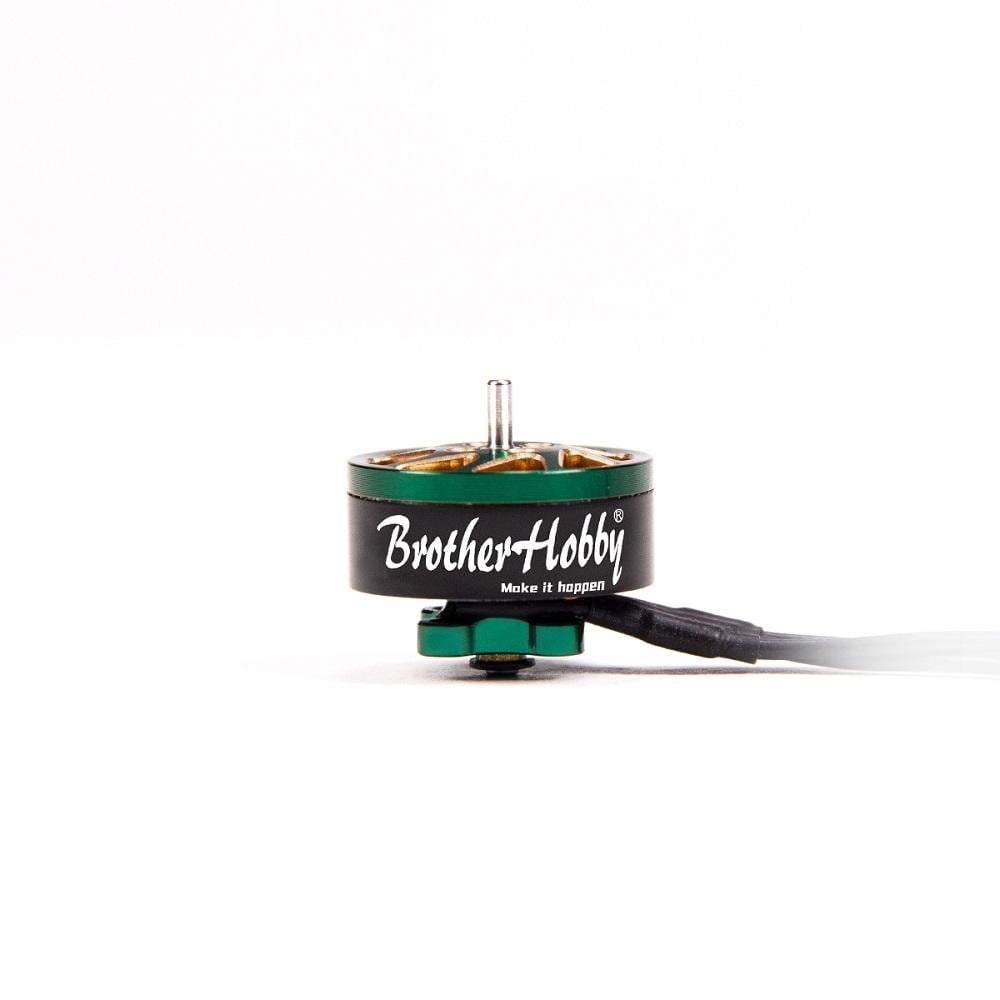

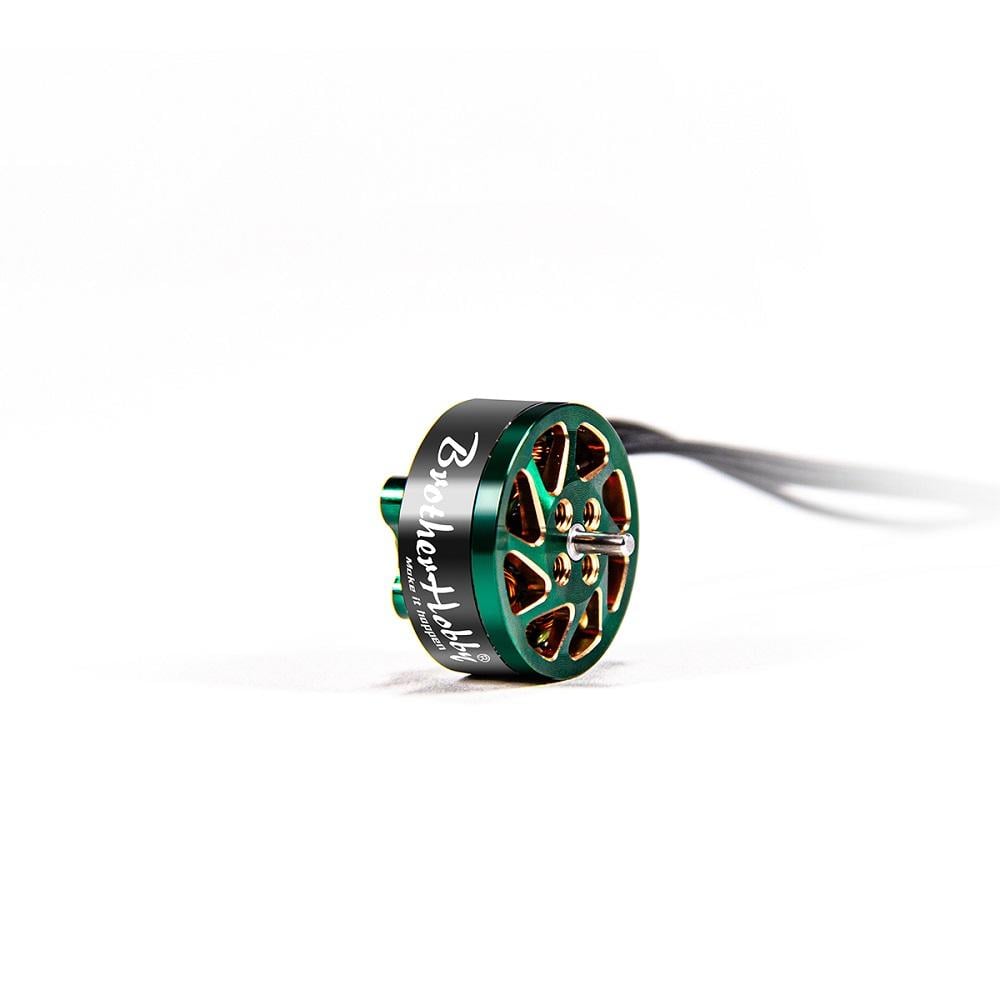

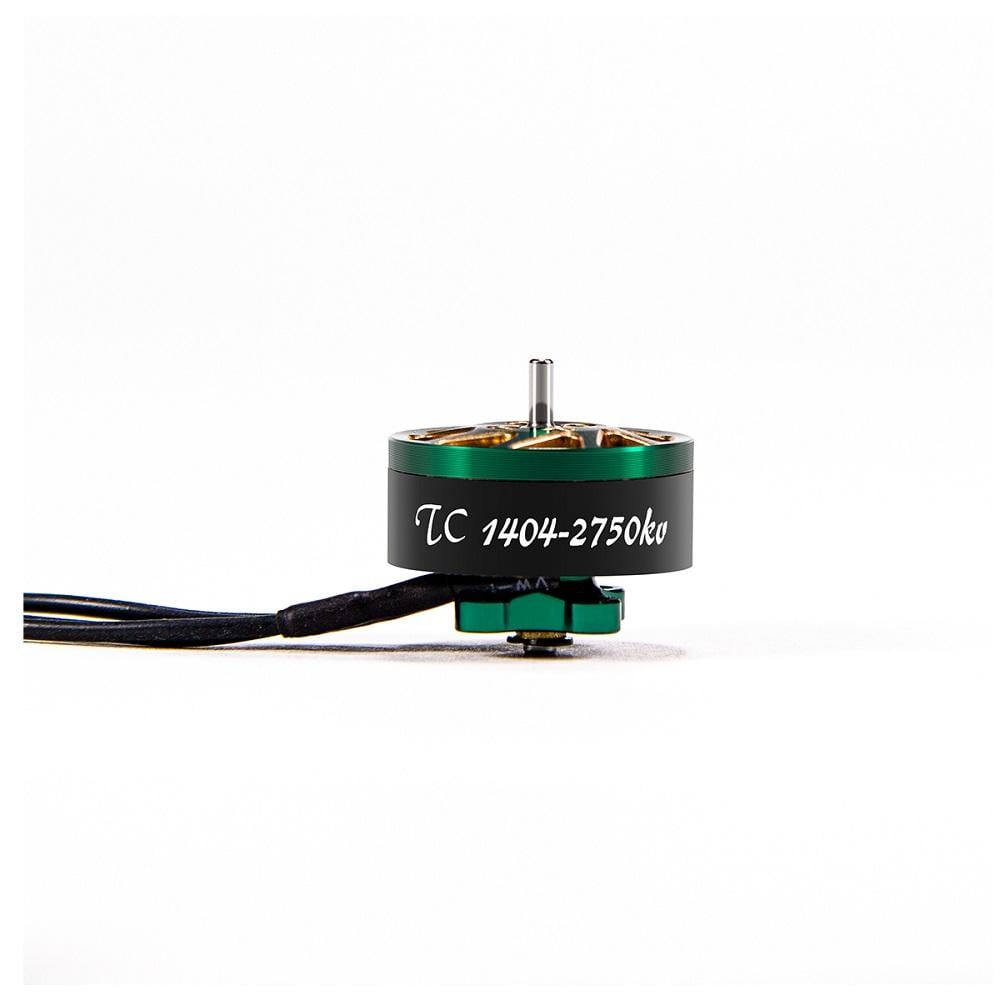

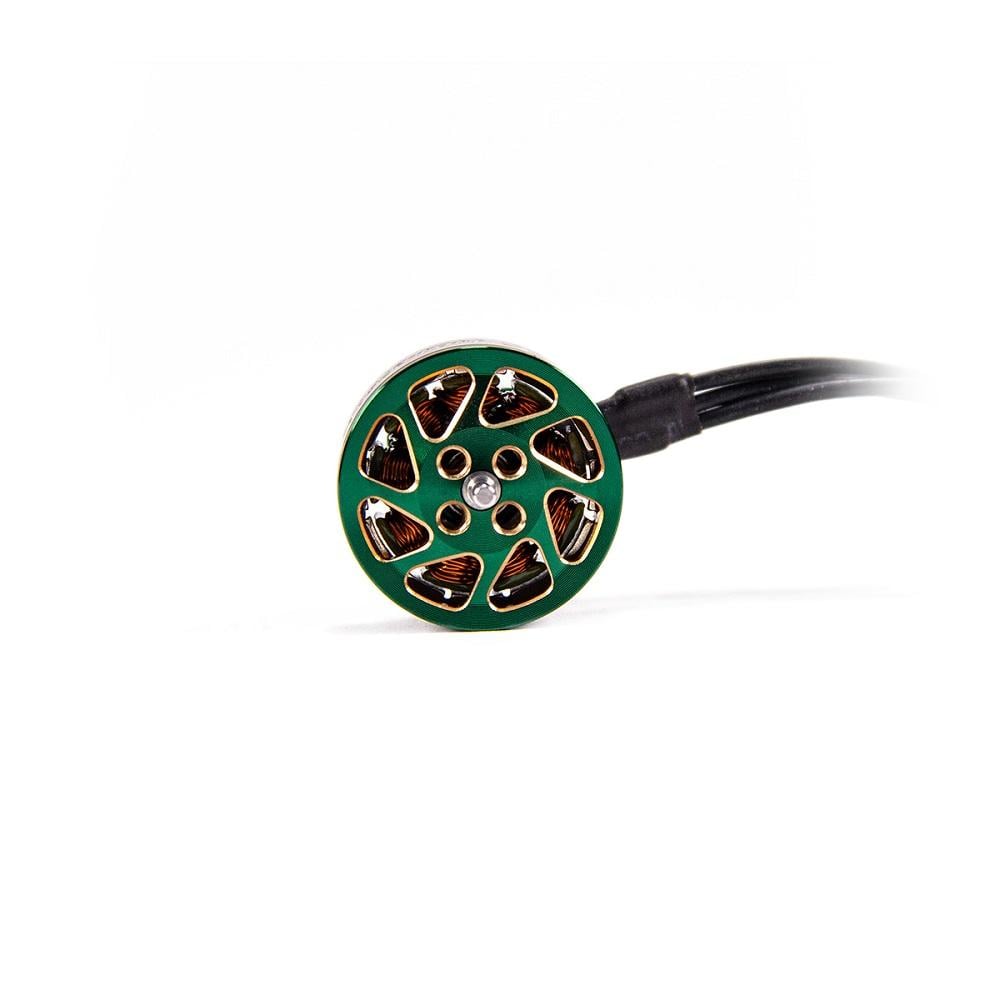

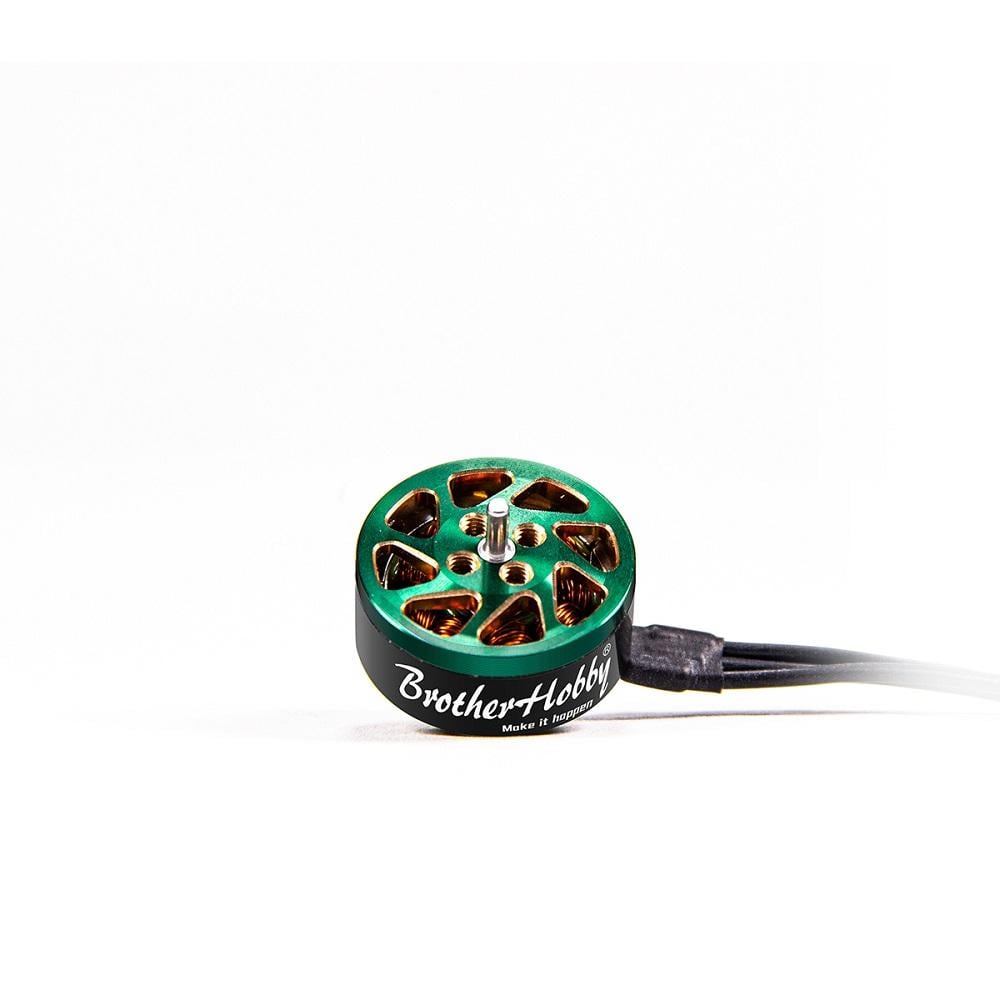

- 1 x BrotherHobby TC 1404 Motor
