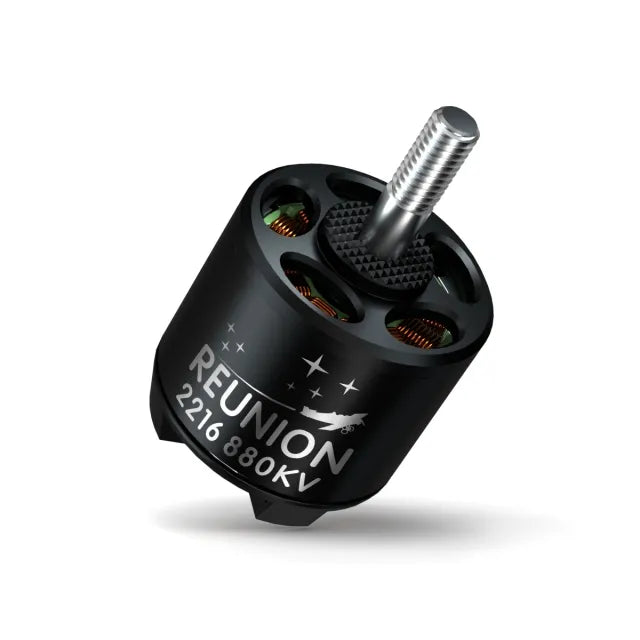

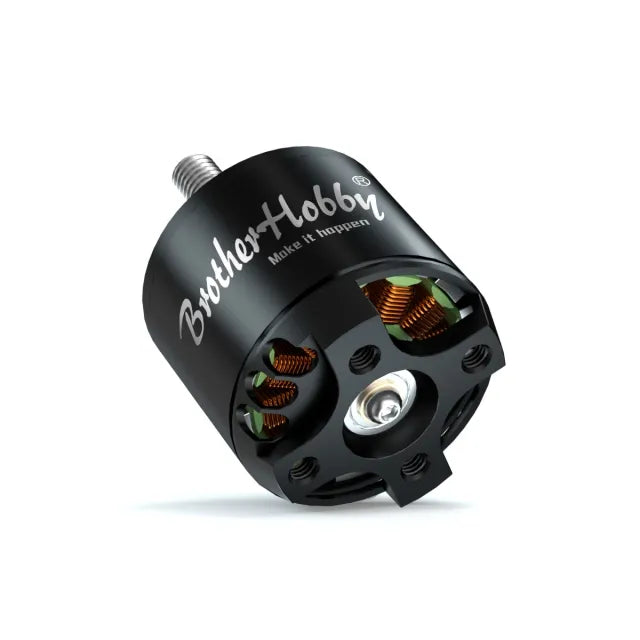

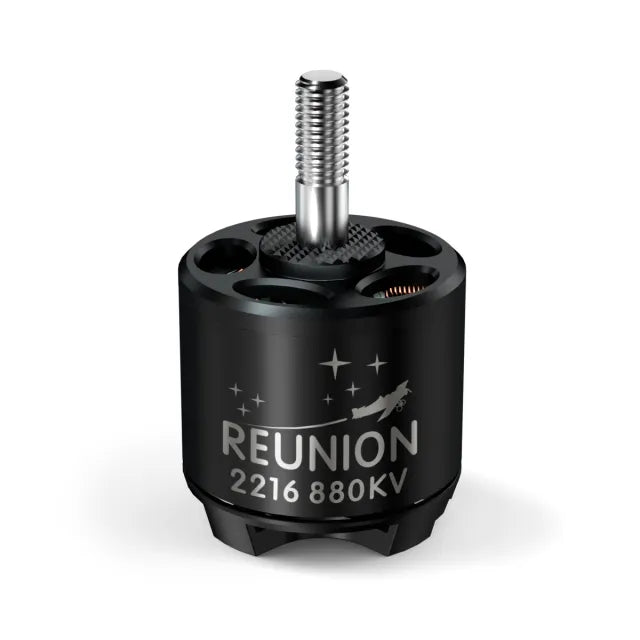

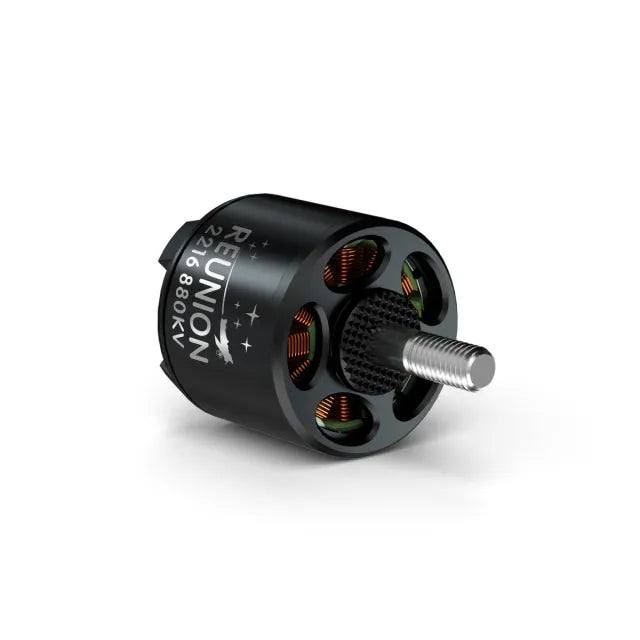

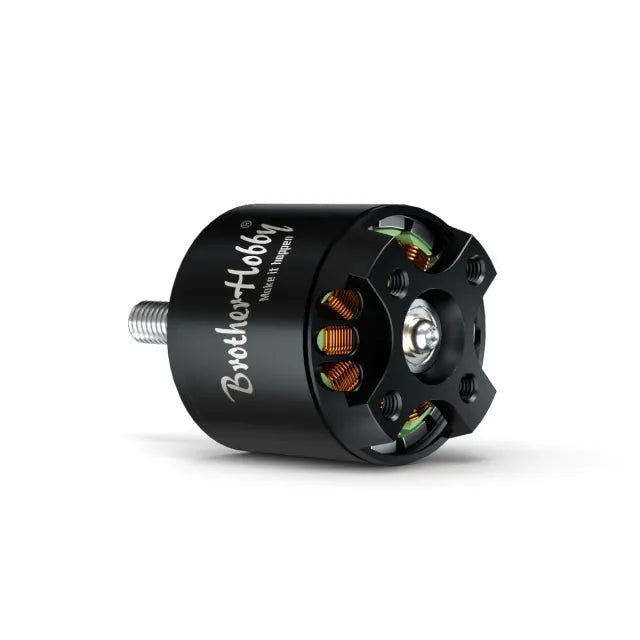

BrotherHobby Reunion 2216 880Kv Motor

If you’re building a long-range cruiser and still using motors that sound like a coffee grinder, it’s time for an intervention. The BrotherHobby Reunion 2216 880Kv is here to provide "power without worry" for your 10-inch propeller builds. Weighing in at a nimble 60g—or 61.09g if you trust the digital scale more than the marketing department—this 2216 drone motor is light enough to keep your AUW down but beefy enough to push 1540g of maximum thrust. It’s the perfect hardware for escaping the mundane (and maybe some pesky CAA paperwork purgatory).

Why You Want It

You want efficiency that doesn't feel like a compromise. BrotherHobby packed this with TU1 grade enameled wire for a high full slot ratio and low internal resistance, meaning more flight time and less "unplanned thermal rapid disassembly". The 7075 aviation-grade aluminium caps are hard-anodized and hollow-carved to save weight while dissipating heat "fleetly"—which is fancy engineering speak for "it stays cool while you're sending it".

Specifications

• Kv: 880Kv (Perfectly tuned for 4S-6S endurance).
• Configuration: 12N14P (The standard for smooth, linear torque).
• Magnets: N52H Arc magnets (Consistent air gaps for that "locked-in" feel).
• Stator: 0.2mm Kawasaki silicon steel (Minimising eddy current loss because physics matters).
• Bearings: Japanese NSK 8x3x4mm (Smoothness that’ll outlast your last set of props).
• Weight: 60g - 61.09g (Lighter than your lunch, stronger than your nerves).
• Mounting: 16x19mm M3 pattern (Industry standard, no drill-bit prayers required).

What’s in the Box*

• 1× BrotherHobby Reunion 2216 880Kv Motor
• 1× Mounting Screw Set (Don't lose them in the grass).

Premium 10-Inch Propeller Performance

Optimised for 10x5 inch propellers and a 30A ESC, this motor is the sweet spot for 4S builds looking for stability and efficiency. The SUS420 shaft and 20AWG wire are built to handle the axial loads of long-range flight, ensuring your "reunion" with the ground is strictly intentional and landing-gear first.

Disclaimer

Includes high-quality Japanese bearings; we cannot guarantee they will survive a direct "litho-braking" maneuver into a concrete car park.

Still Here?

We see you, spec-nerd. You’re checking the 0.2mm silicon steel sheet thickness because you know it reduces hysteresis loss, aren't you?. Stop procrastinating on your long-range FPV build and grab a set of these 2216 motors. Your current motors probably have more play in the bells than a primary school playground, and these 7075 alloy beauties are the upgrade your rig is crying for. Add them to the basket, finish the build, and go find some mountains to surf.
