Product Details
The Returner R6 is the latest addition to the popular returner series of motors. The R6 uses bigger EZO bearings to make the motor stronger, while including a naked bottom to save some weight.
- 2450Kv version is best for 4S quads
- 1660Kv version is best for 5-6S quads
Specifications
-
Brand name: BrotherHobby
-

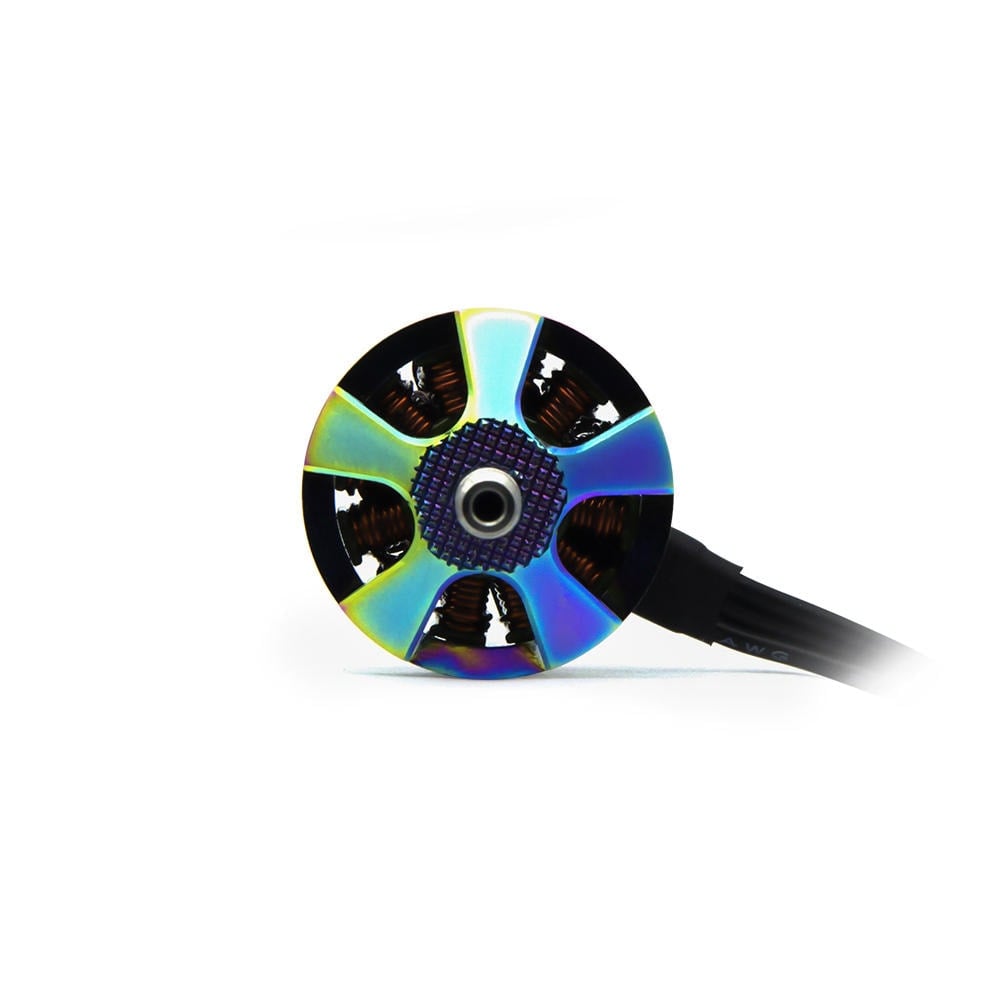

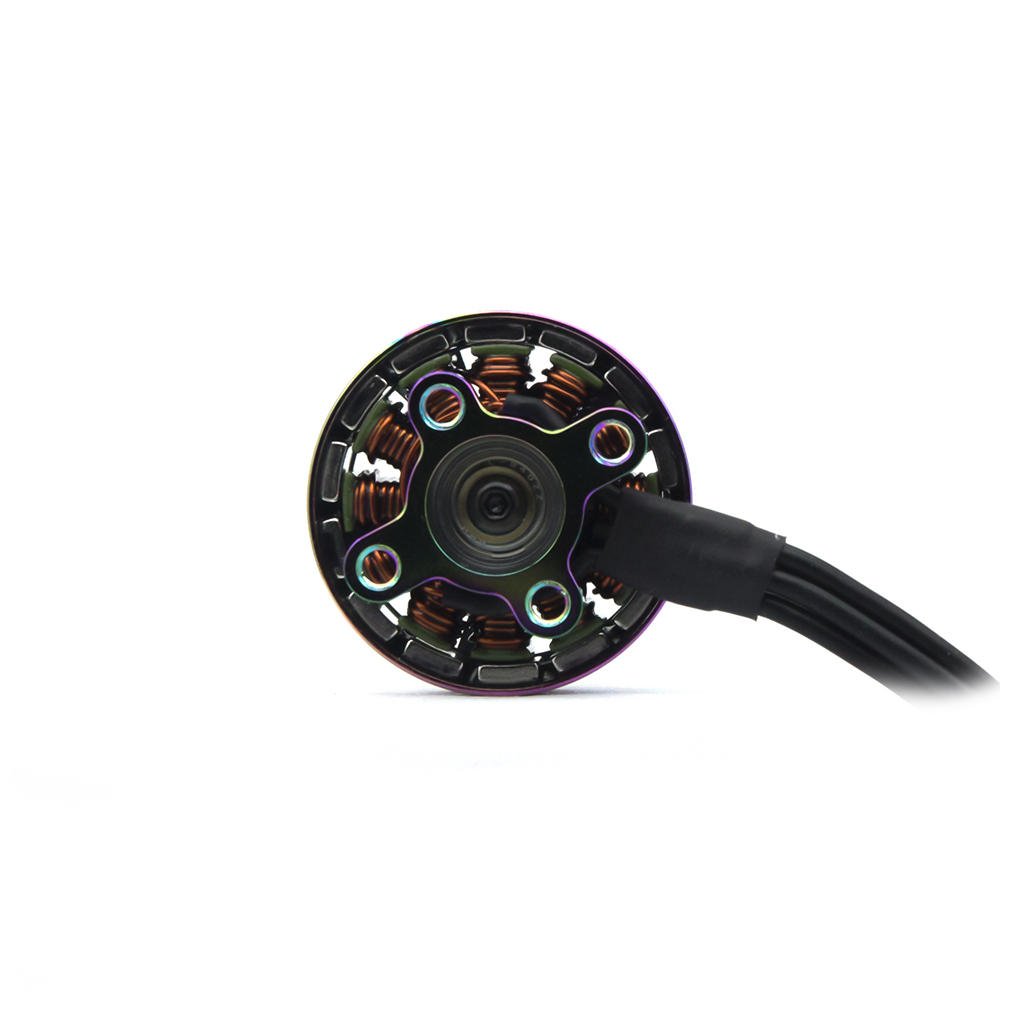

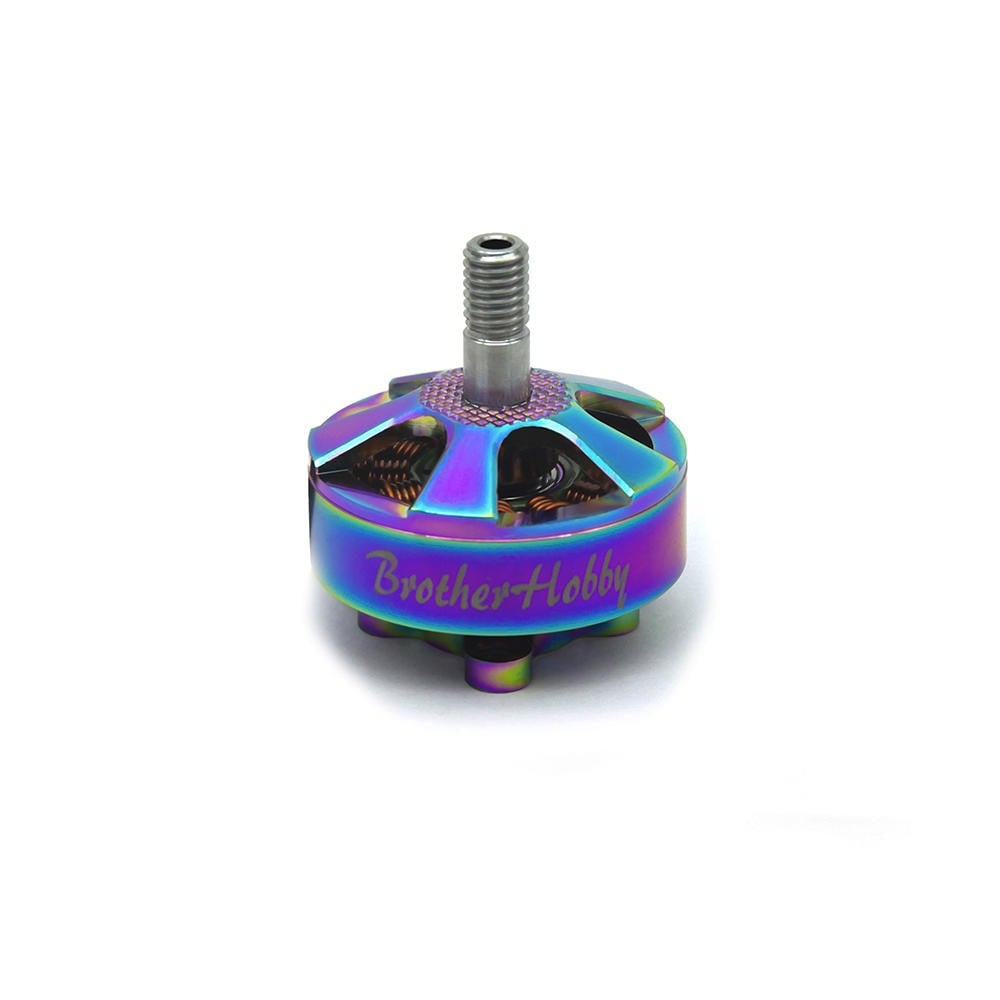

Item name: Returner R6 2306
-
Color: colored-plating
-
KV: 1660Kv, 2450Kv
-
Prop adapter shaft thread: M5
-
Bolt pattern: M3(16x16mm)
-
Configuration: 12N14P
-
Thread: Clockwise (CW)
-
Cells (LiPo): 4-6S
-
Rotor: N52H arc magnets
-
Wire AWG: 20AWG
-
Shaft: Titanium Alloy hollow shaft
-
Stator: 0.15mm Nippon Steel silicon steel
-
Bearings: Japan EZO 9*4*4mm
-
Base casing: Al 7075
-
Bell cap: Al 7075
-
Weight: about 28.3 (without wire)
-
Weight: 32g with 16cm SR wires

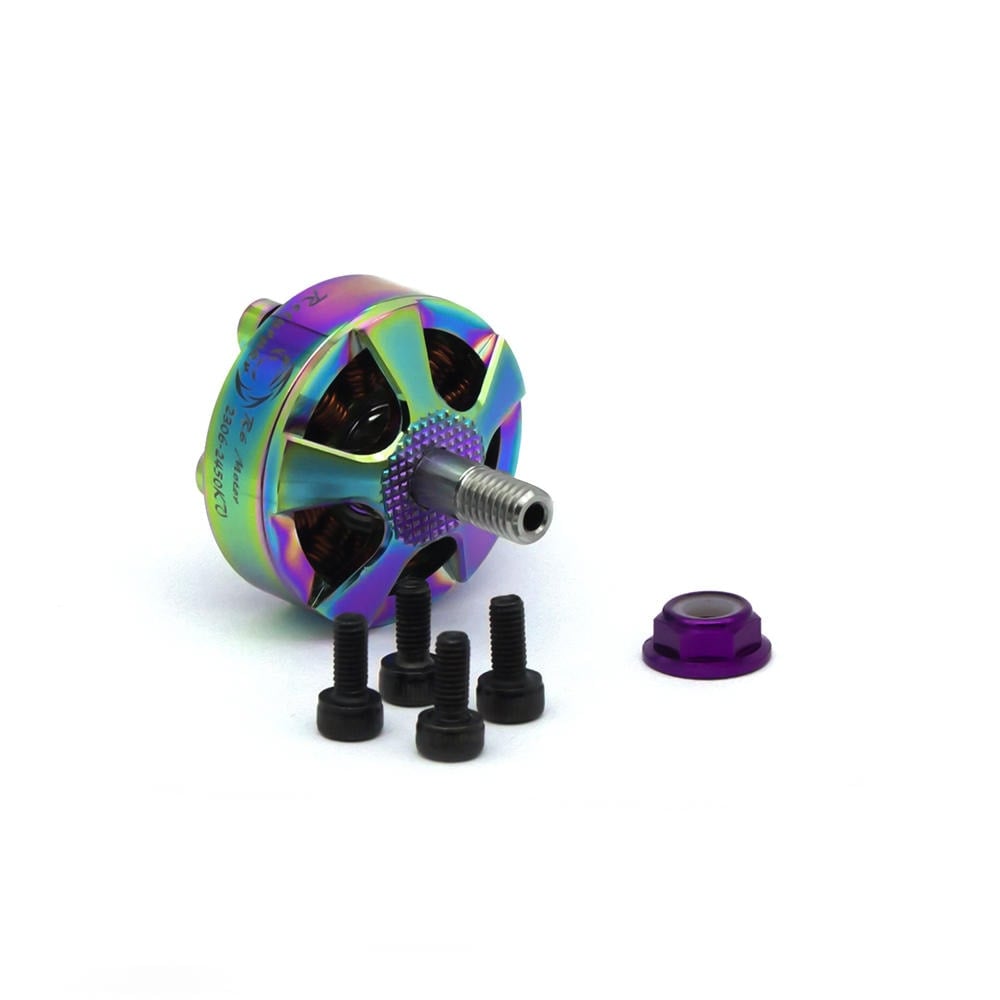

Included
- 1 x BrotherHobby Returner R6 2306 motor
- 1 x Prop Nut
- 4 x M3 screws
