Product Details

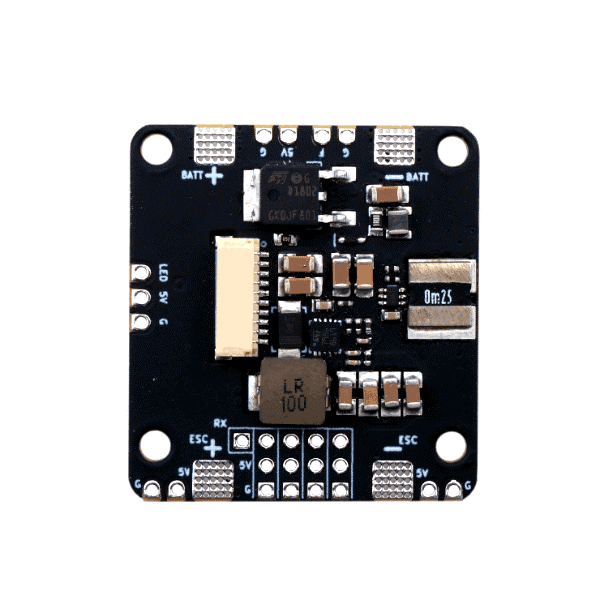

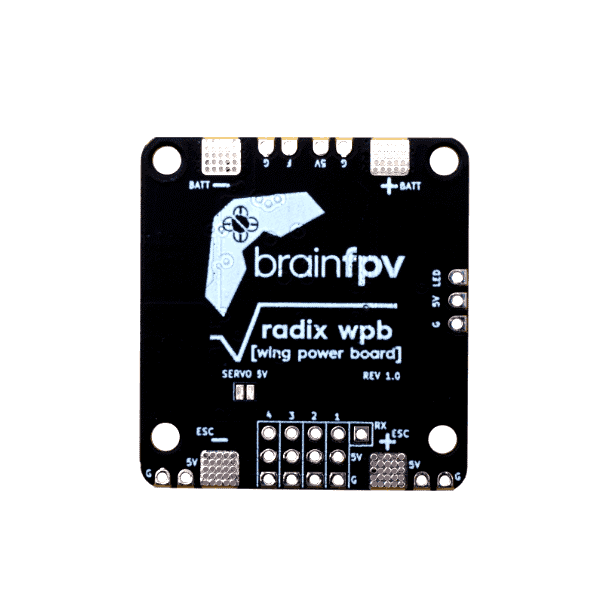

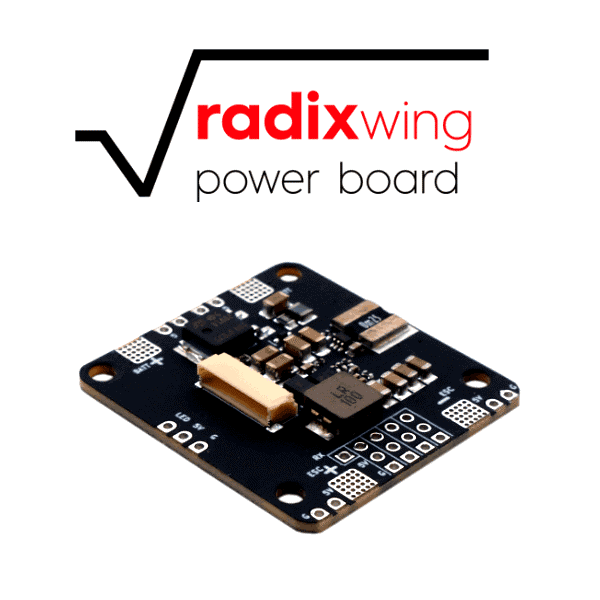

Introducing the RADIX Wing Power Board (wPB). It is plug-n-play with the RADIX FC, has current sensing and is a perfect addition for your wing build. Our OSD has features for wing pilots that no other OSD can offer with GPS mapping and return to home in iNAV!
Specification
- Battery Voltage: 3S to 8S (9V to 35V)
- Maximum Current: 100A constant, 160A burst.
- Voltage Regulator: Integrated 5V, 2A, 3A burst. By default, servos are powered by the ESC. The WPB has a jumper to enable powering small servos.
- Noise Filter: Integrated filter for clean video.
- Current Measurement: Up to 160A (20mV/A).
- ESC Output: Output for ESC on servo headers.
- Servo Outputs: Outputs for up to 3 servos on headers (RADIX FC has pads for 2 additional servos).
- LEDs: Output for programmable RGB LEDs.

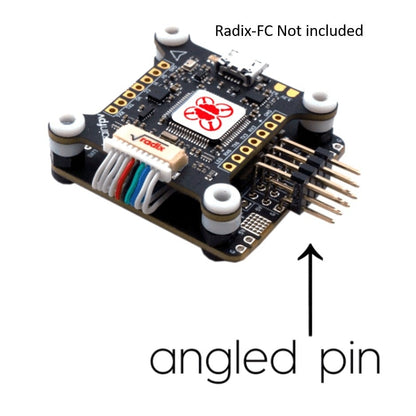

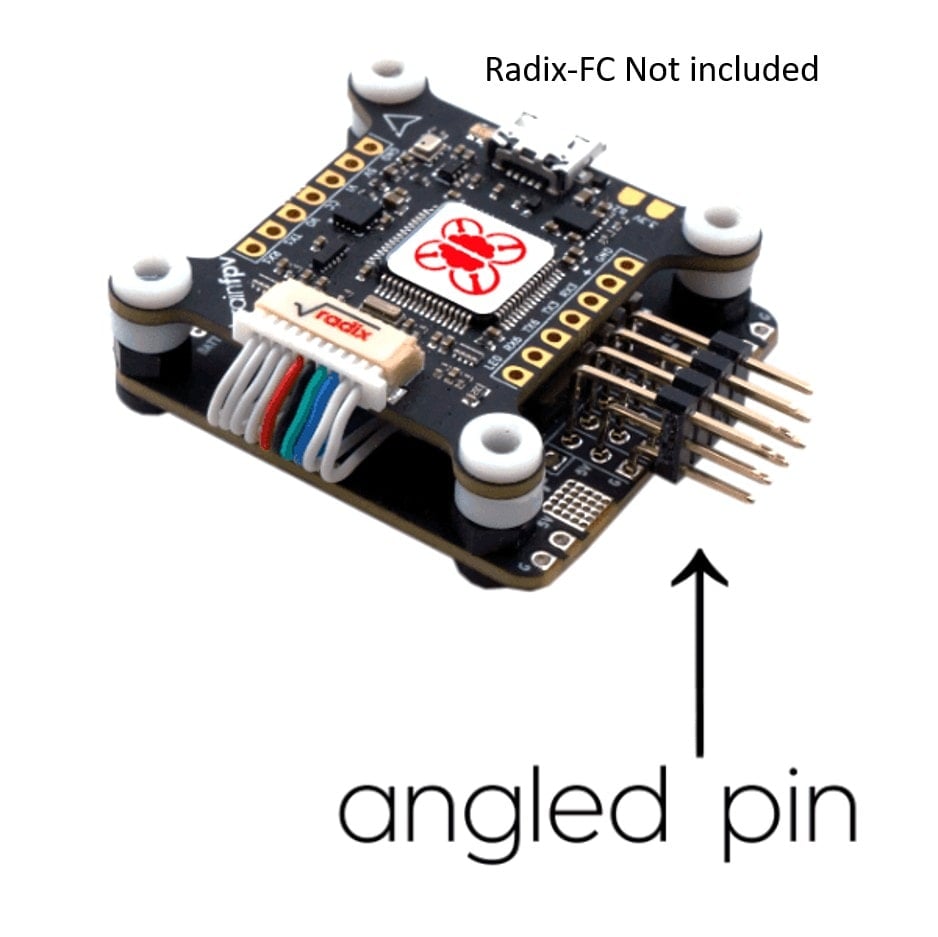

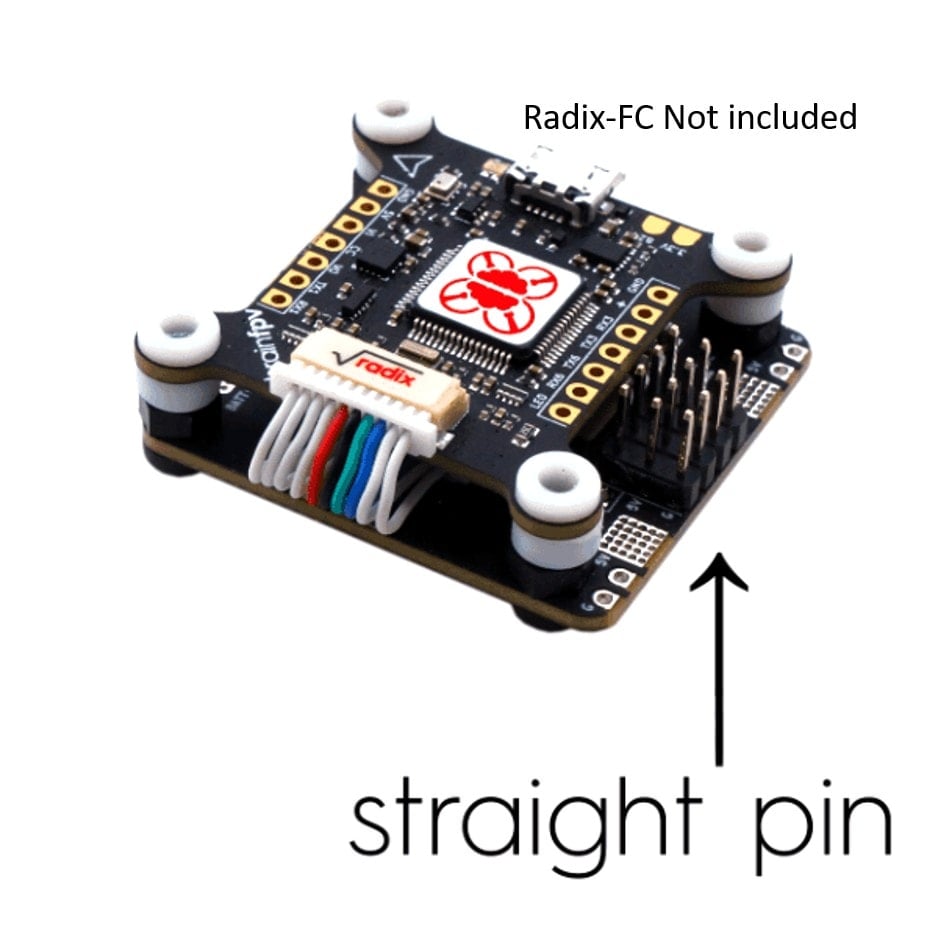

- Stacking height : 5.5mm (space between RADIX FC and RADIX WPB).
- PCB: 4 layer, 3oz (105um) copper per layer. HASL plating (lead-free).
- Dimensions: 36mm x 39mm.
- Weight: 8g
