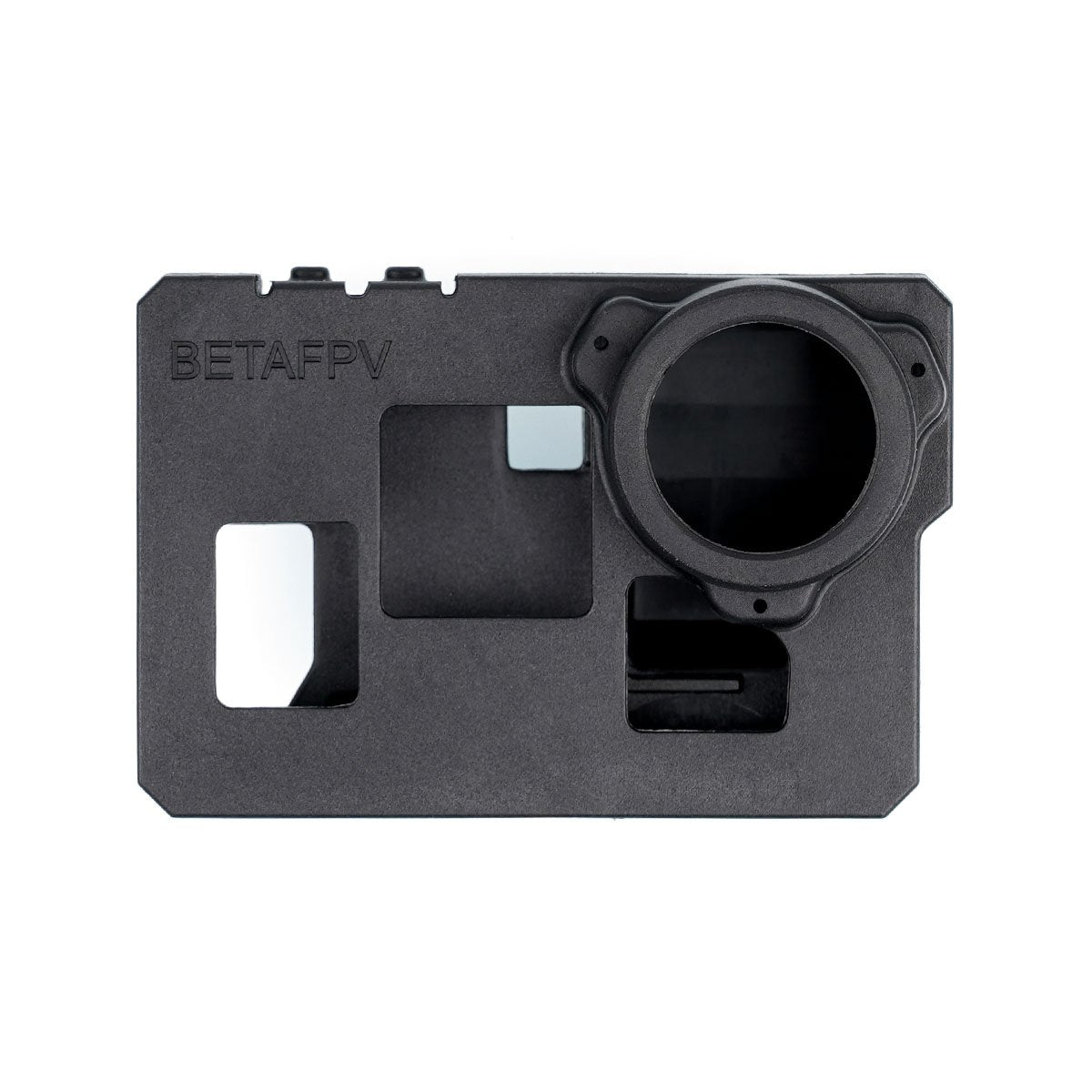

Product Details
This is an injection moulded case if you plan to build a naked GoPro 6/7 ideal if you already have a bec module, or dont plan to use one (you really should use one)

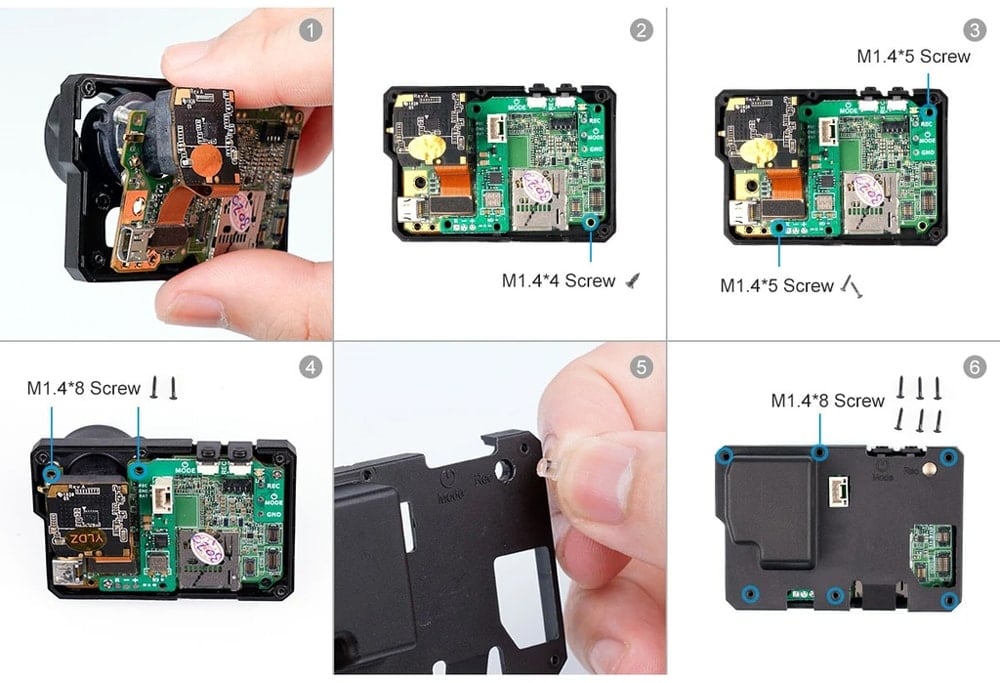

How to Assemble
- Step 1: Assemble the BEC board on the GoPro motherboard.
- Step 2: Hold the camera lens and the camera board at the same time, be careful when you assemble the board on the case.
- Step 3, 4: Screw the GoPro motherboard with the M1.4*5 and M1.4*8screws as shown below
- Step 5: Install the light pipe as shown below.
- Step 6: Install the back case, and screw the board with M1.4*8 screws as shown below.
Includes
- 1 x Case V2 for Naked Camera
