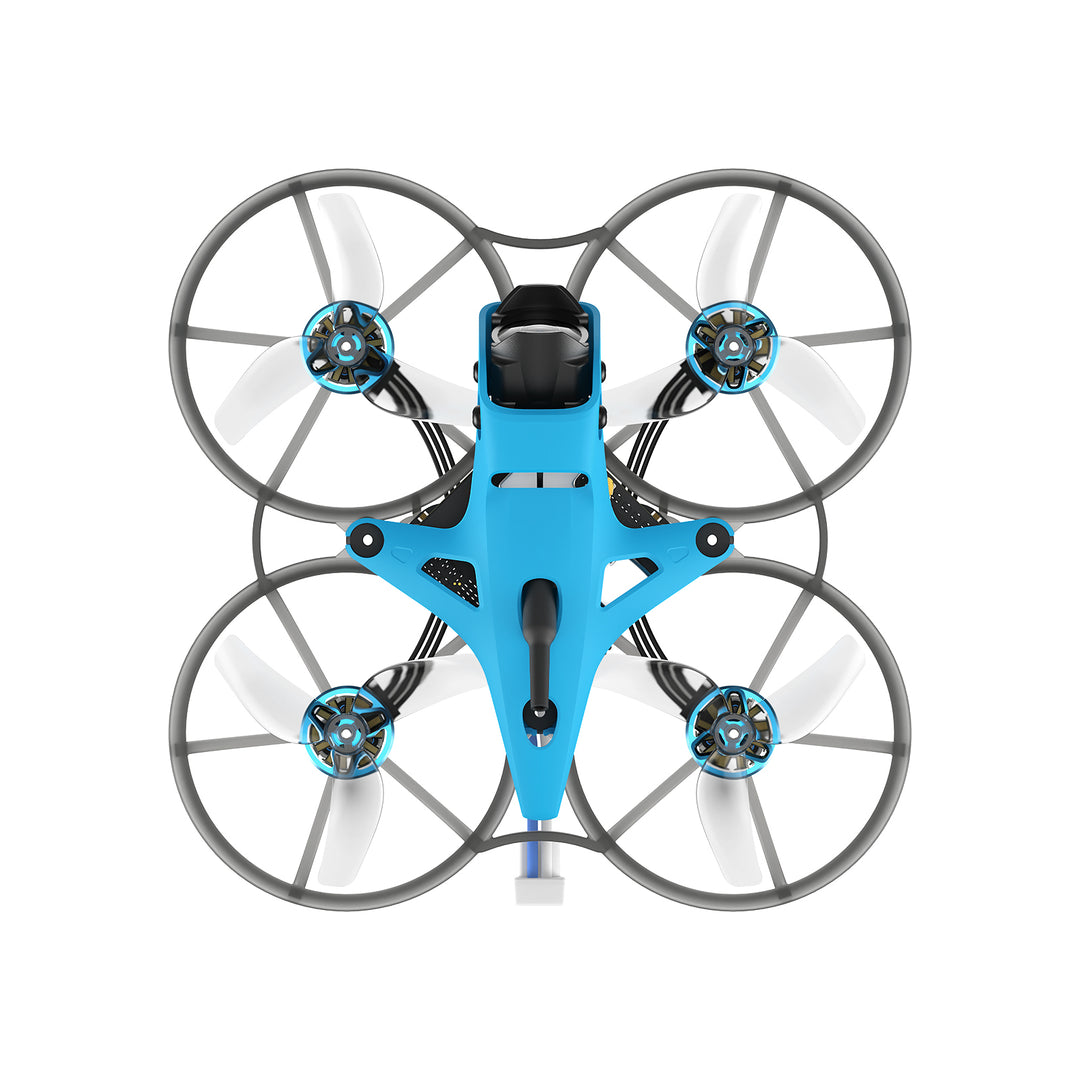

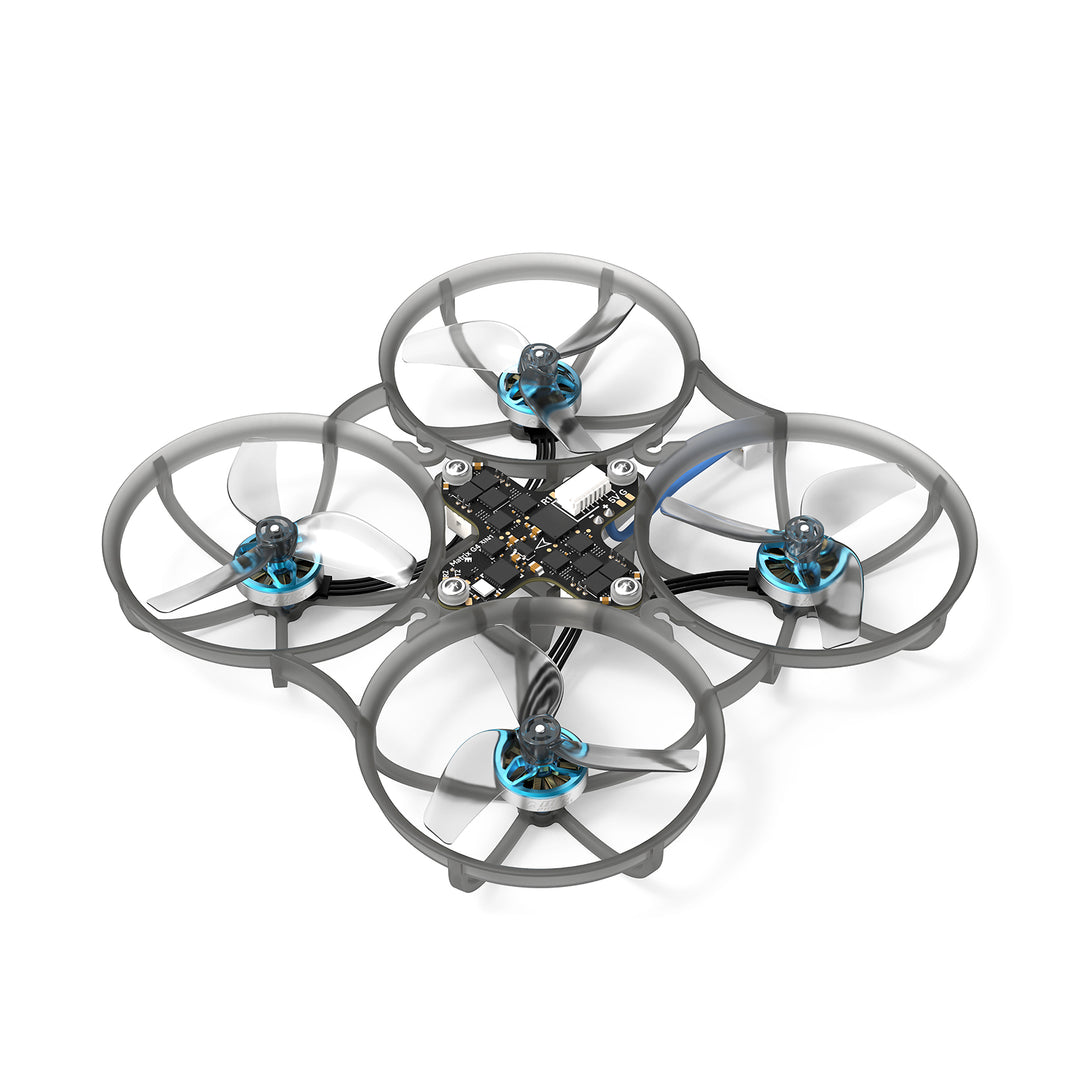

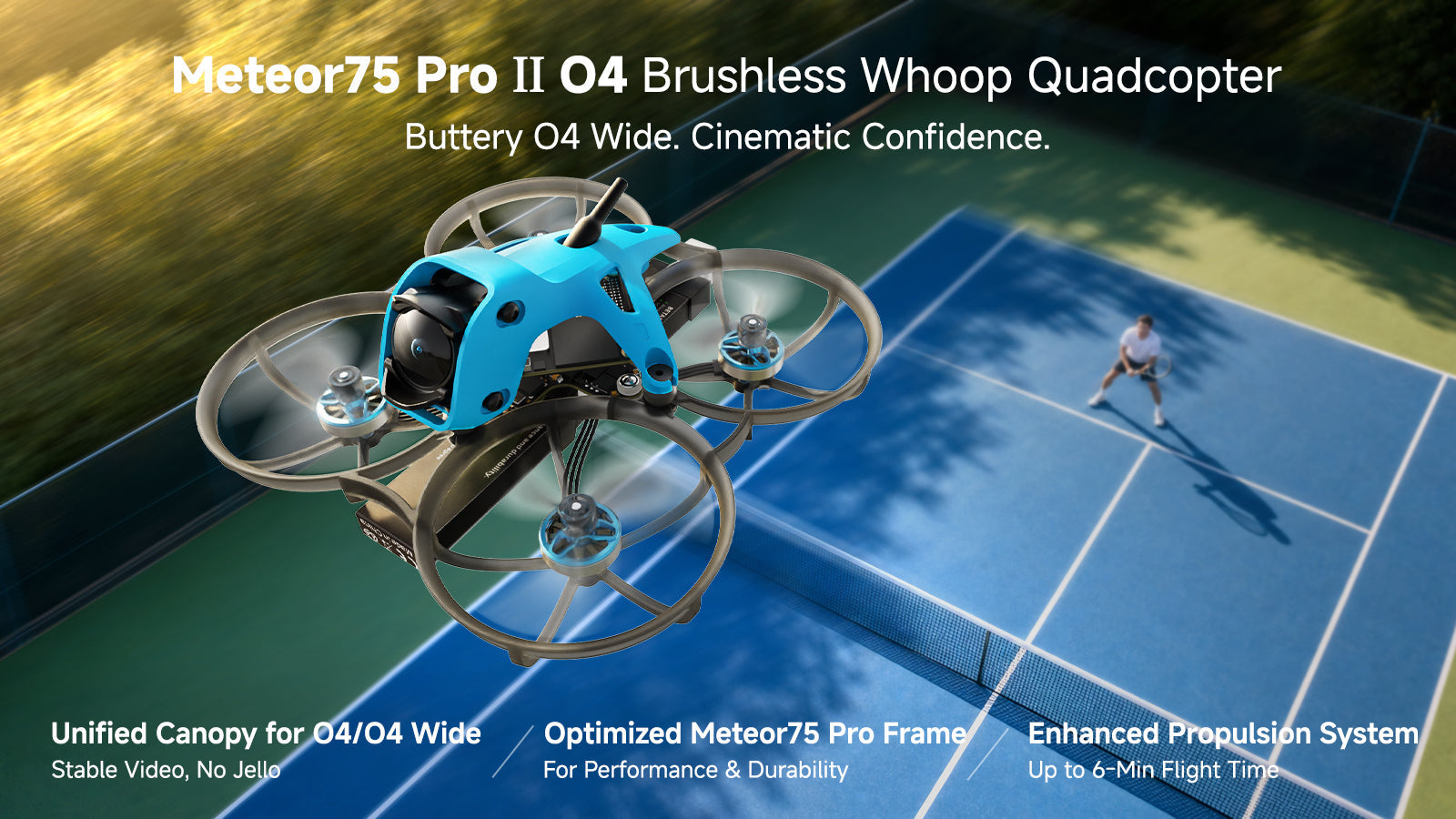

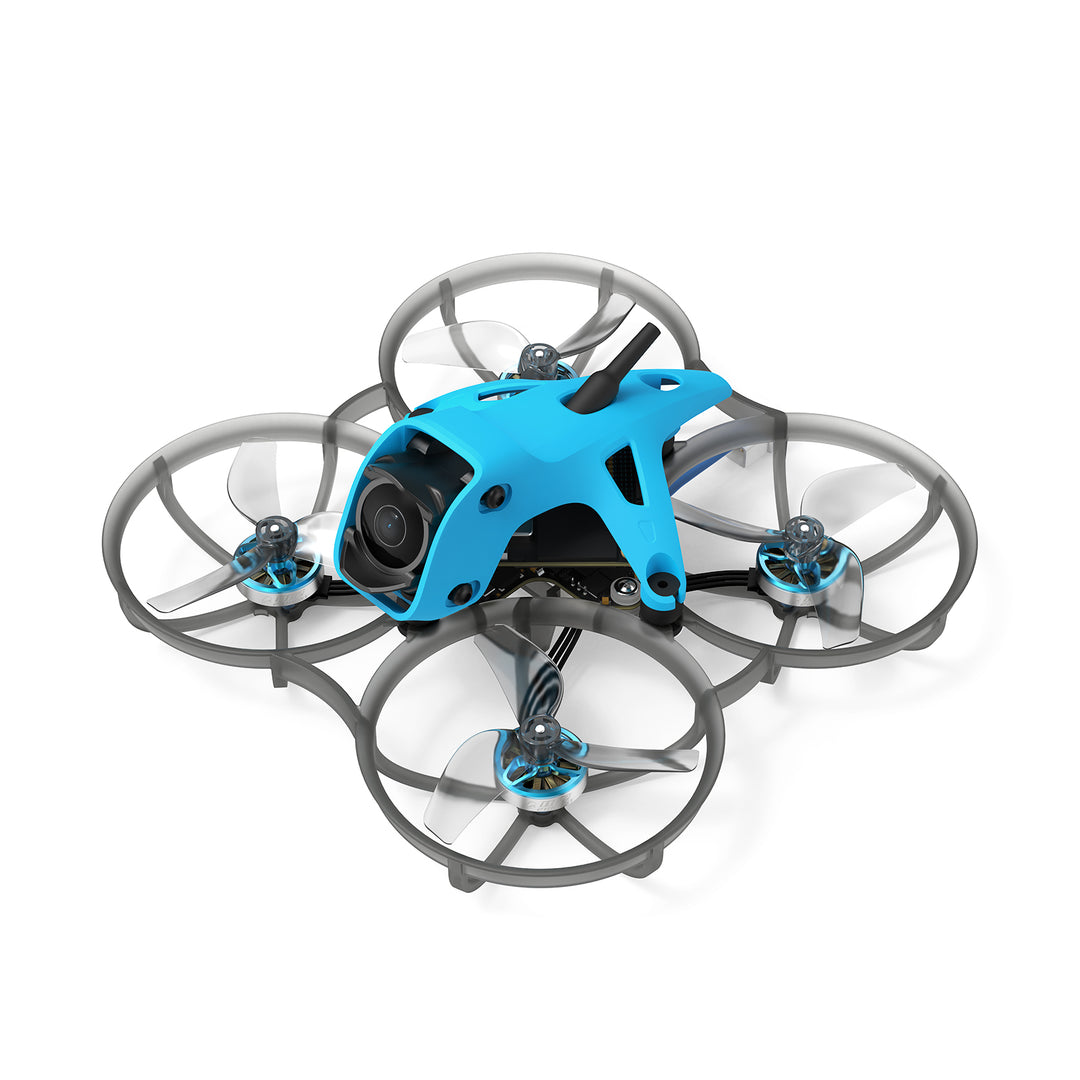

Meteor75 Pro II O4: Ultimate 1S HD FPV Whoop

If you have ever smelled magic smoke at 2 AM or crashed a micro whoop directly into your living room telly, welcome home. Backed by our 10 years of experience in the manufacturing and delivery of commercial FPV systems at Unmanned Tech Shop UK, the Meteor75 Pro II O4 is the ultimate 1S HD FPV whoop for pilots craving aggressive performance and digital clarity. Equipped with the DJI O4 Wide Air Unit, this digital FPV quadcopter streams ultra-low latency 4K/60fps video with a 159° ultra-wide field of view straight to your goggles. Built on an 80mm frame with an onboard ExpressLRS receiver, pre-tuned Betaflight profiles, an efficient BT2.0 connector, and zero-jello vibration damping, it delivers locked-in throttle response without killing your flight times.

Key Highlights

• DJI O4 Wide Air Unit: Captures immersive 4K/60fps footage with a 159° ultra-wide FOV and 20ms ultra-low transmission latency.

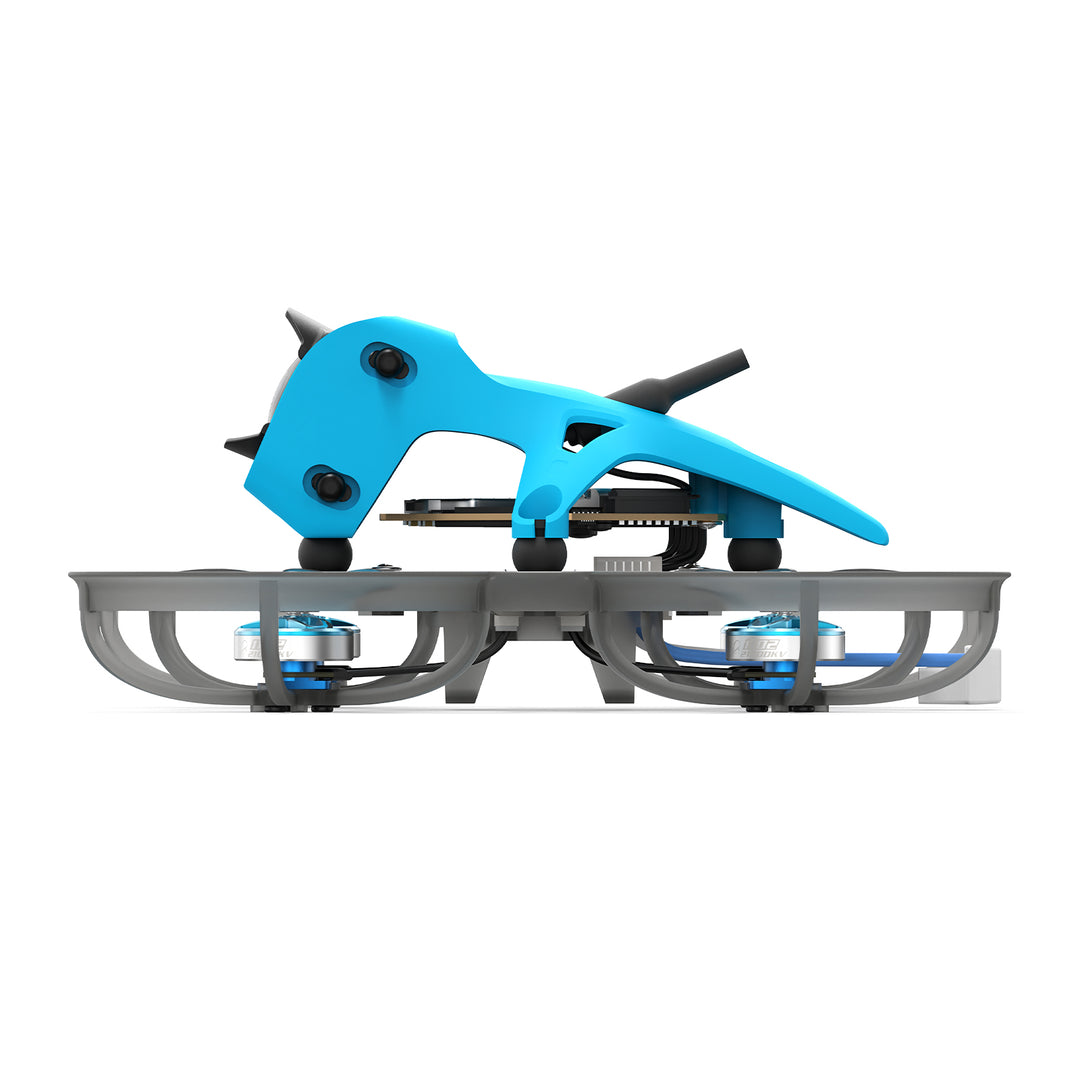

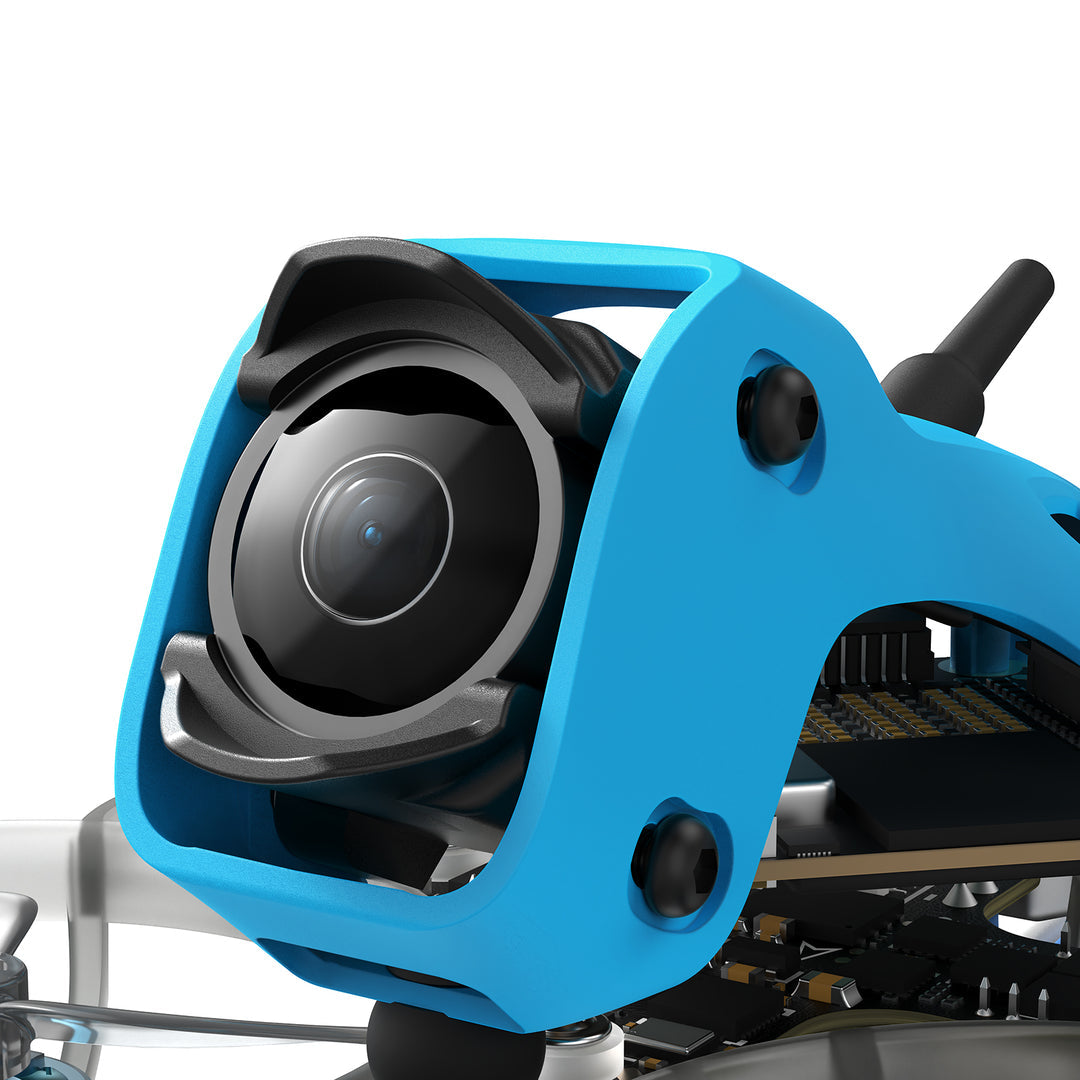

• Canopy II Vibration Damping: Uses four shock-absorbing balls to eliminate camera jello while enabling easy 15° to 35° camera angle adjustments.

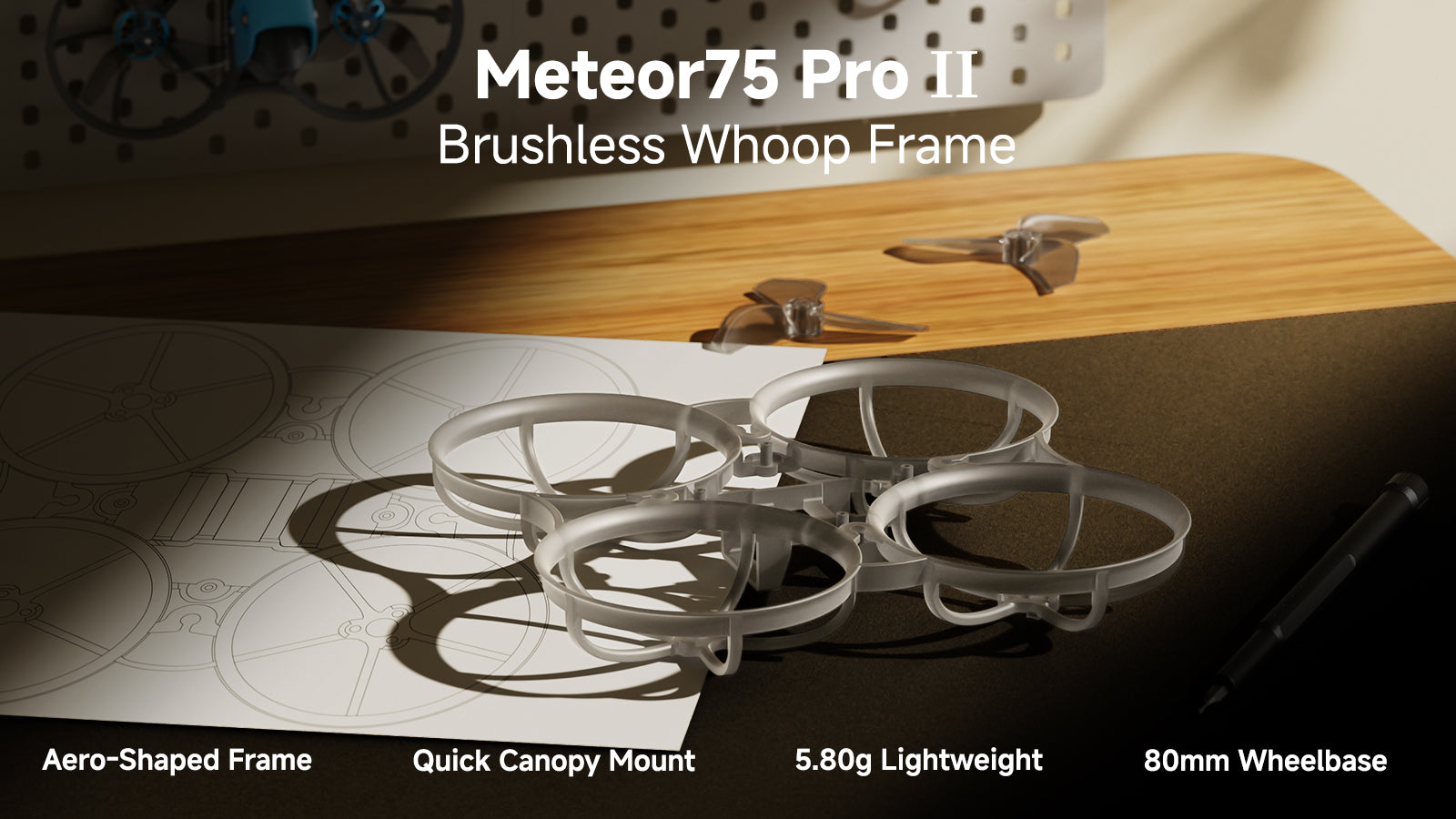

• Optimised Aerodynamics: Meteor75 Pro II frame features 5 refined arm braces and curved ducts at just 5.80g (nearly 2g lighter than V1) for reduced drag and higher crash durability.
• Upgraded Propulsion: 1102 Freestyle Motors (2026 edition) with reinforced shafts and 2000 series outer rotor housing pair with Gemfan 1811 3-blade props for punchy thrust.

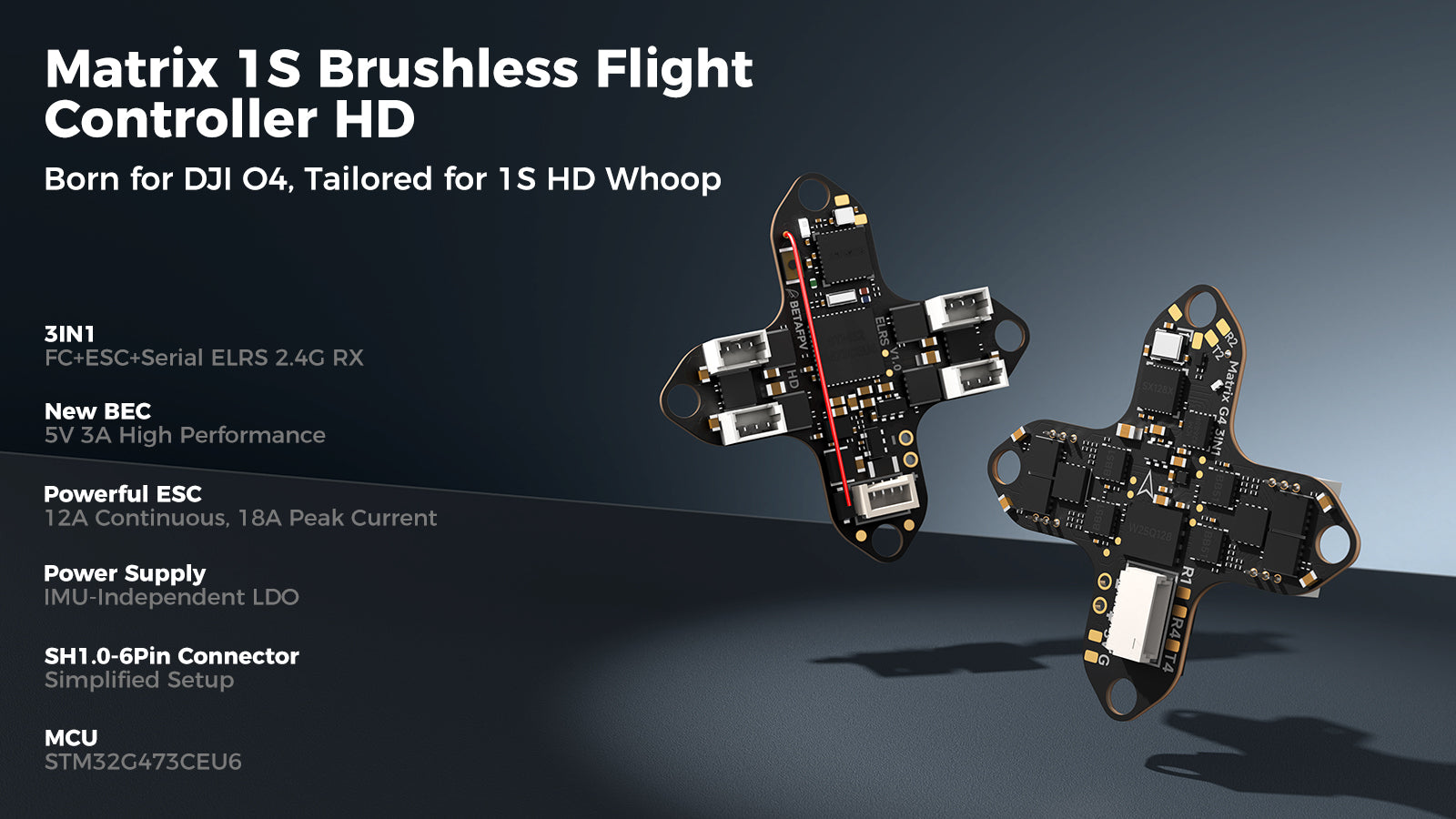

• Matrix 1S 3IN1 HD FC: Combines flight controller, ESC, and Serial ELRS 2.4G RX into a compact board, eliminating analog OSD weight.

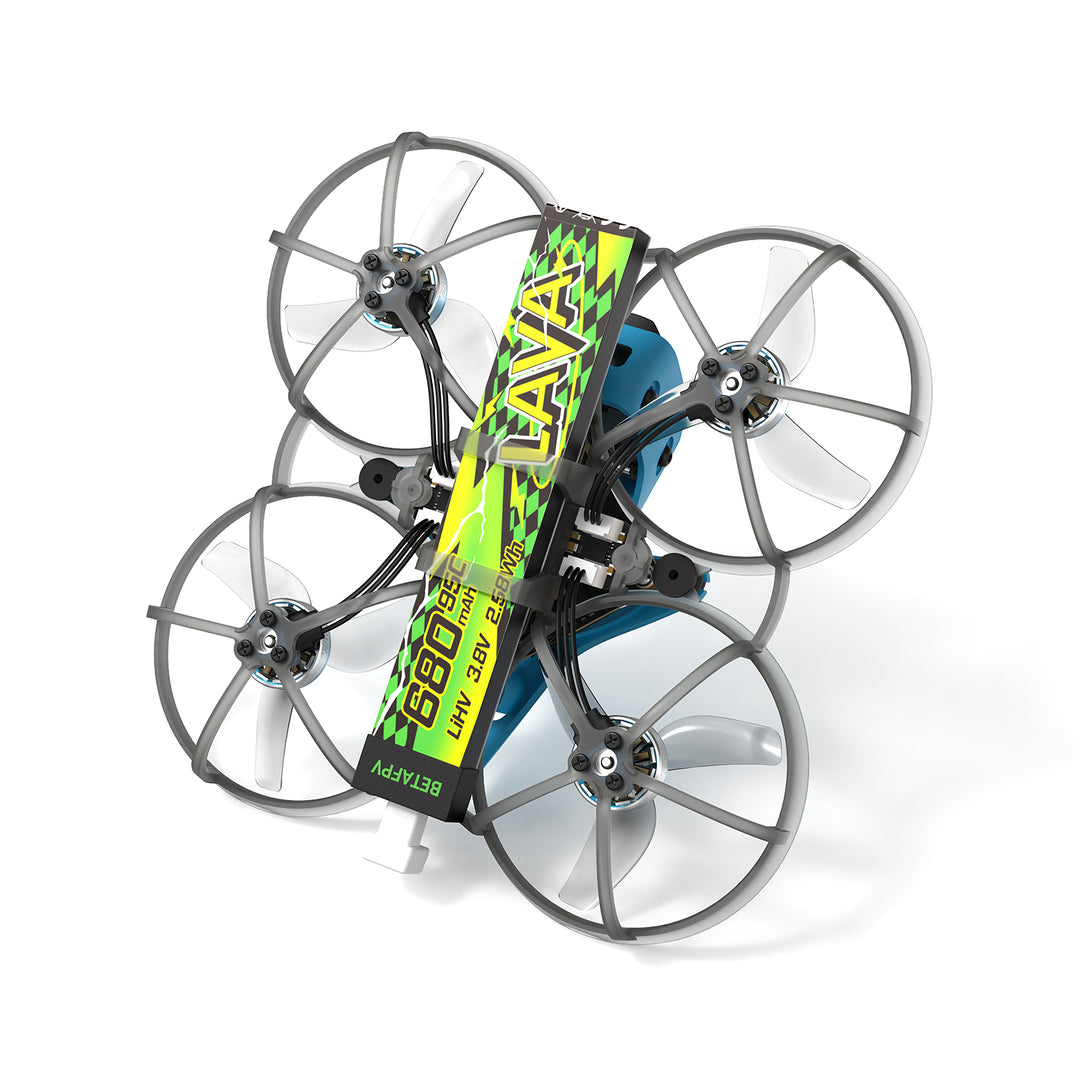

• Up to 6-Min Flight Time: Delivers extended air time when paired with LAVA II 1S 680mAh batteries.

Why You Want It

Flying digital on a micro whoop used to mean accepting a heavy 30-second flight brick that waddled like a wet sponge. The Meteor75 Pro II O4 changes the math completely. Engineered with a lightweight 5.80g frame and customized Canopy II grommet isolation, it tames the sensitive gyro in the DJI O4 Wide camera to deliver butter-smooth HD footage without jello. The integrated Matrix 1S 3IN1 HD FC eliminates useless analog OSD components, saving critical grams so the upgraded 1102 Freestyle motors can fling this quad through tight indoor gaps or outdoor park lines with terrifying agility.

How does the Meteor75 Pro II O4 stack up against the original Meteor75 Pro O4? Take a look at the key upgrades below:

Specifications

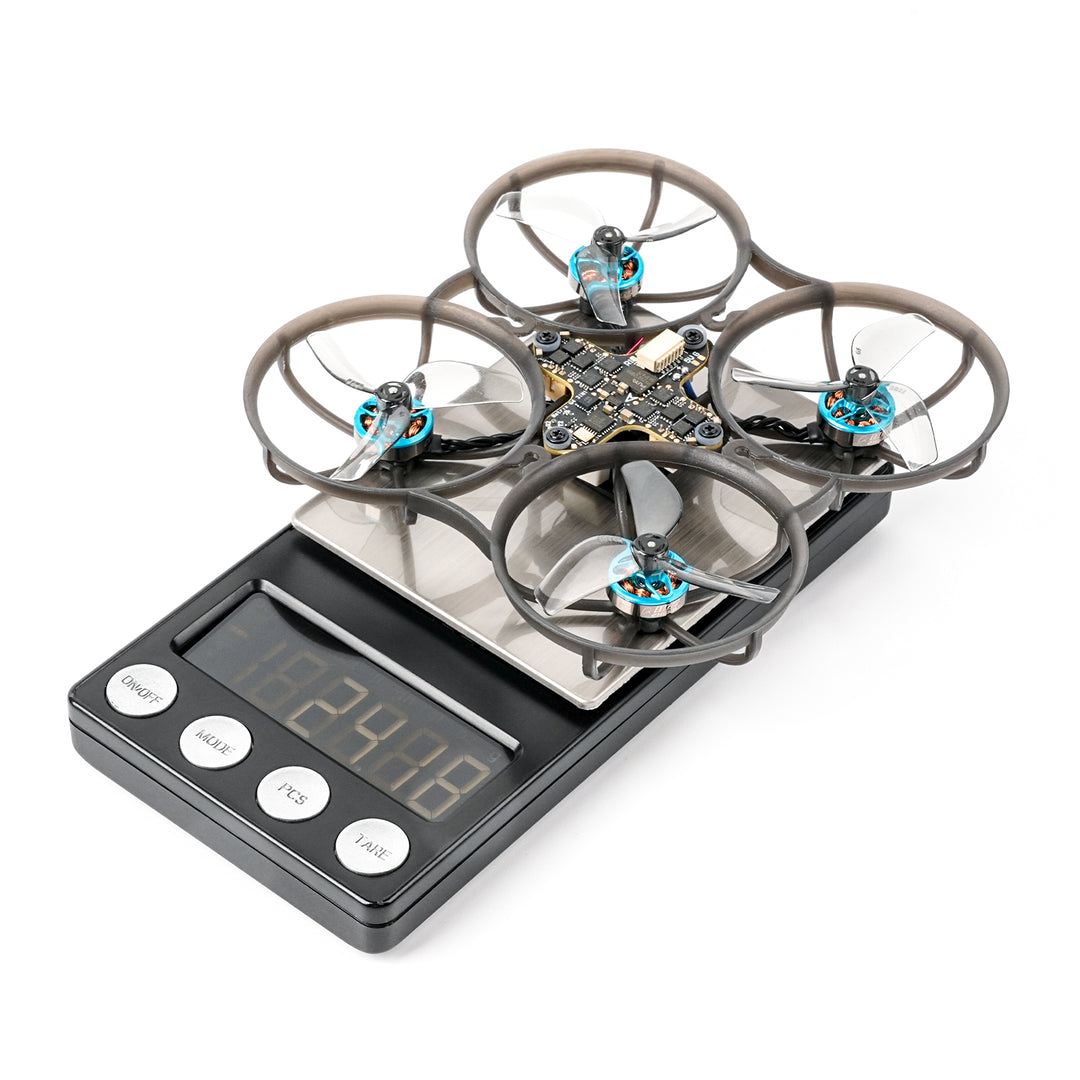

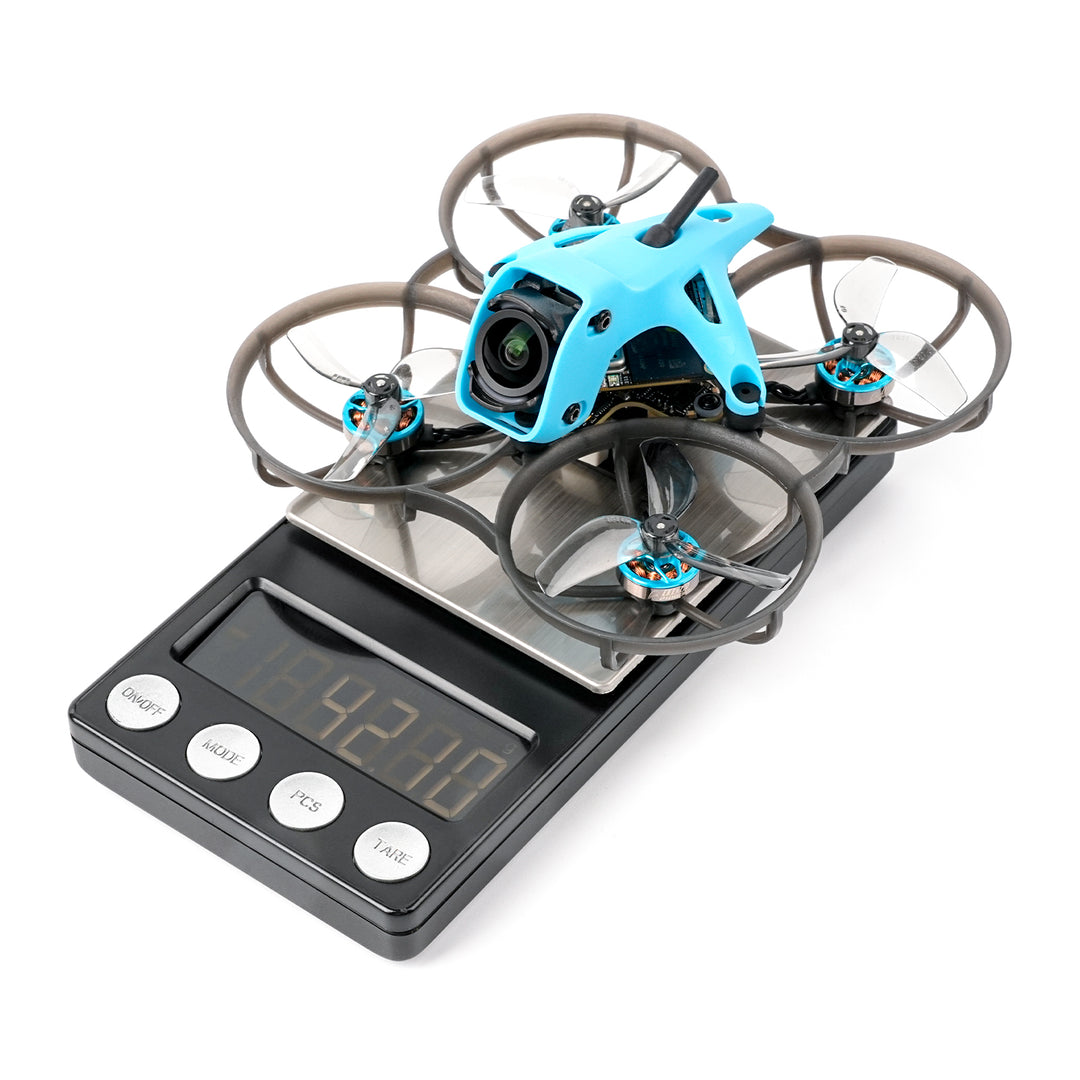

• Weight: 41.50g
• Wheelbase: 80mm
• Frame: Meteor75 Pro II Brushless Whoop Frame
• Canopy: Canopy II for O4 Air Unit
• FC & ESC: Matrix 1S 3IN1 HD FC
• Receiver: Onboard Serial ELRS 2.4G
• VTX & Camera: DJI O4 Wide Air Unit & Camera
• Motors: 1102 Freestyle Motors (2026)
• Propellers: GF 1811 3-Blade Props
• Battery Connector: BT2.0
• Flight Time: 5:00 (LAVA II 1S 580mAh) / 6:00 (LAVA II 1S 680mAh)

FAQ

How does the Meteor75 Pro II O4 compare to the older Meteor75 Pro O4?

The Meteor75 Pro II O4 upgrades to the DJI O4 Wide camera for a broader 159° field of view, features the redesigned Canopy II with superior 4-ball vibration damping, uses upgraded 2026 edition 1102 Freestyle motors, and extends flight times up to 6 minutes on LAVA II 1S 680mAh batteries.

Does the DJI O4 Air Unit get hot during bench setup?

Yes. Digital VTX units generate significant heat when idle without prop wash. We advise setting your VTX to low power while configuring settings in Betaflight, or placing a small USB desk fan over the quad during bench testing.

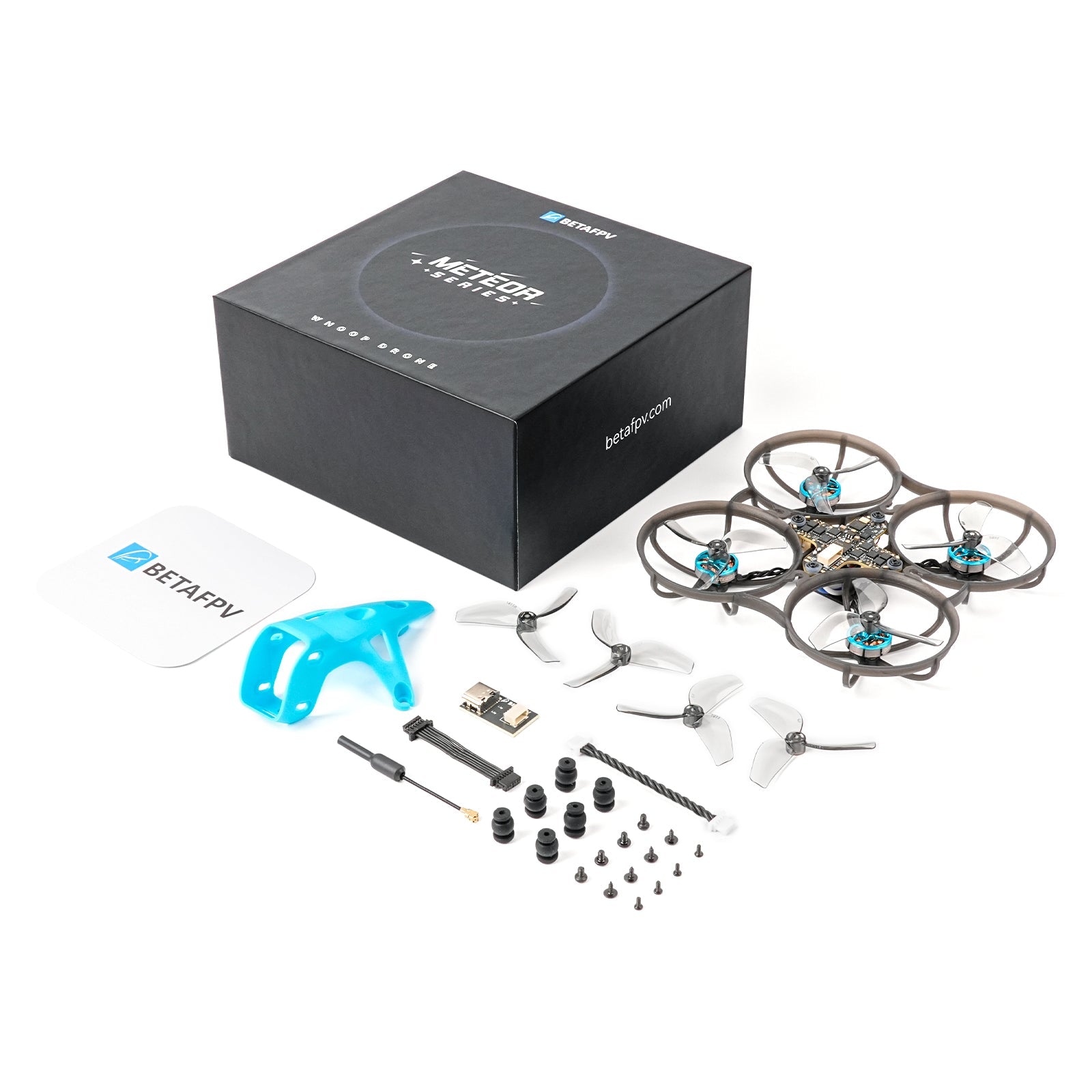

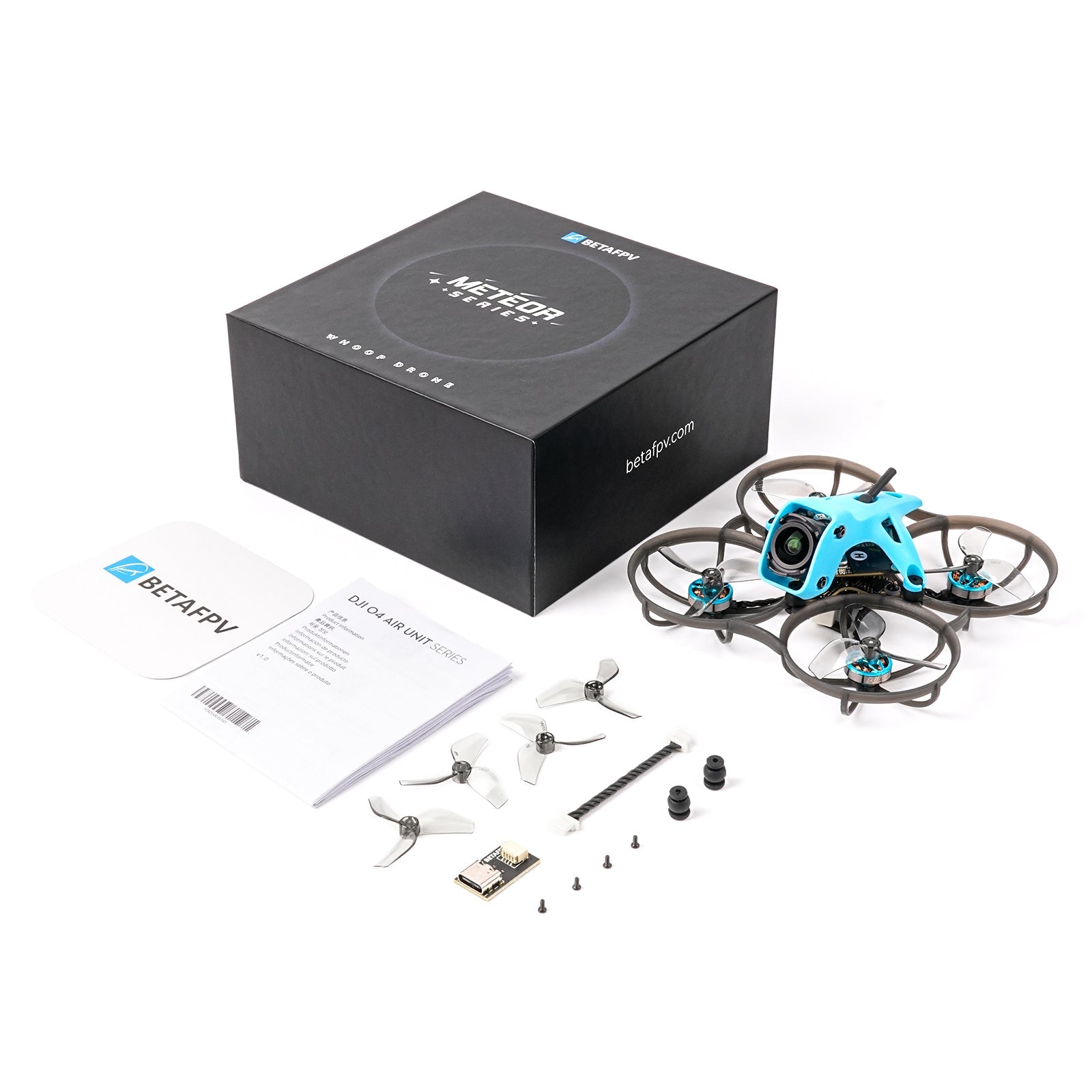

What’s in the Box*

• 1× Meteor75 Pro II O4 Brushless Whoop Quadcopter (DJI O4 Version)
• 4× GF 1811 3-Blade Propellers
• 2× Shock-absorbing Balls for Canopy (8.8mm)
• 1× Type-C to SH1.0 Adapter
• 1× SH1.0-4Pin Adapter Cable
• 4× M1.4*3 Phillips Flat Head Screws
• 1× User Manual for DJI O4 Air Unit

Disclaimer

To guarantee peak factory performance, selected DJI O4 Wide units undergo pre-shipment sampling and testing. If you receive an activated unit, rest assured it has passed quality assurance testing. Batteries sold separately.
