Product Details
Features

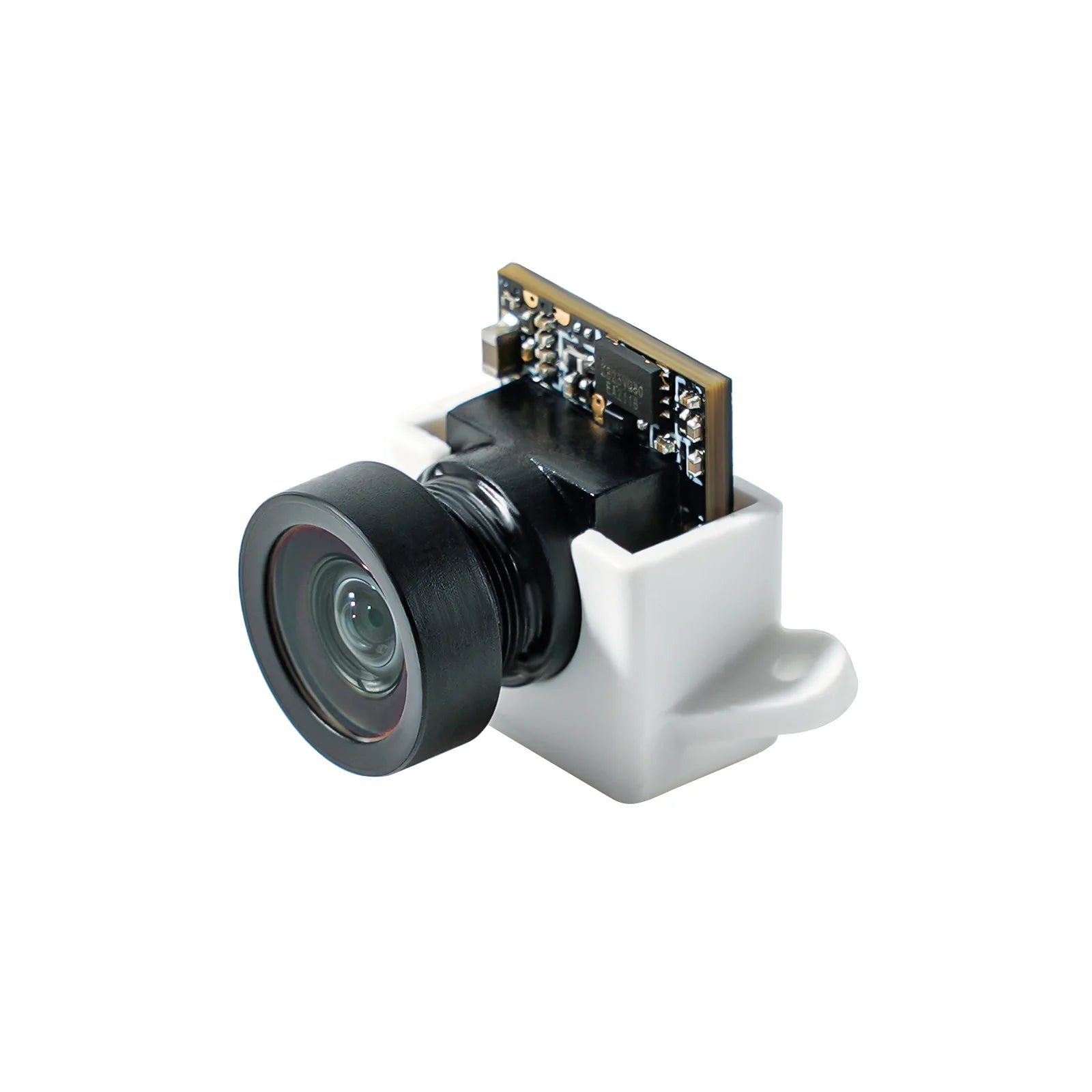

- Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.
- Miniature, and lightweight design, weighing only 1.52g. Completely match with M03 5.8G VTX on micro whoop drone.
- 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image
- Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
- 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.
Plug And Play
The C03 FPV Micro Camera comes with a JST-0.8 connector that allows for easy, plug-and-play installation without the need for soldering. This makes it suitable for use with Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.
Specification
- Item: C03 FPV Micro Camera
- Image Sensor: 1/3" CMOS Sensor
- Horizontal: 1200TVL with Global WDR
- Signal System: NTSC (4:3)
- Lens : 2.1mm(M7) FOV 160°
- S/N Ratio: >50db
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Min. Illumination: 0.01Lux@1.2F
- D-WDR: Auto
- Day/Night: Color
- Power: DC 3-5.5V
- Current: 100mA@5V / 120mA@3.3V
- Housing Material: ABS

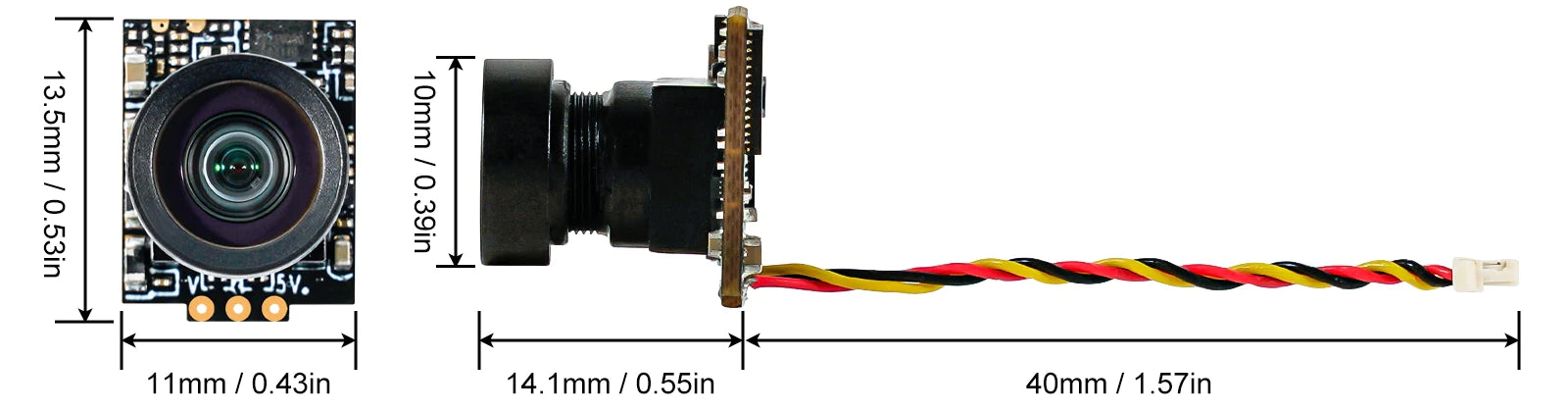

- Dimension: 11*14.1*13.5mm

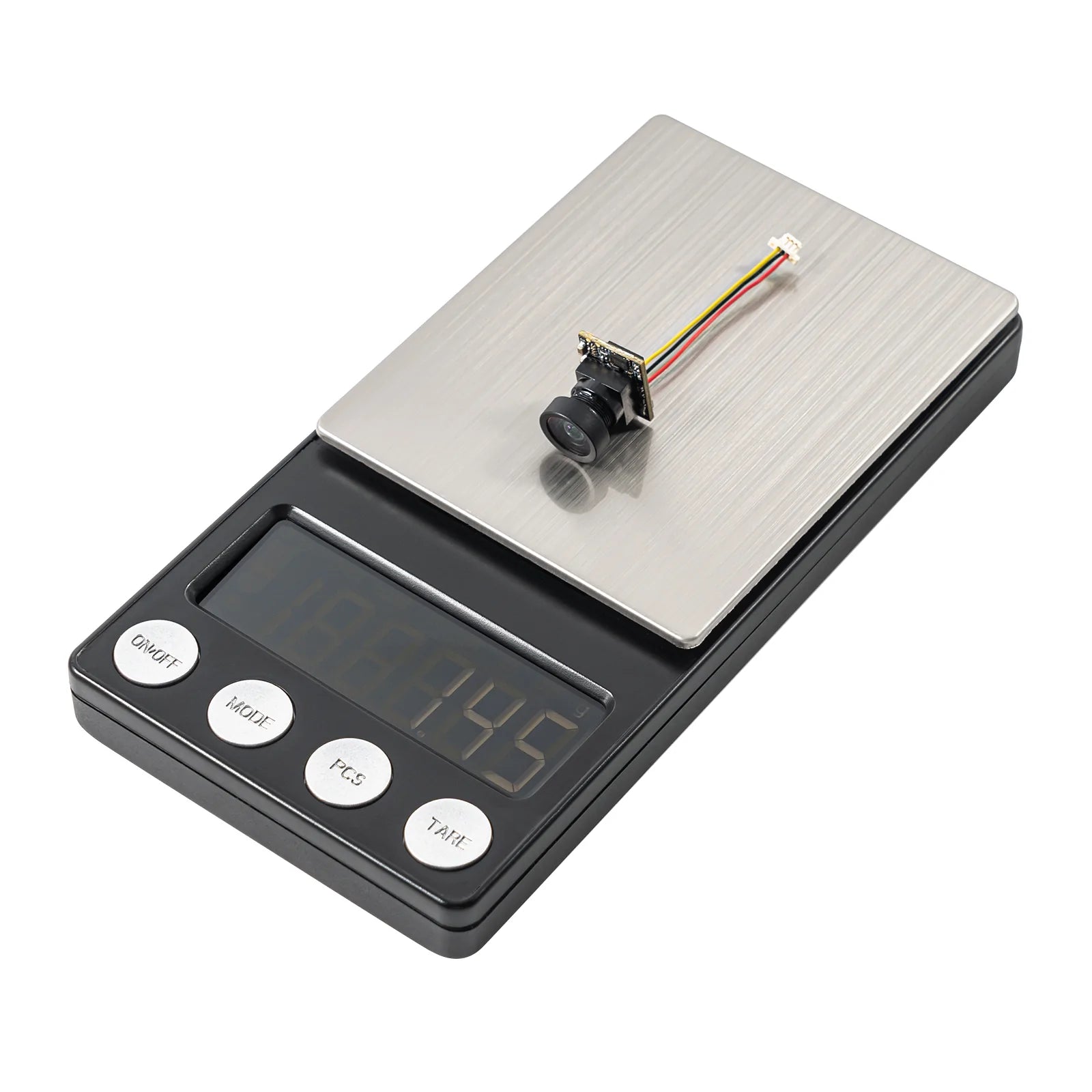

- Net weight: 1.52g

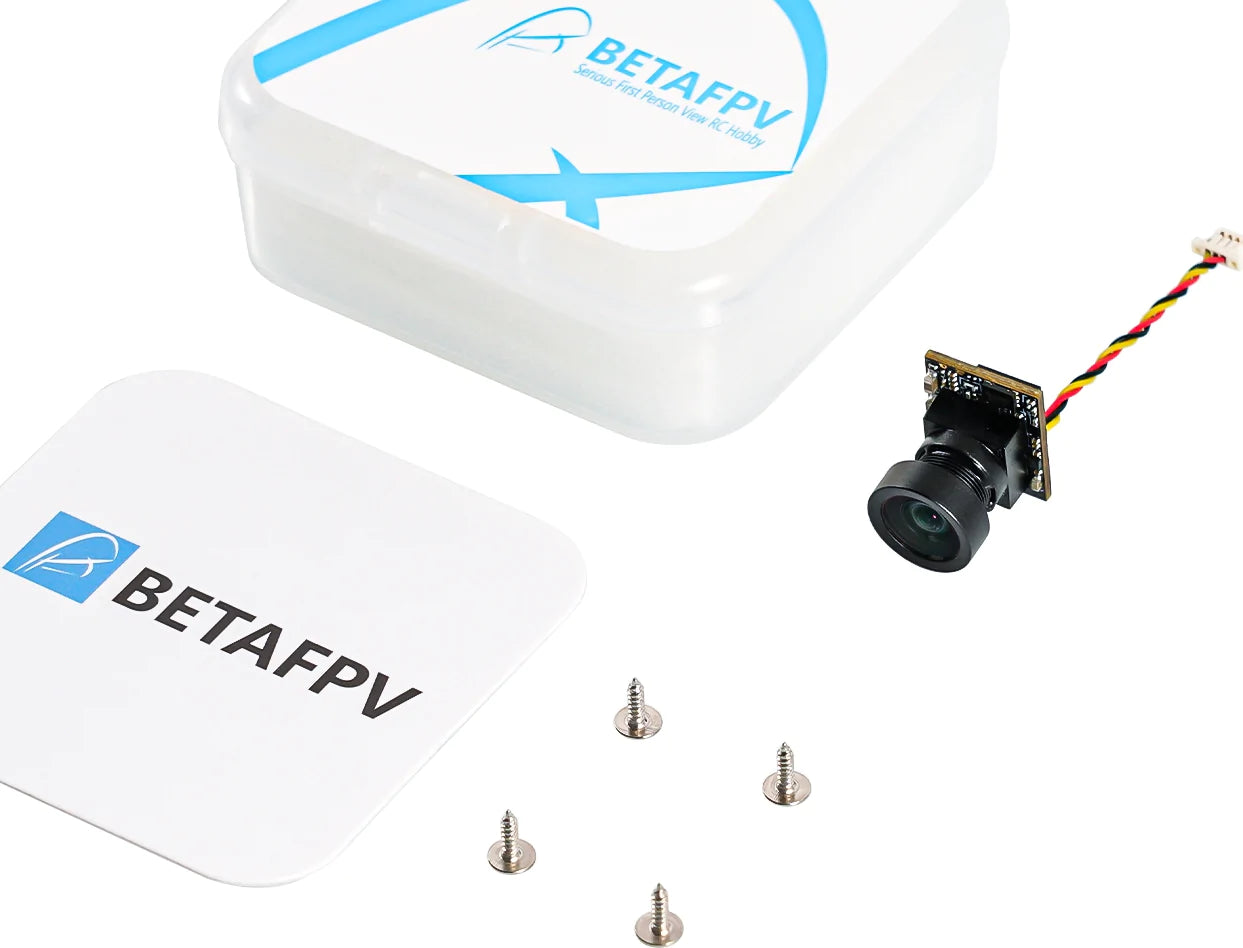

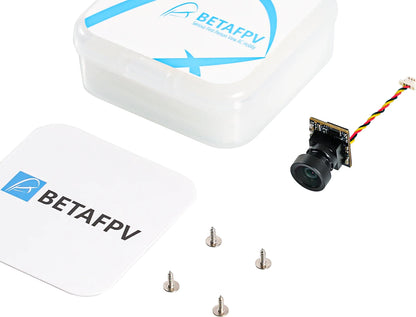

Included
- 1x C03 FPV Micro Camera
- 4x M1.4*5 Screws
