Product Details

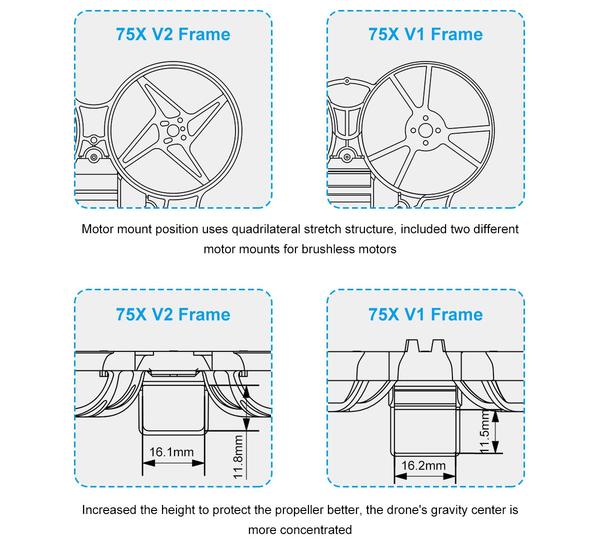

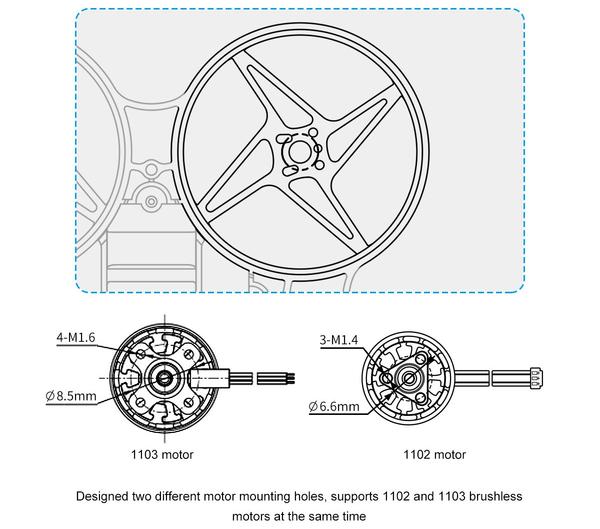

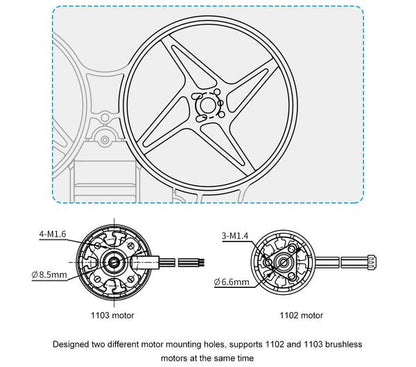

Compared with the Beta75X frame, the Beta75X V2 frame only weighs 5.6g, It is lighter and the gravity center of the V2 frame is more concentrated. Increased the height of the frame loop, props can be completely wrapped by the protective ring. A better choice for a 75mm brushless whoop drone. What's more, the Beta75X V2 Frame is specially designed with two different motor mounting holes that support 1102 and 1103 brushless motors.
Specifications
- Material: Plastic

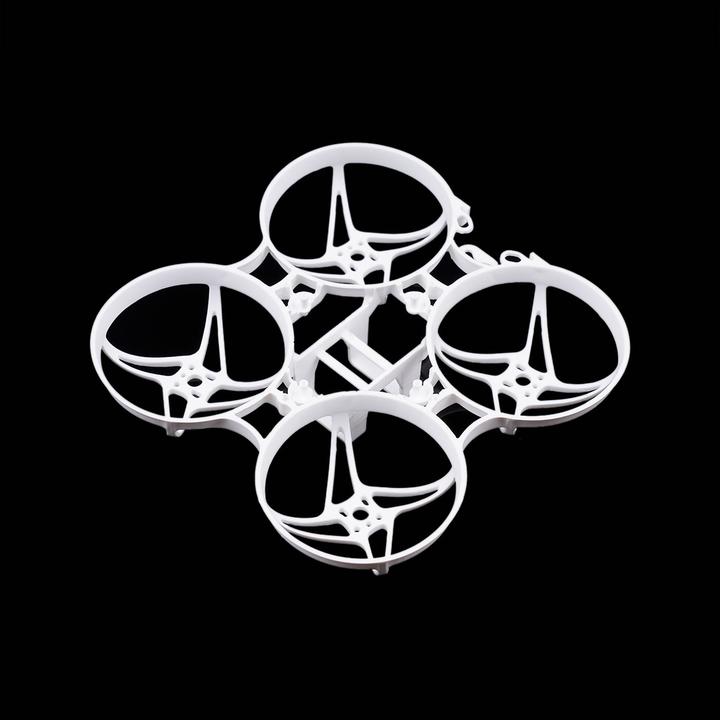

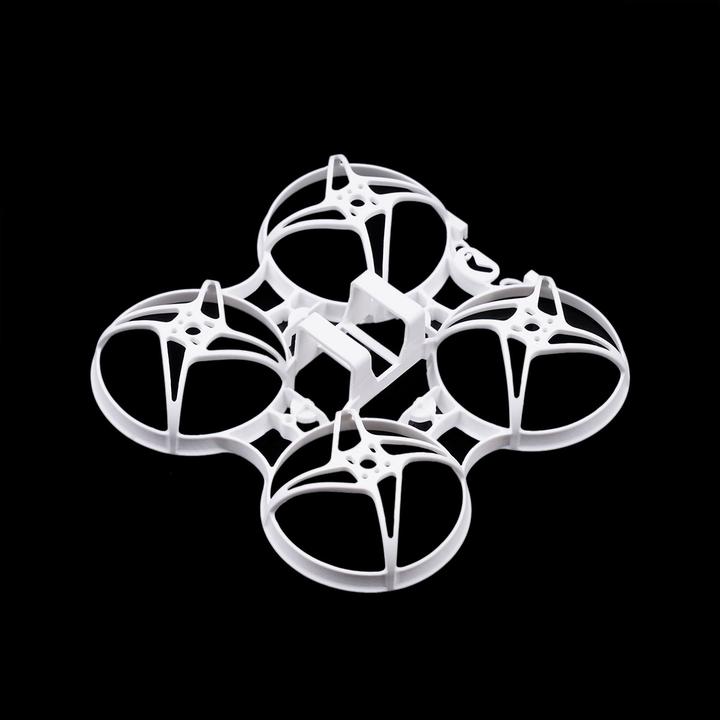

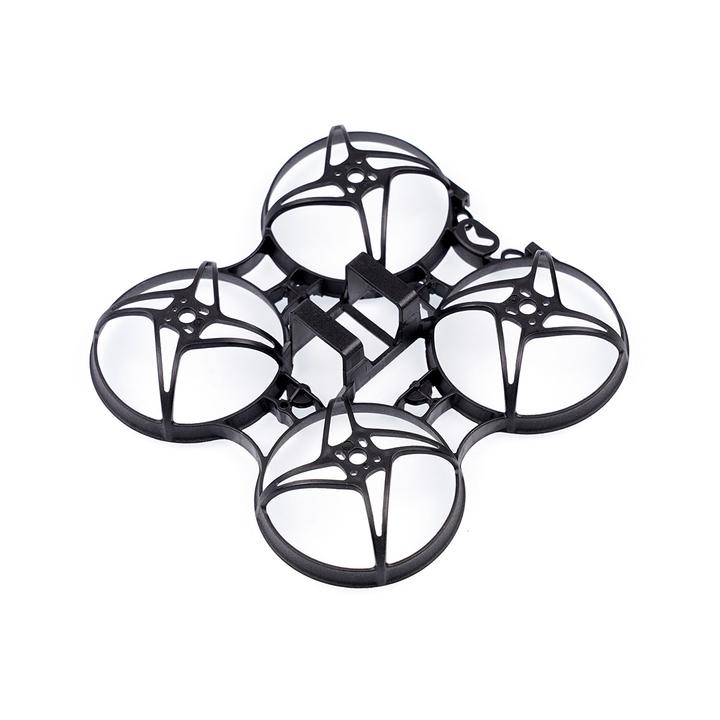

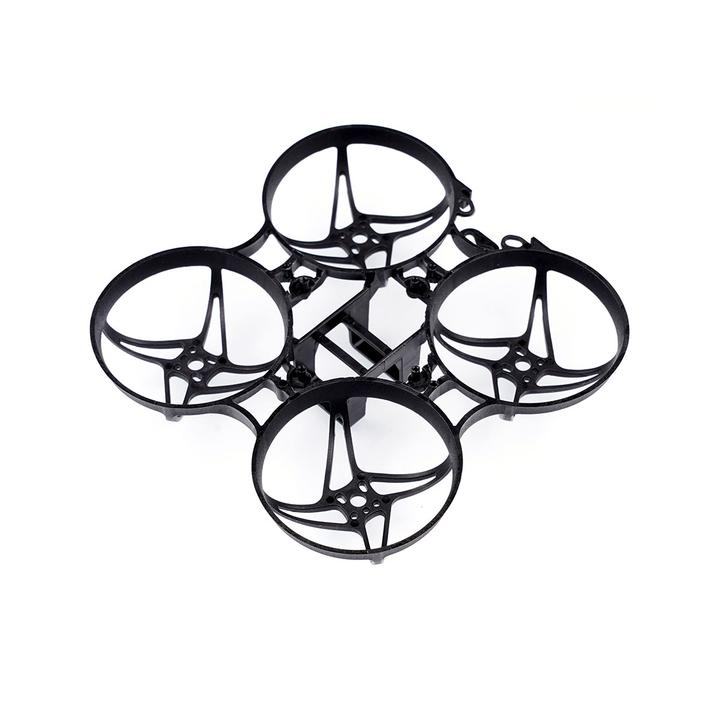

- Color: Black / White

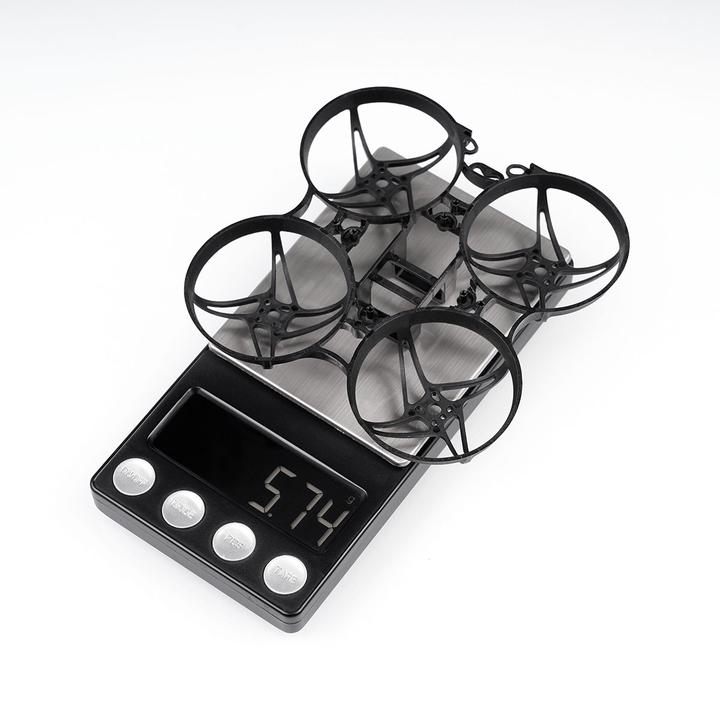

- Weight: 5.6g

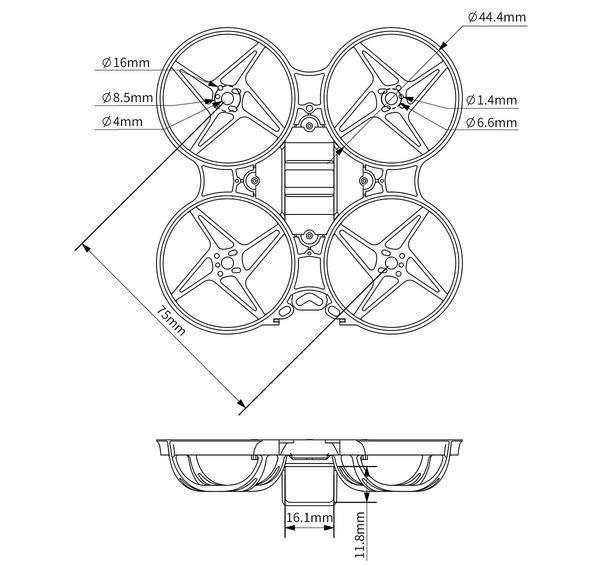

- Diagonal motor to motor distance: 75mm
- Motor mounting hole: for 110x series motors
- FC mounting hole: 26mm x 26mm, fully compatible with whoop style FC board mounting pattern
- Battery slot size: 6.8x16.1mm
RECOMMENDED PARTS
- Propellers: 40mm 4-blade props (1.5mm shaft hole)
- Motors: 110x brushless motors, like 1103 11000KV motors
- Battery: 3S 300mAh Battery / 2S 300mAh Battery
- FC & ESC: F4 1~2S AIO Brushless FC, F4 AIO 12A FC
Includes
- Beta75X V2 Whoop Frame for 75mm 3S whoop drone
