Product Details

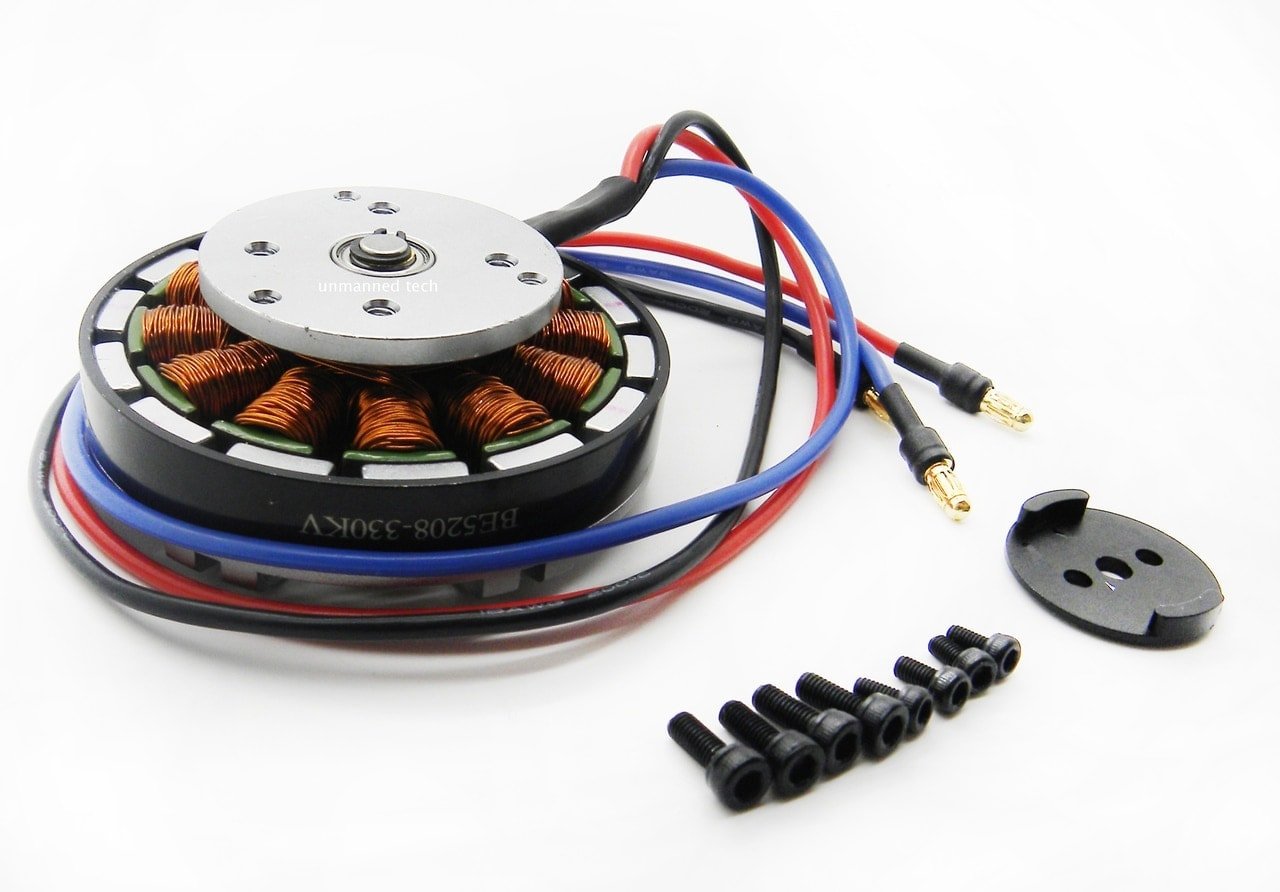

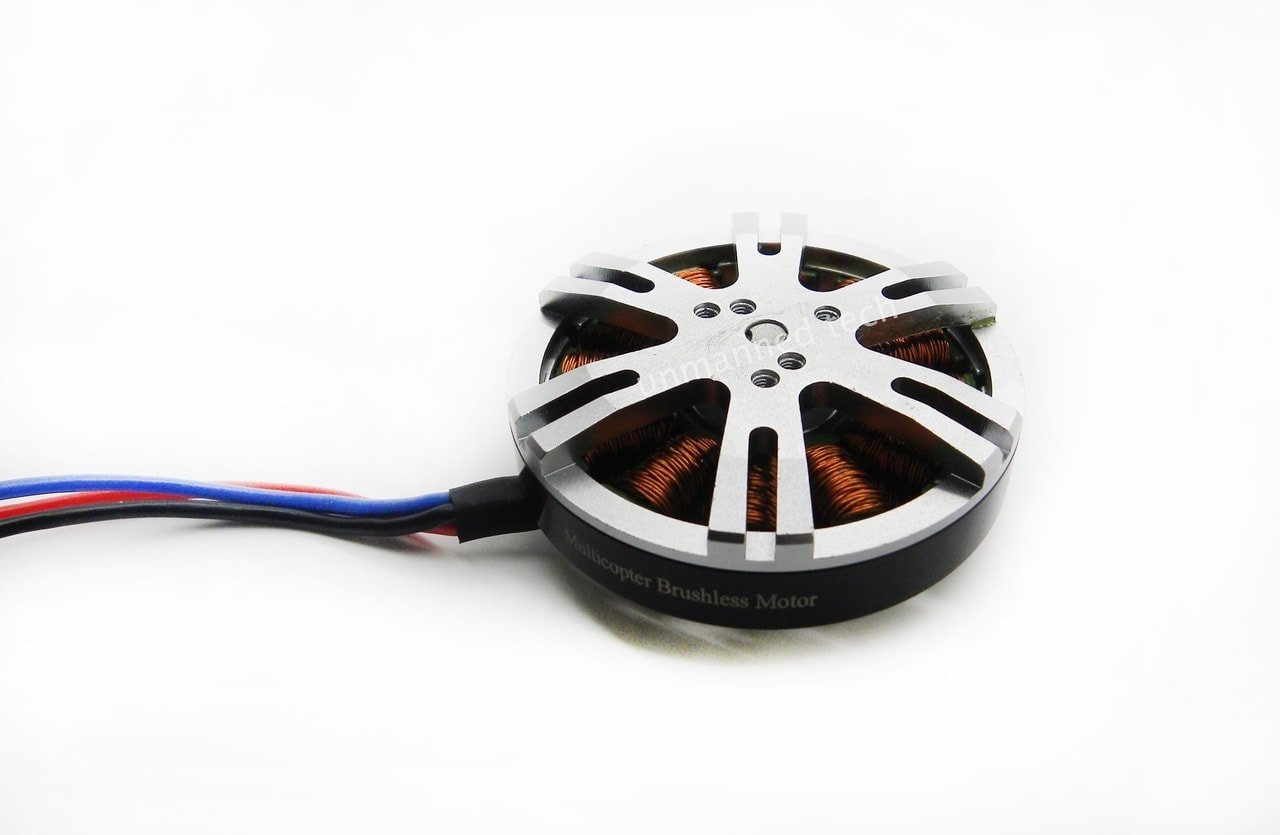

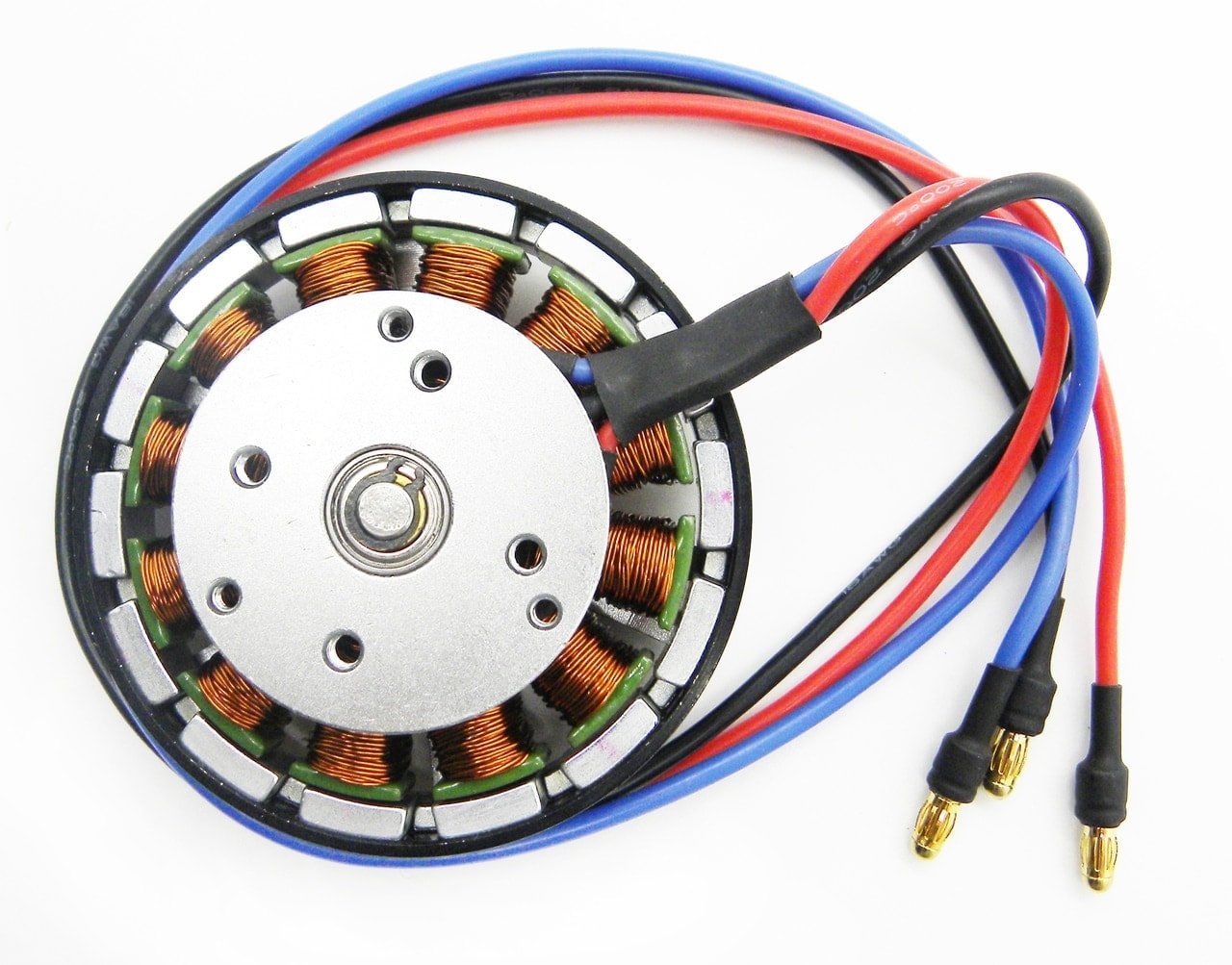

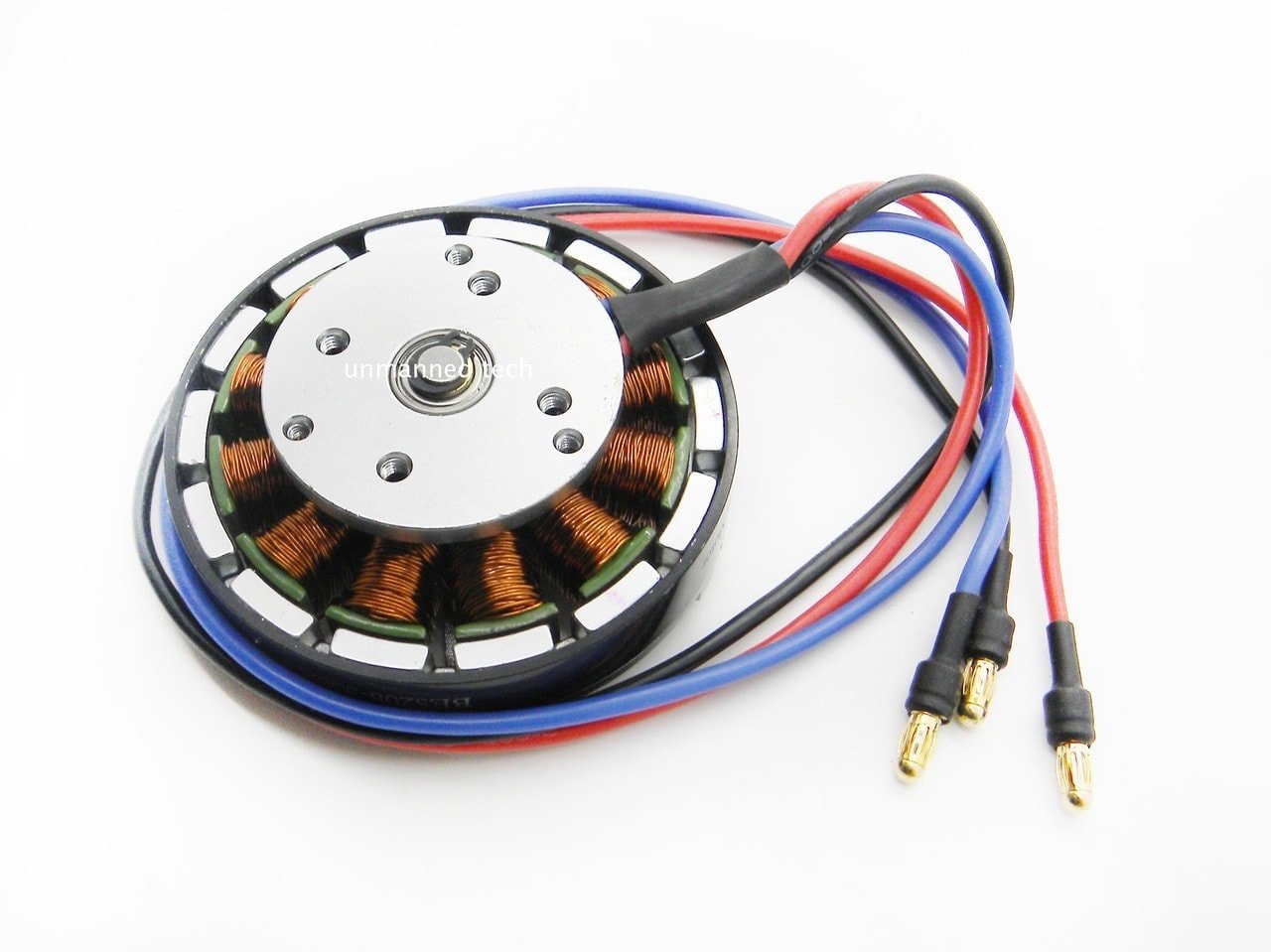

This is the BE5208 330Kv motor for multirotors from DYS that is part of the BE series. These motors are made using the highest quality materials including rare earth magnets from Kawasaki. These are 40UH high temperature magnets made from 1200 0.2mm silicon steel to give you maximum efficiency.
Japanese NSK pure imported bearings are used in these motors to reduce motor vibration and they are compatible with most commercially available ESCs. This vibration reduction results in a more stable aircraft, less operating noise, increased efficiency and increased longevity for the bearings.
Specifications:
- KV: 330
- Configuration: NP
- Stator Diameter: 52mm
- Stator Length: 8mm
- Shaft Diameter: 5.0mm

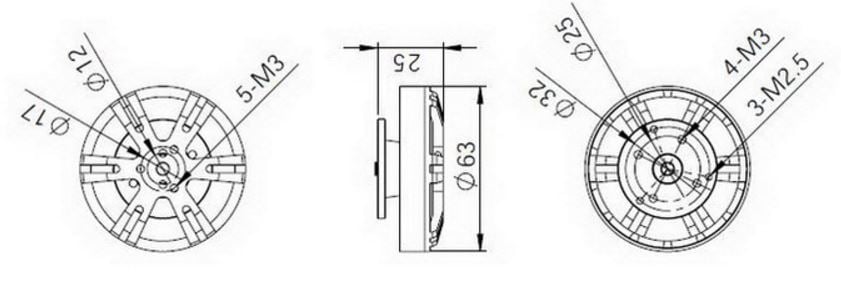

- Motor Dimensions (Dia.*Len): 63x30mm
- Weight (g): 200
- No. of Cells (Lipo): 3-6S
- Max Continuous current(A): 28.2
- Max Continuous Power(W): 626
- Internal resistance: 0.106Ω

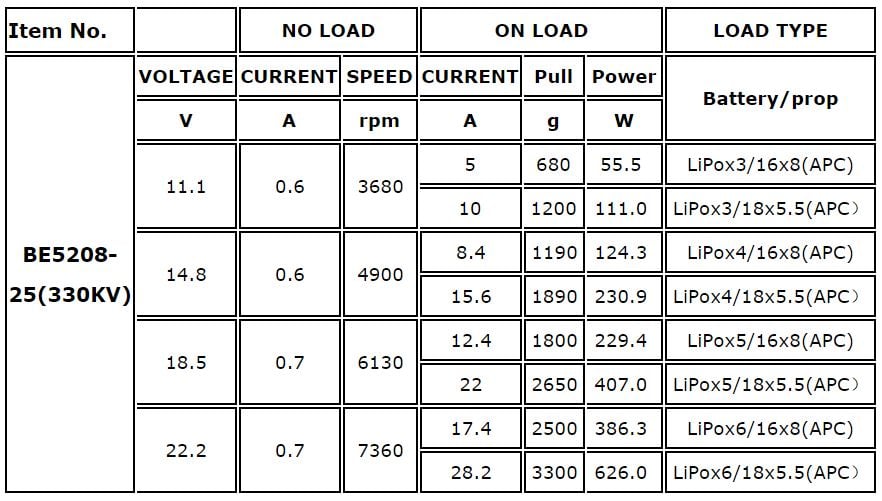

Thrust Table:
