BAYCK ELRS 2.4GHz Nano Receiver - Ultra-Lightweight ExpressLRS Receiver for FPV Drones
Looking to shave grams without sacrificing range? The BAYCK ELRS 2.4GHz Nano Receiver delivers reliable long-range control in an ultra-compact package. Designed for FPV pilots who fly micros, toothpicks, or just want to pretend they're rocket scientists, this nano receiver runs ExpressLRS firmware , offering a robust 2.4GHz link with the kind of performance that keeps quads in the sky and out of trees.
Built around the SX1281+ESP8285 chip , this receiver is small, smart, and ready to bind. With 100mW output power , a featherlight 0.4g weight (antenna not included), and firmware based on BETAFPV Nano 2400 RX 2.2.0 , it's made to play nice with most modern ELRS transmitters.
Key Features:
- Model: ELRS 2.4G Nano Receiver
- Frequency: 2.4GHz (ExpressLRS-compatible)

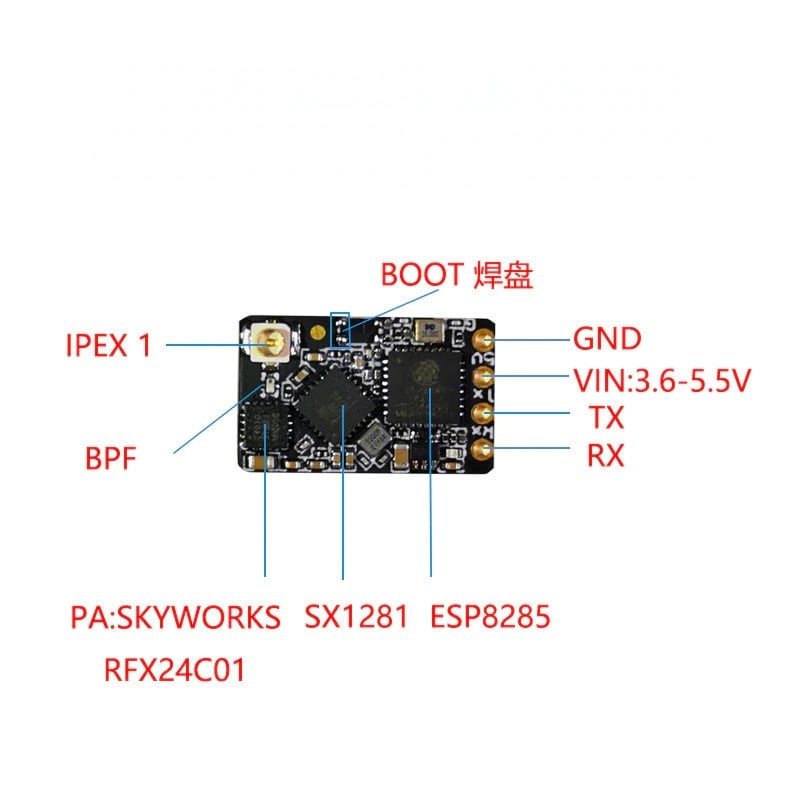

- Chipset: SX1281 + ESP8285
- Firmware Version: BETAFPV Nano 2400 RX 2.2.0
- Output Power: 100mW
- Input Voltage: 3.6V - 5.5V
- Antenna Connector: IPEX1

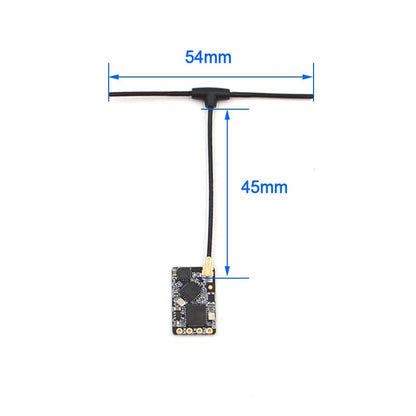

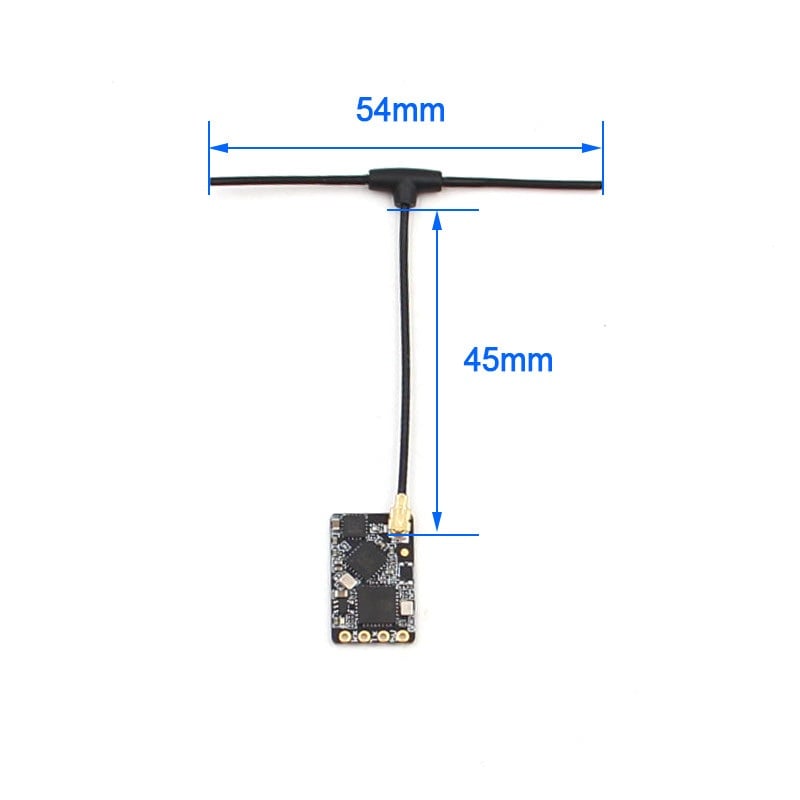

- Antenna Type: T-shaped
- Color: Tactical black (because black = faster)

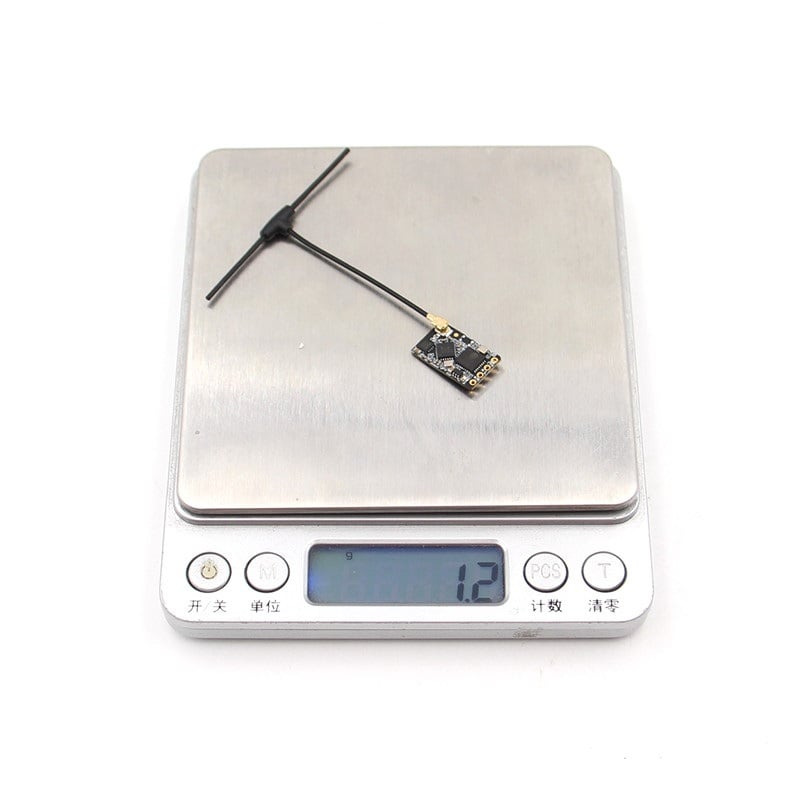

- Weight: 0.4g (without antenna)

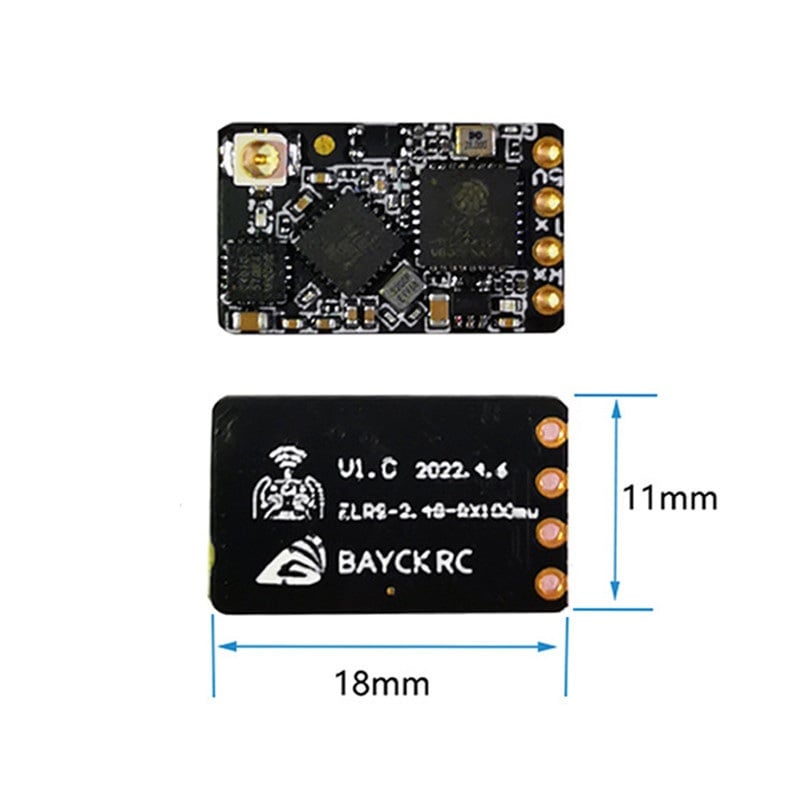

- Dimensions: 11mm x 18mm

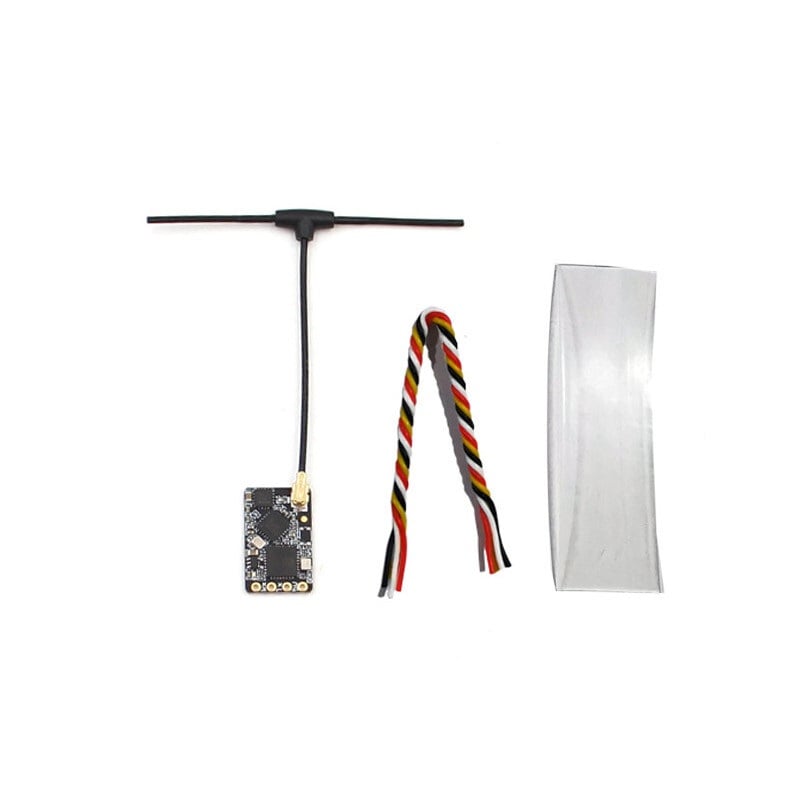

What's in the Box:
- 1x BAYCK ExpressLRS 2.4GHz Nano Receiver
- 1x T-pod Antenna
- 1x Heat Shrink
- 4x 30AWG Silicon Darts (for wiring, not dueling)
⚠️ Note: Accessories may vary depending on supply and the whims of the warehouse gremlins.
