Product Details
🚀 Fed up with bulky, unreliable controllers that make your drone feel like a lumpy potato in flight? We've been there, cried those tears.
🎯 The drone world deserves better! Every FPV pilot needs a flight controller that not only understands their drone's vibe but also enhances it. And wouldn't it be even better if setting it up didn't require a degree in rocket science?
💡 Enter the ATOMRC F405 NAVI Fixed Wing Flight Controller! Designed for the modern FPV pilot, this bad boy packs an unmatched blend of power, intelligence, and...wait for it...sass! Your flights will never be the same, and neither will your bragging rights.
🔥 HIGHLIGHTS:
- Super-Brain MCU : STM32F405RGT6, 168MHz with a whopping 1MB Flash.
- Top-Tier Navigation : Compatible with Ardupilot and Inav.
- Sleek & Compact Design : Weighs just 21g! (Your drone's thanking you already.)
- Powerhouse : Support for 2~6S LiPo and includes a 120A Current Sensor.
- Generous Connectivity : With 5x UARTs, 8x PWM outputs, and more!
Specifications
• MCU: STM32F405RGT6, 168MHz , 1MB Flash
• IMU: BMI270
• Baro: SPL06-001
• OSD: AT7456E
• Blackbox: SD card Slot
• 5x UARTs,
• 8x PWM outputs
• 1x I2C
• 3x ADC (VBAT, Current, RSSI)
• External Type-C port and Buzzer
• Inverter on UART2-RX for SBUS

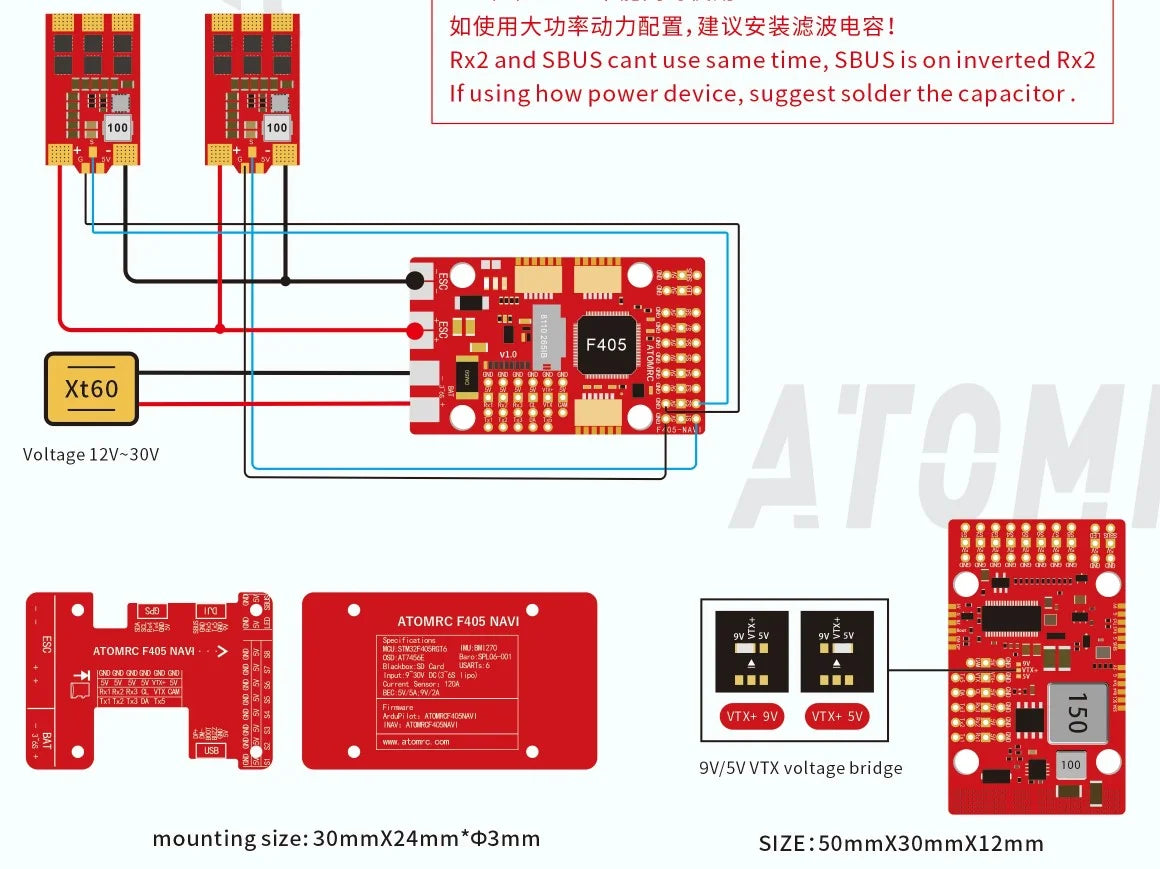

Power
• 6~30V DC IN (2~6S LiPo)
• 120A Current Sensor
• BEC 5V 5A for servos
• 9V 2A BEC for VTX and camera
• FC Firmware
• ArduPilot:
ATOMRC F405NAVI
• INAV:
ATOMRC F405NAVI (INAV 5.0 or newer)

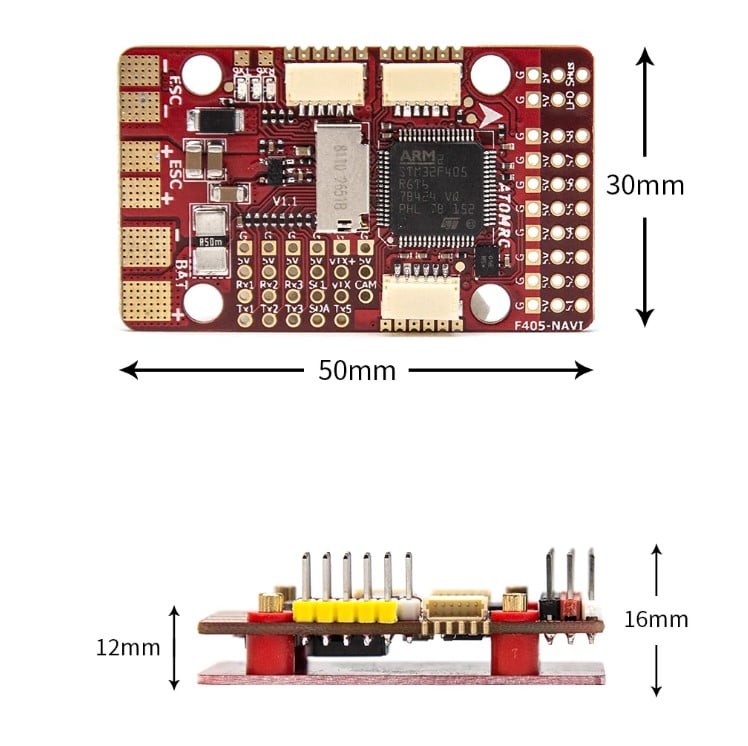

Physical
• Dimensions: 30 *50*12mm
• Mounting: 30*24mm, Φ3m
• Weight: 21g

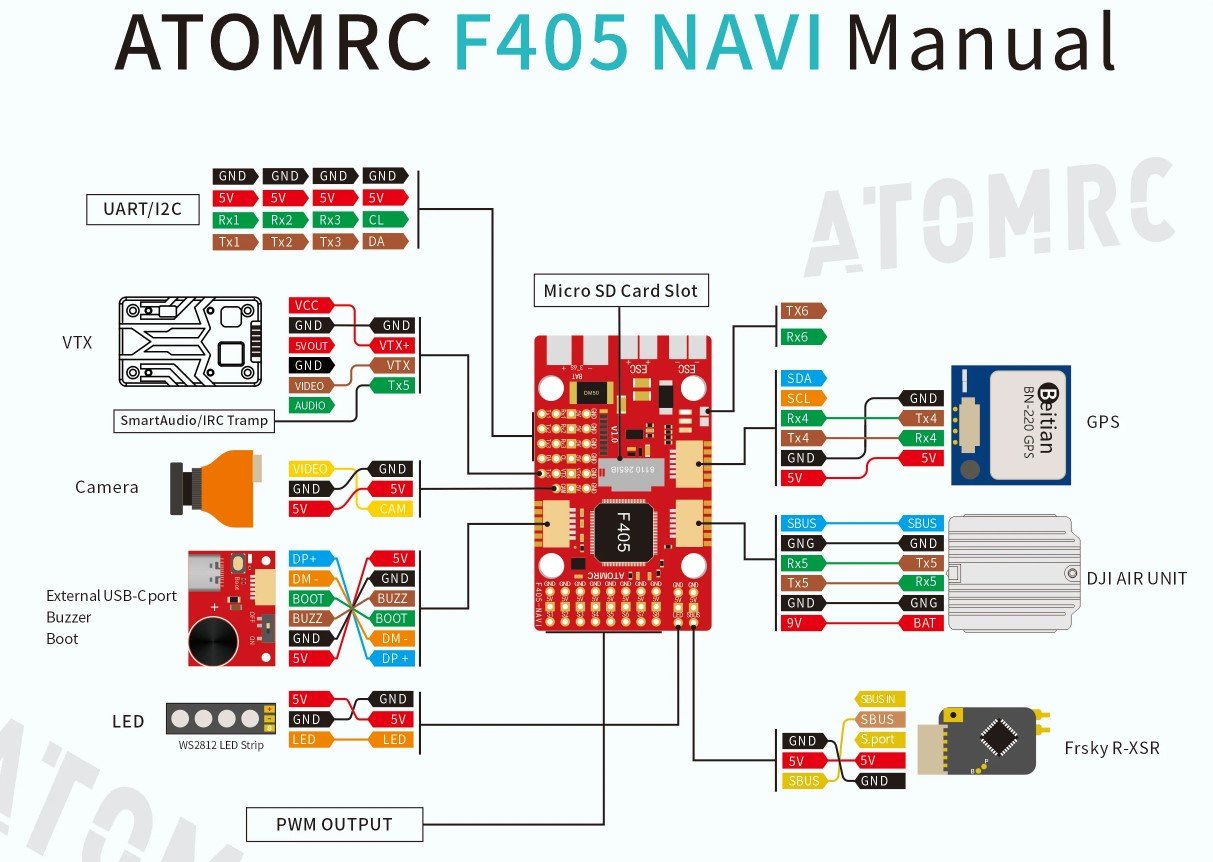

Pinout Wiring Diagram

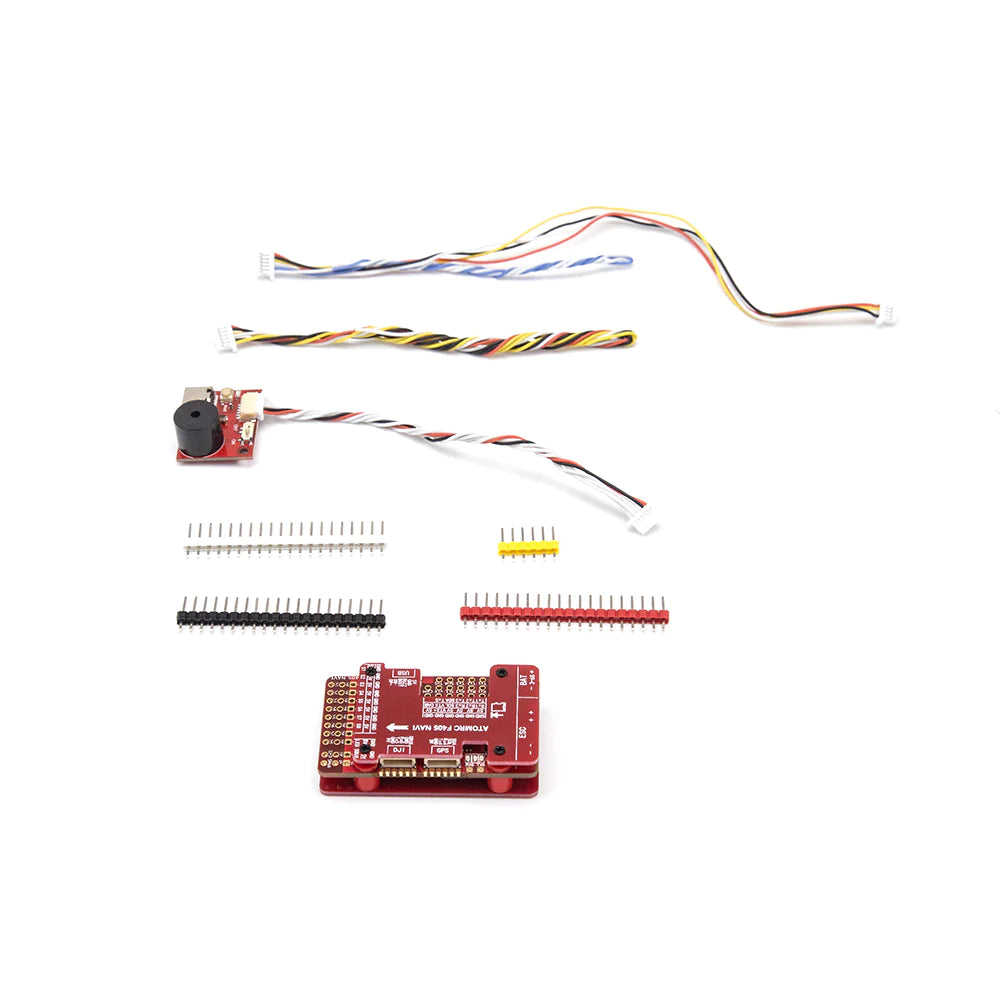

Included
• 1x F405NAVI
• 1x external USB(Type-C)/buzzer board + 12cm JST-SH-6P to JST-SH-6P cable
• 20cm JST-SH-6P cable* for GPS/ DJI air unit
• 35V 470uf Capacitor
Looking for unparalleled flight control? A touch of elegance? A smidgeon of swagger? The ATOMRC F405 NAVI has you covered. Perfect for those who love to soar, swoop, and occasionally show off!
