Product Details

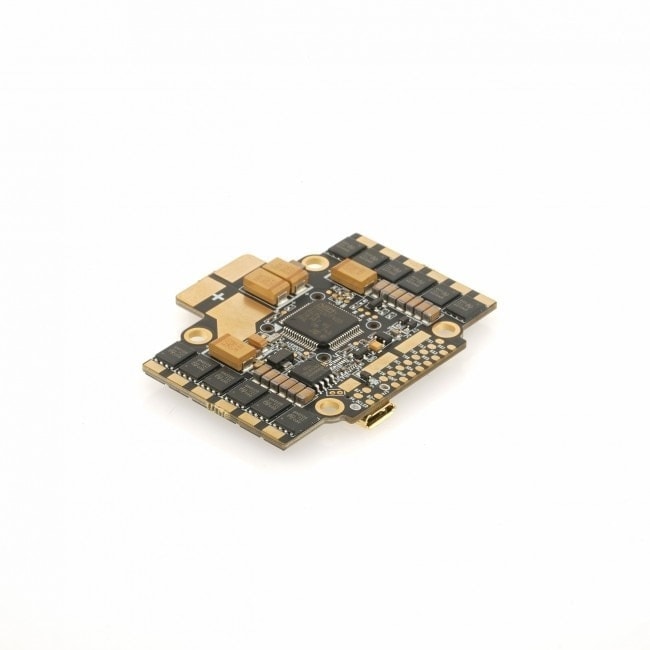

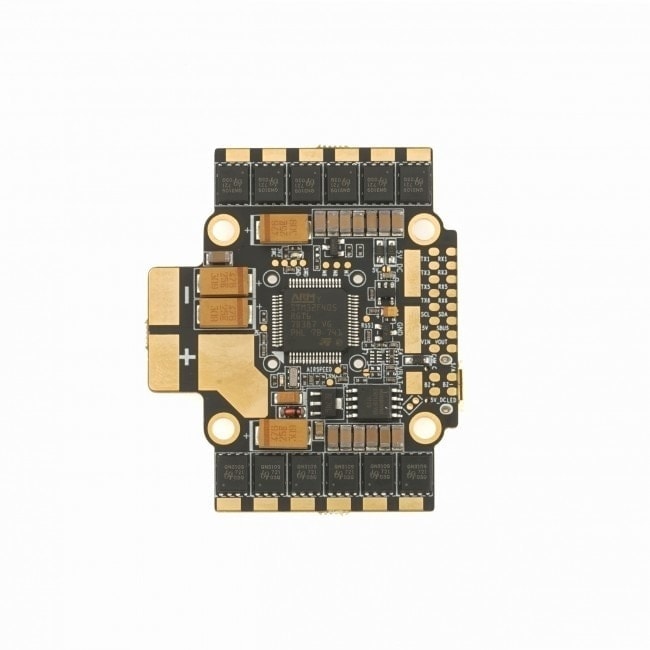

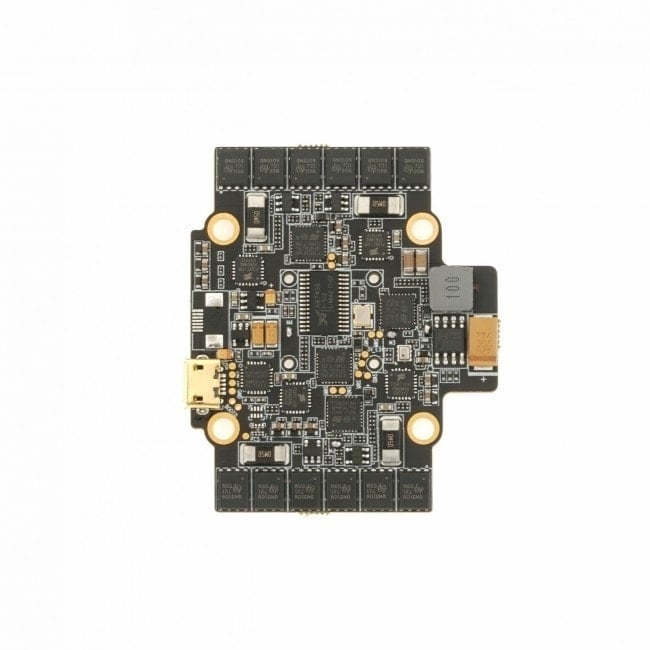

The Asgard series from Airbot takes it to the next level with its all in one integrated design. This Asgard32 F7 is no different. This FC combines a fully features F7 beta-flight controller and a 4x blheli32 ESC (including telemetry) into a single PCB.
Key Features
- STM32 F722 MCU , Runs Betaflight firmware(supported from v3.2)
- MPU6000 Over SPI Bus
- 30.5x30.5mm Mounting holes
- Supports Lipo direct plugin (3-4S)
- Supports 5V 1A BEC output(Buck), Max 2A
- STM32 controls OSD chip over SPI in DMA mode(Betaflight OSD)
- Incl. Baro BMP280
- 4x BLHELI32 45A ESC onboard
- 6x UARTs
Kit Contents
- 1x Asgard32 F7 AIO Flight Controller
