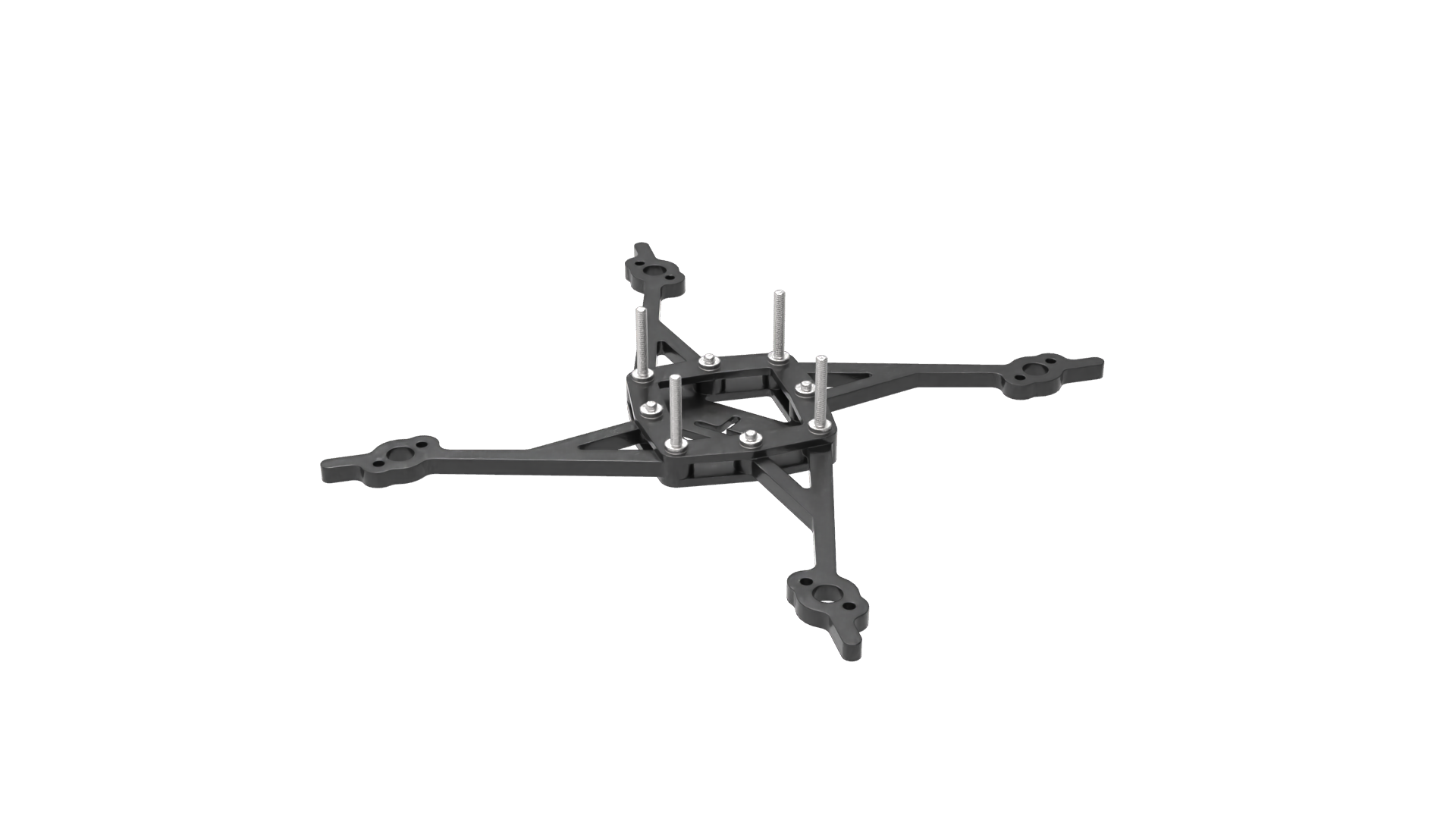

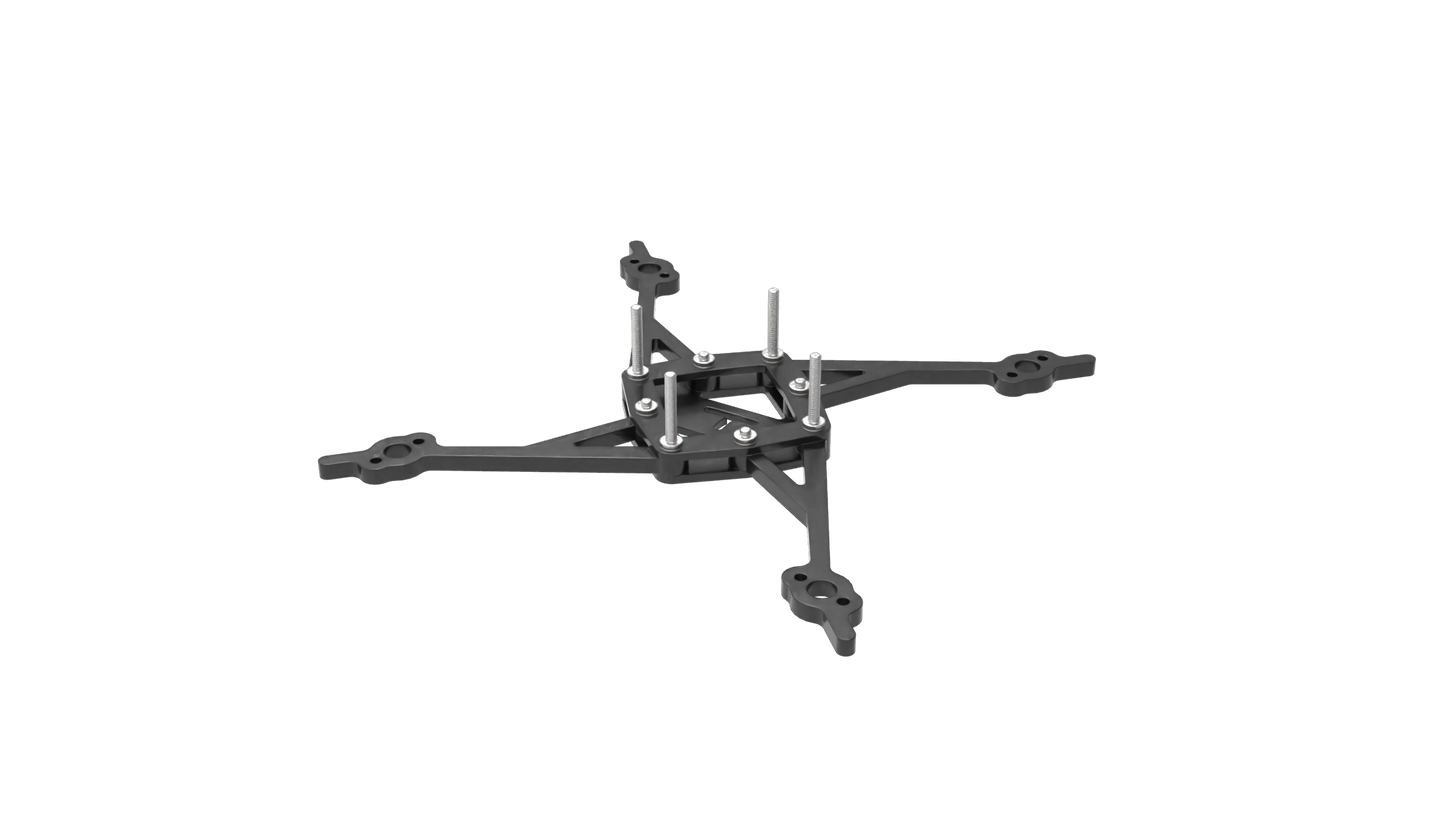

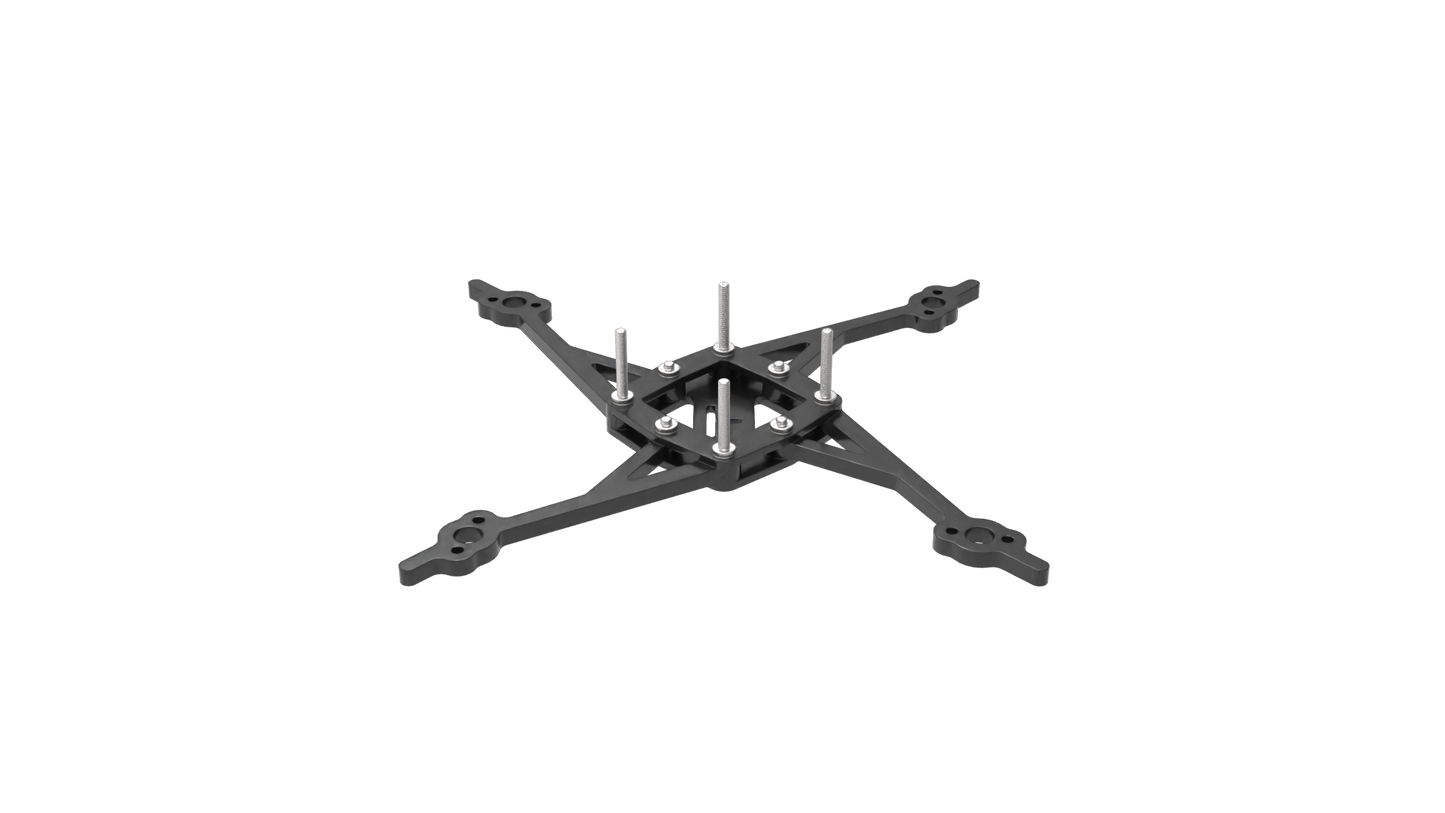

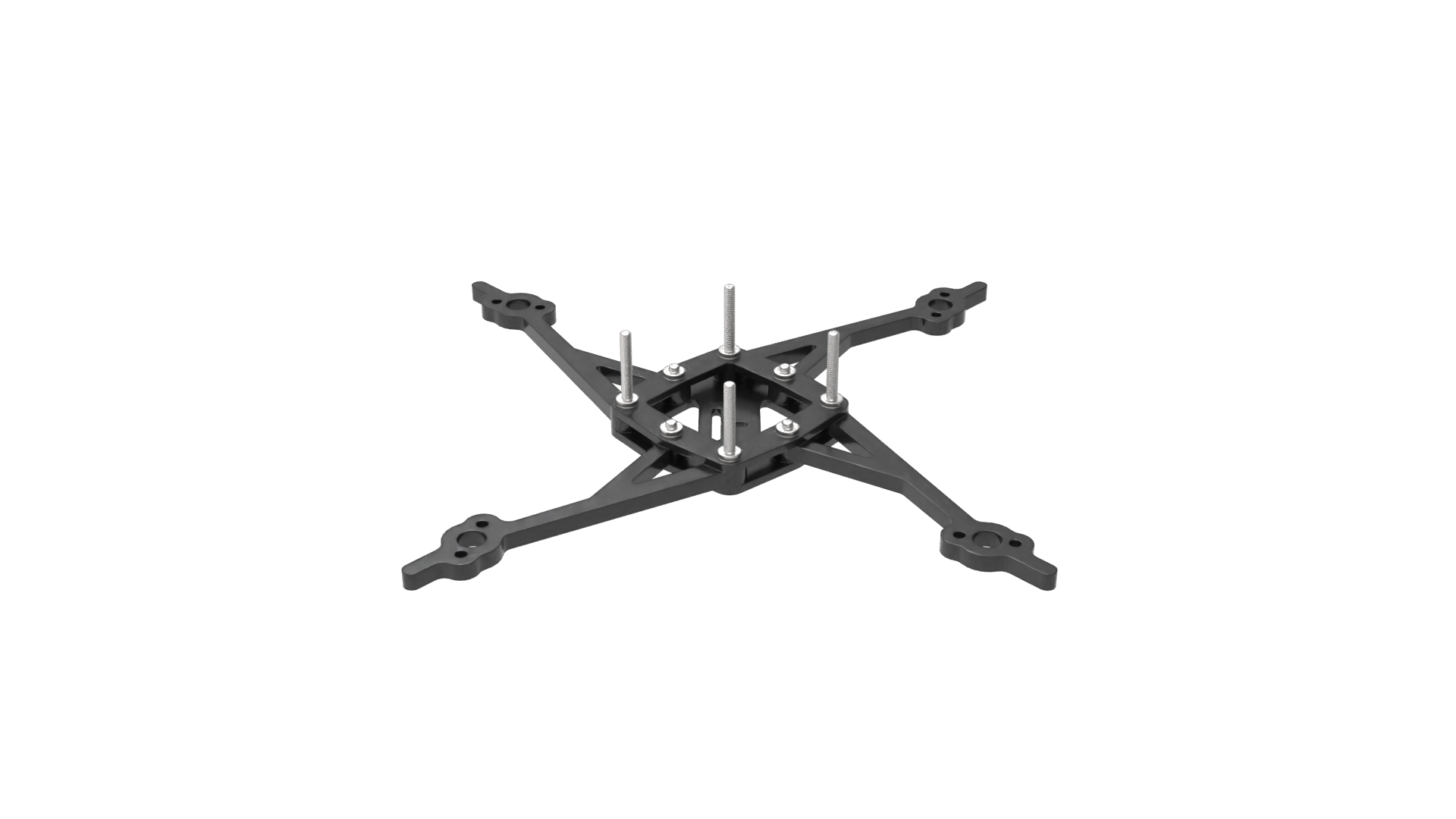

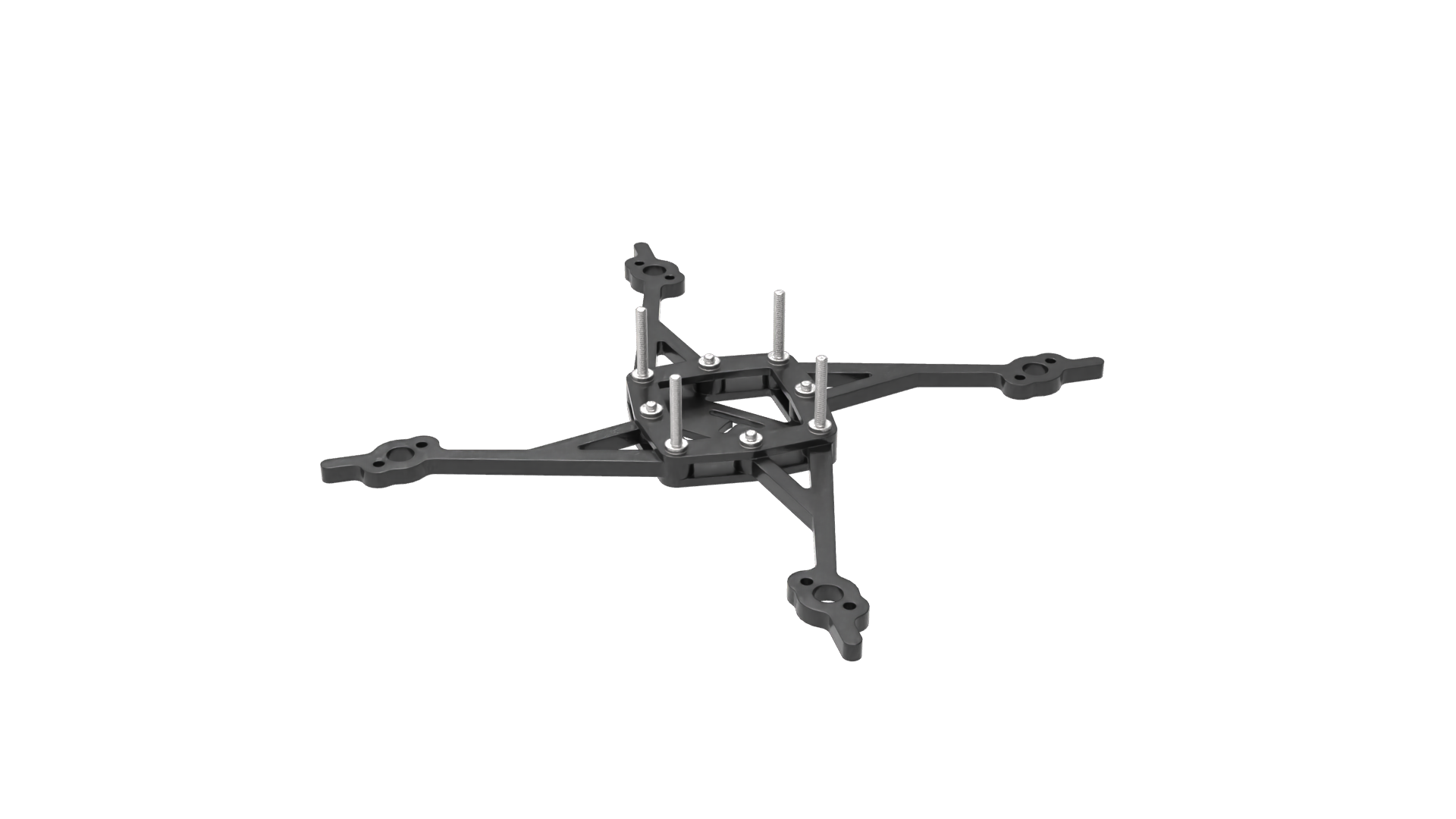

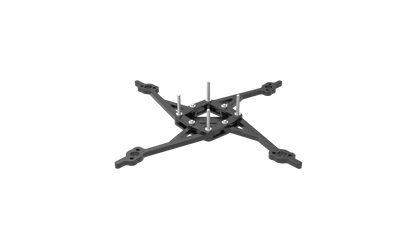

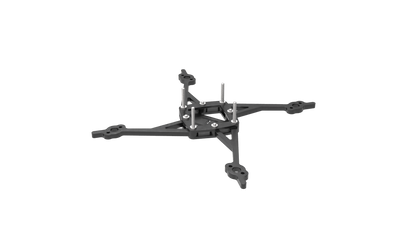

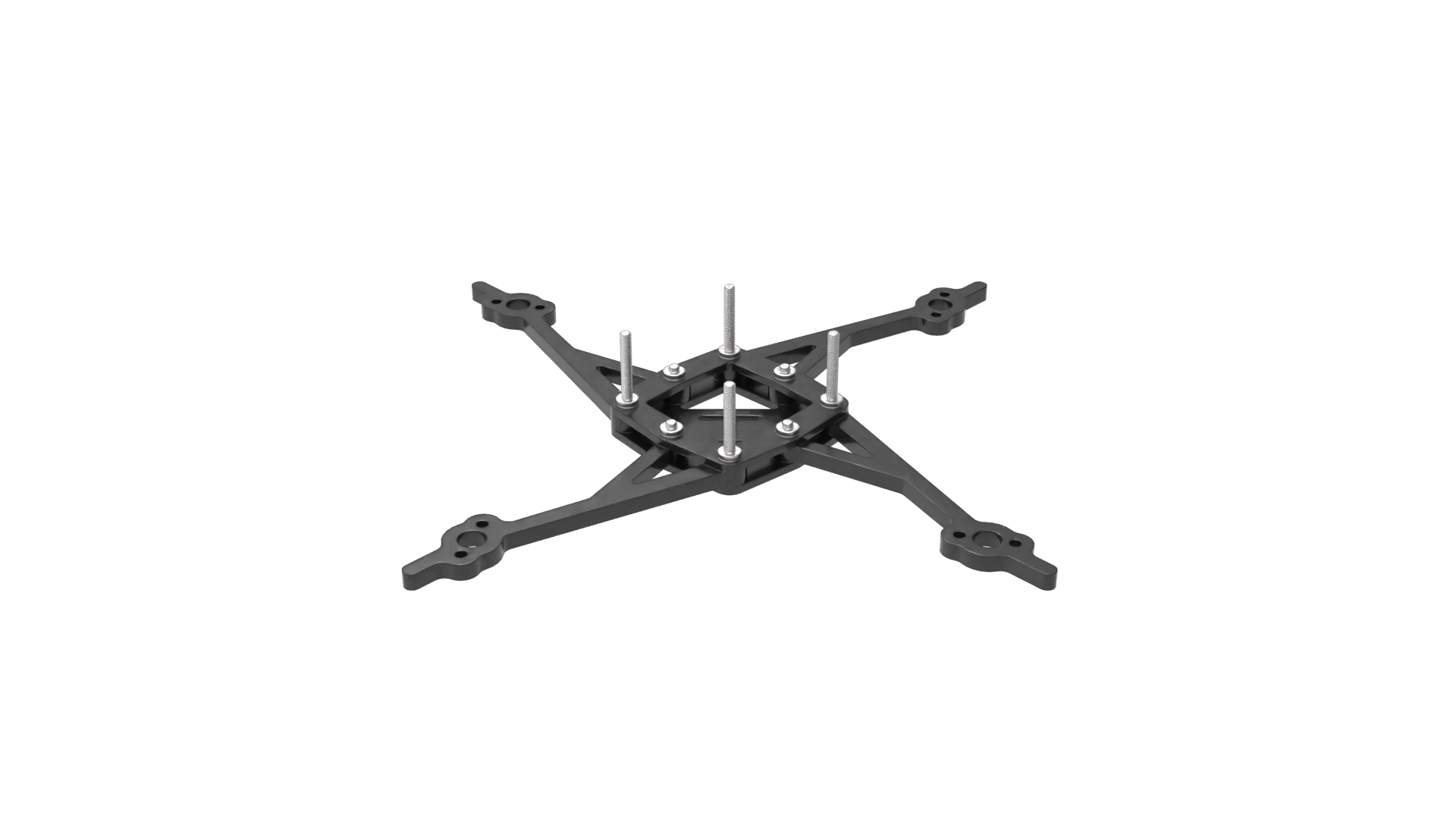

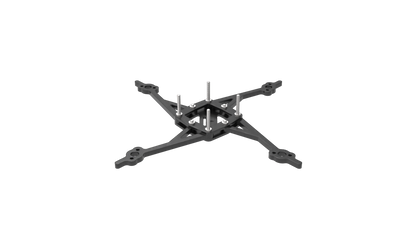

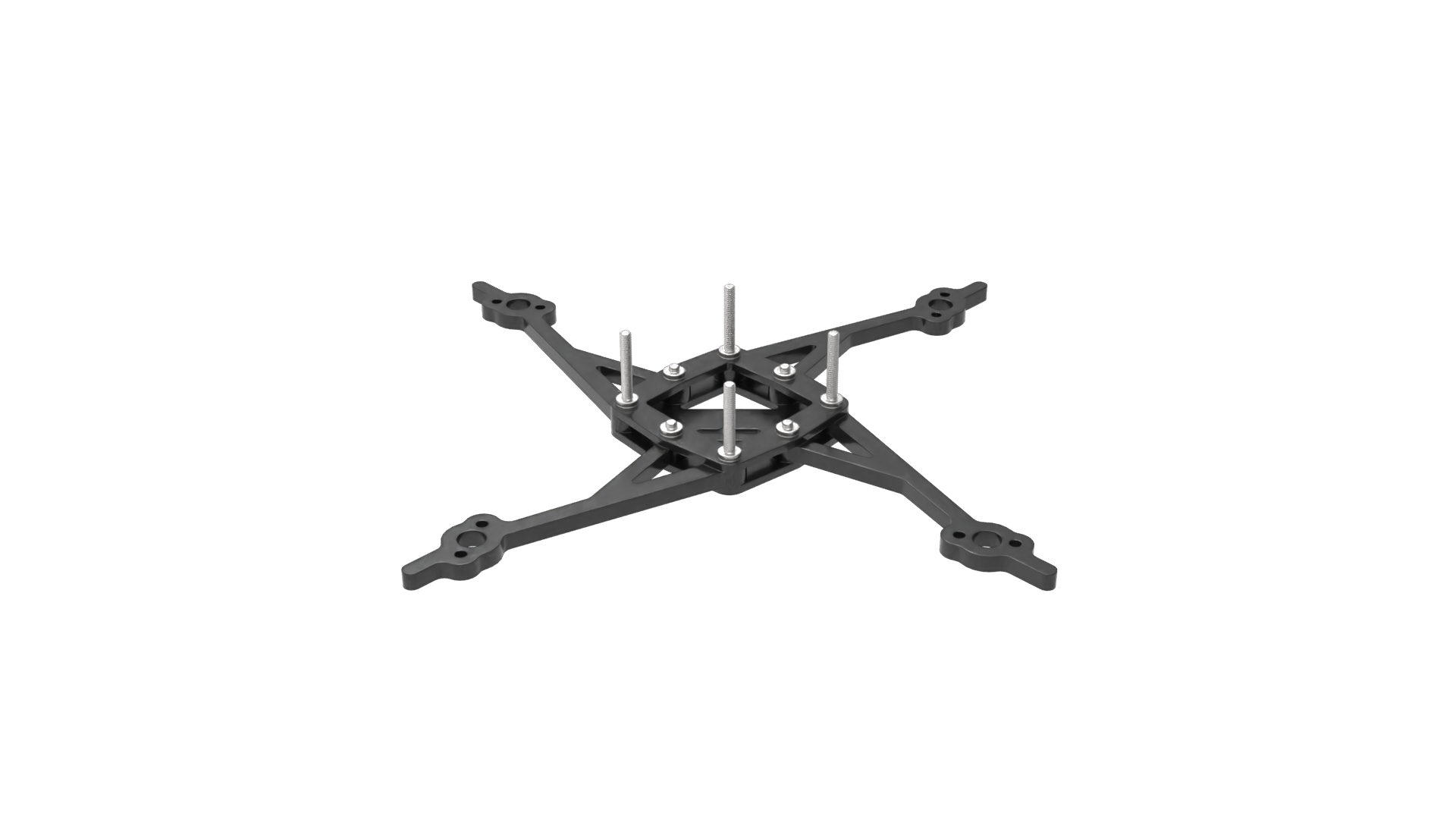

AOS T3 Toothpick Drone Frame
Ready to take your freestyle flight to new heights, the AOS T3 3-inch toothpick frame is an evolution in design that redefines responsive, ultralight flying. Crafted for nimble moves and smooth control, it's all about stability and precision for pilots who want more fluidity and less vibration. With optimized carbon fiber components, flexible camera support, and innovative truss arm technology, the AOS T3 is perfect for quiet agility, efficient energy use, and easy handling—even in intense freestyle scenarios.
Key Features:
Enhanced Carbon Fiber Plates
The AOS T3's 1.5mm carbon fiber top and bottom plates are crafted for maximum strength-to-weight efficiency. Precision-cut slots in the bottom plate make it easy to secure a 15mm wide battery strap, keeping your battery firmly in place. The frame offers stack mounting for 25.5x25.5mm and 20x20mm, with pressnuts holding everything stable even in high-stress impacts.
Truss-Structured Arms
Each arm on the AOS T3 features an innovative truss design with a stabilizing strut, creating torsional stiffness that drastically reduces vibration—a significant improvement over traditional toothpick frames. Motor protectors cap each arm, and when the time comes for maintenance, replacing an arm is as simple as removing two screws.
Camera Compatibility
The AOS T3 is designed to fit both 14mm Nano and 19mm Micro FPV cameras, compatible with both 25.5x25.5mm and 20x20mm toothpick canopies. This flexibility makes it ideal for pilots seeking high adaptability and excellent field of view options.
Technical Specifications:
- Propellers : Supports 3" bi-blade props
- Motors : Compatible with 1204 or 1303 motors (9mm mount pattern)
- Battery : Optimized for 3S 300-450mAh LiPos
- Stack Mounting : Options for 25.5x25.5mm and 20x20mm M2 mounts
- Camera : Fits 14mm Nano or 19mm Micro cameras with compatible canopies
- VTX Support : Compatible with Caddx Vista and HDZero Whoop (TX5S.1) VTX
In the Box:
- AOS T3 3" Toothpick Frame Kit
- Carbon Fiber Top and Bottom Plates
- Truss-structured Arms with Motor Protectors
-
Battery Strap Mounting Hardware
(Accessories may vary based on availability)
