AOS HS5 FPV Frame - Unleash Unmatched Speed and Precision
Ready to push the boundaries of high-speed FPV flying? The AOS HS5 is engineered to leave others in the dust, clocking jaw-dropping speeds of over 200 mph (320 kph). With its aerodynamic design and a massive 155° field of view, you'll capture every frame in stunning clarity, making it a top choice for pros and adrenaline-hungry hobbyists alike.
Key Features
- 155° FPV Field of View (FOV) : Get a crystal-clear, unobstructed view with no props in sight, fully compatible with DJI O3, including support for ND filters.
- Advanced Aerodynamics : Engineered with CFD-optimized shells and tail fins for smoother flight, prop spinners to cut motor drag, and enhanced overall stability at high speeds.
- Easy Build : Room for all your components in the streamlined front shell, including Camera, VTX, Receiver, Antennas, and your electronics stack.
- Battery Swap in Seconds : The rear shell is dedicated solely to the battery, making it effortless to change packs without disrupting your electronics, with easy access to USB ports for flight controller and VTX.
Specifications:
- Prop Size : Supports up to 6" (Recommend APC 5.25")
- Electronics : Compatible with 30.5 mm stacks
- Camera : 155° FOV, no props visible, supports 19-20 mm cameras
- Battery Compatibility : 6S 1800mAh (90 x 40 x 55 mm)
- Motor Mounting : ⌀16-⌀19mm, 2808 1950KV recommended
- VTX : Works with both Digital and Analog VTX systems
In the Box:

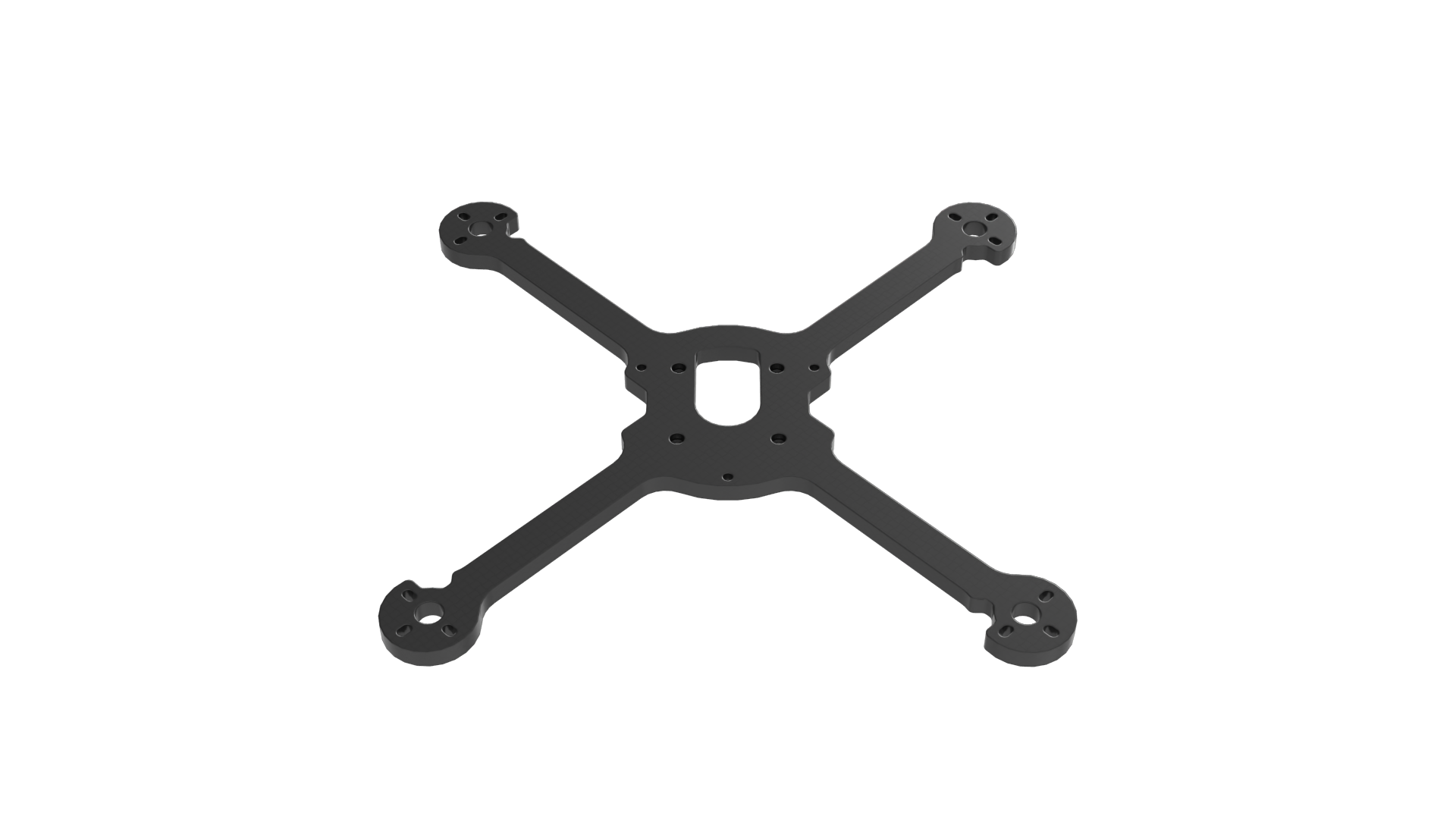

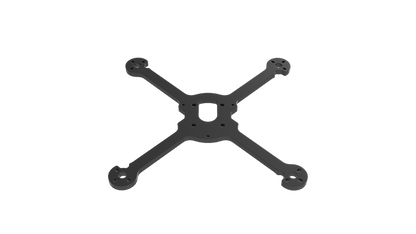

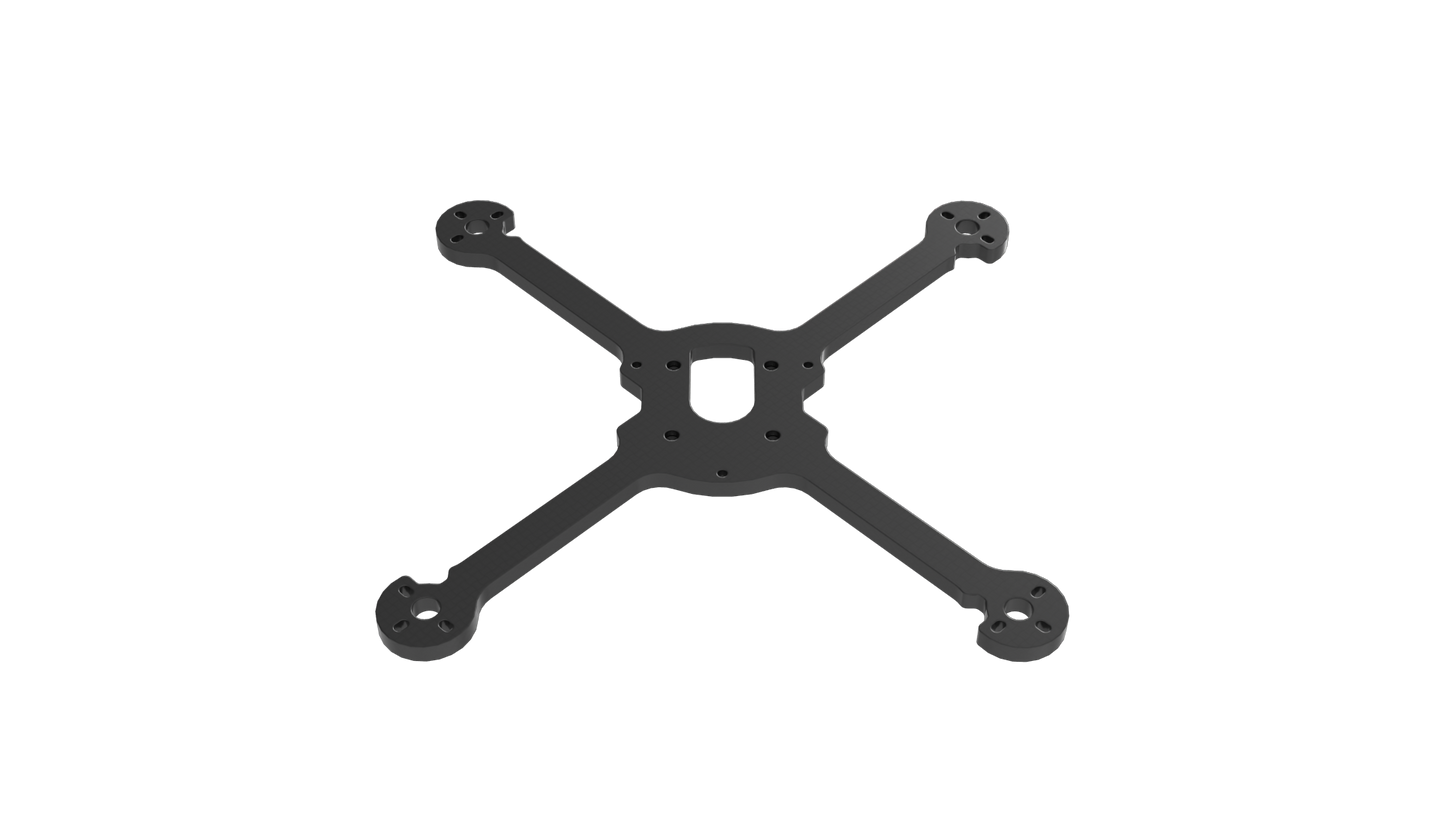

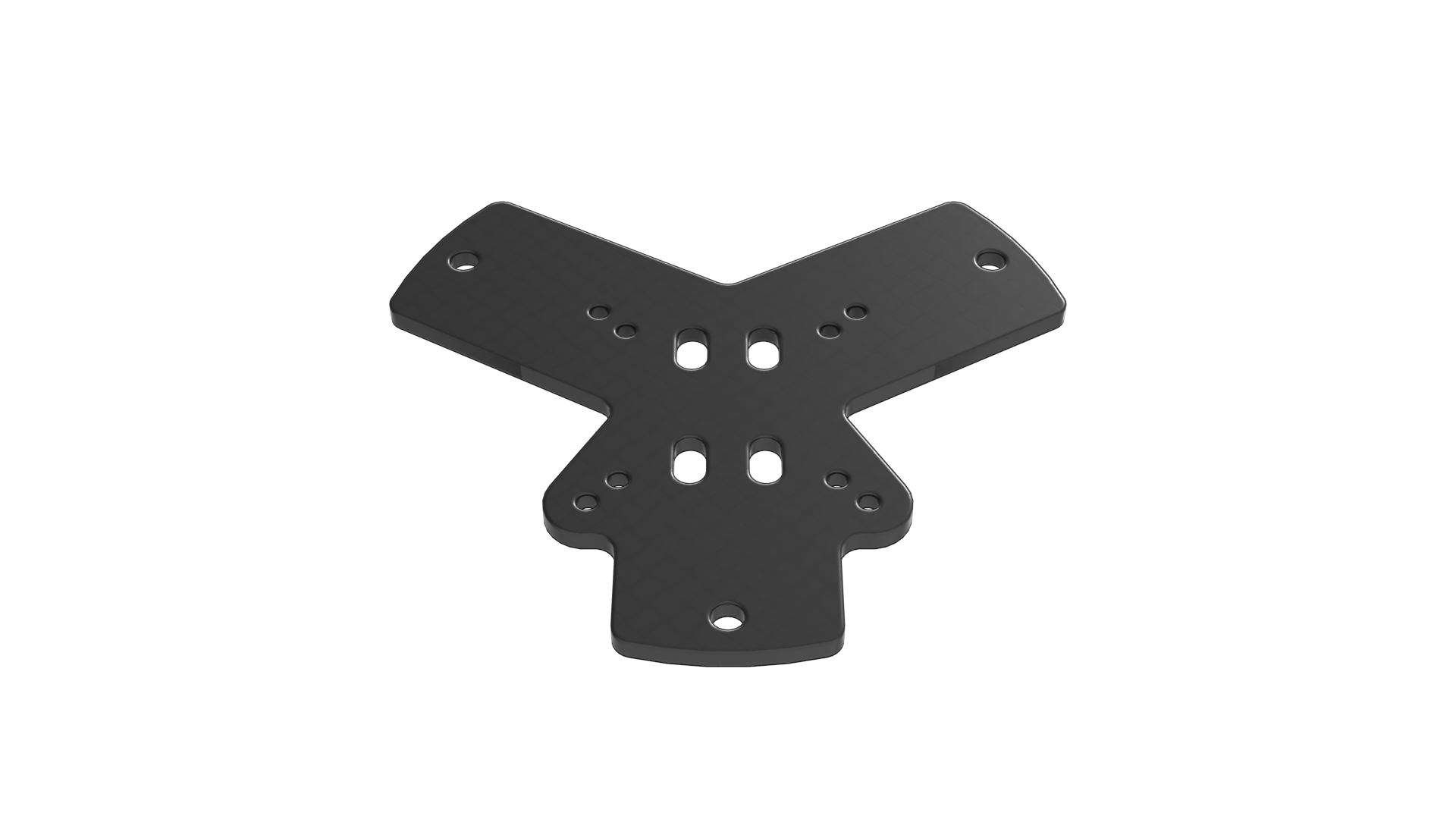

- 1x AOS HS5 FPV Frame Kit (this includes all the carbon plates and hardware need build the frame)
- Disclaimer : Accessories may vary depending on stock availability.
Disclaimer:
Accessories and included components may vary based on stock availability.
Please note, this kit does not contain any of the 3D prints required to complete this build!
Please note, the 3D print files for this drone are not available for download!
