Product Details
Power up your projects with confidence using our high-quality MR30 Connectors . Engineered for reliability and performance, these connectors are an essential component for any RC enthusiast, drone builder, or electronics hobbyist working with Lipo batteries, ESCs, and motors.
Featuring gold-plated brass contacts , the MR30 connector ensures excellent conductivity, minimal signal loss, and superior corrosion resistance. The robust PA66 insulation material provides high-temperature resistance and durability, boasting a UL94V-0 flame retardant rating for added safety.
These compact and lightweight connectors are designed to handle demanding applications, supporting a continuous current of 30A (for up to 30 minutes) and a peak instantaneous current of 40A (for up to 1 minute). With an impressively low original internal resistance of 0.8MΩ (and only 0.85MΩ after 500 uses), you can count on efficient power transfer. Designed for a long machine life of 3000 cycles , these connectors are built to last. Ideal for use with 18AWG cable, they are easy to solder, ensuring a secure and lasting connection for your power systems.
Whether you're looking for a reliable battery connector , ESC connector , or a general-purpose high current plug , the MR30 is an excellent choice.
Key Features & Benefits:
- Superior Conductivity: Gold-plated brass for low resistance and efficient power flow.
- High Current Capability: Handles 30A continuous and 40A peak current.
- Durable Construction: PA66 insulation (UL94V-0) and designed for 3000 connection cycles.
- Low Internal Resistance: Maintains excellent performance over its lifespan.
- Lightweight & Compact: Ideal for space-sensitive applications like drones and RC models.
- Easy to Use: Recommended for 18AWG cable and simple soldering.
Specifications:
- Connector Type: MR30
- Body Material: Brass
- Surface Plating: Gold Plated
- Insulation Material: PA66
- Original Internal Resistance: 0.8MΩ
- 500 Times Internal Resistance: 0.85MΩ
- Max. Continuous Current: 30A (within 30 minutes)
- Max. Instantaneous Current: 40A (within 1 minute)
- Recommended Cable Spec: 18AWG (approx. 2.8mm diameter)
- Recommended Soldering Temp/Time: 400°C / 3S
- Weight: 1.2g/piece
- Insulation Degree: UL94V-0
- Machine Life: 3000 Times
What's in the Box:

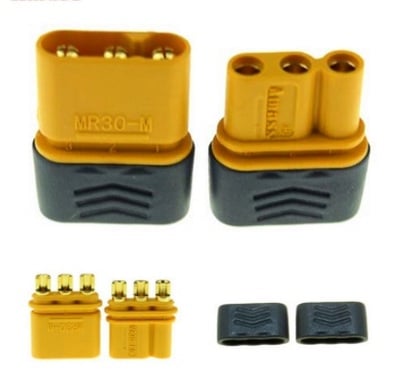

- 1x Pair of MR30 Male and Female connectors. (e.g., 1x MR30 Male, 1x MR30 Female).
Disclaimer: The exact number of connectors and any included accessories (such as heat shrink tubing, if offered) can vary based on regional supply, packaging updates, and the specific product variant purchased. Please check the specific product listing details for contents.
